Medium-Duty Cantilever Racking

- - - -

Description
Model Chart
PDF's
Image Gallery

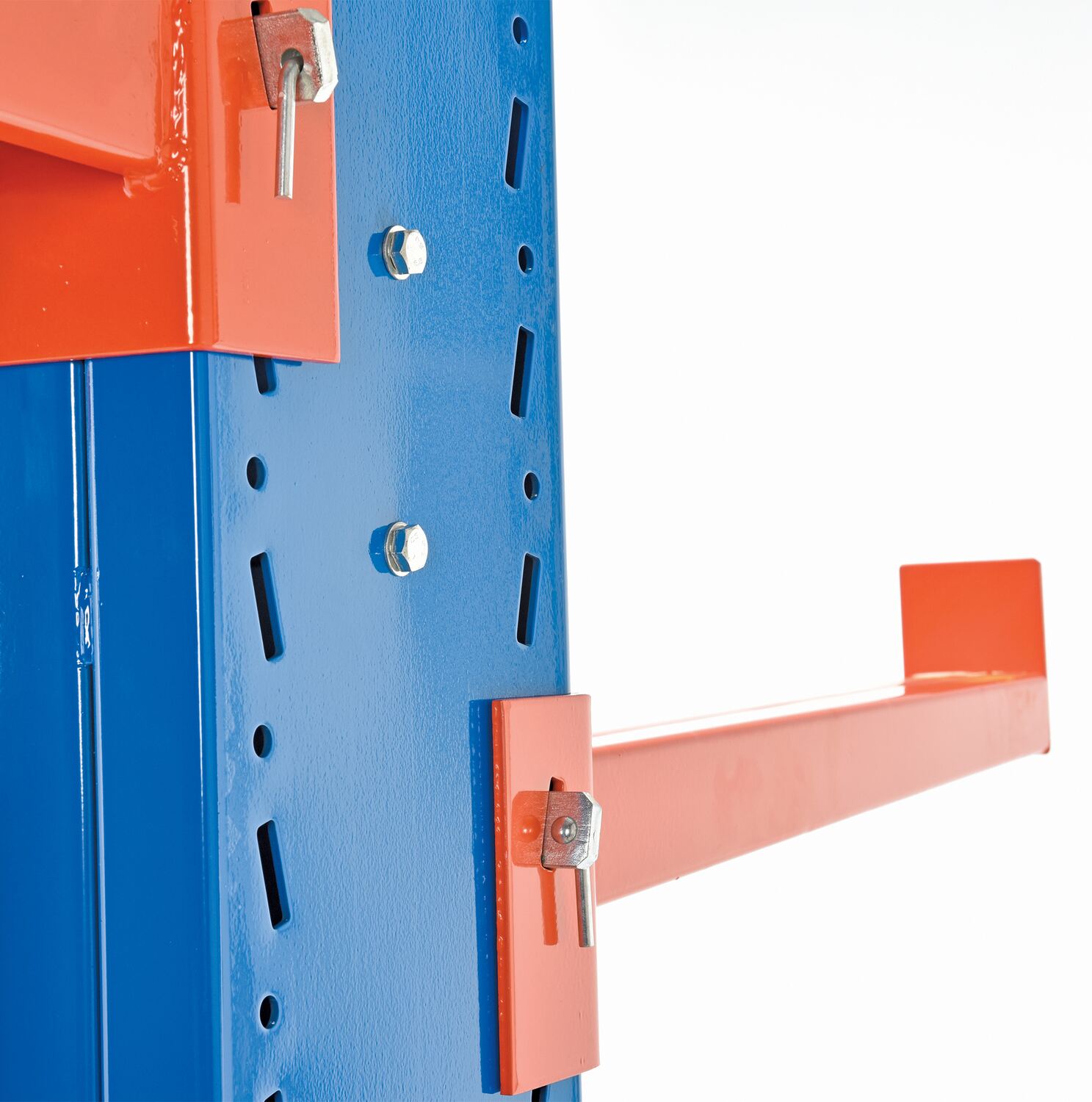

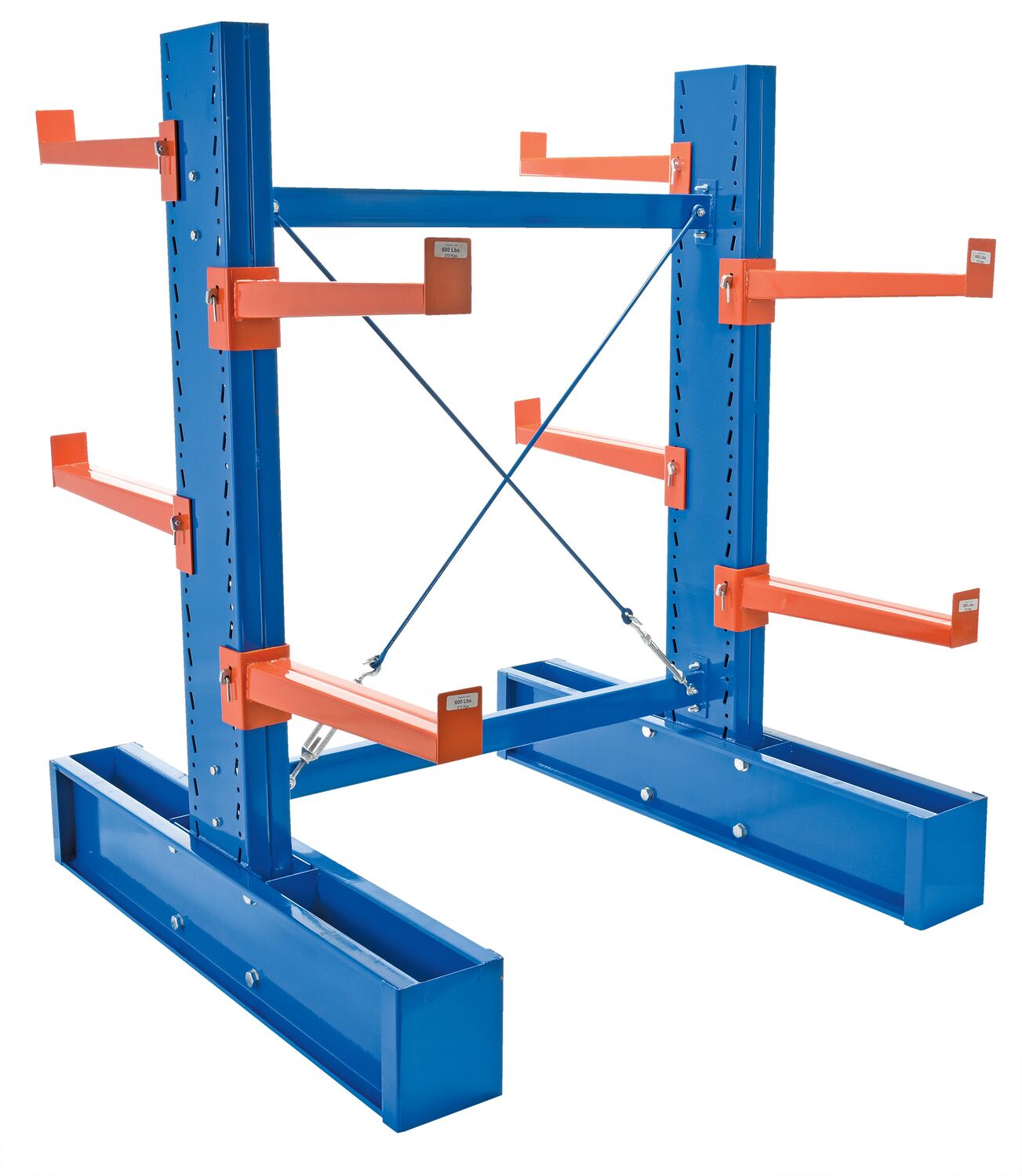

MDU-C-6-36-SET_A.jpg MDU-C-6-36-SET_B.jpg MDU-C-6-36-SET_C.jpg

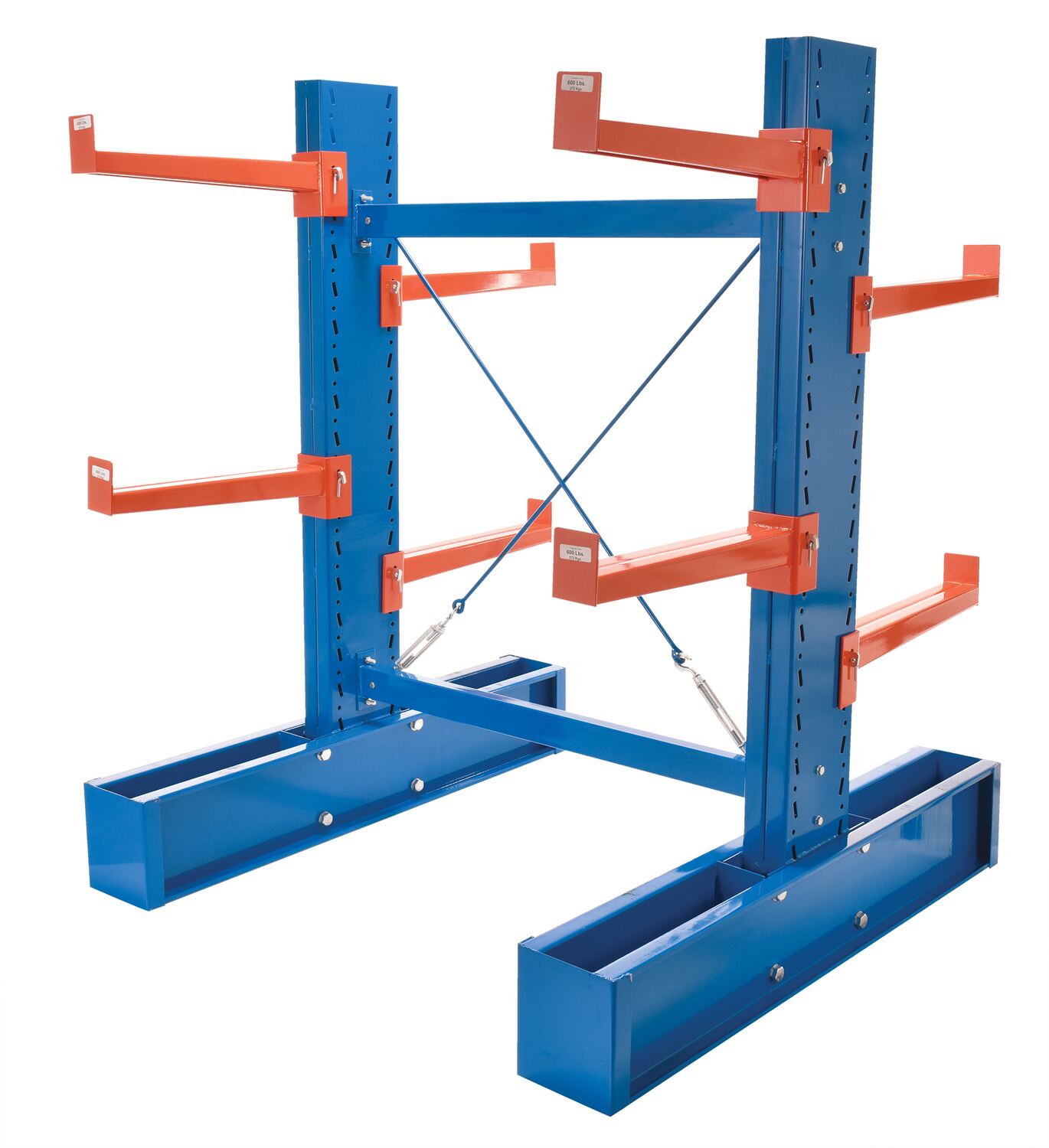

Medium-Duty Cantilever Racking

model: MDU-C-6-36-SET



Medium-Duty Cantilever Racking

model: MDU-C-6-36-SET

Featured Storage Solutions


Pallet Rack Sump

Wire Containers

Stainless Steel Shelving

Reel Racks

Pallet Rack Shelf Divider

Aluminum Carrying Case

Plastic Work Benches

Slab Transport Rack

Economical Material Racks
model chart

Print Friendly
Medium-Duty Cantilever Racking
SERIES: MU,MDU

Medium-Duty Cantilever Racks are ideal for manual loading; open design affords easy forklift accessibility. Store bar stock, pipe, tubing, lumber and other light hard-to-stock items that must be kept off the floor. Arms are adjustable up and down the full length of the upright. To adjust align arms with pre-drilled holes and secure with key lock. All arms feature lips to prevent product from falling off. Uprights are sold separately, not in pairs. Custom rack systems can be designed for your special application. Capacity listed is per upright.

Check Out Vestil's Other Cantilever Racking:


Standard-Duty Cantilever Racking
Heavy-Duty Cantilever Racking
Cantilever Rack Kits

Medium-Duty Cantilever Racks are ideal for manual loading; open design affords easy forklift accessibility. Store bar stock, pipe, tubing, lumber and other light hard-to-stock items that must be kept off the floor. Arms are adjustable up and down the full length of the upright. To adjust align arms with pre-drilled holes and secure with key lock. All arms feature lips to prevent product from falling off. Uprights are sold separately, not in pairs. Custom rack systems can be designed for your special application. Capacity listed is per upright.

Check Out Vestil's Other Cantilever Racking:


Standard-Duty Cantilever Racking
Heavy-Duty Cantilever Racking
Cantilever Rack Kits

Other Cantilever Racking

 Medium-Duty Cantilever Racking Galvanized Cantilever Rack Kits Heavy-Duty Cantilever Racking Standard-Duty Cantilever Racking

Additional Models In This Family
view entire Image Gallery

MDU-C-10-18

MDU-C-10-18

MDU-C-10-12

MDU-C-10-12

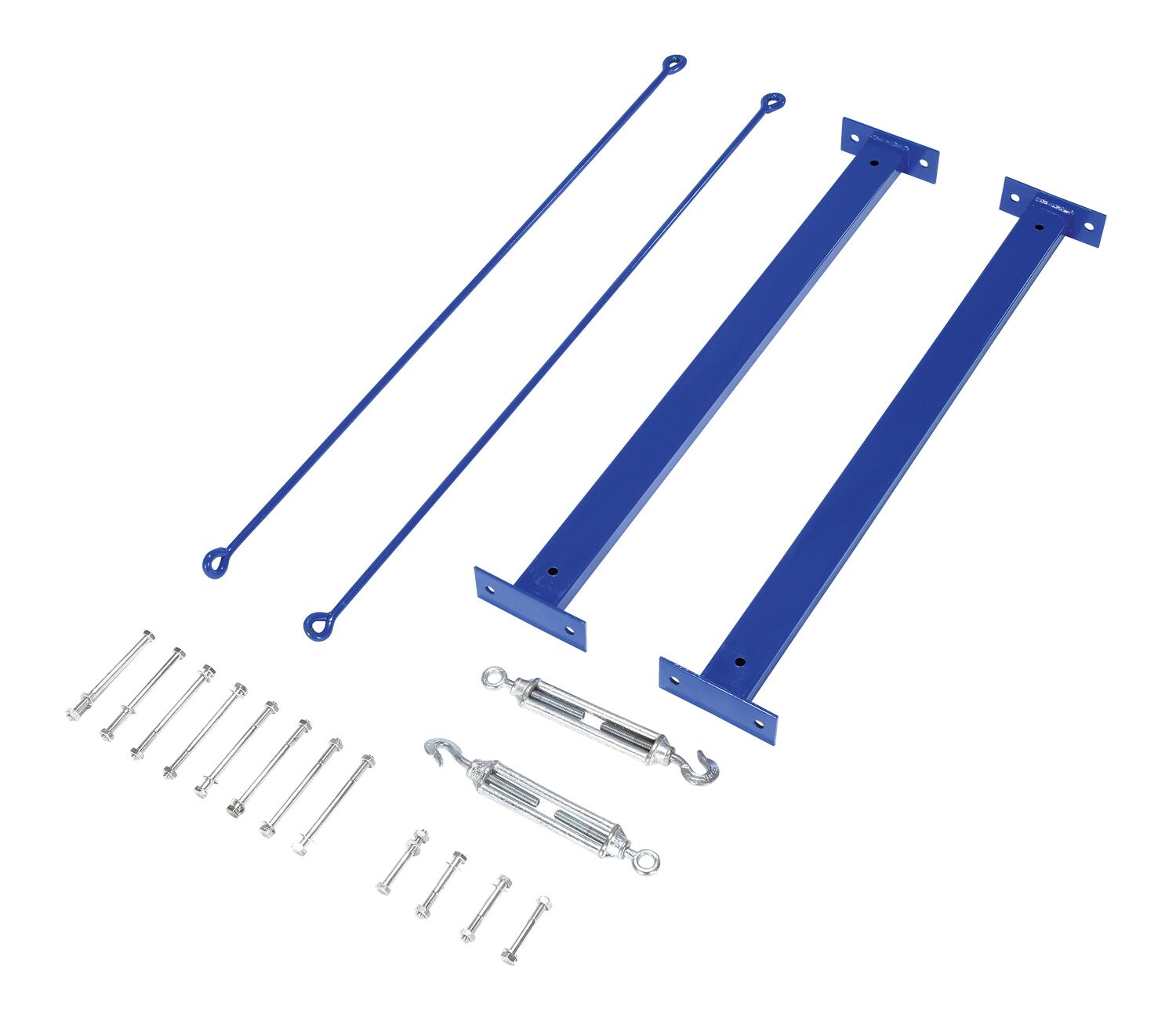

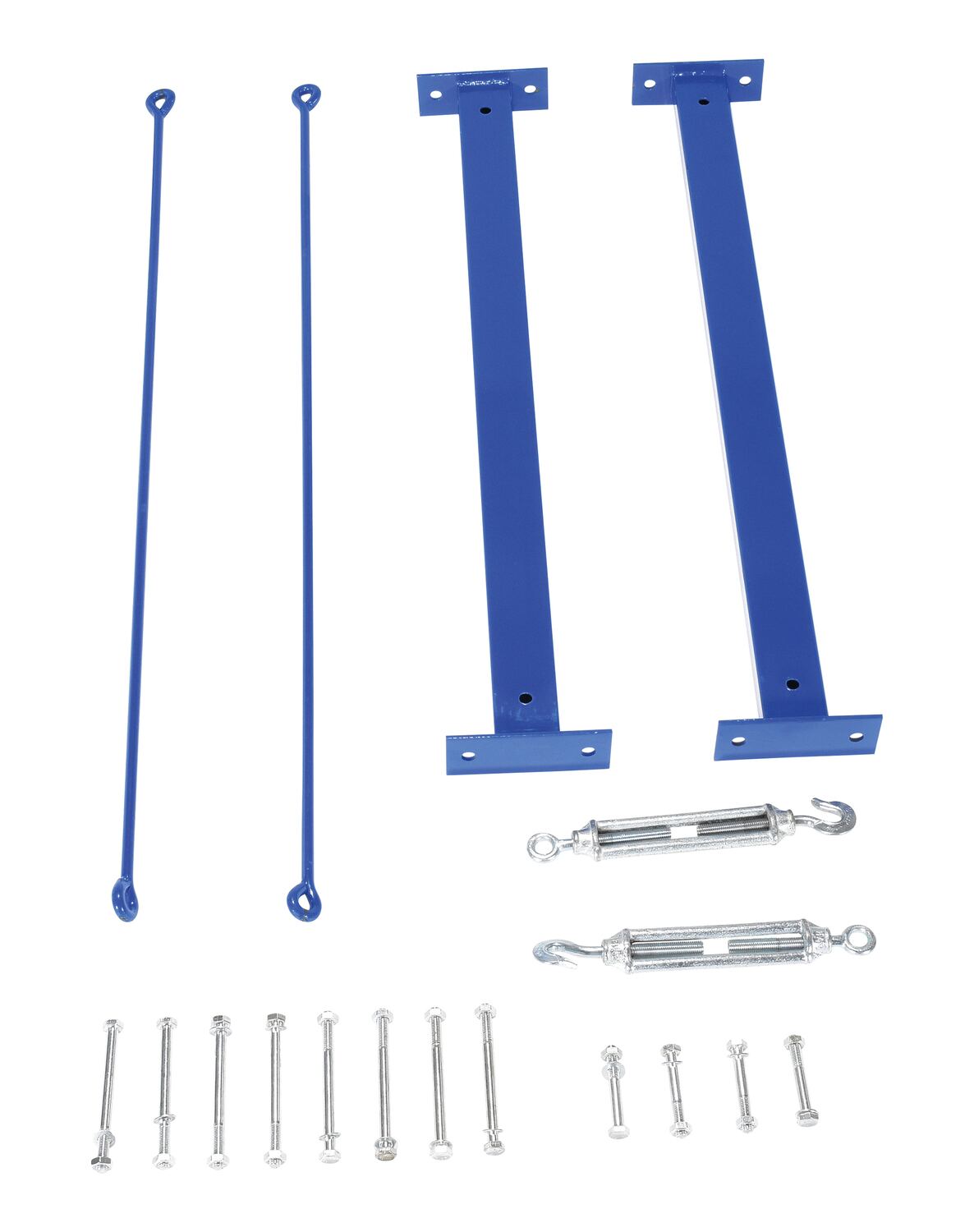

MB-C-6-36

MB-C-6-36

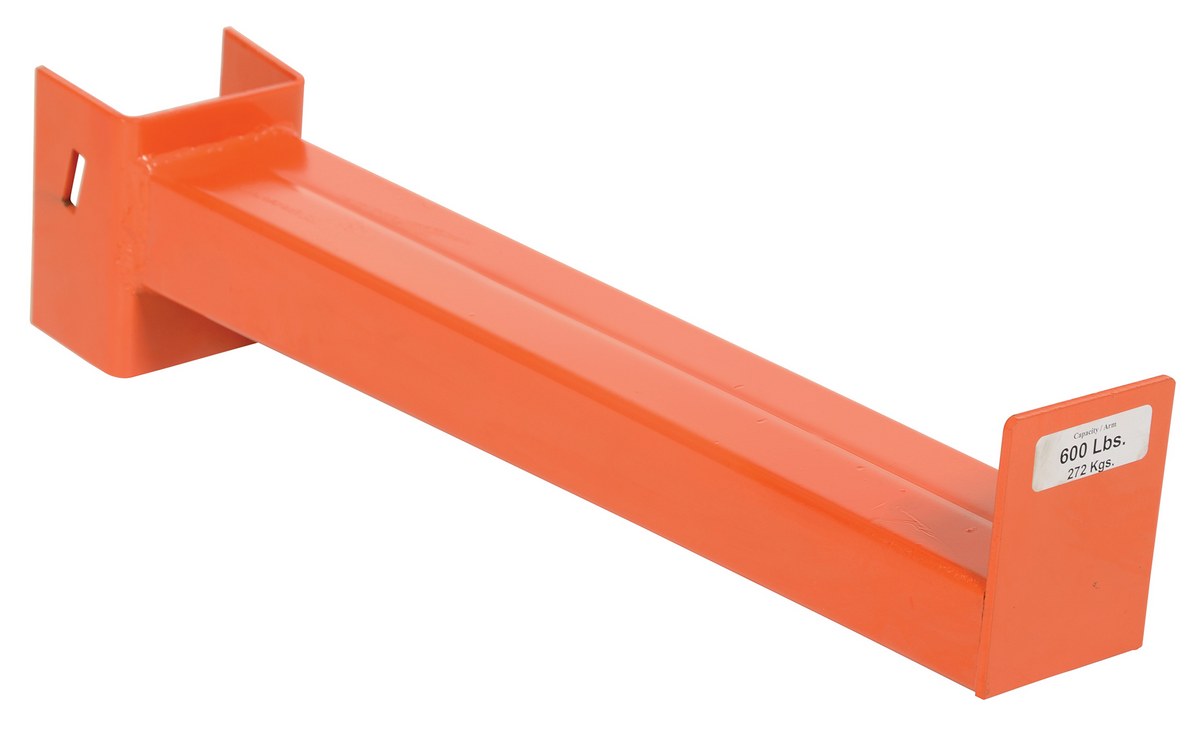

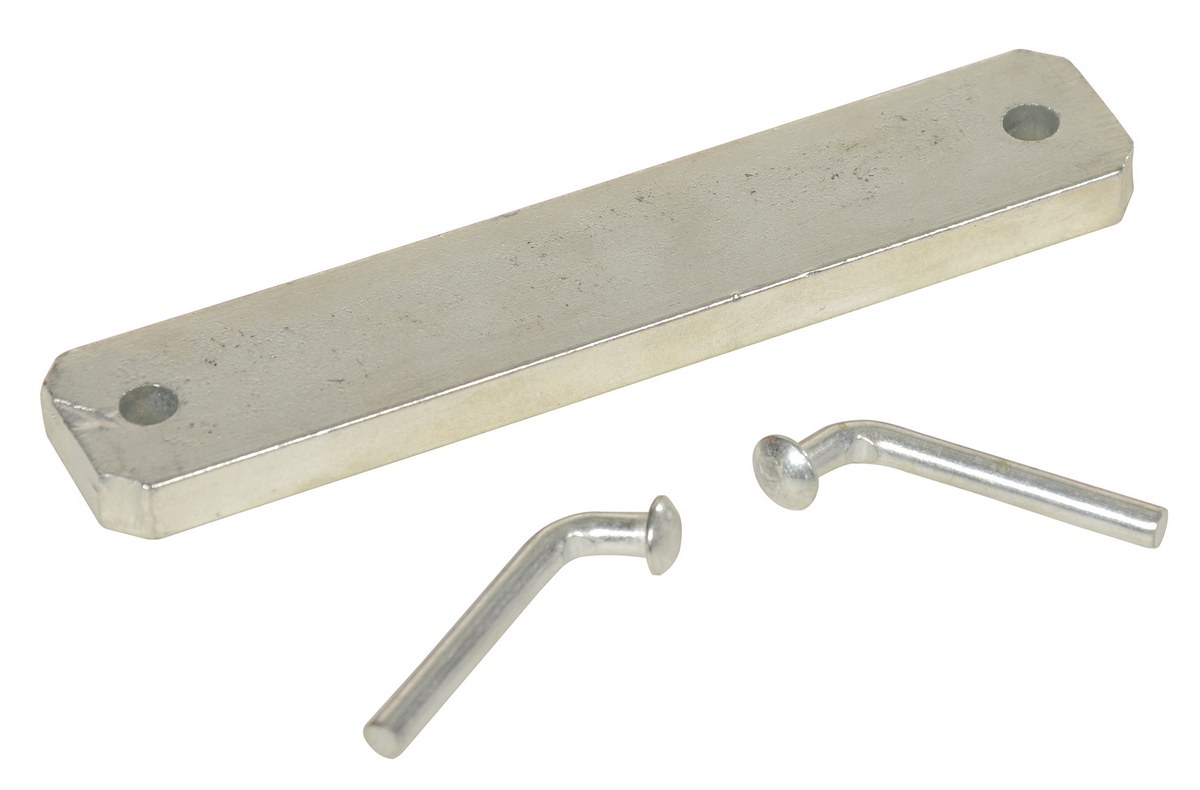

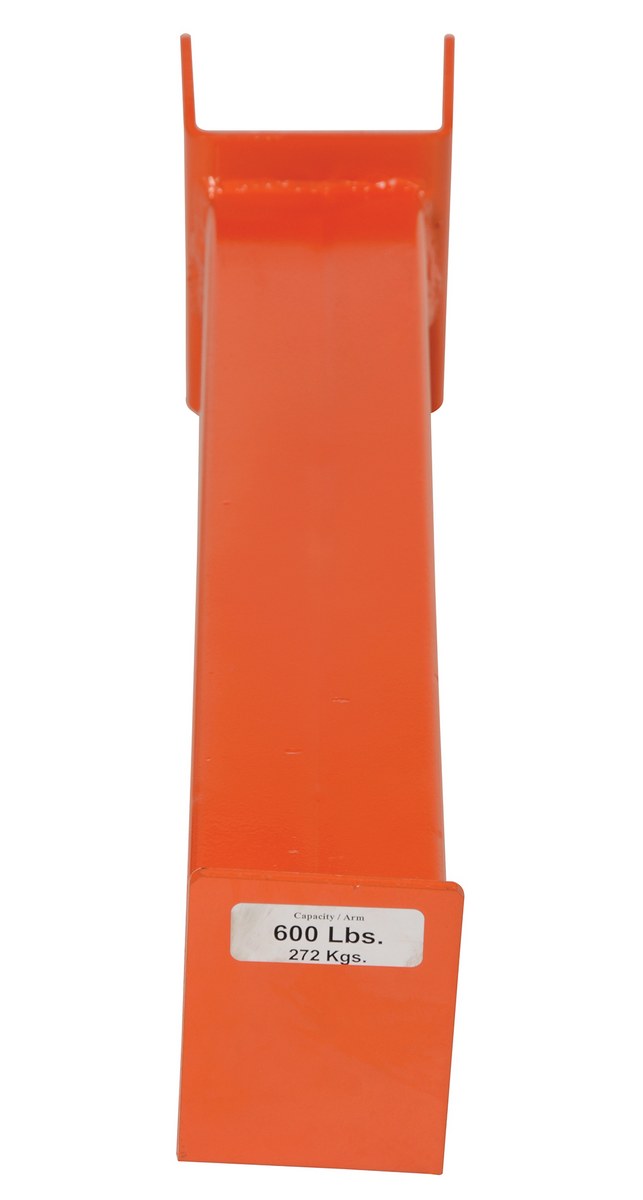

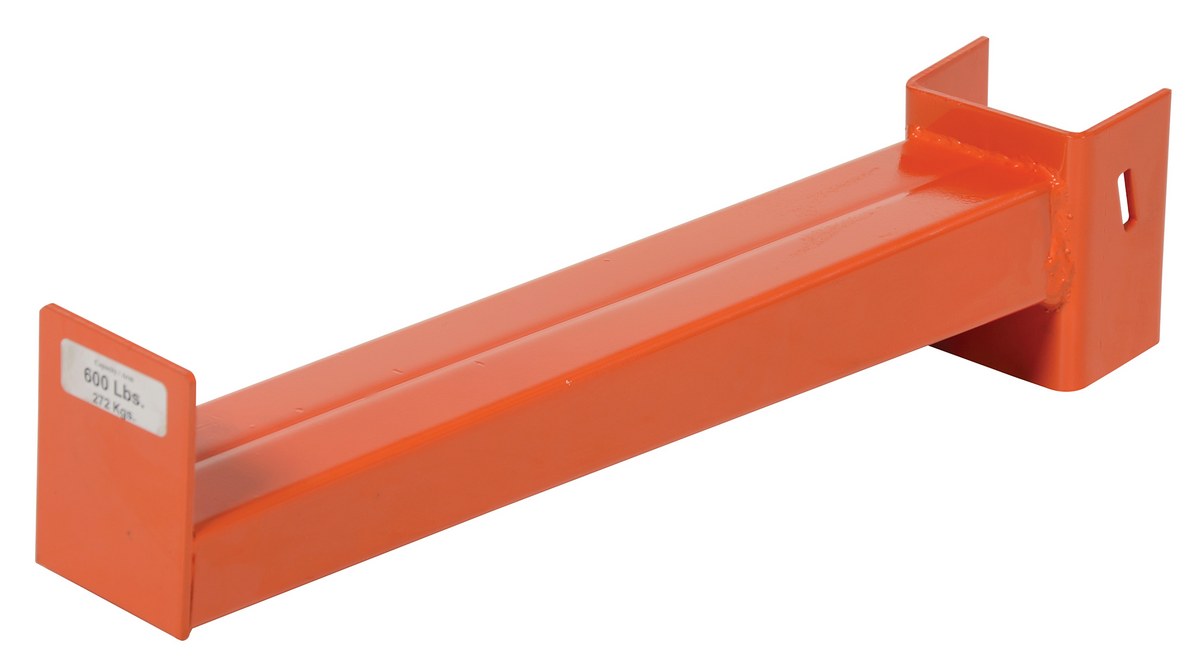

MIA-C-24

MIA-C-24

MIA-C-24

MIA-C-24

MIA-C-18

MIA-C-18

MDU-C-6-24

MDU-C-6-24

MU-C-6-24

MU-C-6-24

MIA-C-24

MIA-C-24

MU-C-10-24

MU-C-10-24

MDU-C-6-36

MDU-C-6-36

MIA-C-18

MIA-C-18

MB-C-8-36

MB-C-8-36

MU-C-10-12

MU-C-10-12

MDU-C-6-24

MDU-C-6-24

model chart
Table Search, not an entire site search.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

MU-C-10-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 5,000
Component: Single-Sided Upright
Uniform Capacity Per Upright (lb.): 5,000
Component: Single-Sided Upright

MB-C-10-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 10
Component: Brace Set
Fits Upright (ft.): 10

MB-C-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 6
Component: Brace Set
Fits Upright (ft.): 6

MB-C-8-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Fits Upright (ft.): 8
Component: Brace Set
Fits Upright (ft.): 8

MDU-C-10-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 14,200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 14,200
Component: Double-Sided Upright

MDU-C-10-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 11,800
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 11,800
Component: Double-Sided Upright

MDU-C-10-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 10,000
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 10,000
Component: Double-Sided Upright

MDU-C-10-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 8,800 or 7,600
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 8,800 or 7,600
Component: Double-Sided Upright

MDU-C-6-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 16,200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 16,200
Component: Double-Sided Upright

MDU-C-6-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 13,200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 13,200
Component: Double-Sided Upright

MDU-C-6-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 11,000
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 11,000
Component: Double-Sided Upright

MDU-C-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 9,400 or 8,200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 9,400 or 8,200
Component: Double-Sided Upright

MIA-C-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1000
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 1000
Component: Incline Arm

MIA-C-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 750
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 750
Component: Incline Arm

MIA-C-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 600
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 600
Component: Incline Arm

MIA-C-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 500
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 500
Component: Incline Arm

MIA-C-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 400
Component: Incline Arm
Uniform Capacity Per Arm (lb.): 400
Component: Incline Arm

MSA-C-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm

MSA-C-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 500
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 500
Component: Straight Arm

MSA-C-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 400
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 400
Component: Straight Arm

MU-C-10-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 7,100
Component: Single-Sided Upright
Uniform Capacity Per Upright (lb.): 7,100
Component: Single-Sided Upright

MU-C-6-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 8,100
Component: Single-Sided Upright
Uniform Capacity Per Upright (lb.): 8,100
Component: Single-Sided Upright

MU-C-6-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 5,500
Component: Single-Sided Upright
Uniform Capacity Per Upright (lb.): 5,500
Component: Single-Sided Upright
Medium-Duty Cantilever Racking PDF's will open in a new window when clicked.

Manuals


MDU
Owners Manual

MU-C
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


MU-C-10-24

Testing Certificates


MB-C-10-36

MB-C-6-36

MB-C-8-36

MDU-C-10-12

MDU-C-10-18

MDU-C-10-24

MDU-C-10-36

MDU-C-6-12

MDU-C-6-18

MDU-C-6-24

MDU-C-6-36

MIA-C-12

MIA-C-18

MIA-C-24

MIA-C-30

MIA-C-36

MSA-C-12

MSA-C-30

MSA-C-36

MU-C-10-12

MU-C-10-24

MU-C-6-12

MU-C-6-24

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What type of paint is used on the racking? We'd like to use it outdoors

A: The powder used for the cantilever racking is not suitable for outdoor use.

Q: Is the hardware for the cantilever racking metric?

A: Yes, the hardware for the cantilever racking is metric.

Q: What is the height of the lip?

A: Lip height is 3-1/8" usable height.




Related or Similar Products:

Standard-Duty Cantilever Racking
Product

Standard-Duty Cantilever Racking

Galvanized Cantilever Rack Kits
Product

Galvanized Cantilever Rack Kits

Cantilever Rack Kits
Product

Cantilever Rack Kits

Heavy-Duty Cantilever Racking
Product

Heavy-Duty Cantilever Racking

Cantilever Carts
Product

Cantilever Carts

Carton Flow Racks
Product

Carton Flow Racks





Medium-Duty Cantilever Racking




Medium-Duty Cantilever Racks are ideal for manual loading; open design affords easy forklift accessibility. Store bar stock, pipe, tubing, lumber and other light hard-to-stock items that must be kept off the floor. Arms are adjustable up and down the full length of the upright. To adjust align arms with pre-drilled holes and secure with key lock. All arms feature lips to prevent product from falling off. Uprights are sold separately, not in pairs. Custom rack systems can be designed for your special application. Capacity listed is per upright.

Check Out Vestil's Other Cantilever Racking:


Standard-Duty Cantilever Racking
Heavy-Duty Cantilever Racking
Cantilever Rack Kits

Model # Description Attributes Net Wt.
(lbs)

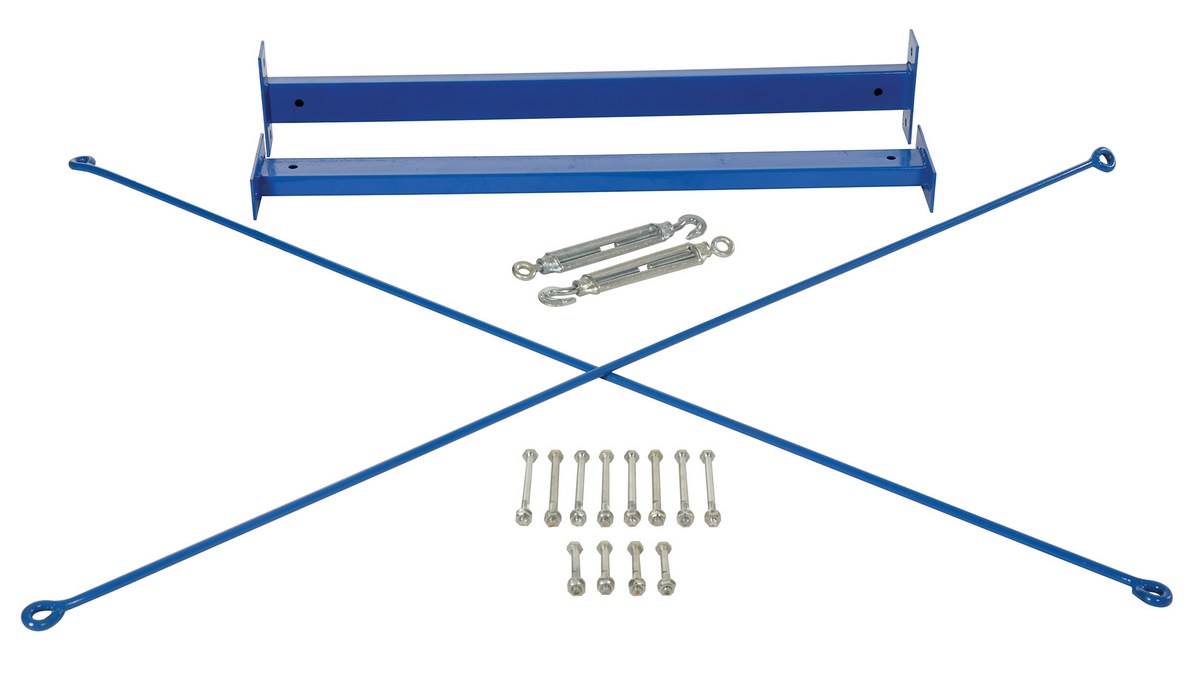

MB-C-10-36 MB-C-10-36Steel Medium Duty Cantilever Brace Set 36 In. x 35 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10		30

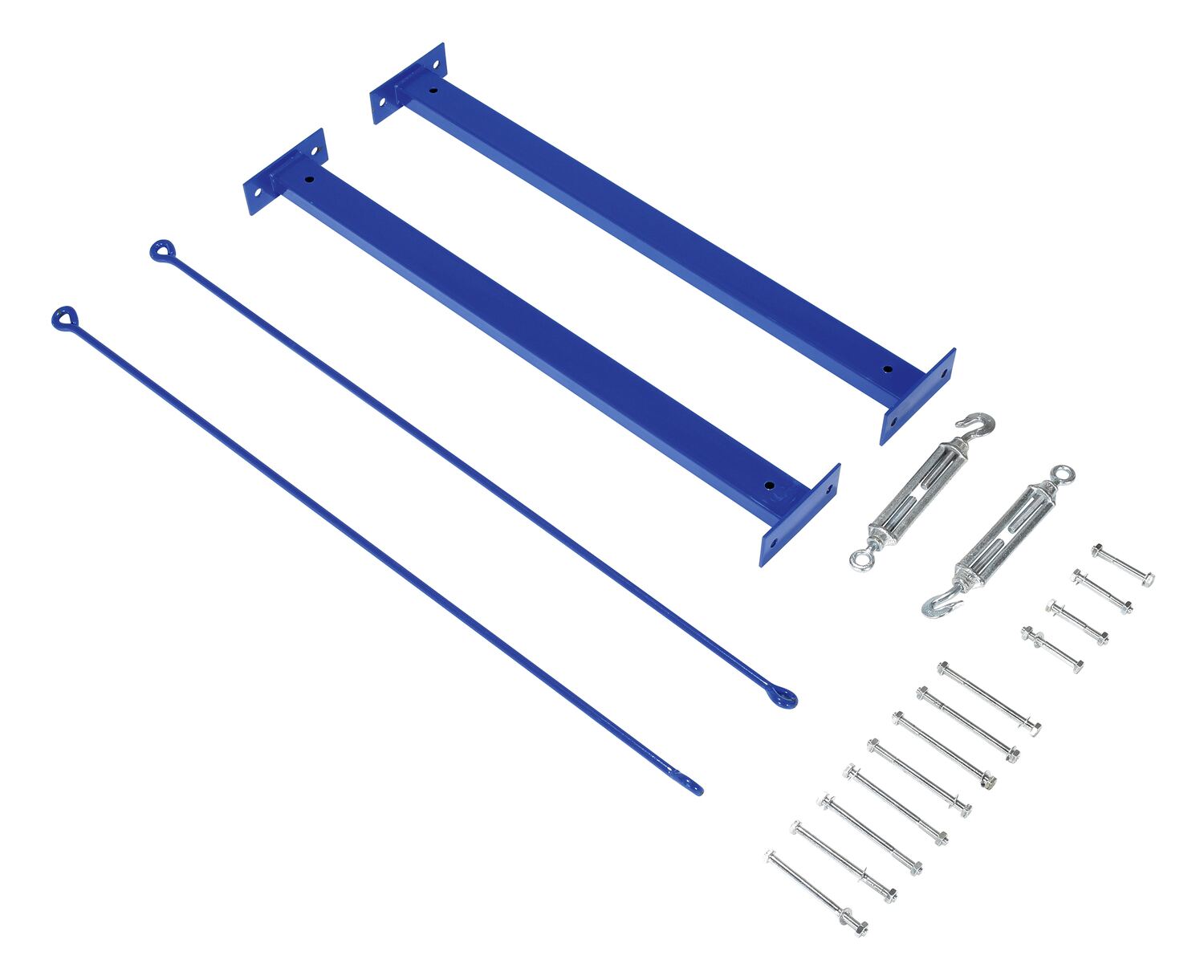

MB-C-6-36 MB-C-6-36Steel Medium Duty Cantilever Brace Set 35 In. x 35 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6		26

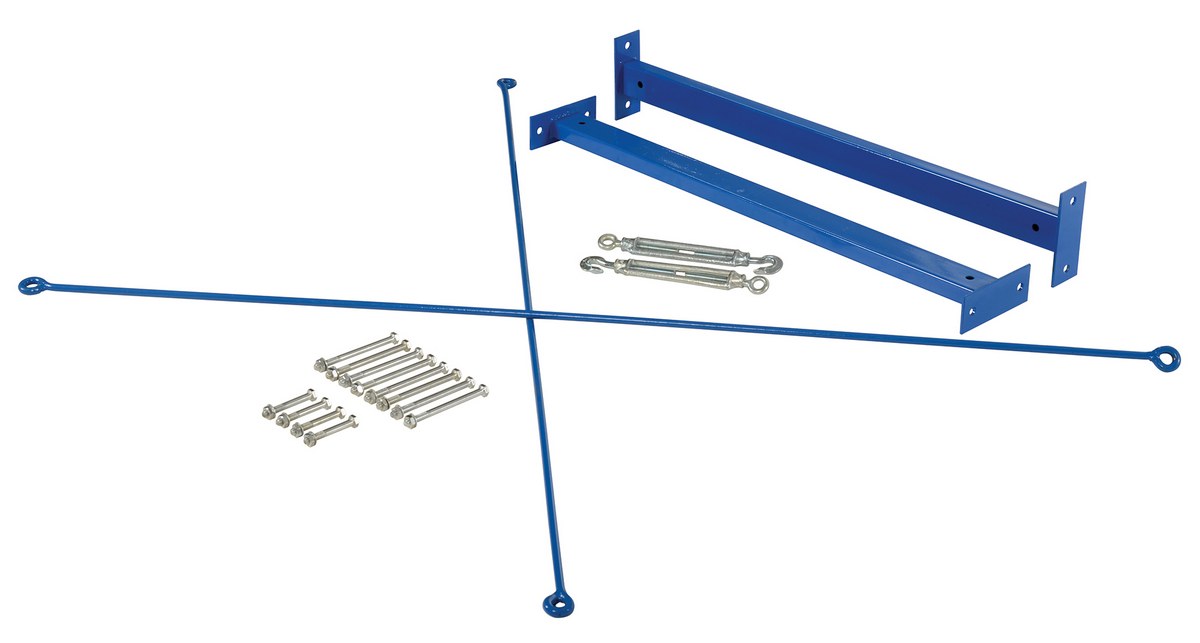

MB-C-8-36 MB-C-8-36Steel Medium Duty Cantilever Brace Set 36 In. x 35 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8		28
MDU-C-10-12 MDU-C-10-12Steel Medium Duty Double Sided Cantilever Upright for 12 In. Arms 14,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 14,200
Component: Double-Sided Upright		225
MDU-C-10-18 MDU-C-10-18Steel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 11,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 11,800
Component: Double-Sided Upright		236
MDU-C-10-24 MDU-C-10-24Steel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 10,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 10,000
Component: Double-Sided Upright		249
MDU-C-10-36 MDU-C-10-36Steel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 8,800 or 7,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 8,800 or 7,600
Component: Double-Sided Upright		270

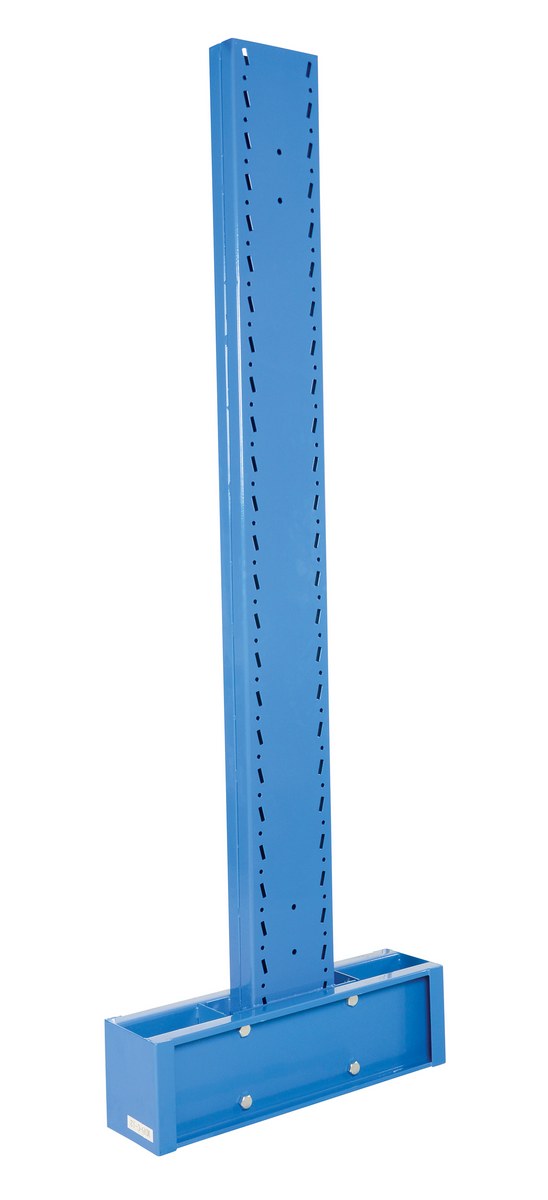

MDU-C-6-12 MDU-C-6-12Steel Medium Duty Double Sided Cantilever Upright for 12 in. Arms 16,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 16,200
Component: Double-Sided Upright		172
MDU-C-6-18 MDU-C-6-18Steel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 13,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 13,200
Component: Double-Sided Upright		183
MDU-C-6-24 MDU-C-6-24Steel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 11,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 11,000
Component: Double-Sided Upright		195
MDU-C-6-36 MDU-C-6-36Steel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 9,400 or 8,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9,400 or 8,200
Component: Double-Sided Upright		215
MIA-C-12 MIA-C-12Steel Medium Duty Cantilever 10 Degree Incline Arm 12 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1000
Component: Incline Arm		11

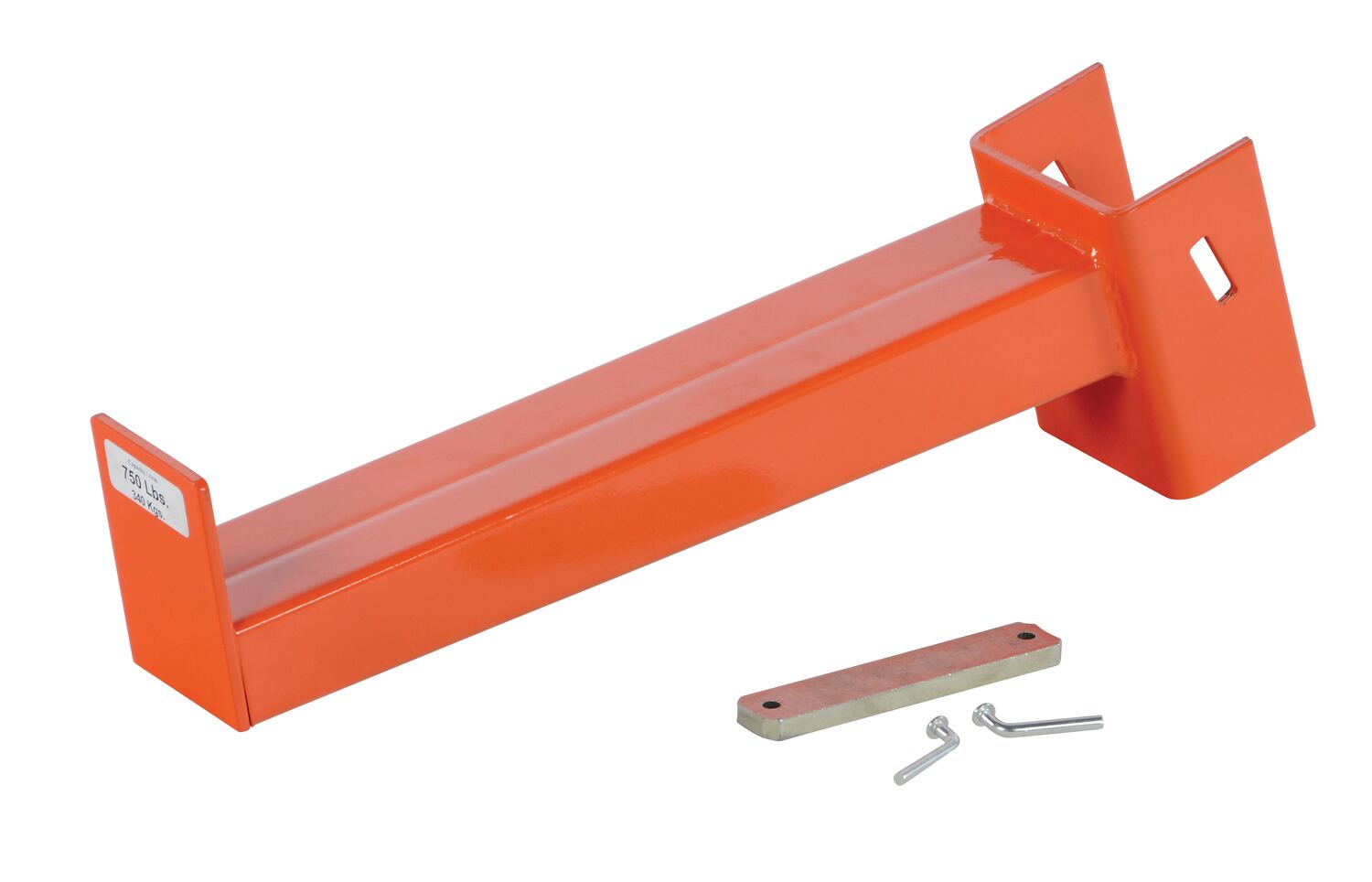

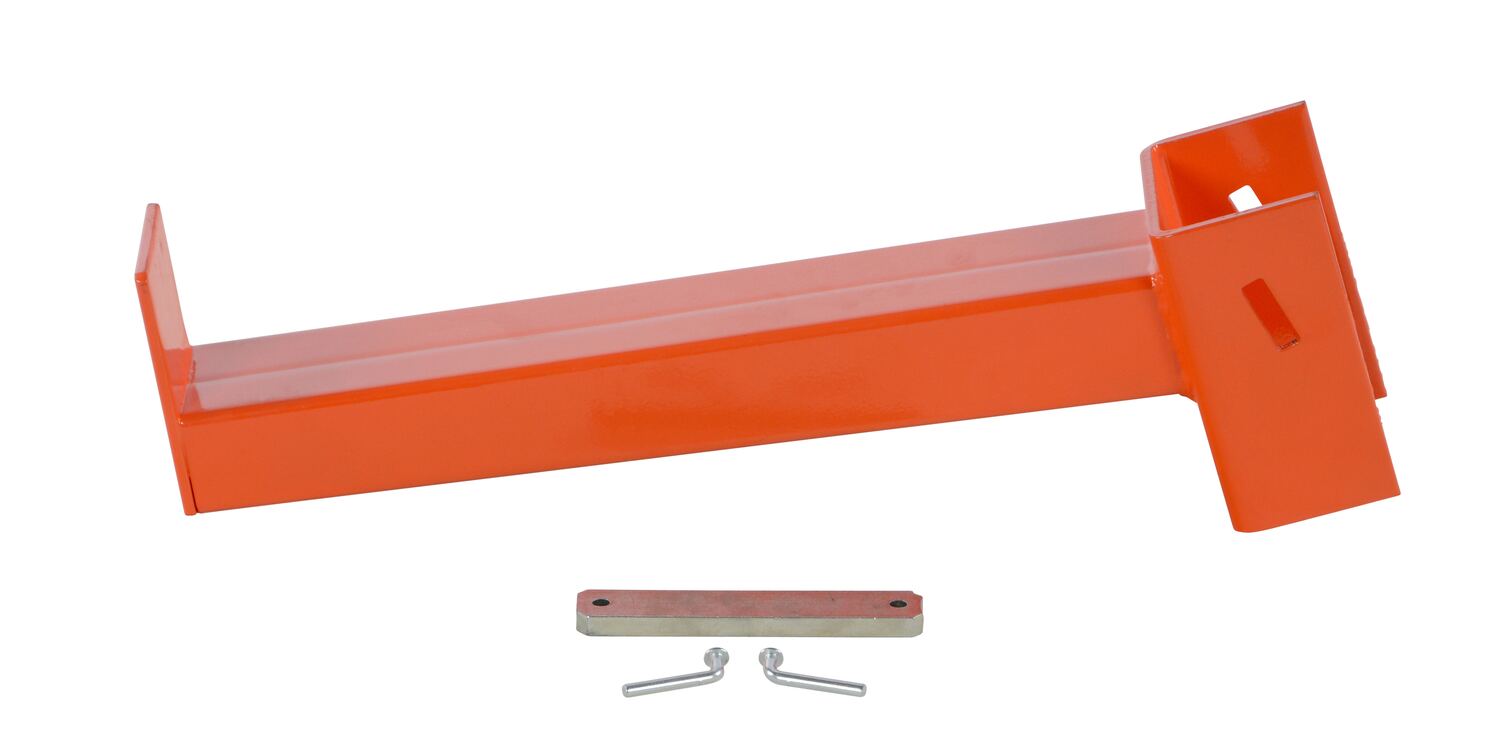

MIA-C-18 MIA-C-18Steel Medium Duty Cantilever 10 Degree Incline Arm 18 In. 750 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 750
Component: Incline Arm		13
MIA-C-24 MIA-C-24Steel Medium Duty Cantilever 10 Degree Incline Arm 24 In. 600 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 600
Component: Incline Arm		15
MIA-C-30 MIA-C-30Steel Medium Duty Cantilever 10 Degree Incline Arm 30 In. 500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 500
Component: Incline Arm		17
MIA-C-36 MIA-C-36Steel Medium Duty Cantilever 10 Degree Incline Arm 36 In. 400 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 400
Component: Incline Arm		21
MSA-C-12 MSA-C-12Steel Medium Duty Cantilever Racking Straight Arm 15 In. x 4.75 In. x 6 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm		10
MSA-C-30 MSA-C-30Steel Medium Duty Cantilever Racking Straight Arm 33 In. x 4.75 In. x 6 In. 500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 500
Component: Straight Arm		17

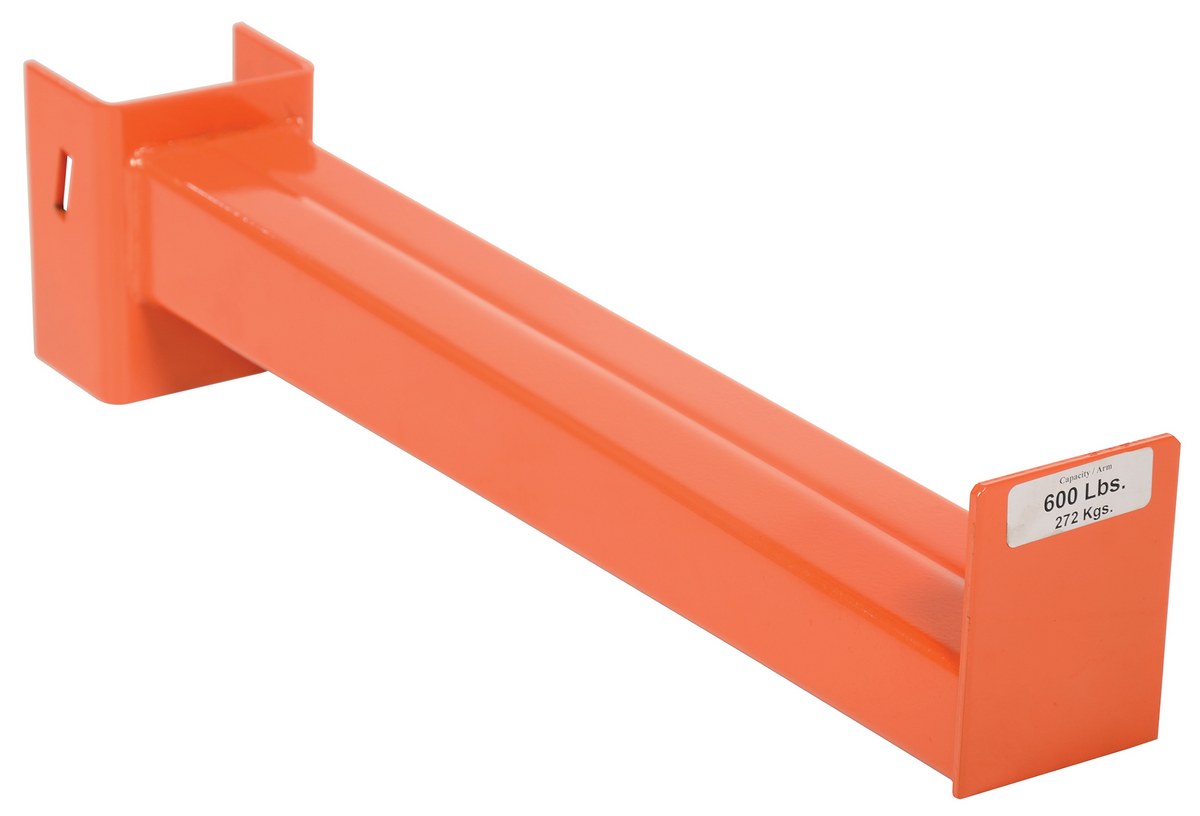

MSA-C-36 MSA-C-36Steel Medium Duty Cantilever Racking Straight Arm 39 In. x 4.75 In. x 6 In. 400 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 400
Component: Straight Arm		21
MU-C-10-12 MU-C-10-12Steel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 10 Ft. 7,100 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 7,100
Component: Single-Sided Upright		214
MU-C-10-24 MU-C-10-24Steel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 10 Ft. 5,000 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,000
Component: Single-Sided Upright		225

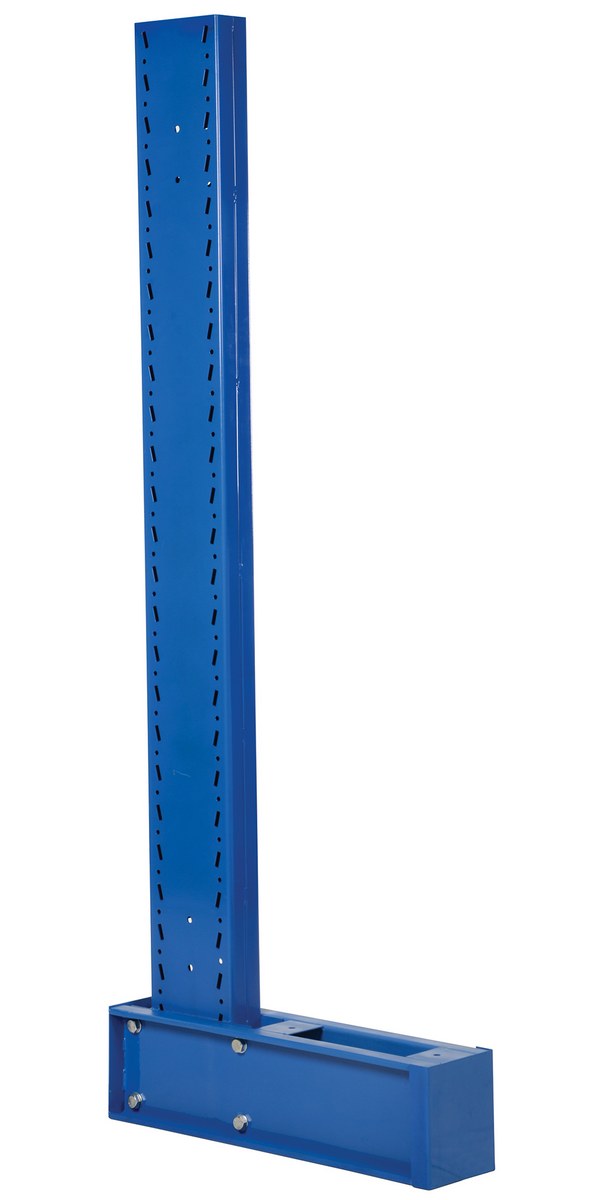

MU-C-6-12 MU-C-6-12Steel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 6 Ft. 8,100 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 8,100
Component: Single-Sided Upright		161
MU-C-6-24 MU-C-6-24Steel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 6 Ft. 5,500 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,500
Component: Single-Sided Upright		170

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
