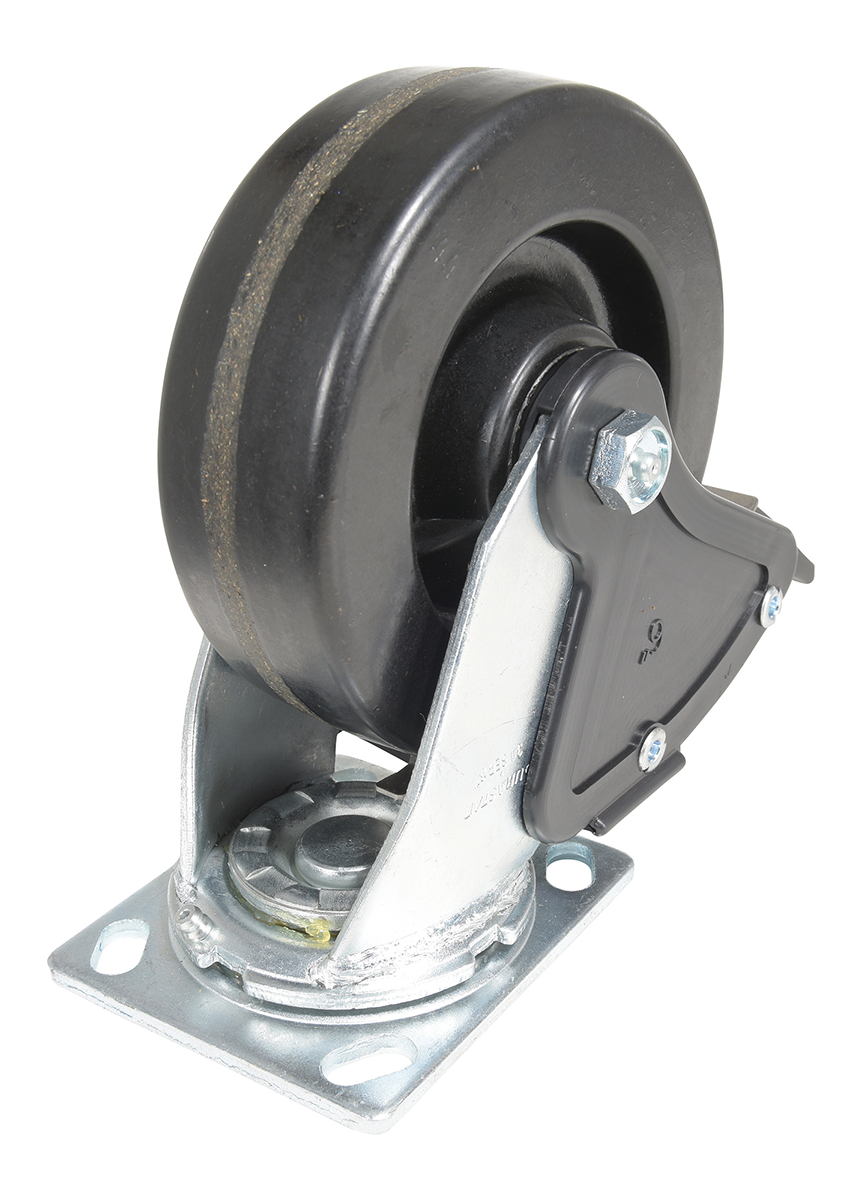

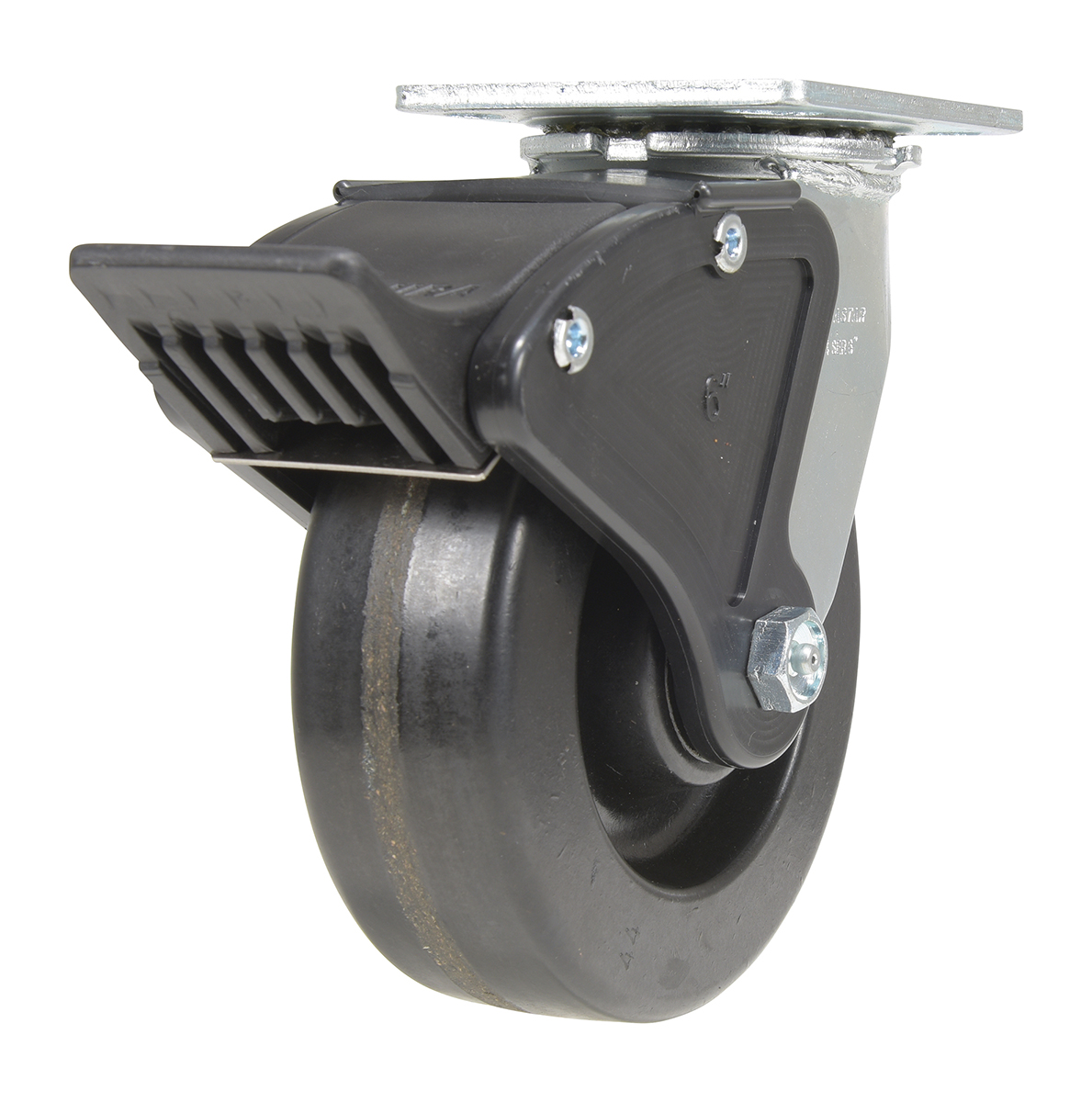

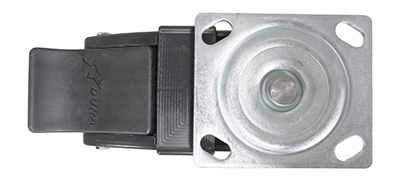

model: CST-VE-6X2PH-SWTB

Phenolic Casters

model: CST-VE-6X2PH-SWTB

Featured Casters & Wheels

Ductile Steel Casters

Polyurethane (DT Maroon) Casters

Nylon

TPR (Thermoplastic Rubber) Casters

Hard Rubber Casters

Upgraded Glass Filled Nylon, Light Duty (RX) Casters

Better Casters

Polyurethane Casters (Blue)

Solid Rubber Wheels

model chart

Print Friendly

Phenolic Casters

SERIES: CST-VE-PH

Phenolic wheels have a high resistance to impact damage, while providing protection for floors in commercial and industrial settings. Resistant to water, oil, and grease. It is also spark resistant and operates in a wide temperature range. Black tread color. Wheel core is phenolic. 100 Shore A.

RESISTANT TO MOST CHEMICALS
EASY ROLL PERFORMANCE
ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
HARDENED DOUBLE BALL RACEWAY
GREASE ZERK FITTINGS
ROLLER BEARINGS

Phenolic wheels have a high resistance to impact damage, while providing protection for floors in commercial and industrial settings. Resistant to water, oil, and grease. It is also spark resistant and operates in a wide temperature range. Black tread color. Wheel core is phenolic. 100 Shore A.

RESISTANT TO MOST CHEMICALS
EASY ROLL PERFORMANCE
ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
HARDENED DOUBLE BALL RACEWAY
GREASE ZERK FITTINGS
ROLLER BEARINGS

Other "Go-To" Casters

Polyurethane with Thread Guard Casters

Pneumatic Casters

Upgraded Kingpinless Glass Filled Nylon (RX) Casters

Polyurethane (Solid) Casters

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

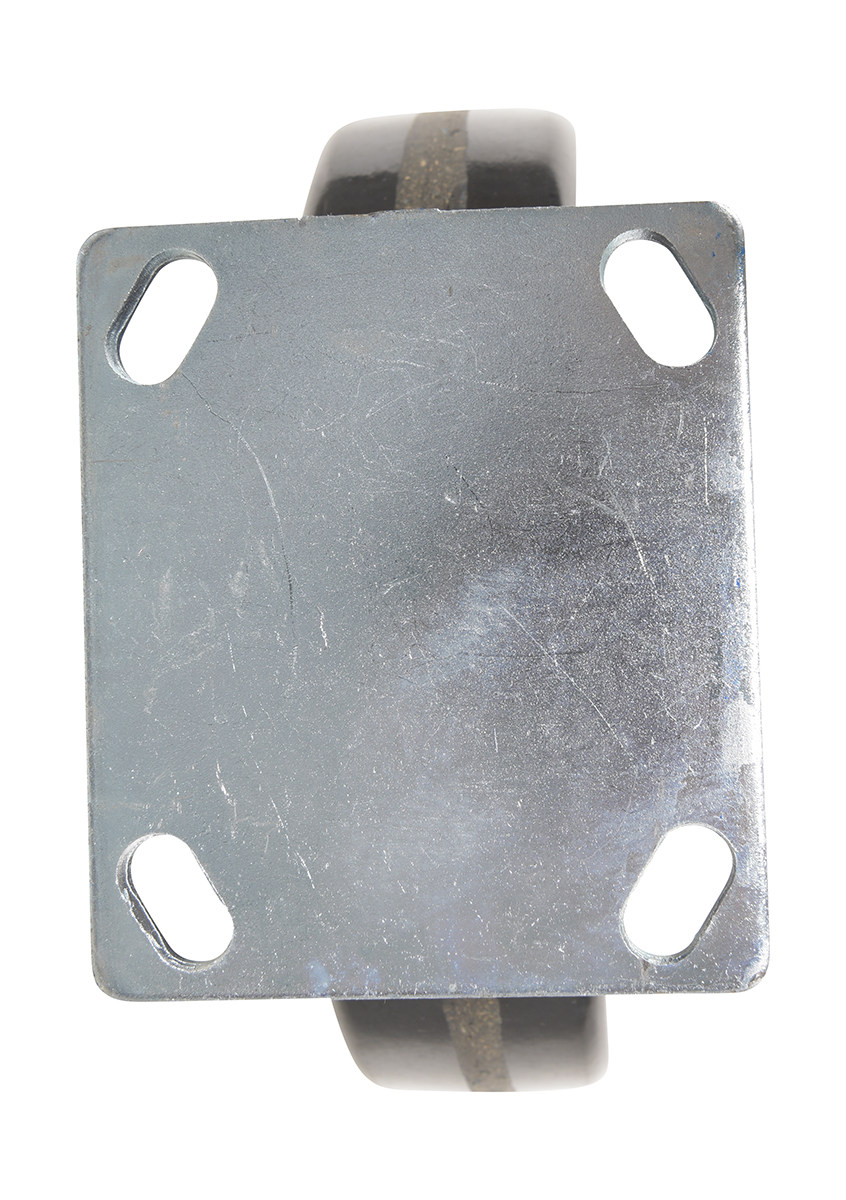

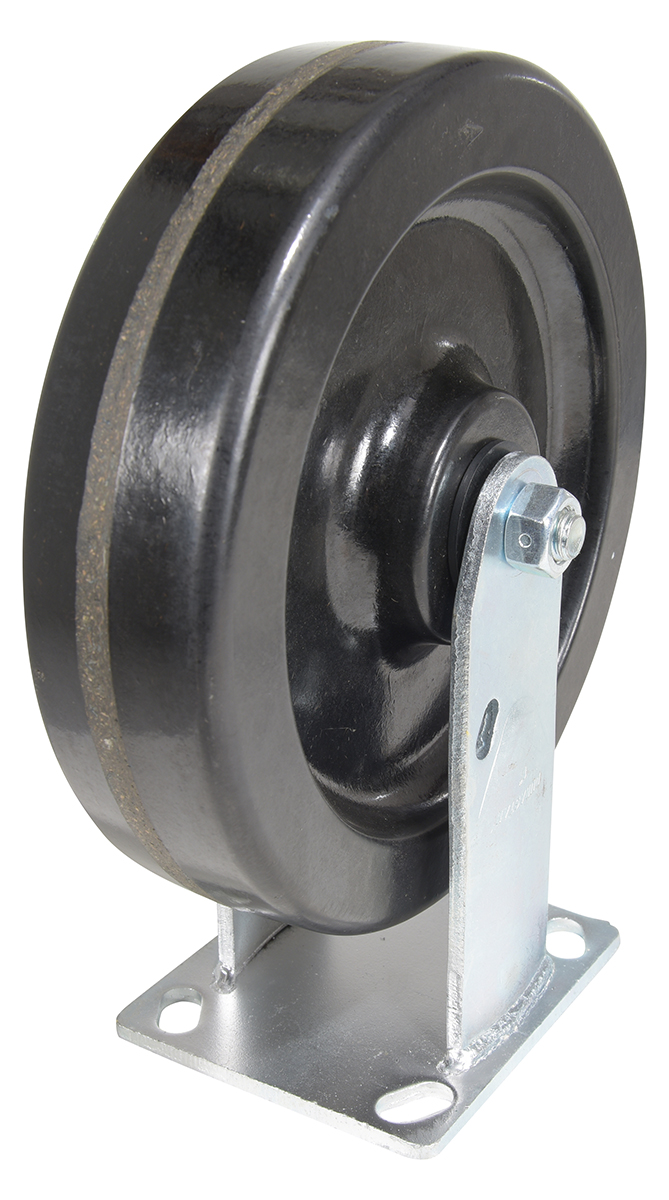

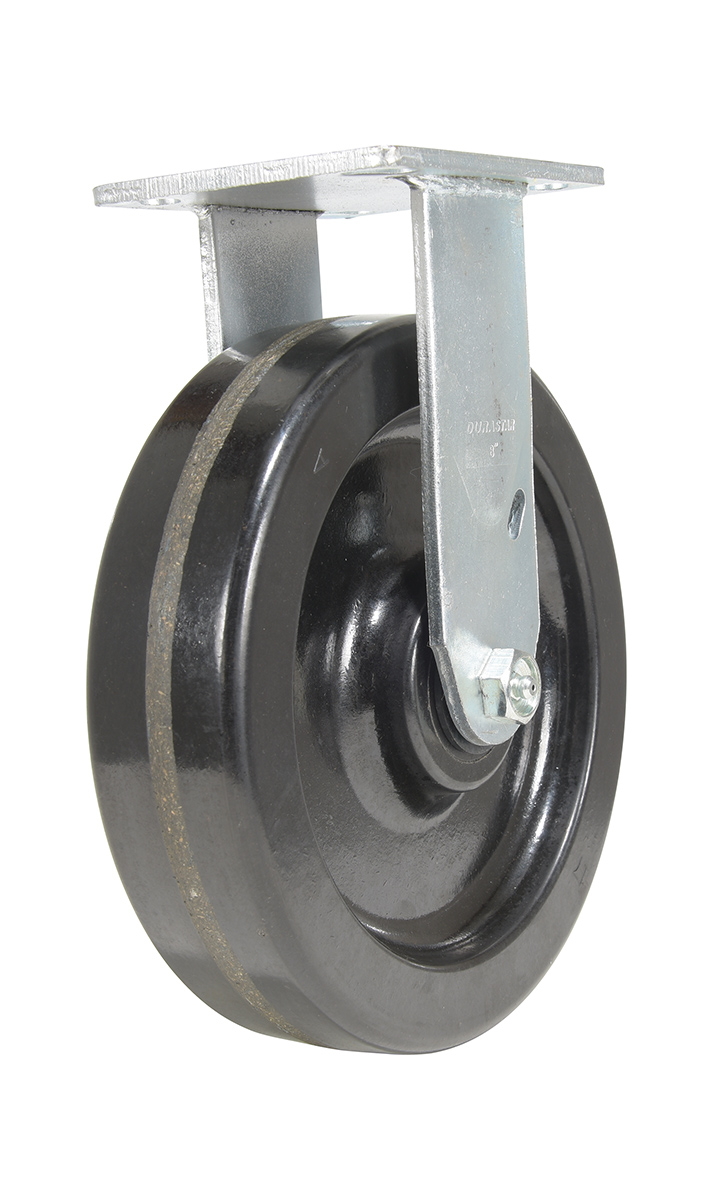

CST-VE-8X2PH-R

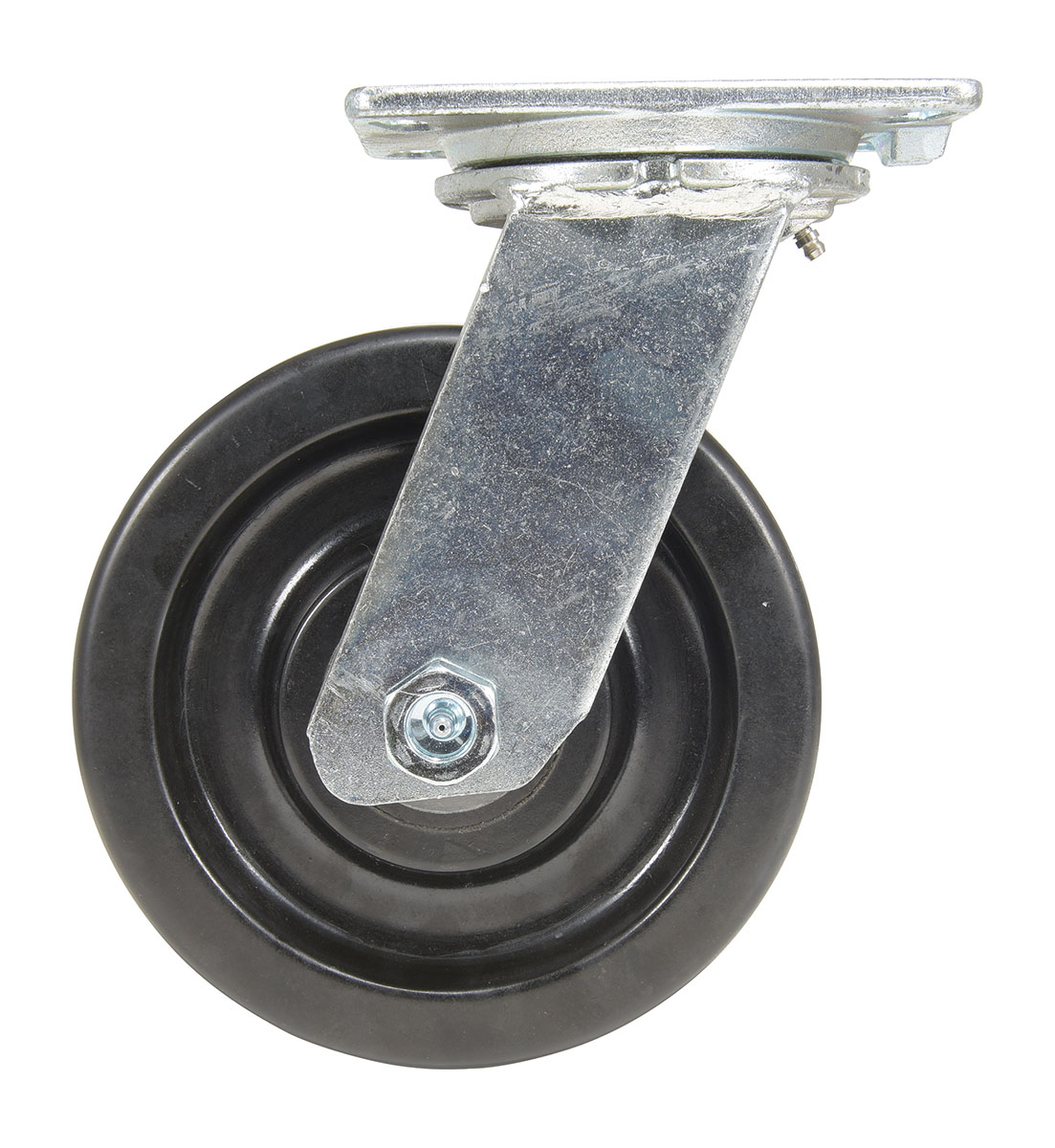

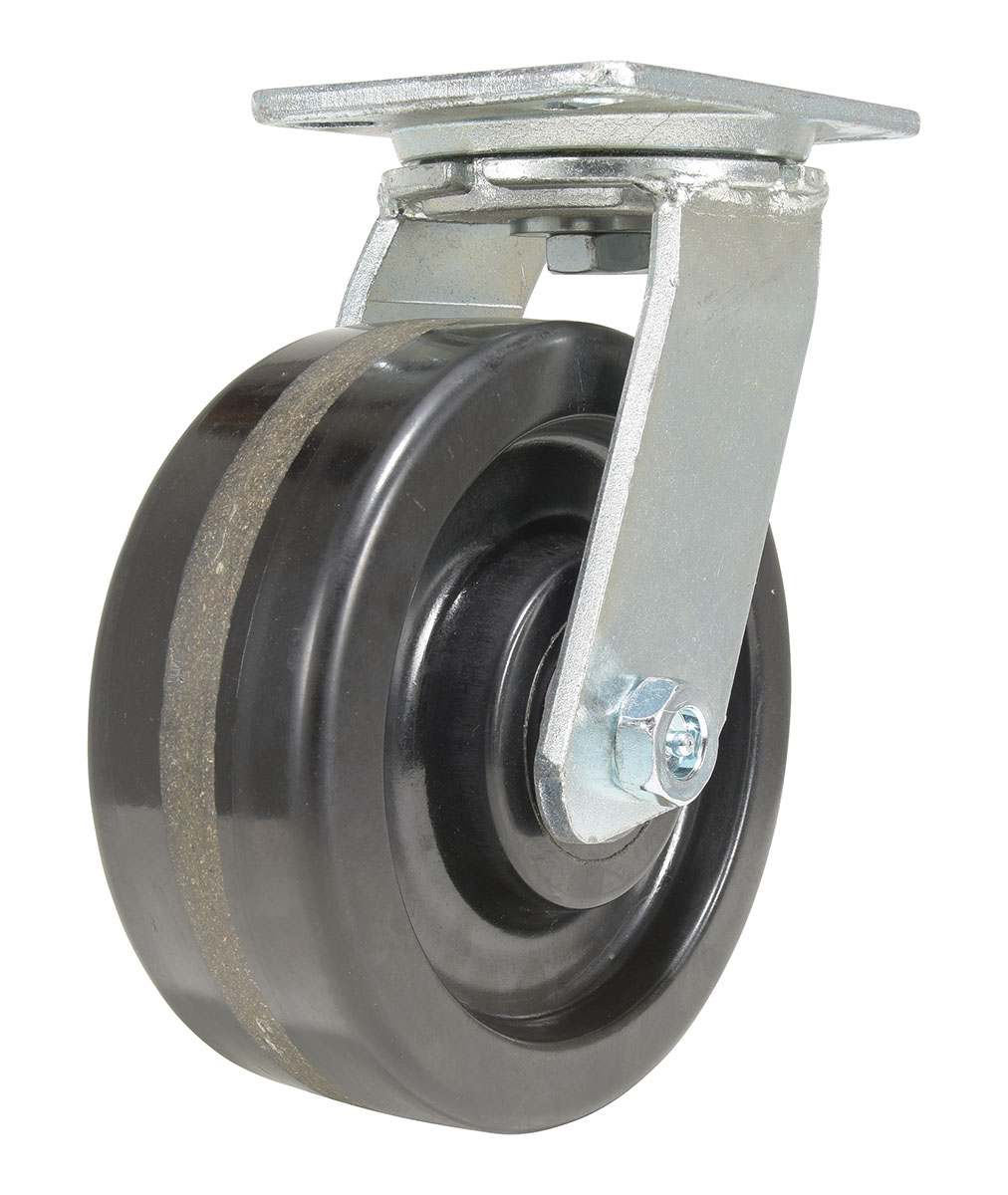

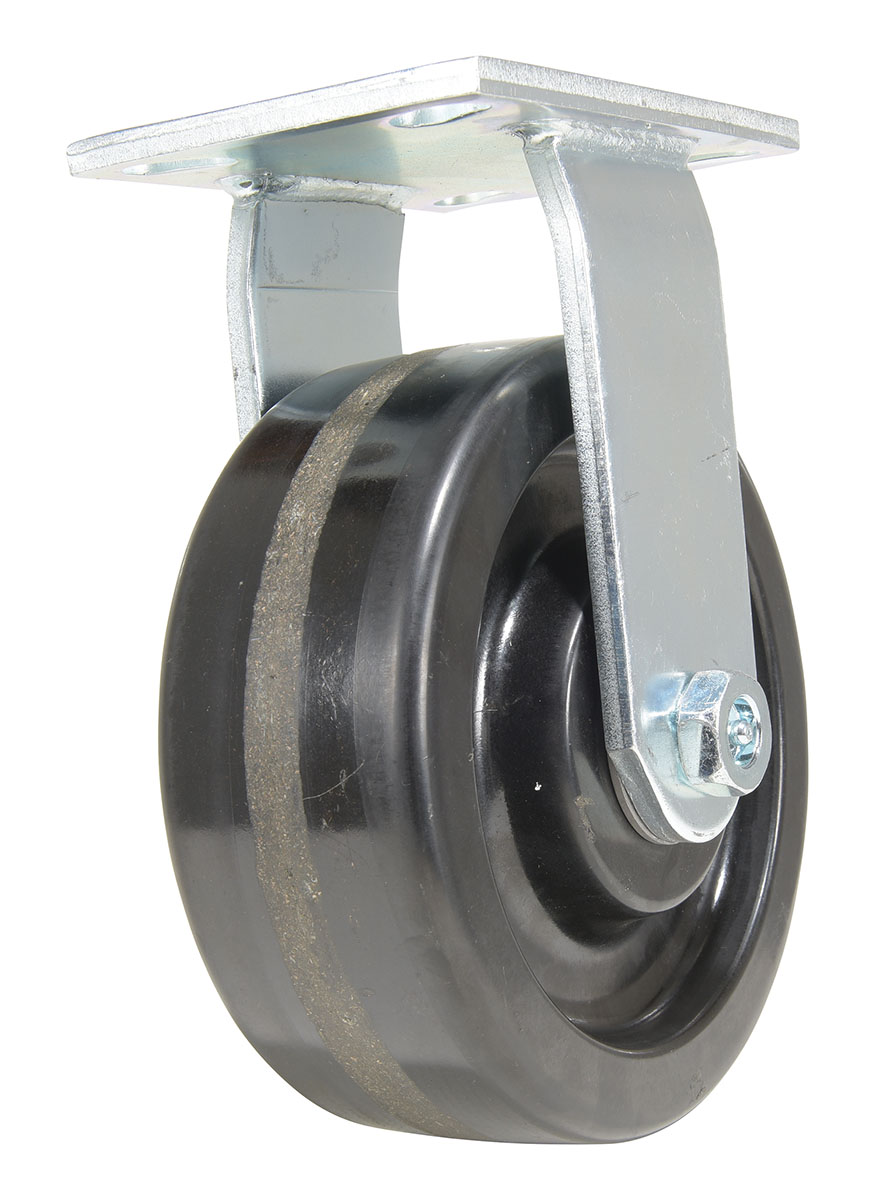

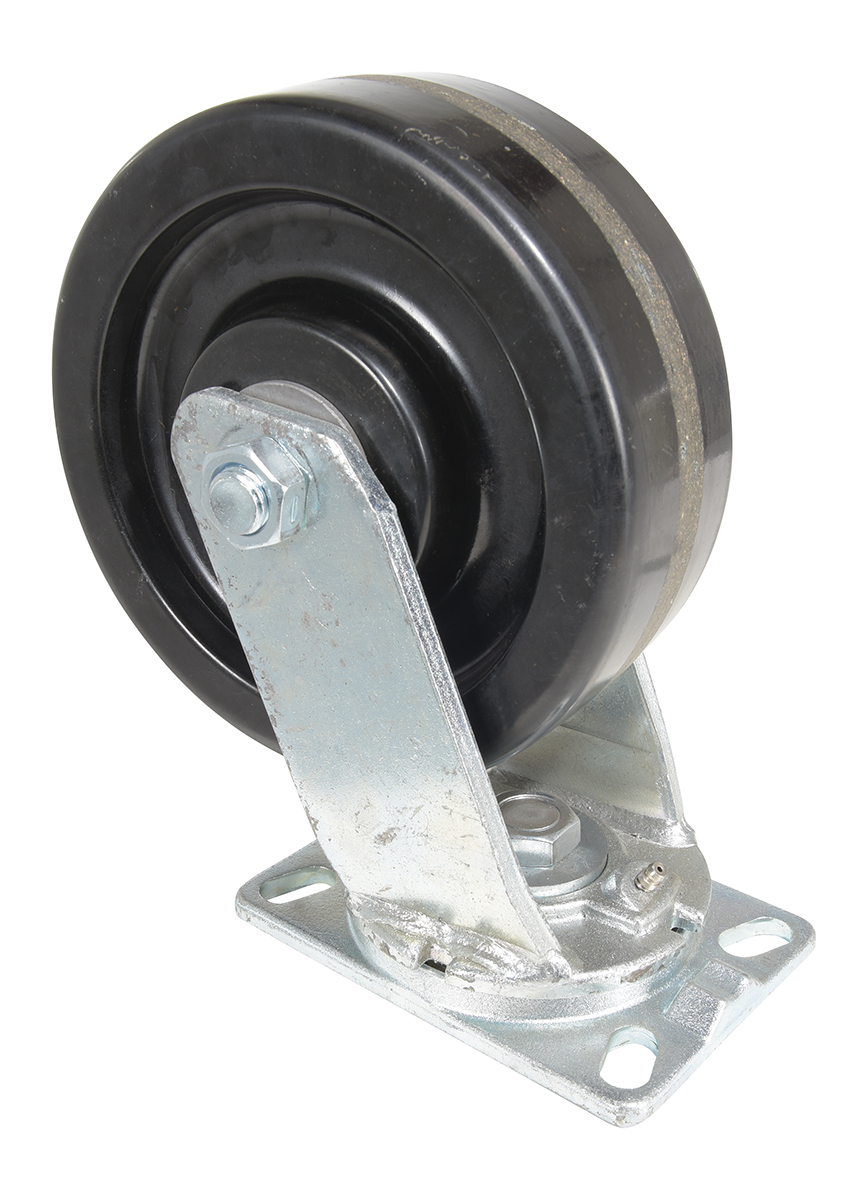

CST-VE-8X3PH-S

CST-VE-5X2PH-SWTB

CST-VE-5X2PH-SWB

CST-BL-8X2PH-SWB

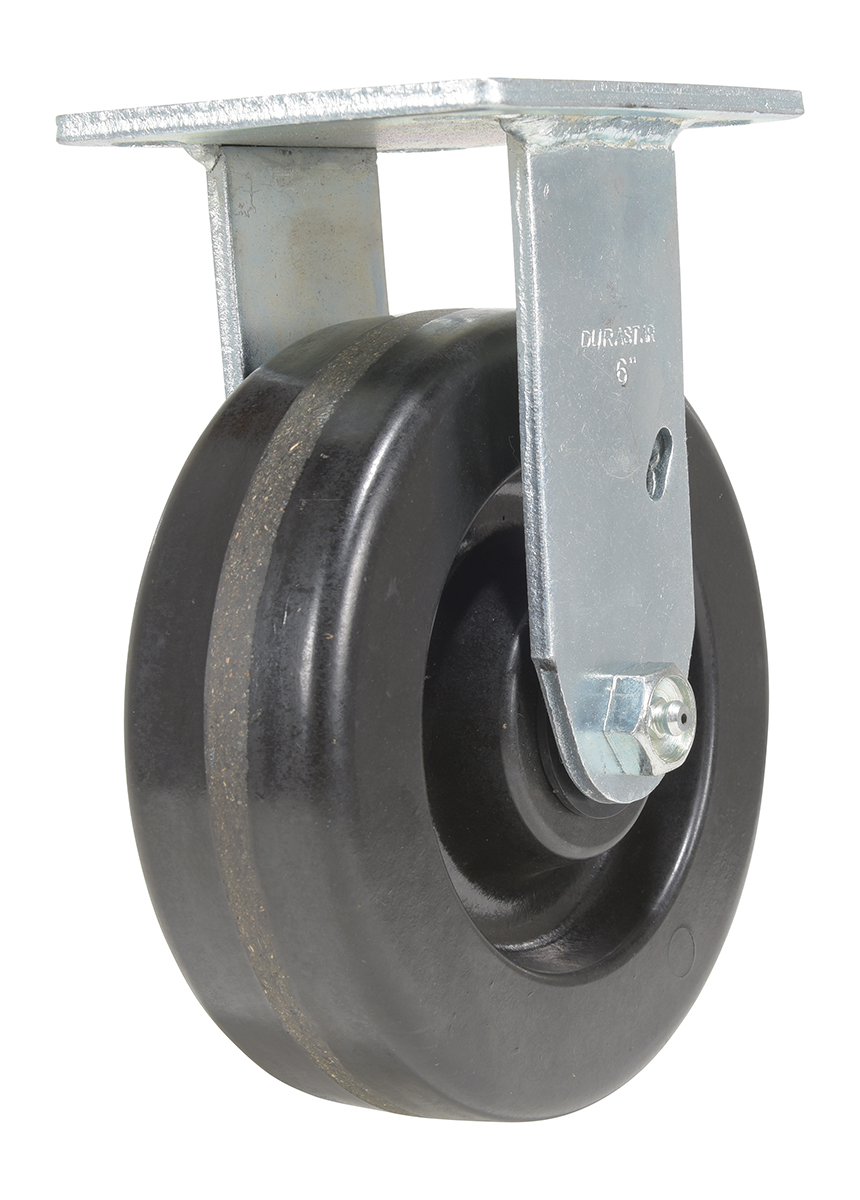

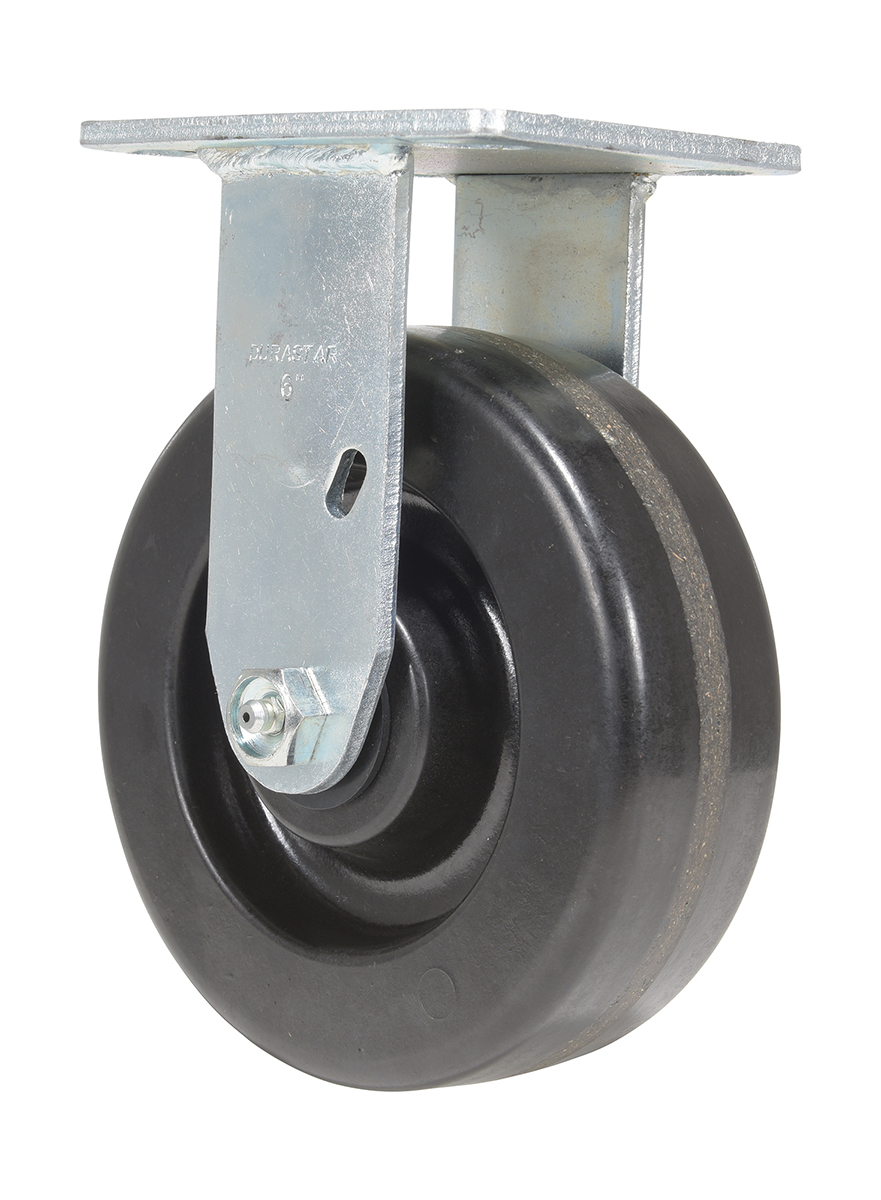

CST-VE-6X2PH-R

CST-VE-8X2PH-R

CST-VE-6X2PH-SWB

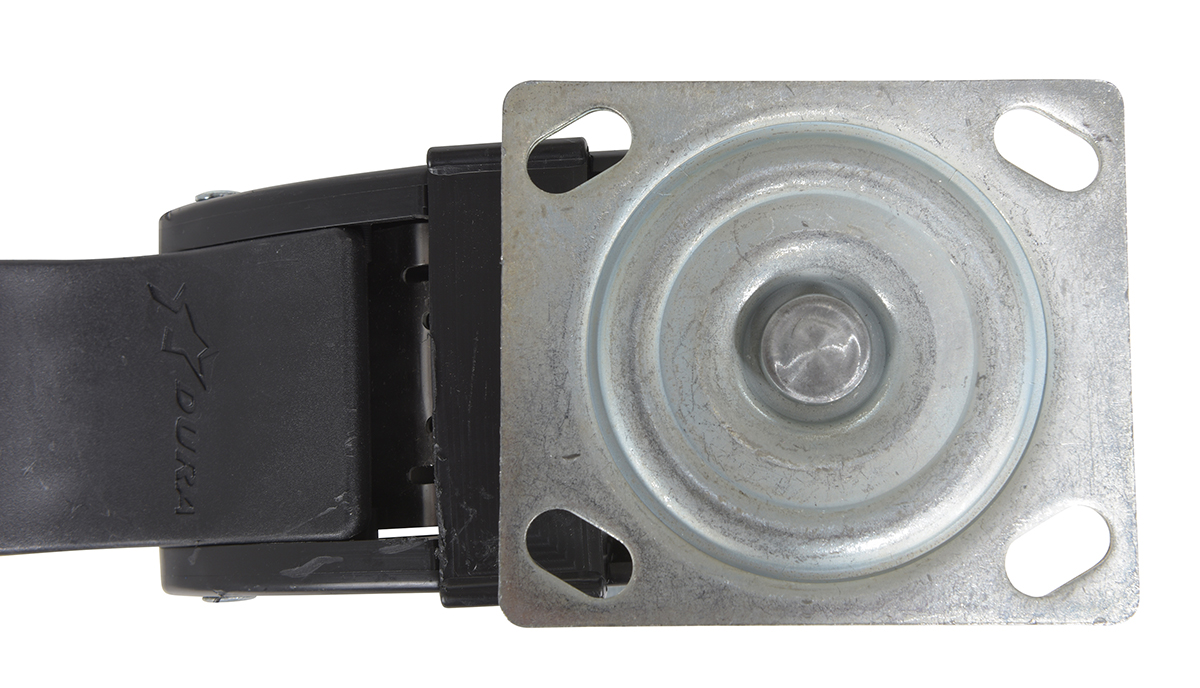

CST-VE-5X2PH-SWTB

CST-VE-6X2PH-R

CST-VE-4X2PH-S

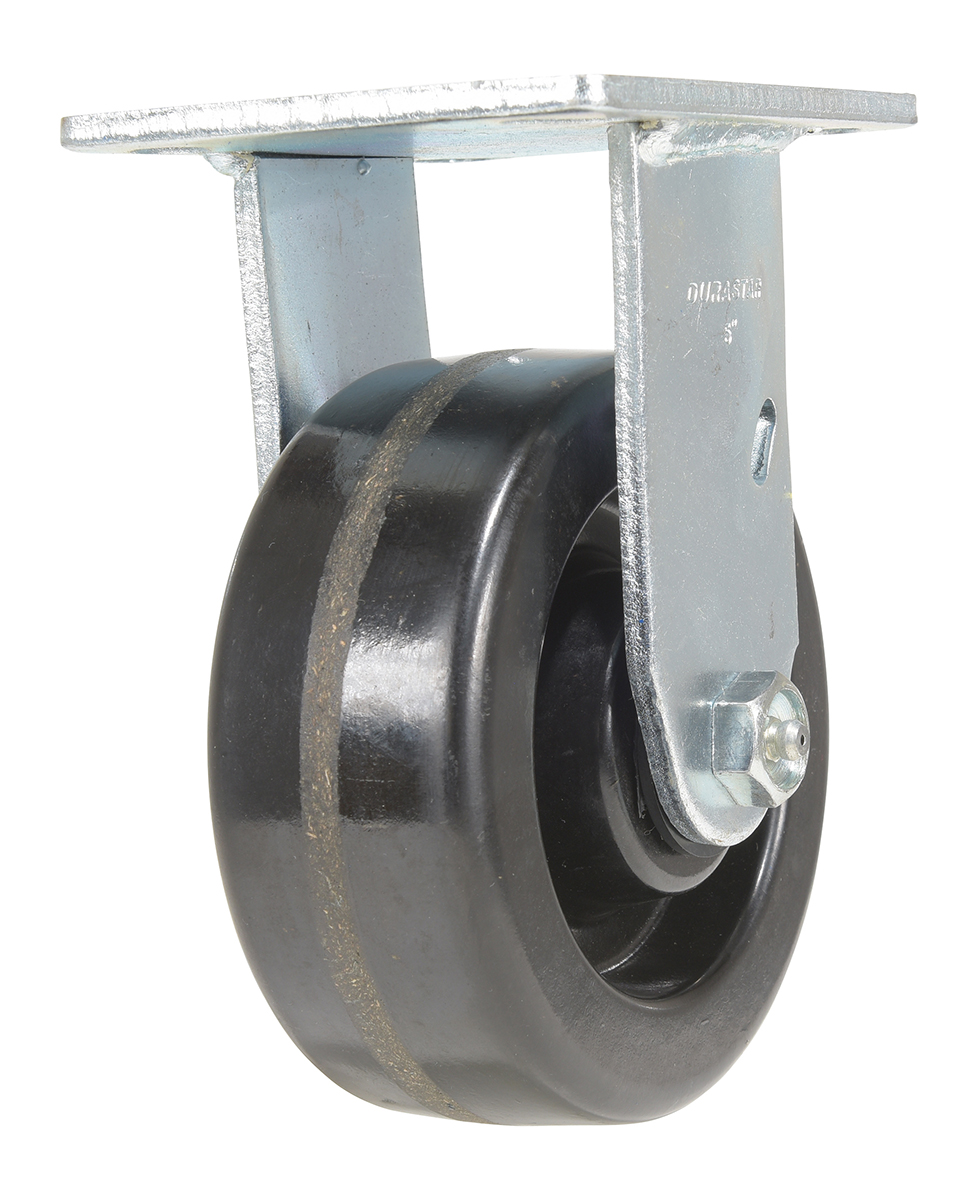

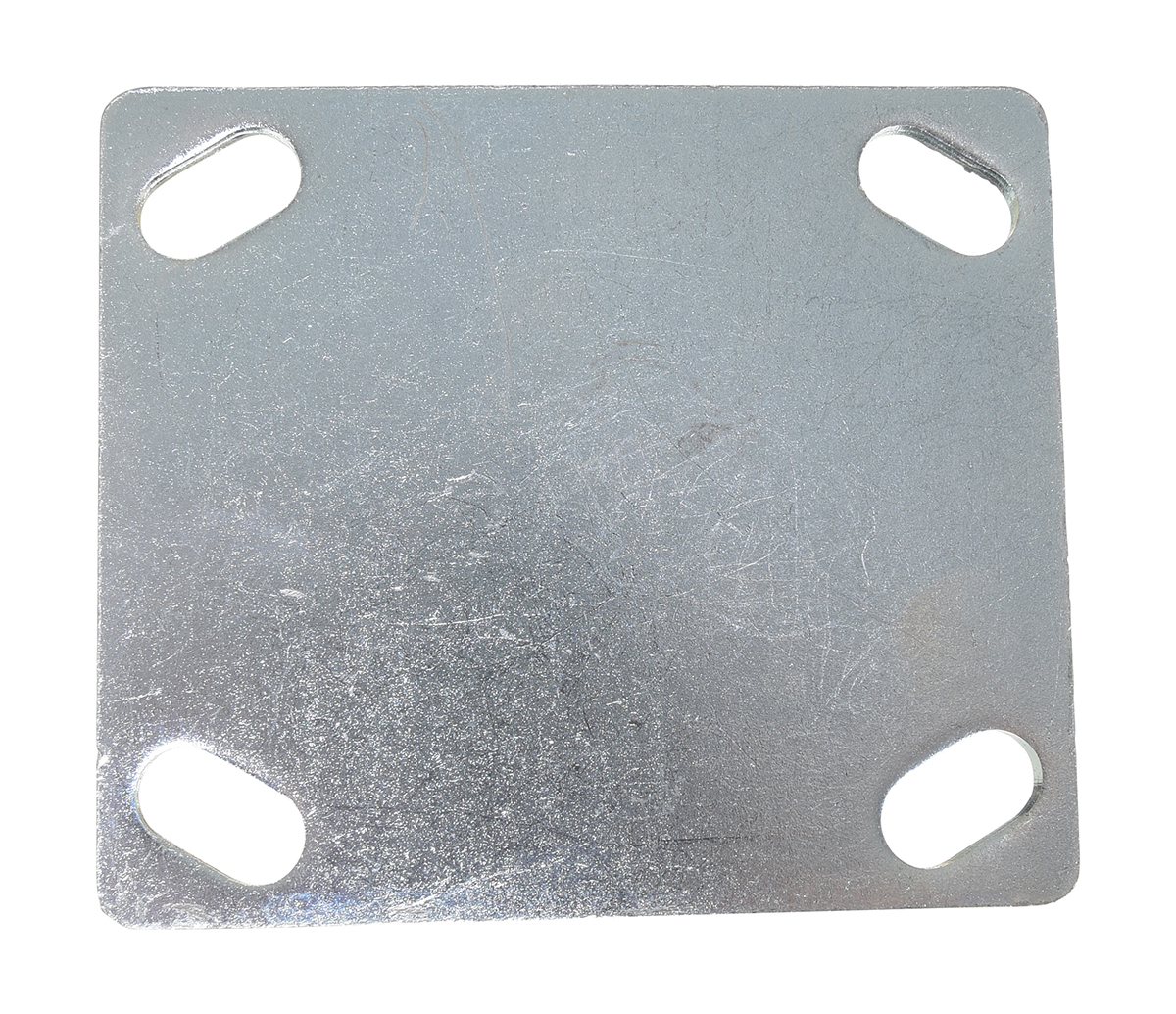

CST-VE-5X2PH-R

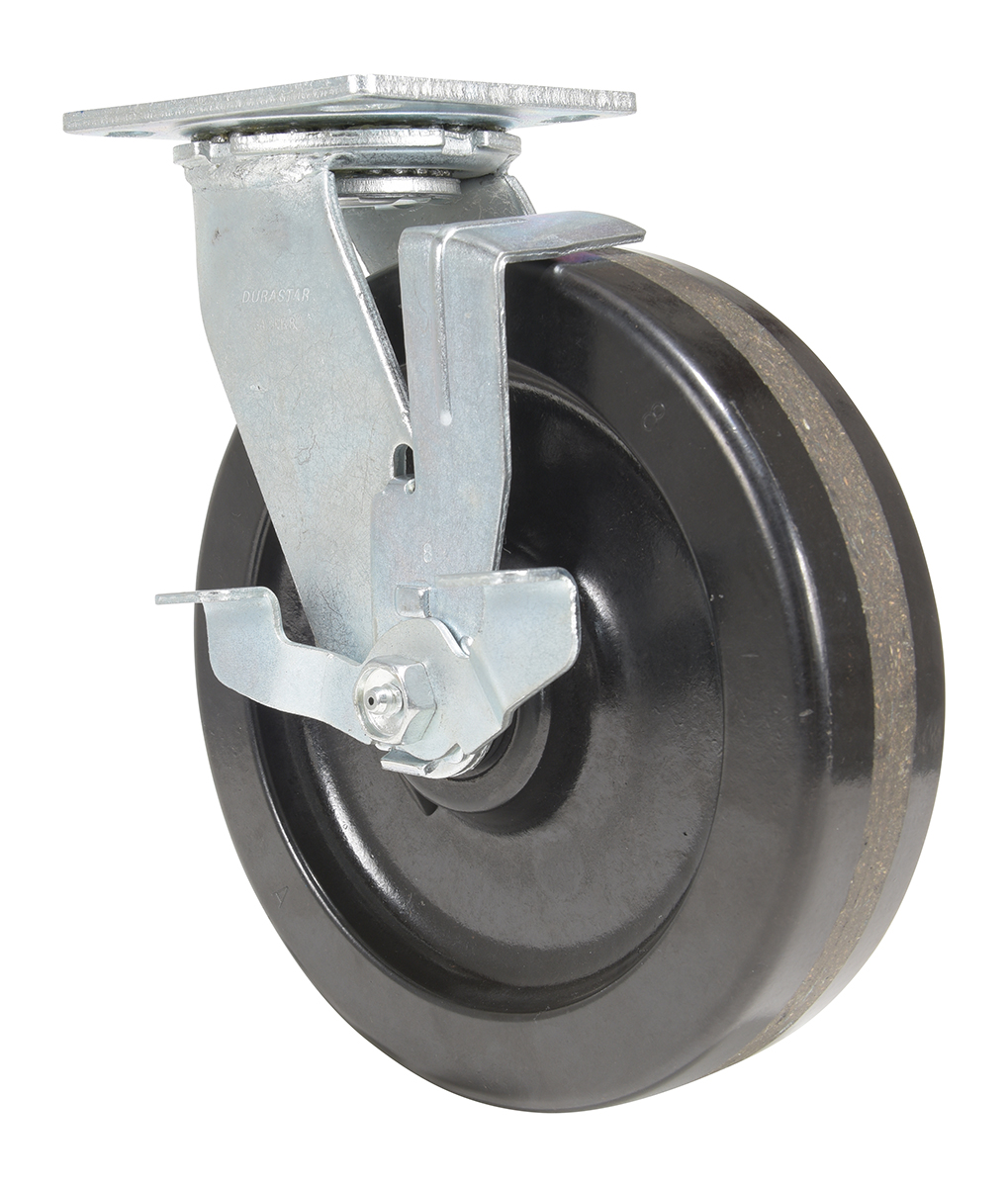

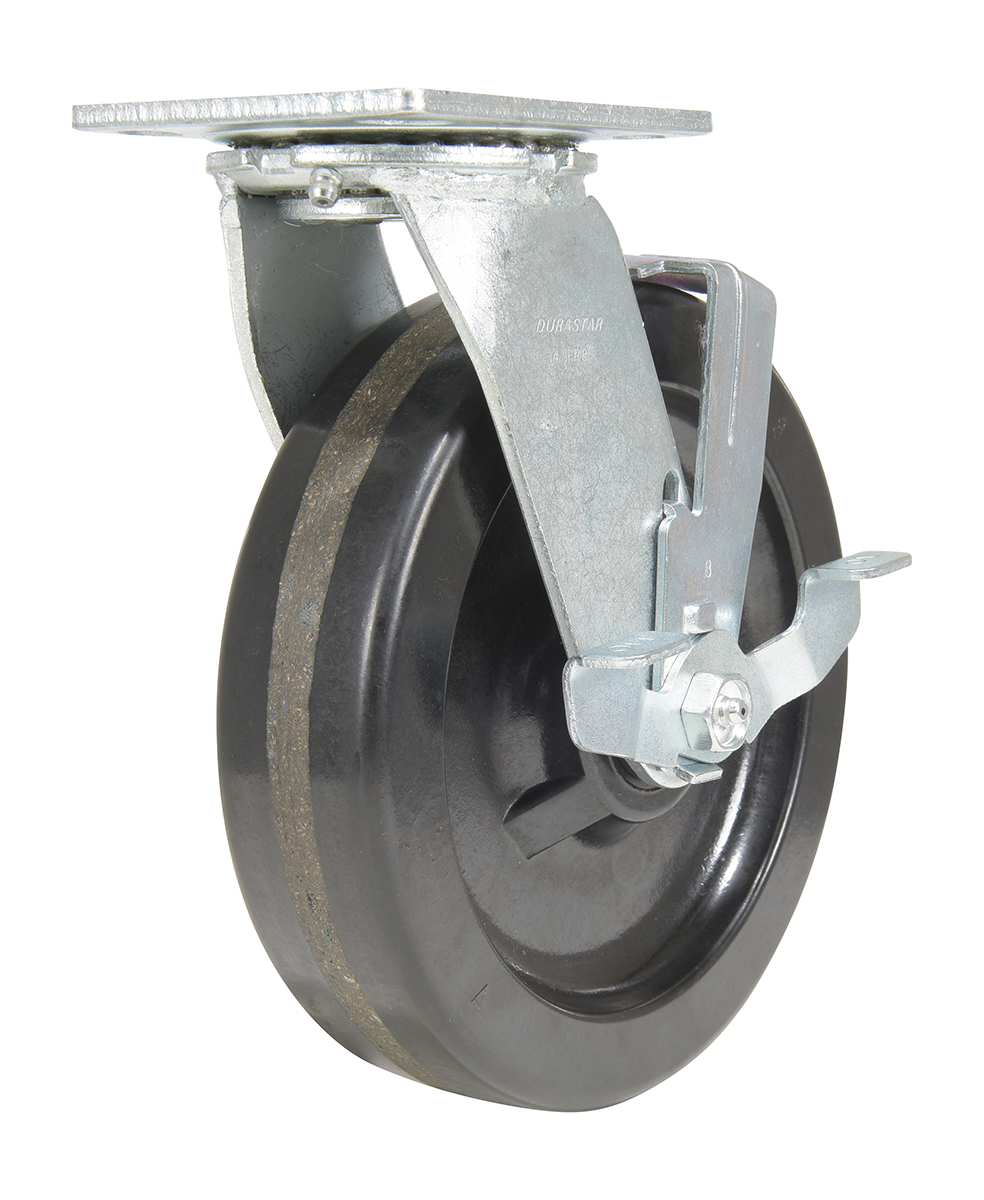

CST-VE-8X2PH-SWB

CST-VE-6X2PH-SWTB

CST-VE-6X2PH-SWB

model chart

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.

Show entries

Search:

Model	PDFs	Caster Size	Type	Capacity (lbs.)	Overall Height	Top Plate Size	Net Wt. (lbs)
CST-BL-4X2PH-R	1YEAR Limited Warranty	4x2	Rigid	800	5-5/8	4-1/2 x 4	5

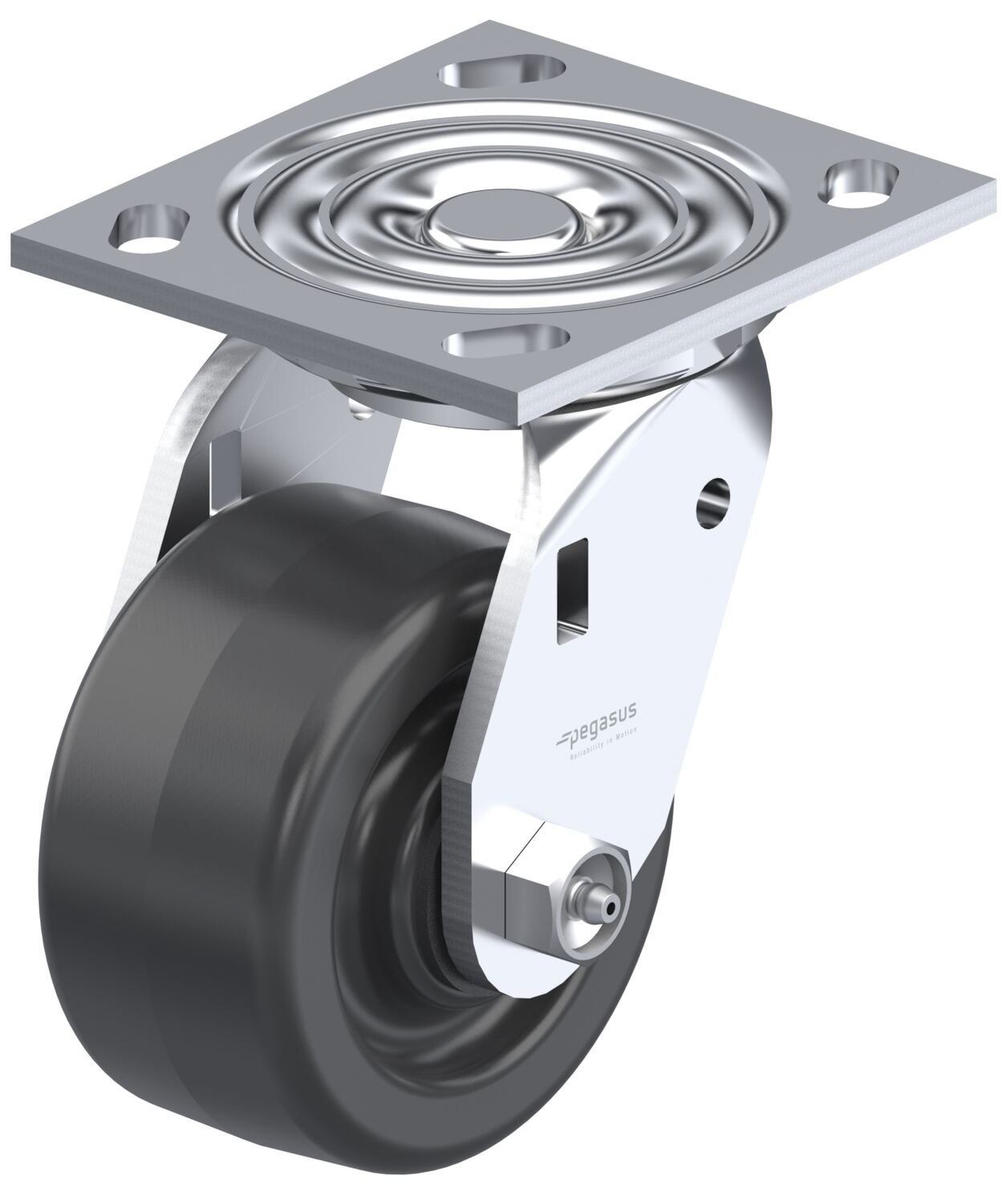

CST-BL-4X2PH-S	1YEAR Limited Warranty	4x2	Swivel	800	5-5/8	4-1/2 x 4	5

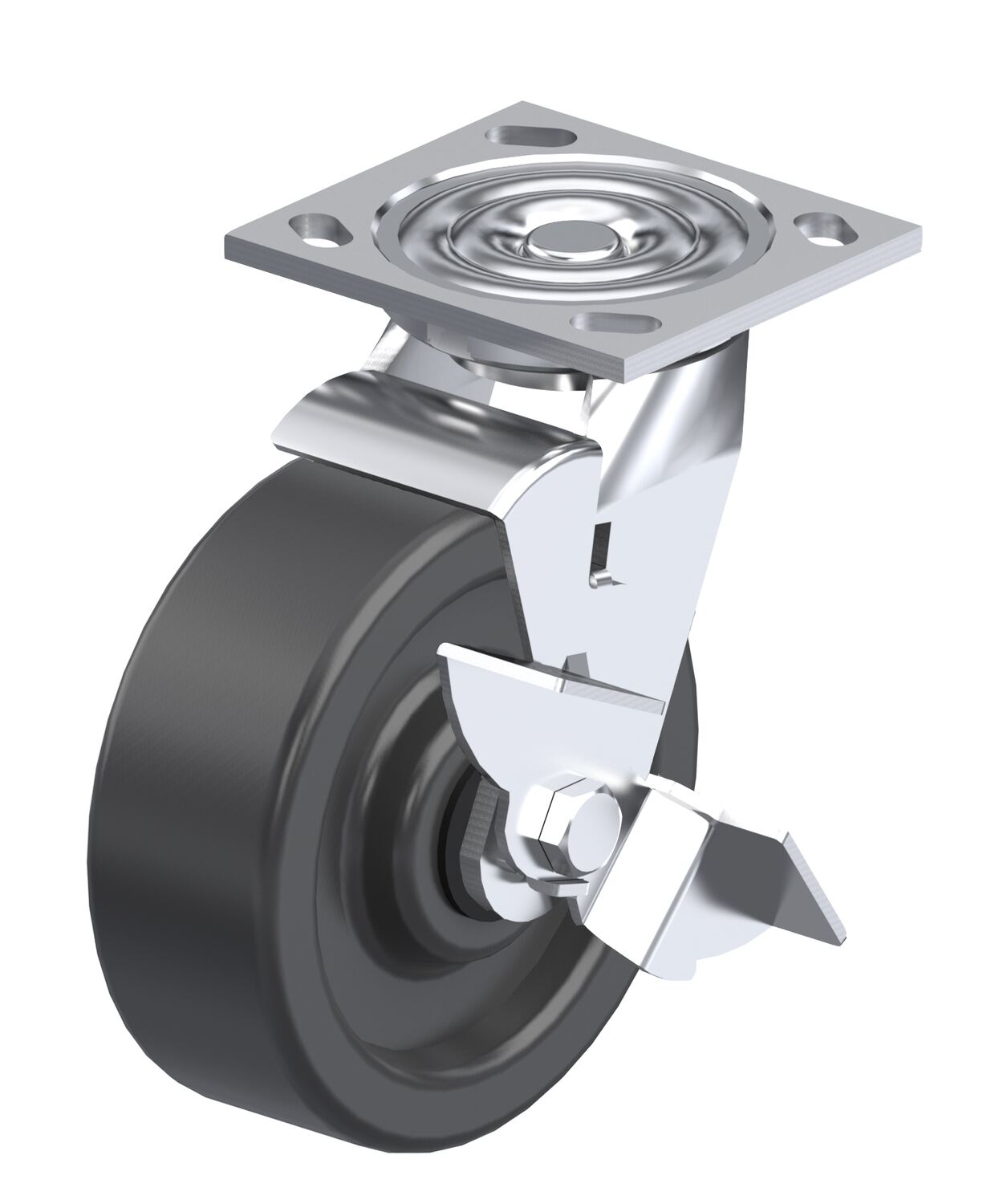

CST-BL-4X2PH-SWB	1YEAR Limited Warranty	4x2	Swivel W/Brake	800	5-5/8	4-1/2 x 4	7
CST-BL-5X2PH-R	1YEAR Limited Warranty	5x2	Rigid	1000	6-1/2	4-1/2 x 4	6

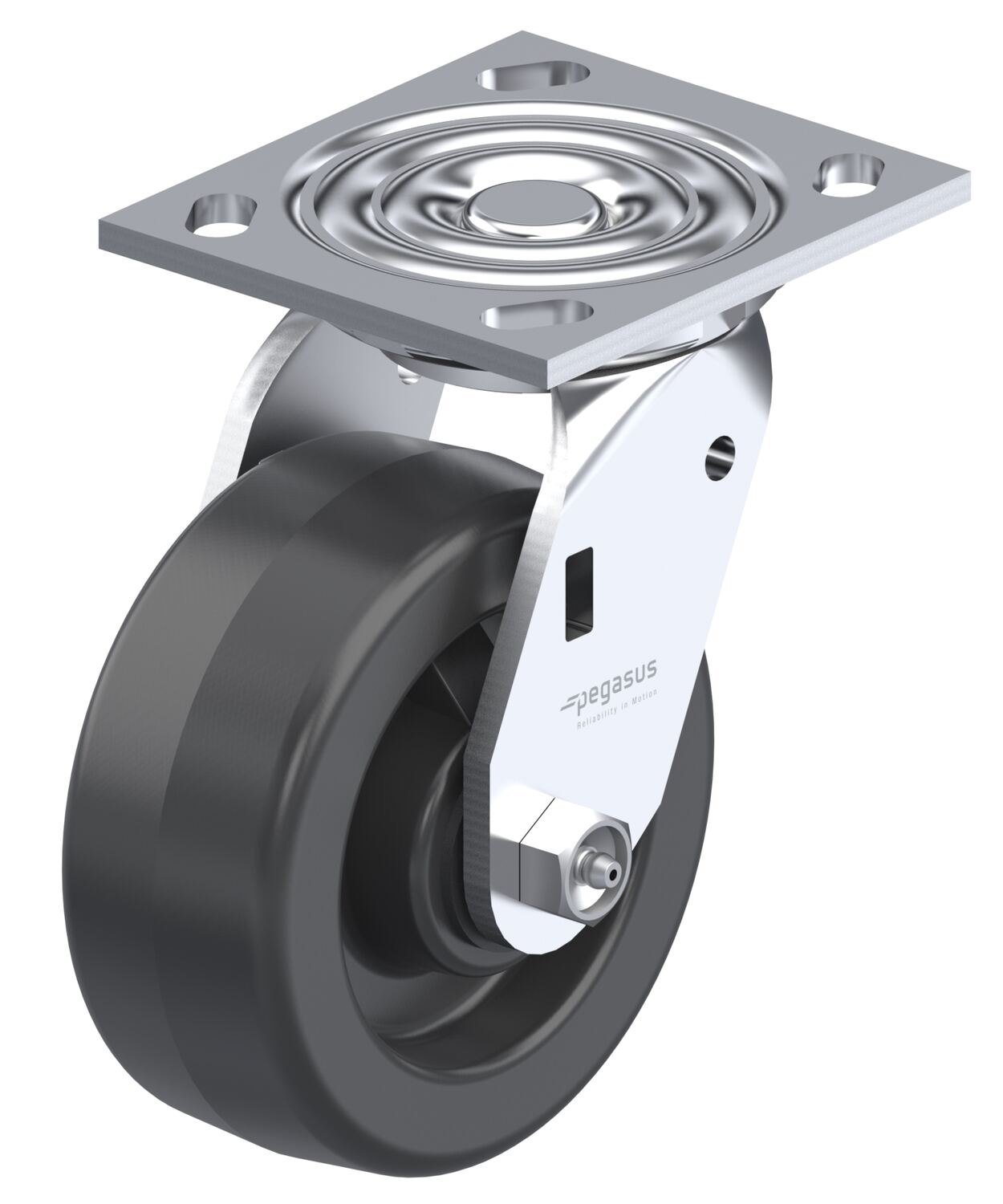

CST-BL-5X2PH-S	1YEAR Limited Warranty	5x2	Swivel	1000	6-1/2	4-1/2 x 4	6
CST-BL-5X2PH-SWB	1YEAR Limited Warranty	5x2	Swivel	1000	6-1/2	4-1/2 x 4	8

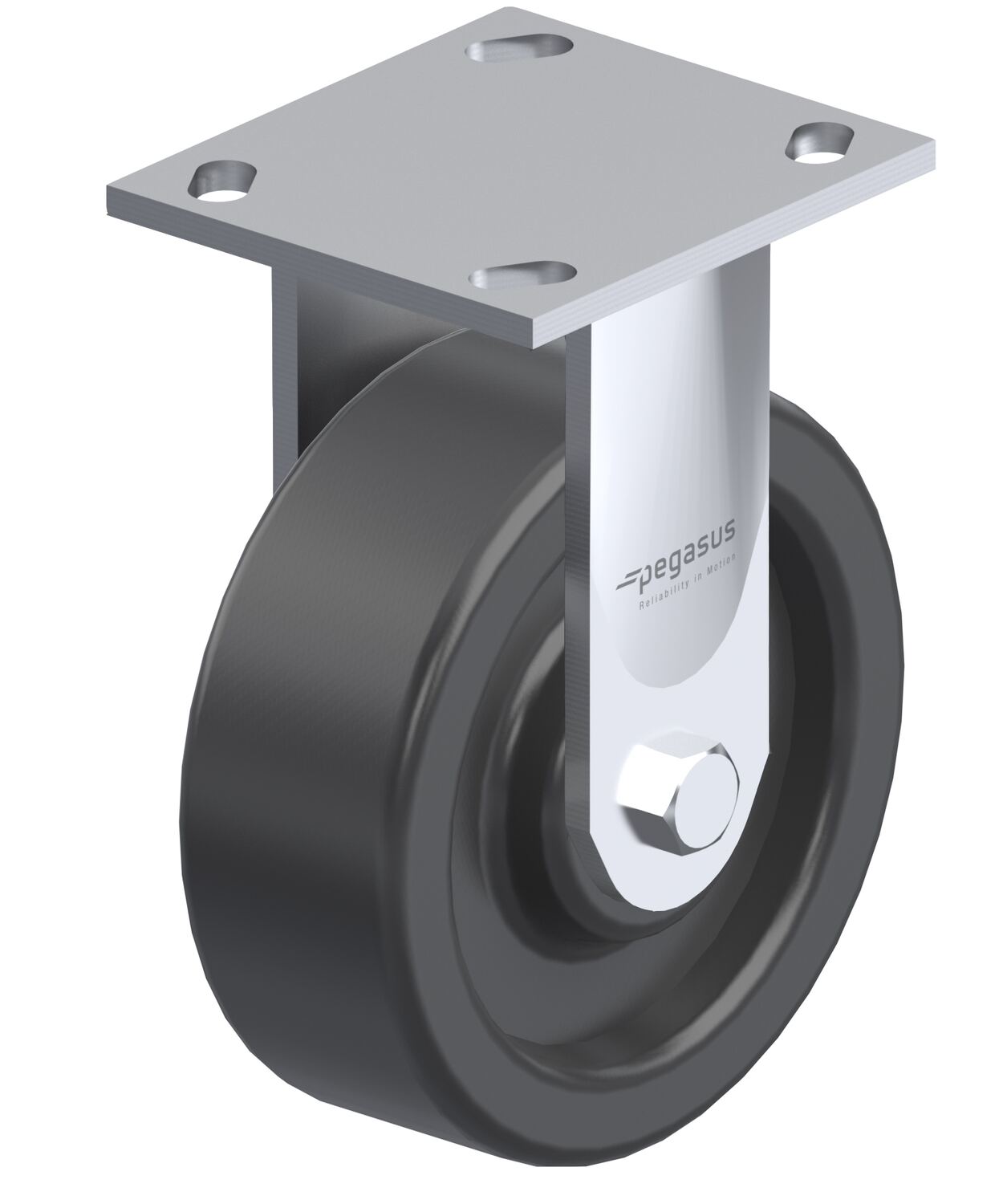

CST-BL-6X2PH-R	1YEAR Limited Warranty	6x2	Rigid	1200	7-1/2	4-1/2 x 4	7

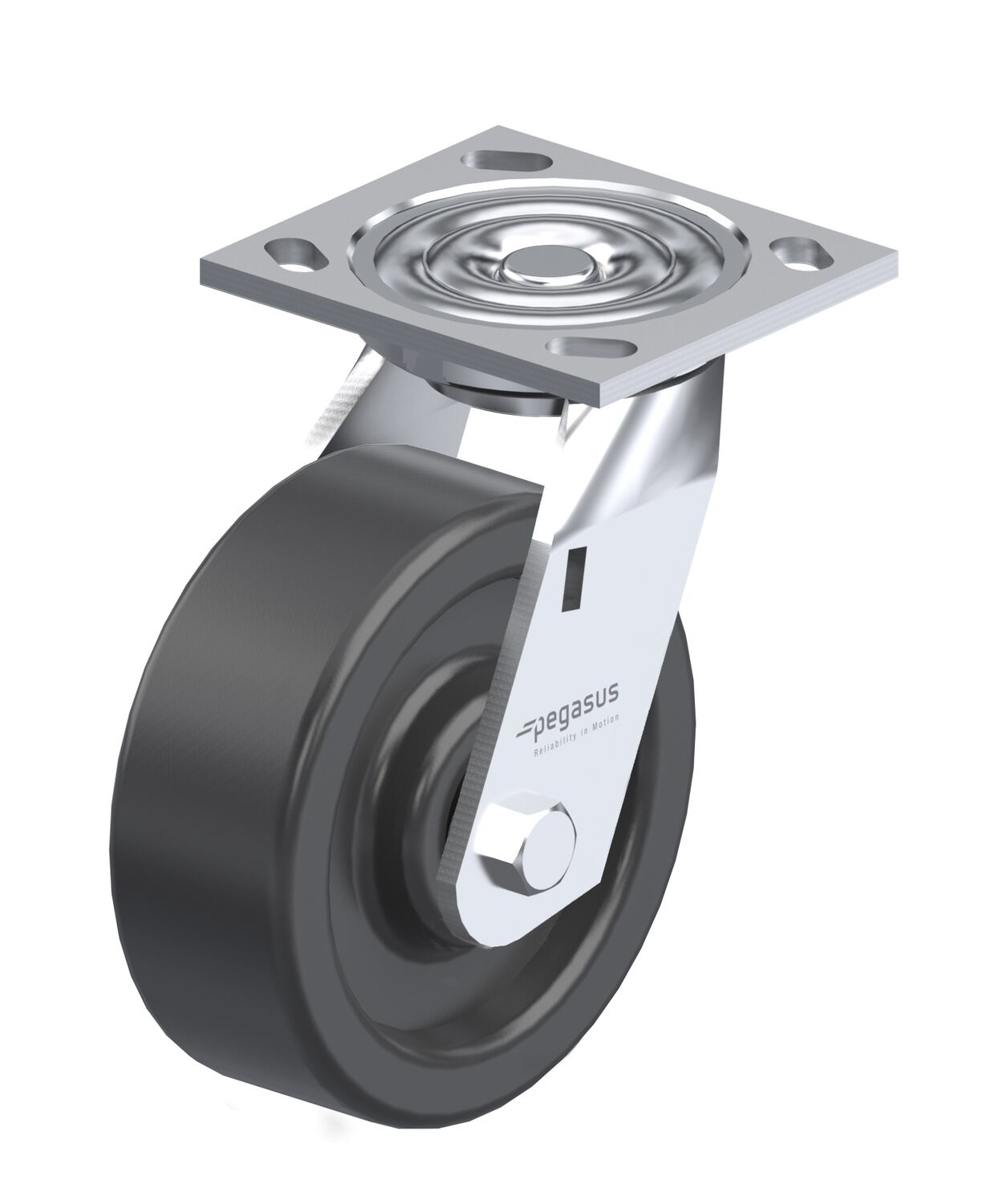

CST-BL-6X2PH-S	1YEAR Limited Warranty	6x2	Swivel	1200	7-1/2	4-1/2 x 4	7
CST-BL-6X2PH-SWB	1YEAR Limited Warranty	6x2	Swivel	1200	7-1/2	4-1/2 x 4	8

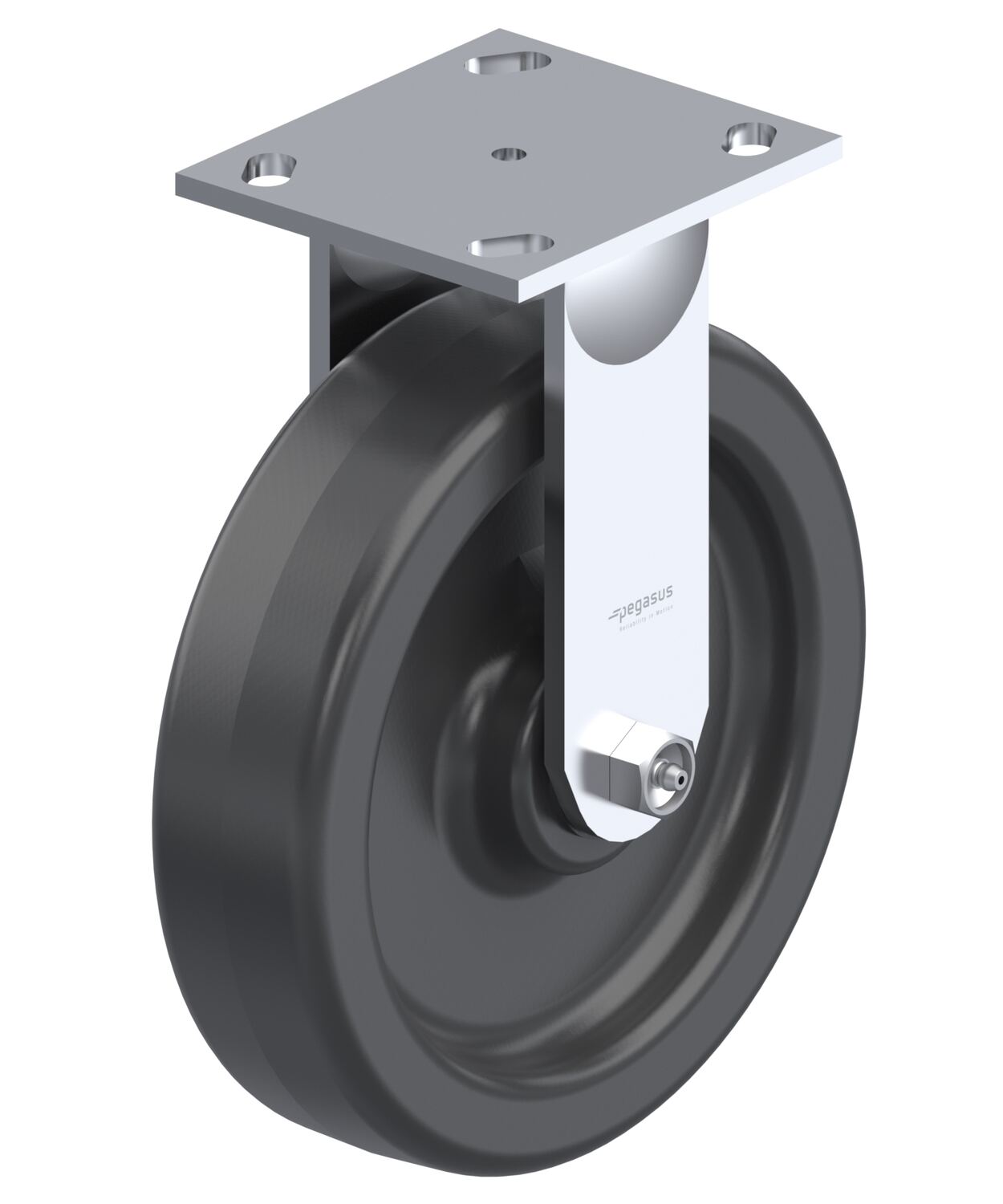

CST-BL-8X2PH-R	1YEAR Limited Warranty	8x2	Rigid	1250	9-1/2	4-1/2 x 4	8

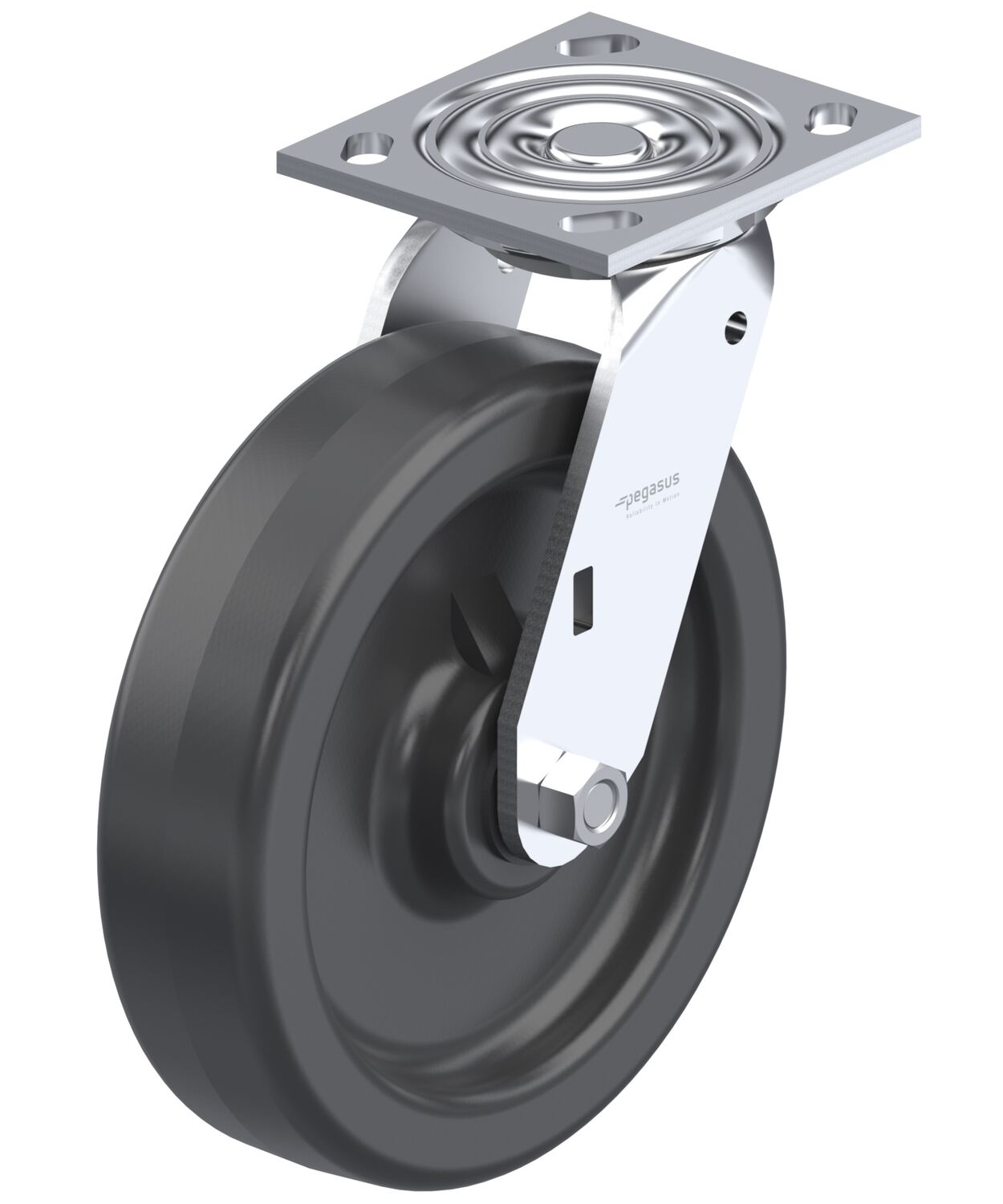

CST-BL-8X2PH-S	1YEAR Limited Warranty	8x2	Swivel	1250	9-1/2	4-1/2 x 4	9
CST-BL-8X2PH-SWB	1YEAR Limited Warranty	8x2	Swivel	1250	9-1/2	4-1/2 x 4	11

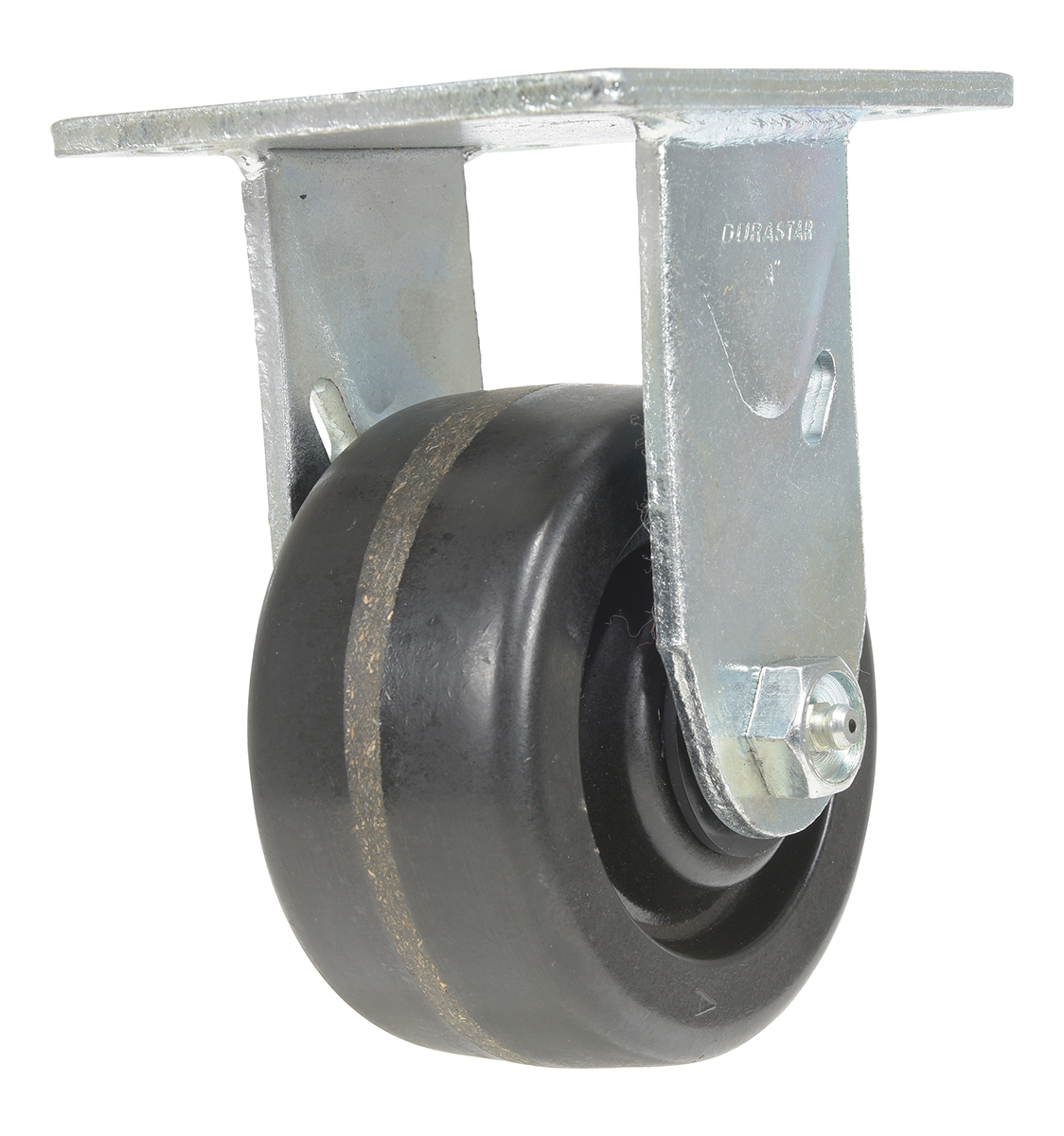

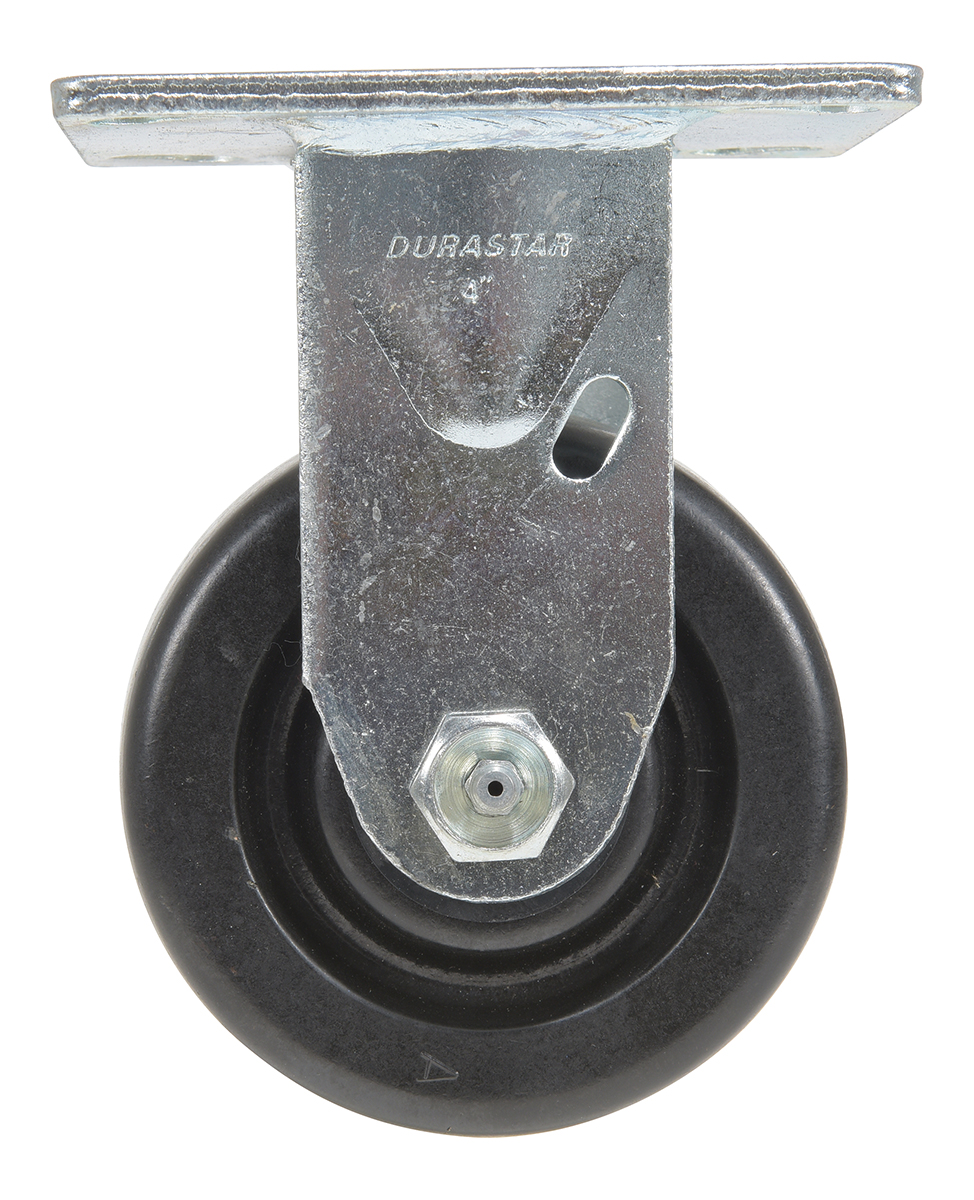

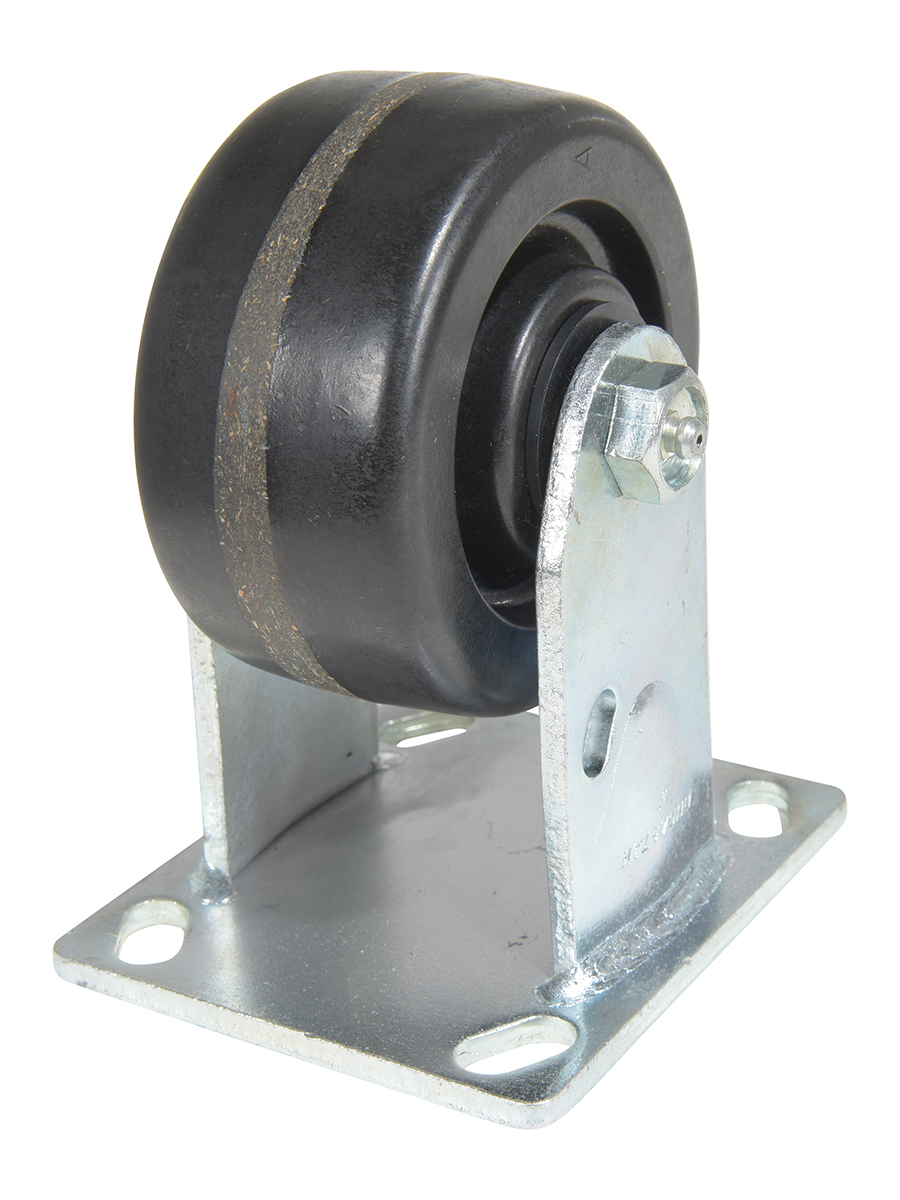

CST-VE-4X2PH-R	1 YEAR Limited Warranty	4 x 2	RIGID	800	5-1/2	4 x 4-1/2	5

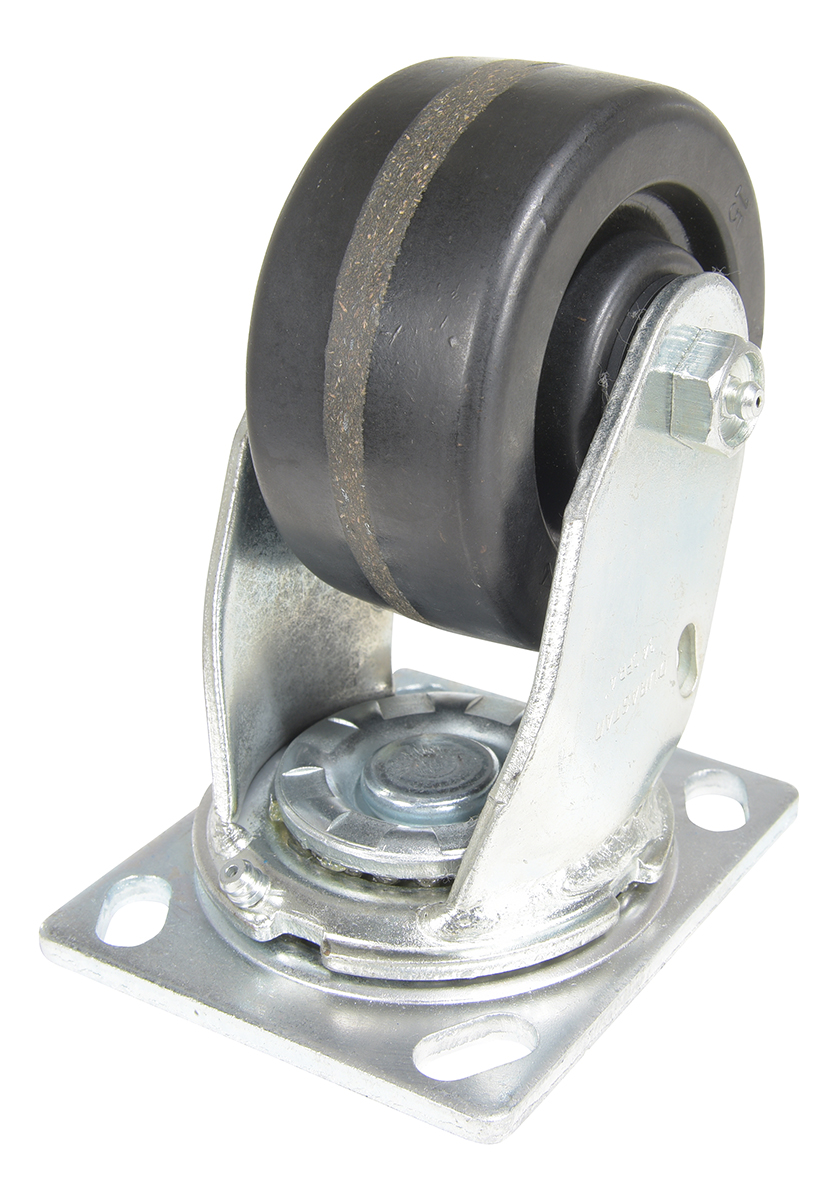

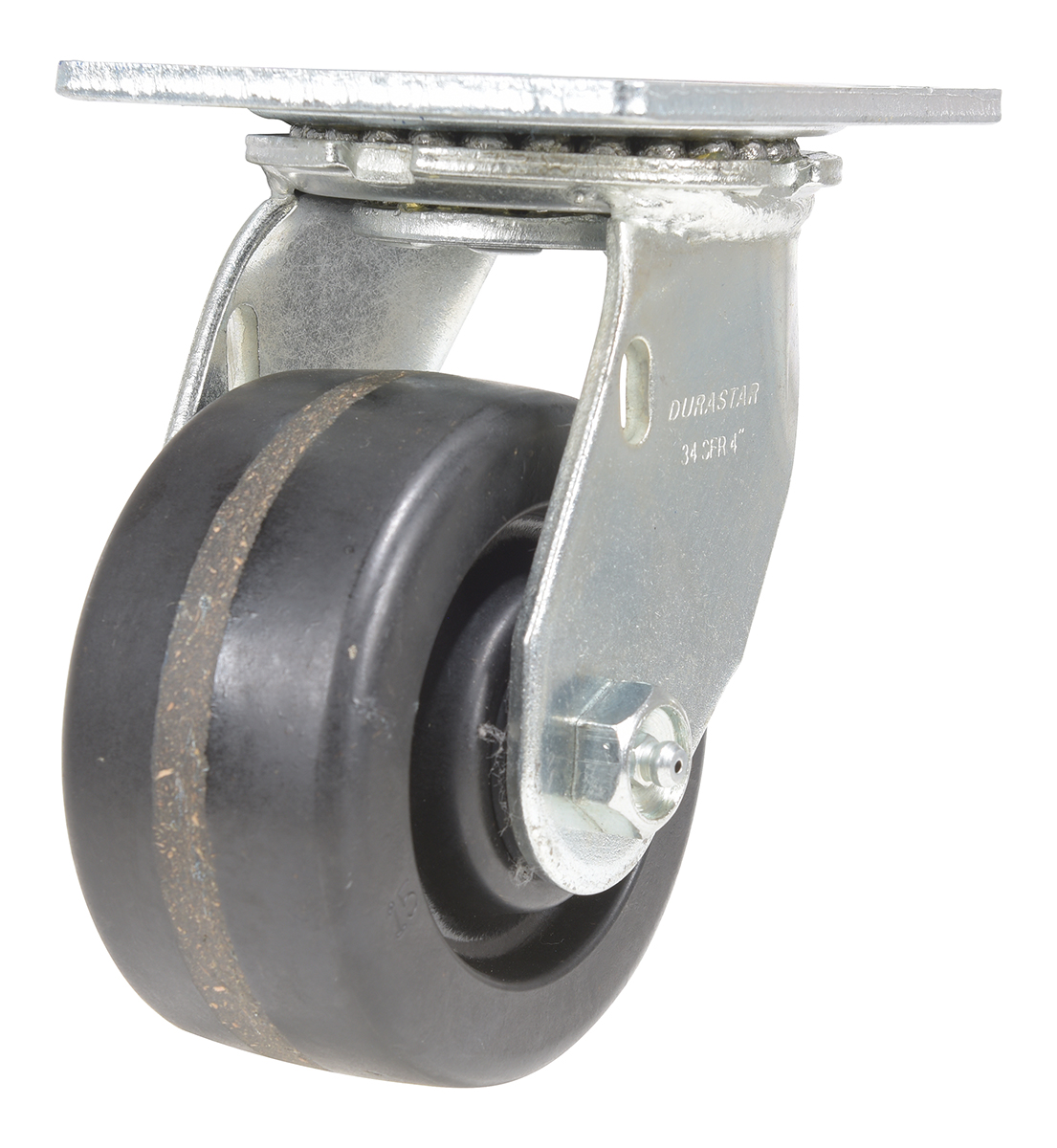

CST-VE-4X2PH-S	1 YEAR Limited Warranty	4 x 2	SWIVEL	800	5-1/2	4 x 4-1/2	5

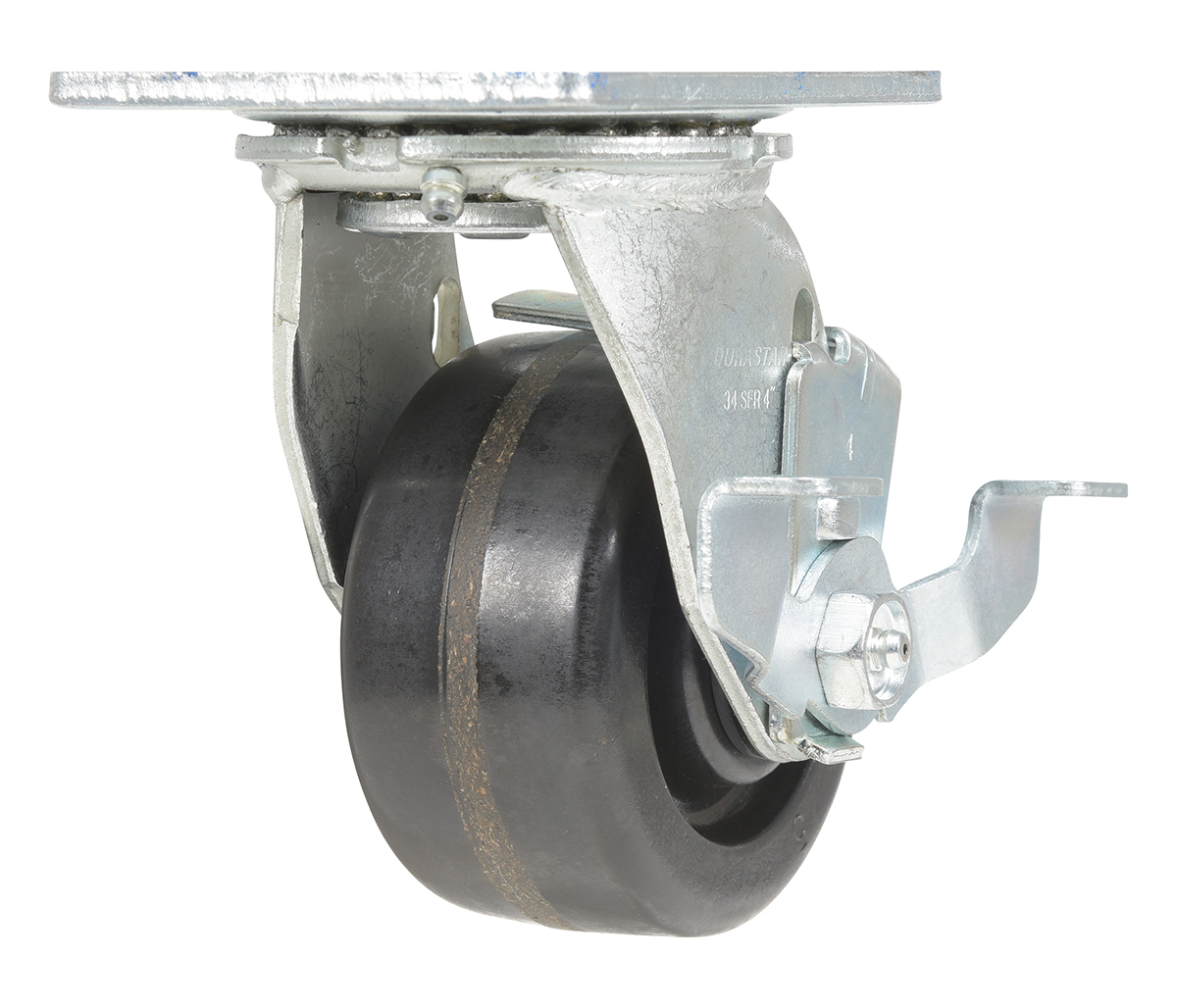

CST-VE-4X2PH-SWB	1 YEAR Limited Warranty	4 x 2	SWIVEL W/BRAKE	800	5-1/2	4 x 4-1/2	6

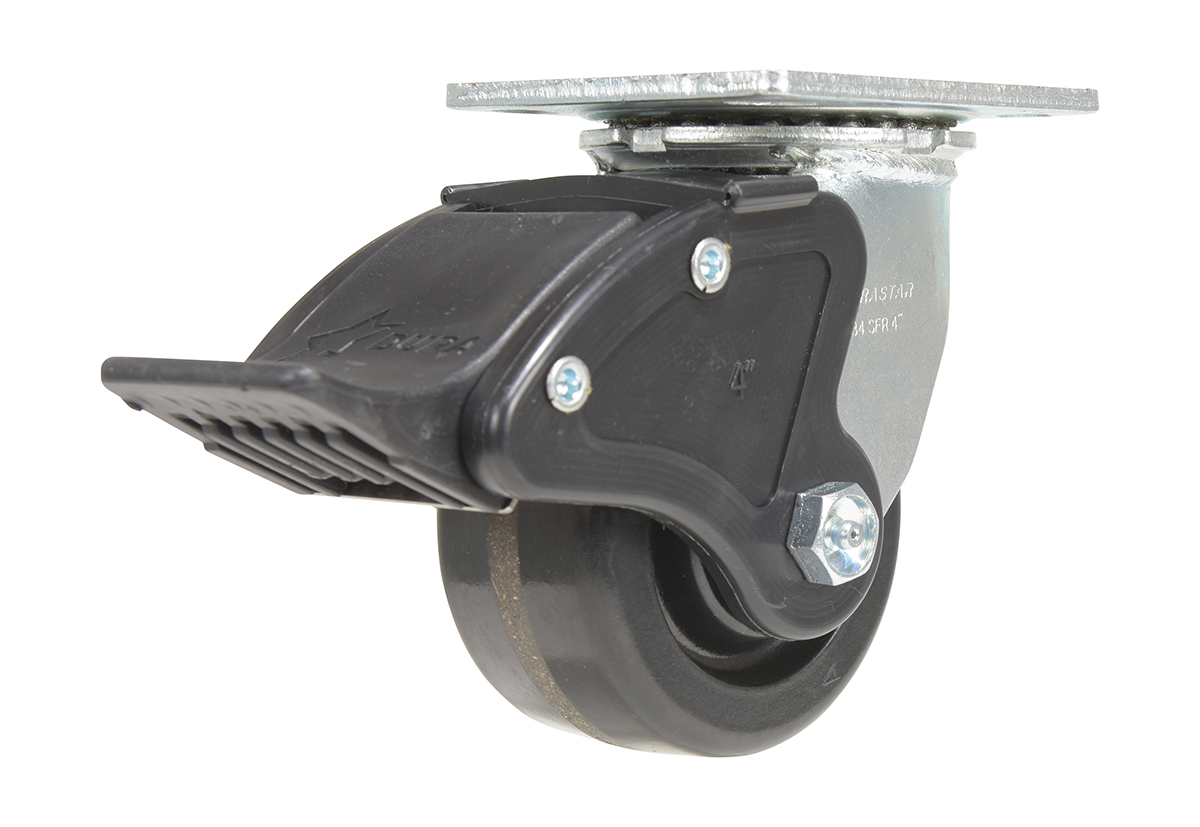

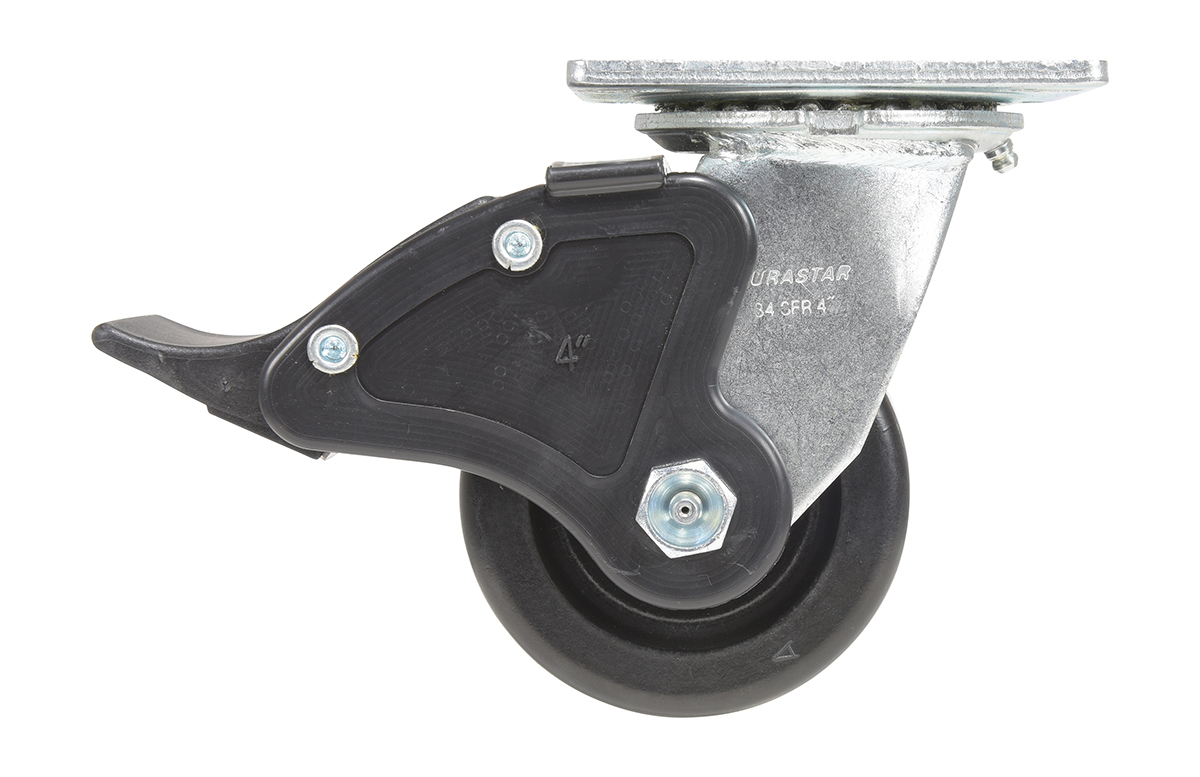

CST-VE-4X2PH-SWTB	1 YEAR Limited Warranty	4 x 2	SWIVEL W/TOTAL BRAKE	800	5-1/2	4 x 4-1/2	6
CST-VE-5X2PH-R	1 YEAR Limited Warranty	5 x 2	RIGID	1000	6-1/2	4 x 4-1/2	5

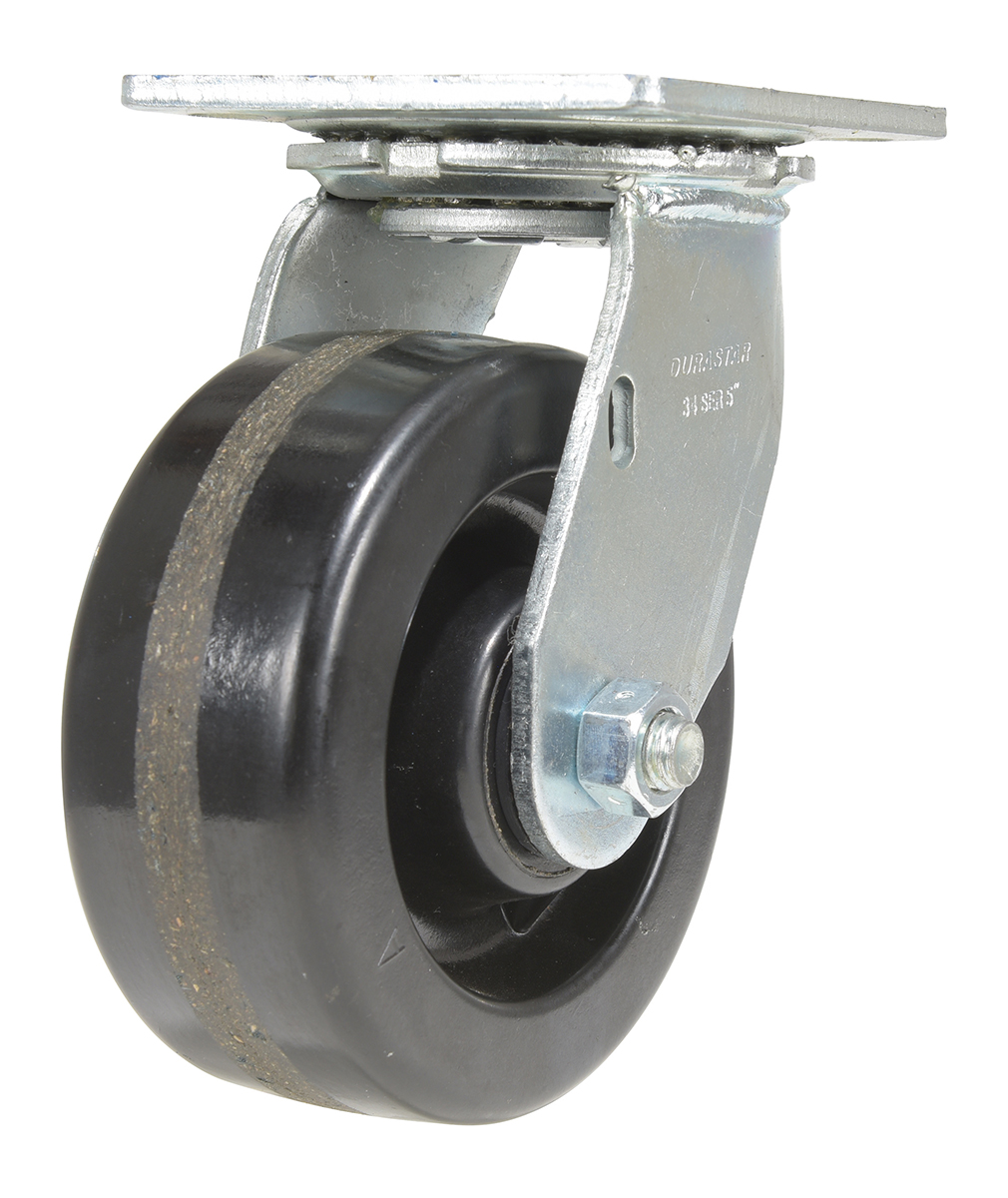

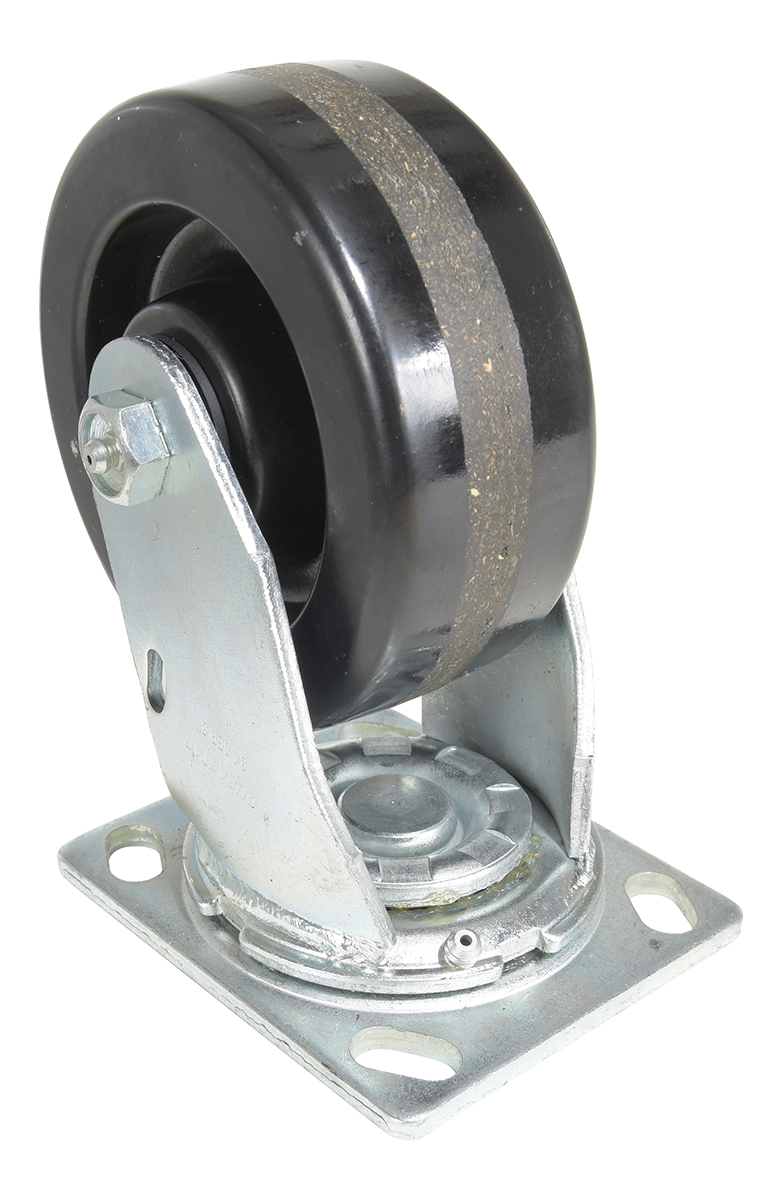

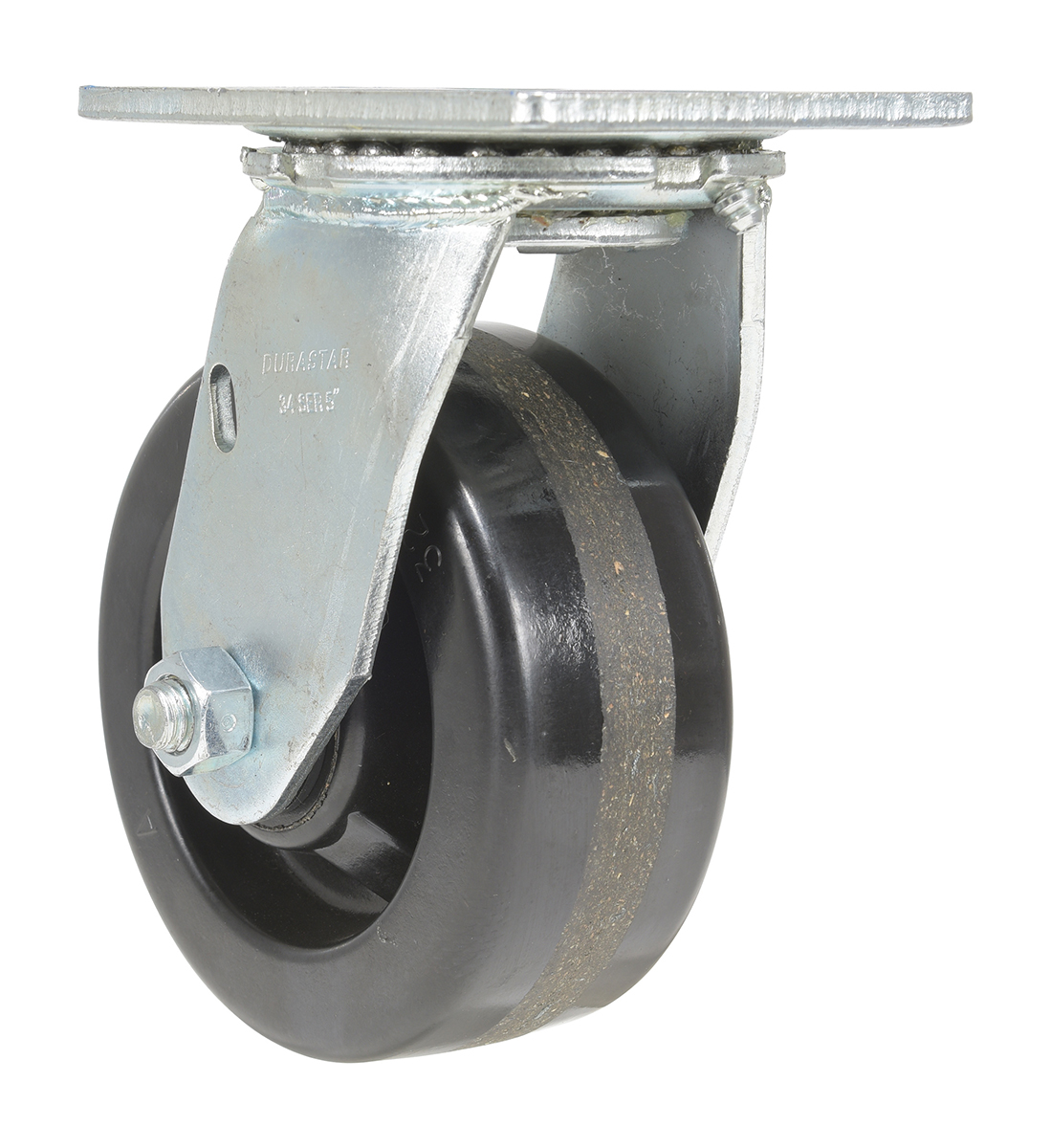

CST-VE-5X2PH-S	1 YEAR Limited Warranty	5 x 2	SWIVEL	1000	6-1/2	4 x 4-1/2	6

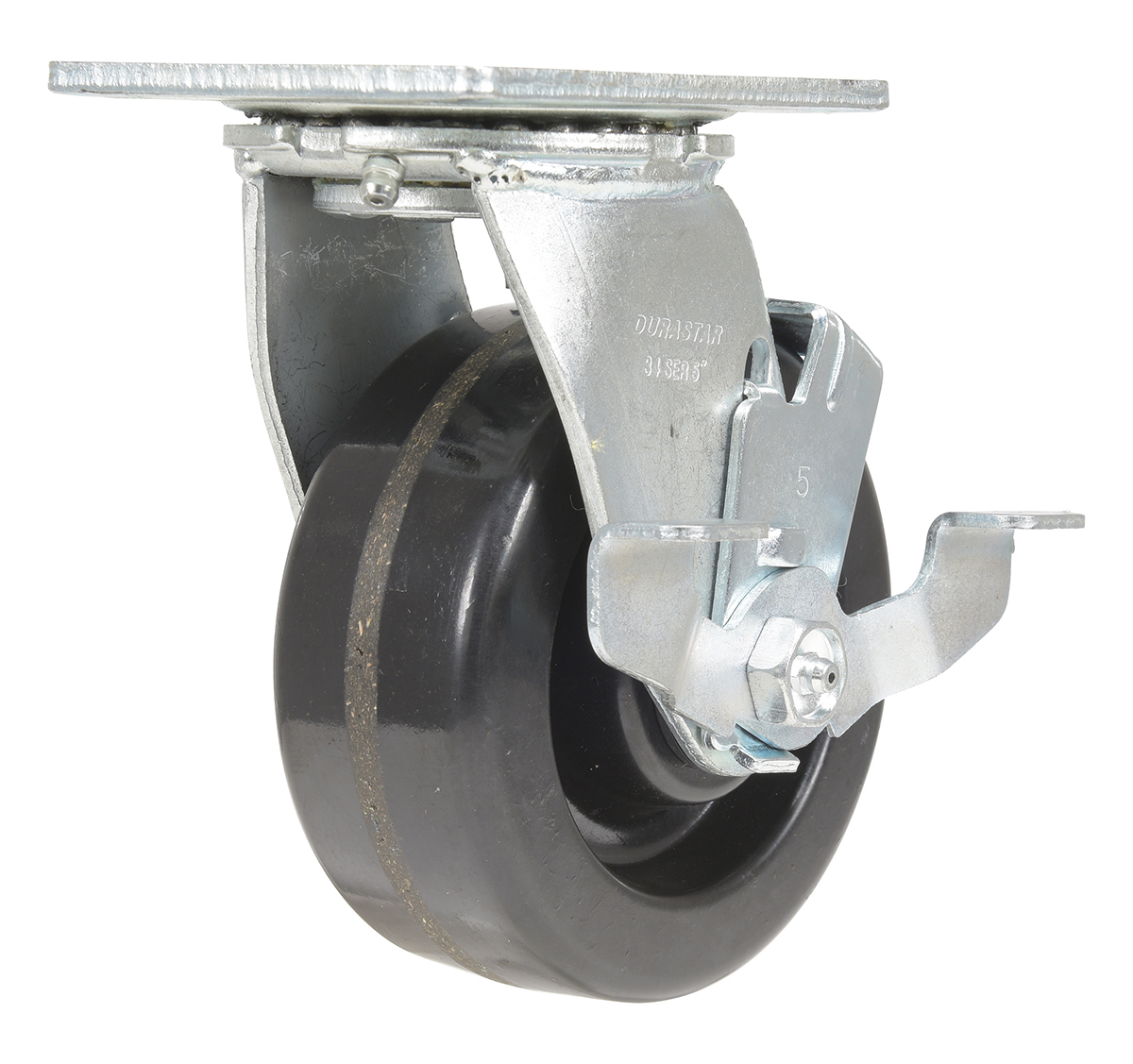

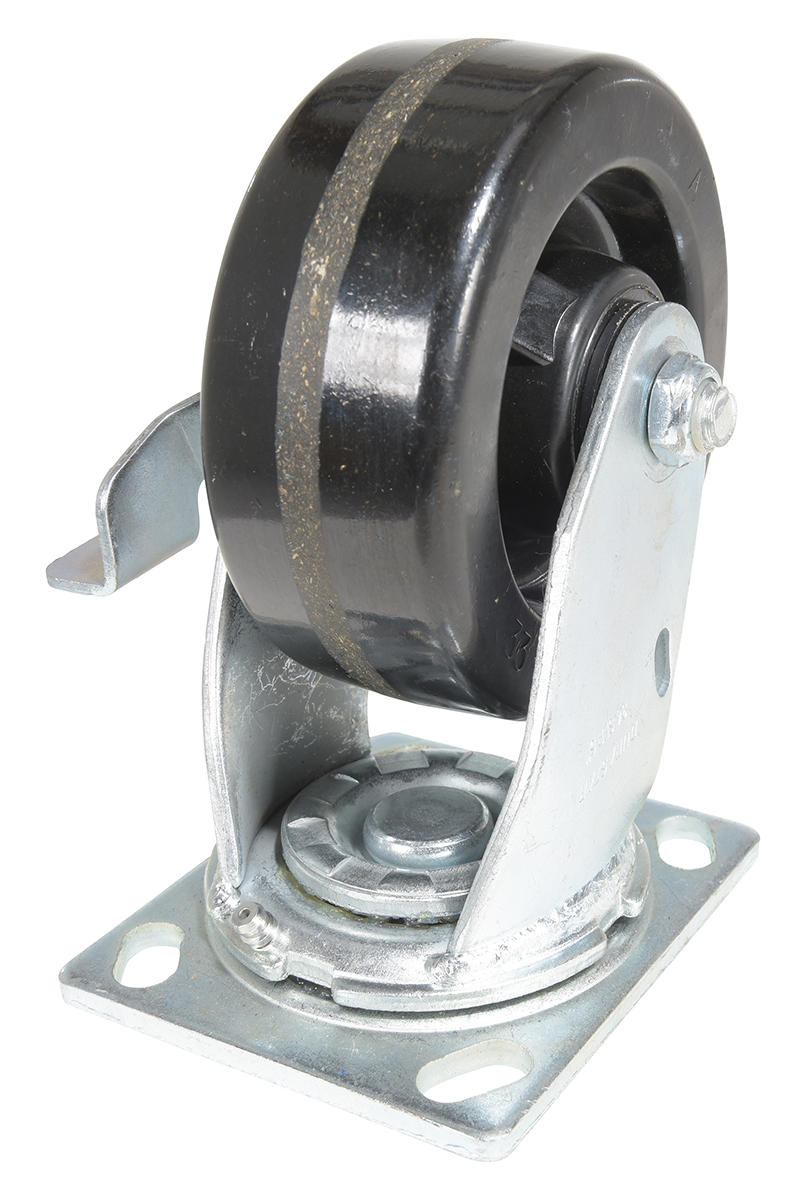

CST-VE-5X2PH-SWB	1 YEAR Limited Warranty	5 x 2	SWIVEL W/BRAKE	1000	6-1/2	4 x 4-1/2	6

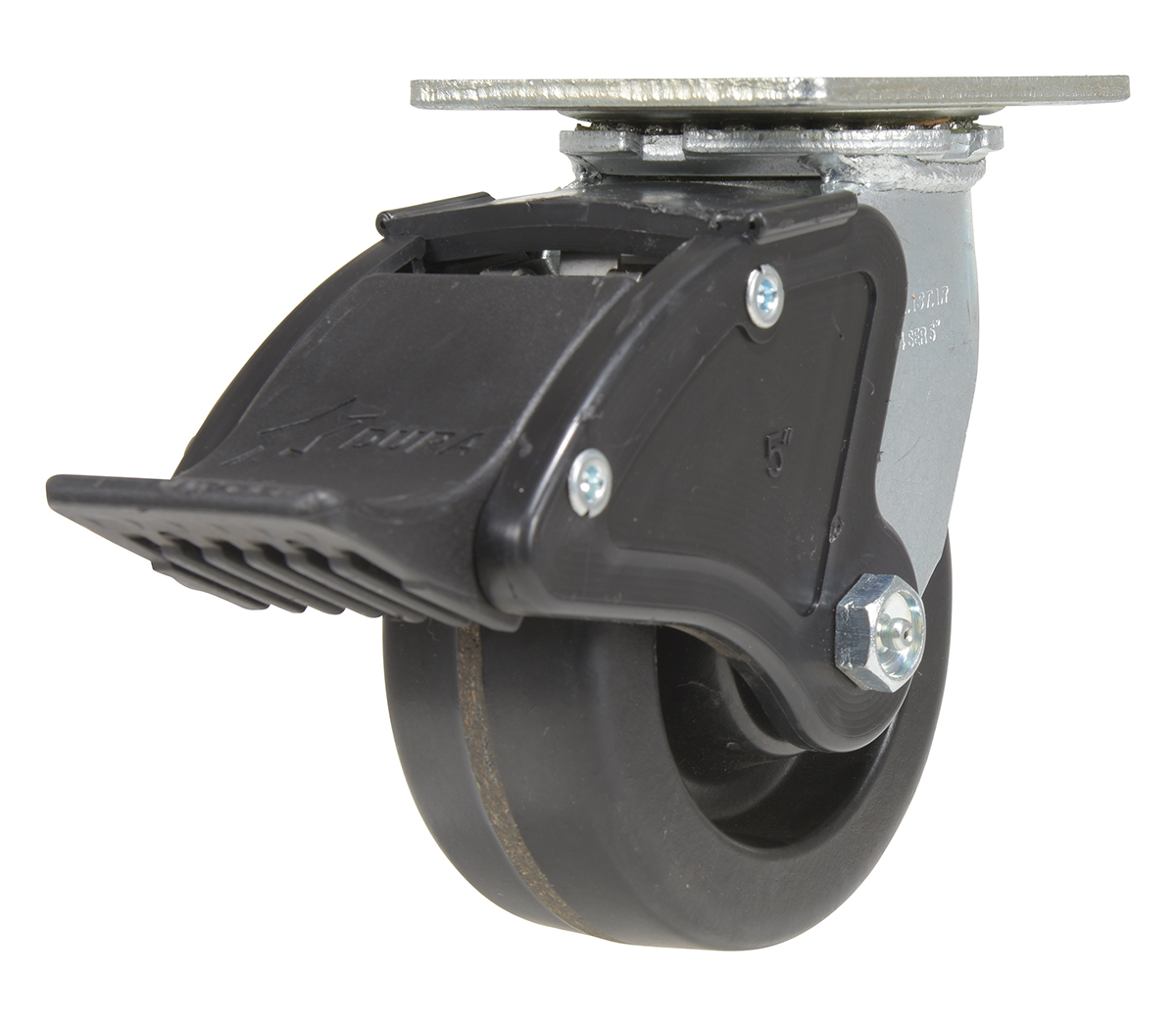

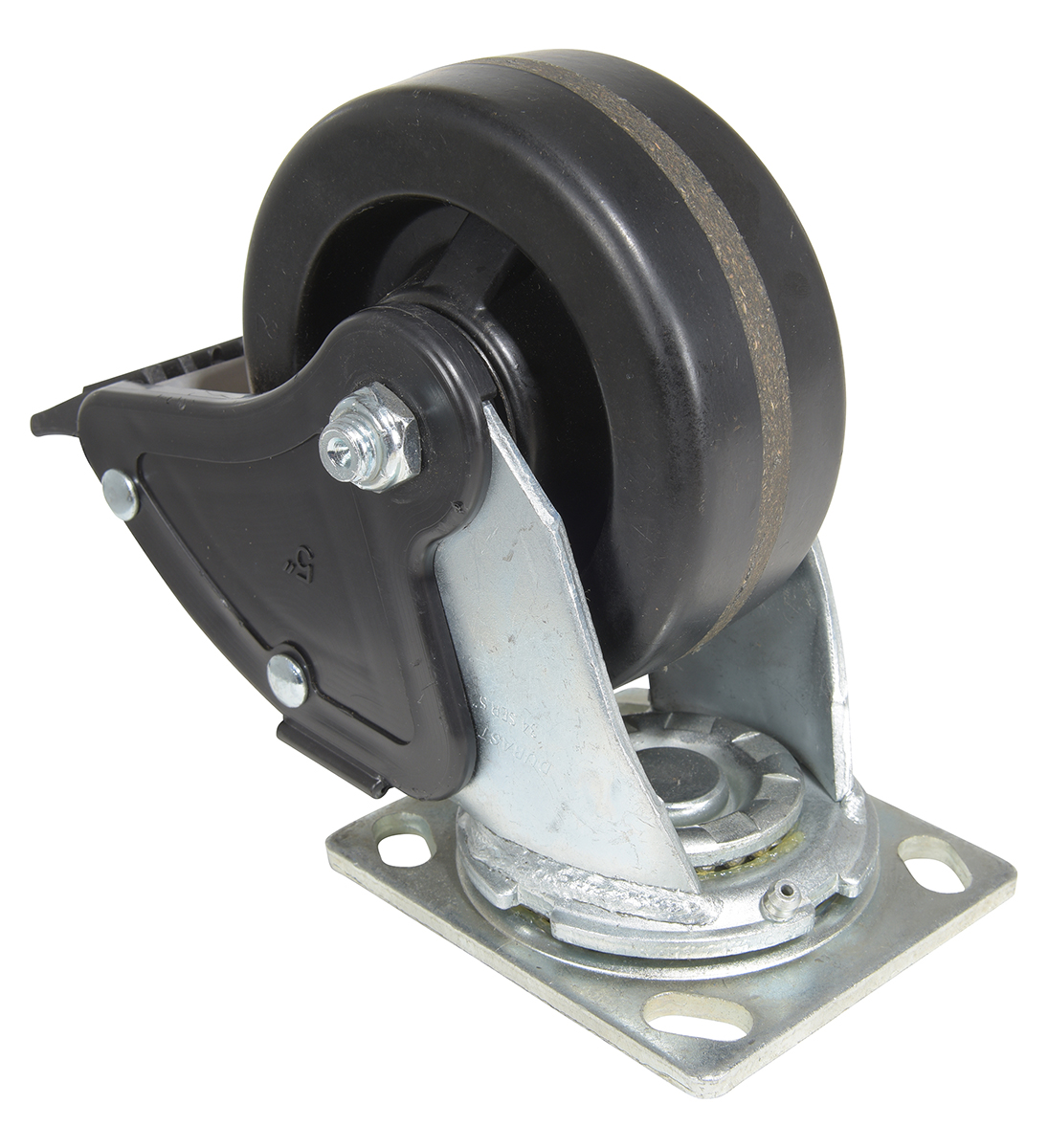

CST-VE-5X2PH-SWTB	1 YEAR Limited Warranty	5 x 2	SWIVEL W/TOTAL BRAKE	1000	6-1/2	4 x 4-1/2	7

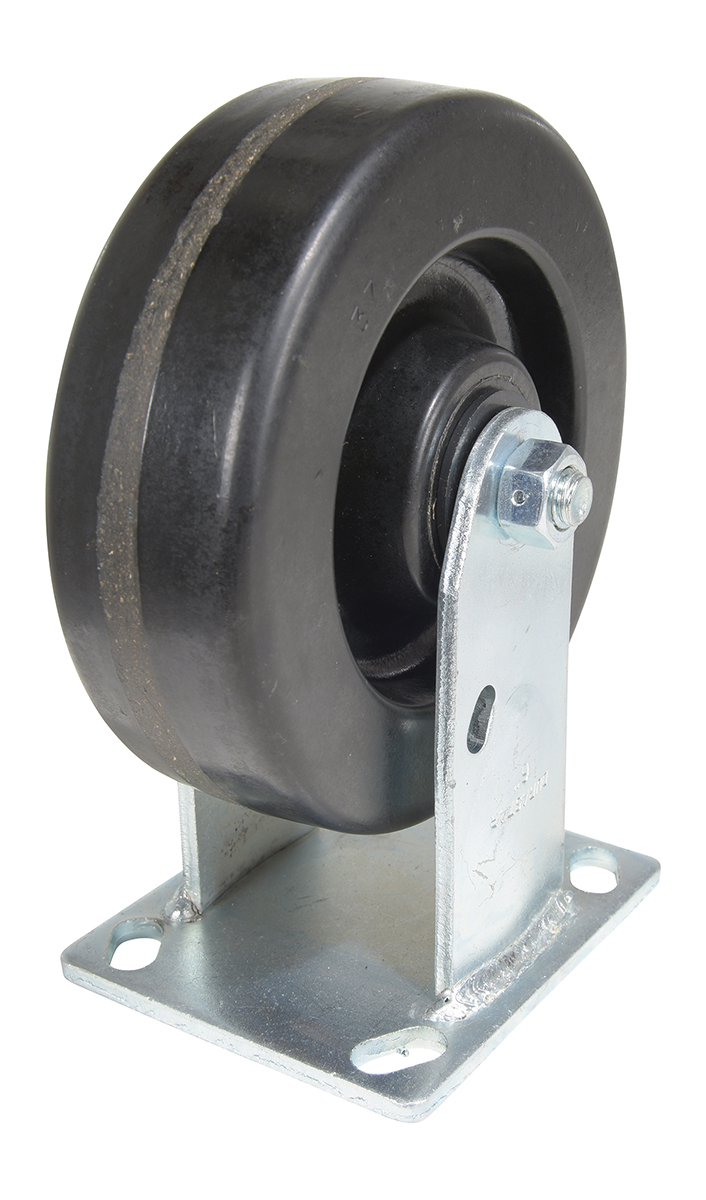

CST-VE-6X2PH-R	1 YEAR Limited Warranty	6 x 2	RIGID	1200	7-1/2	4 x 4-1/2	6

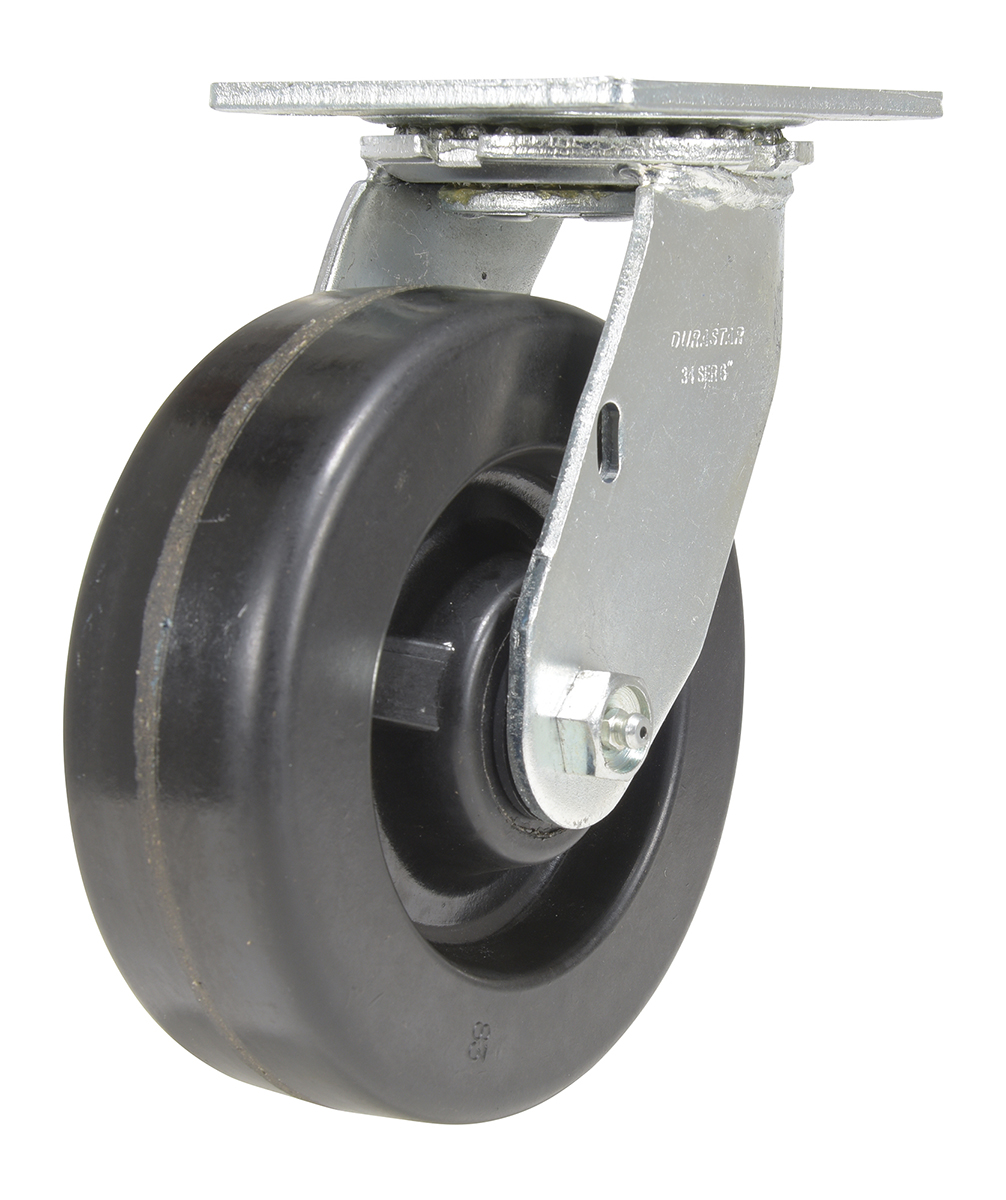

CST-VE-6X2PH-S	1 YEAR Limited Warranty	6 x 2	SWIVEL	1200	7-1/2	4 x 4-1/2	7

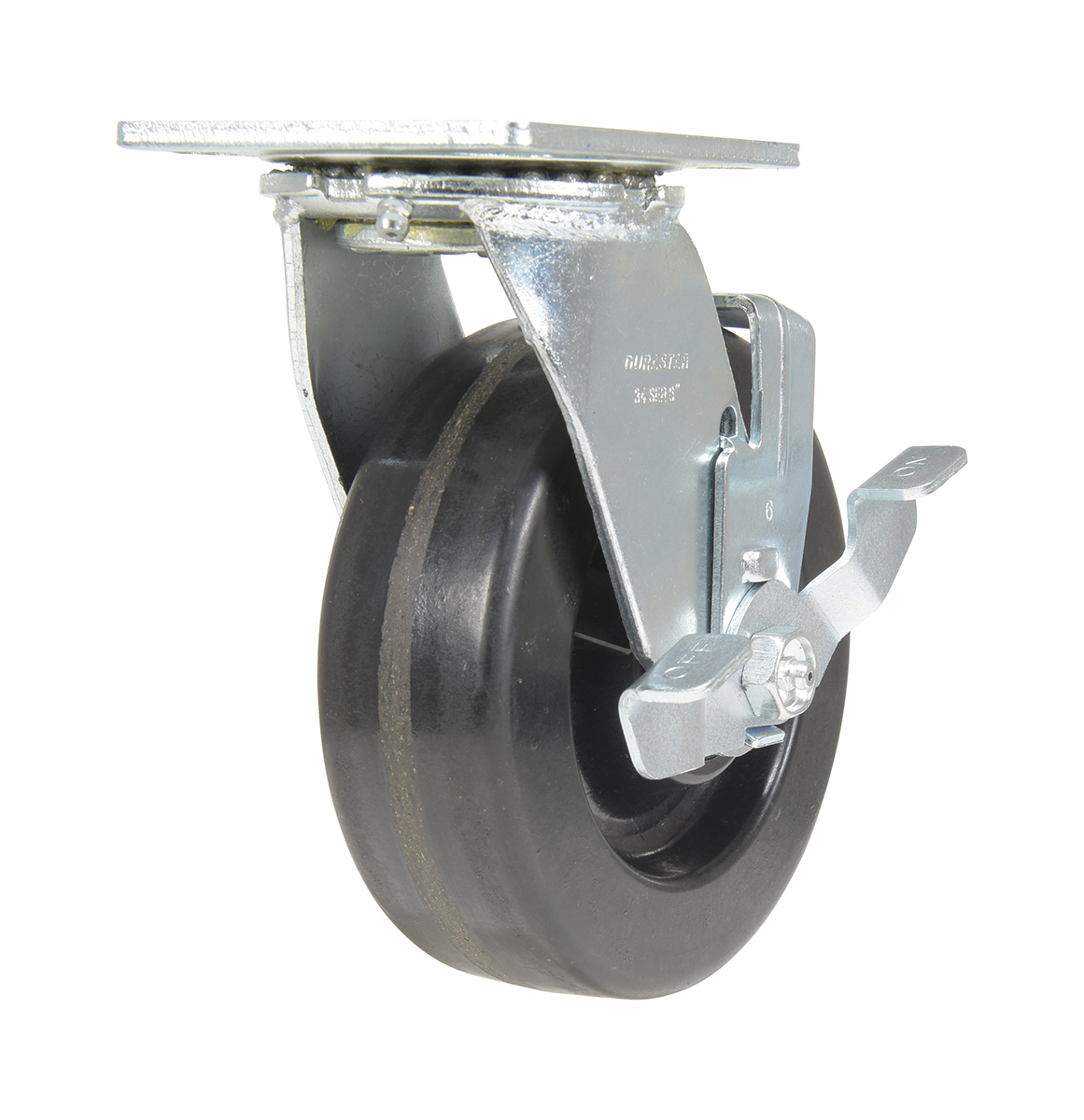

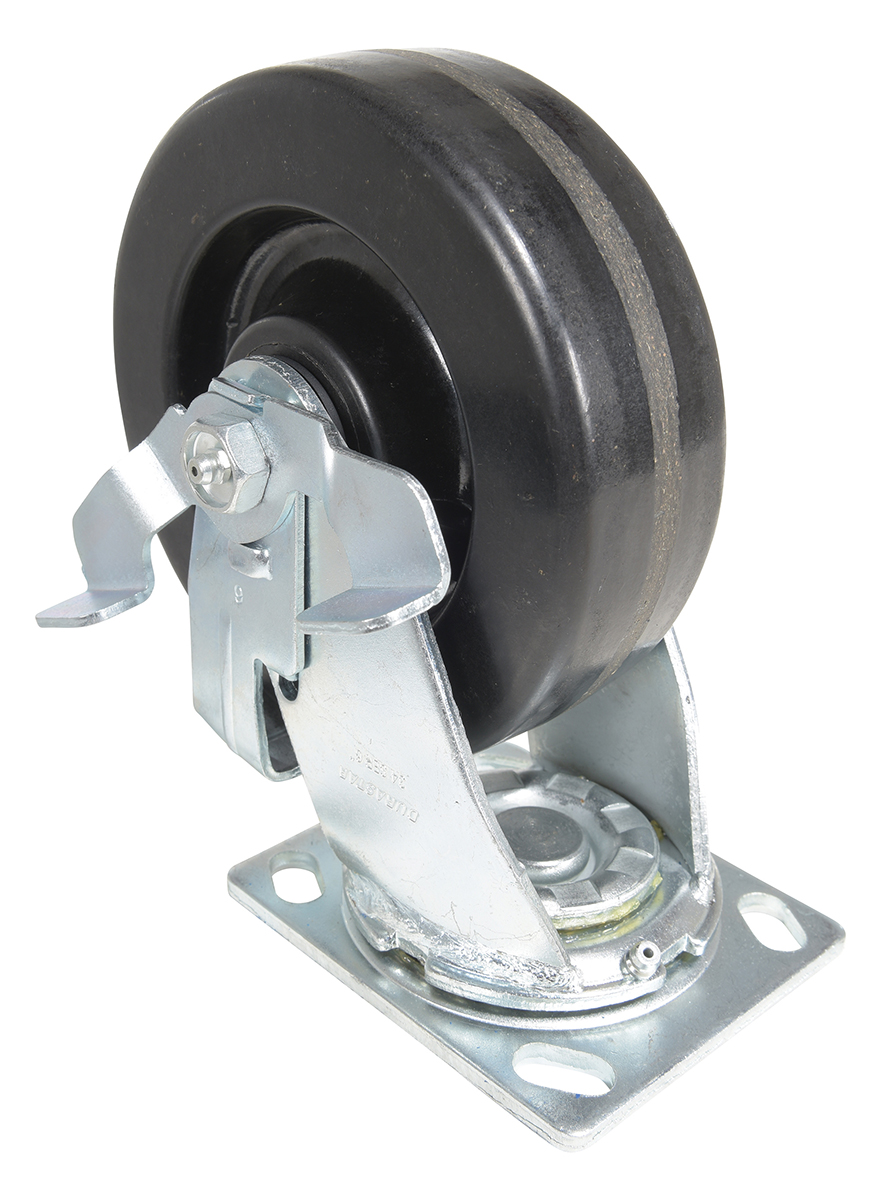

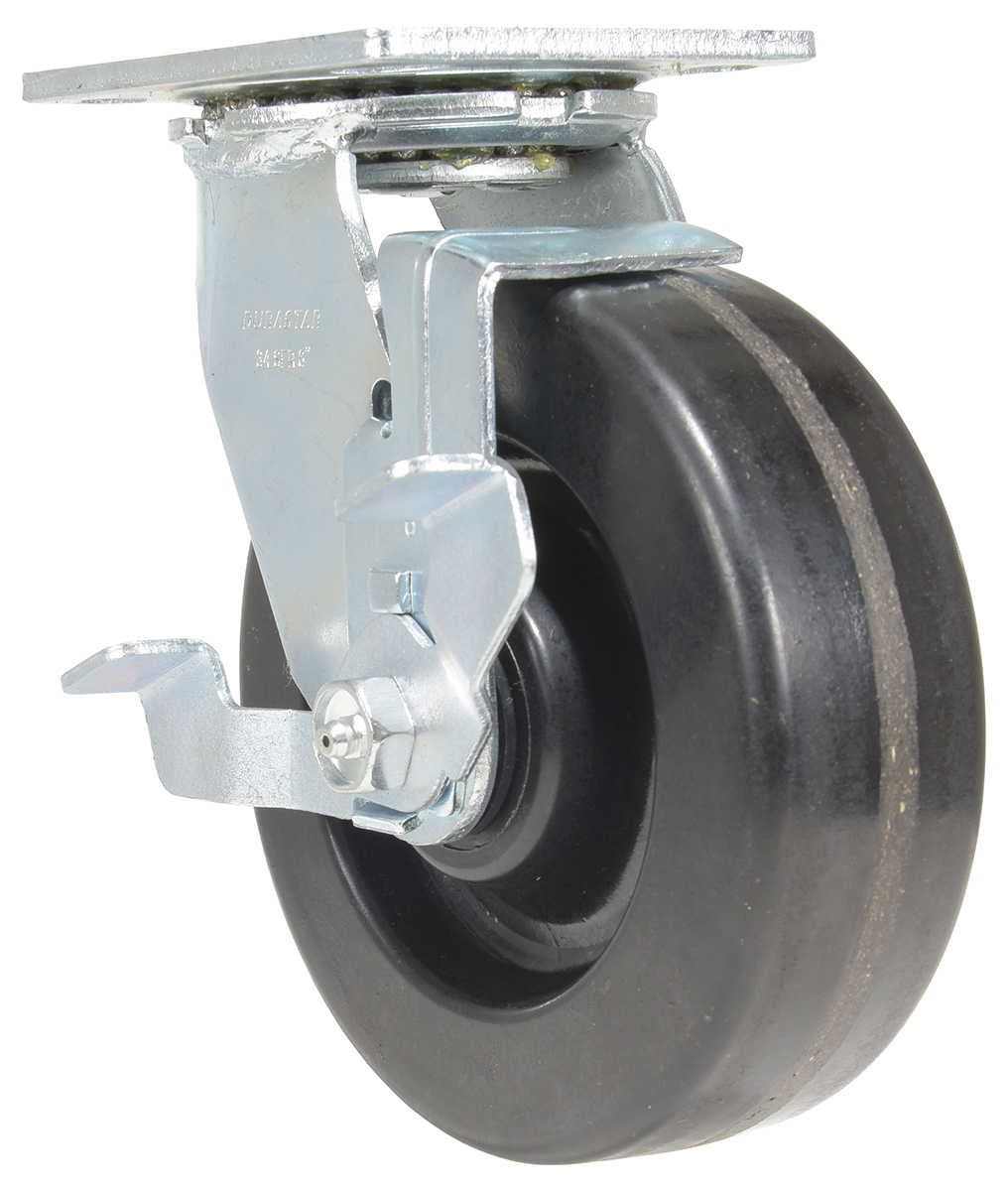

CST-VE-6X2PH-SWB	1 YEAR Limited Warranty	6 x 2	SWIVEL W/BRAKE	1200	7-1/2	4 x 4-1/2	7

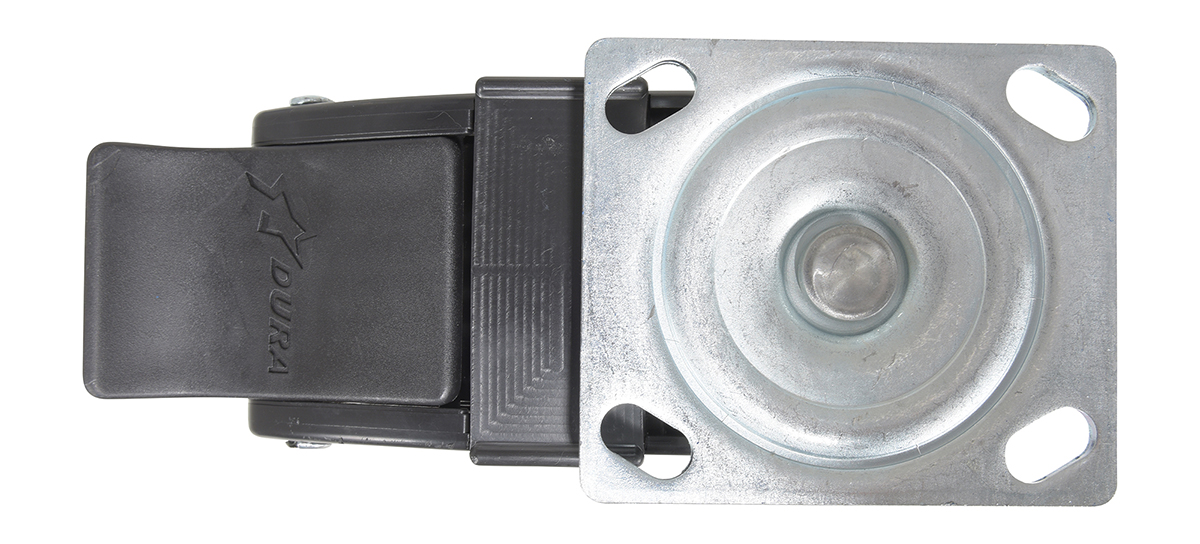

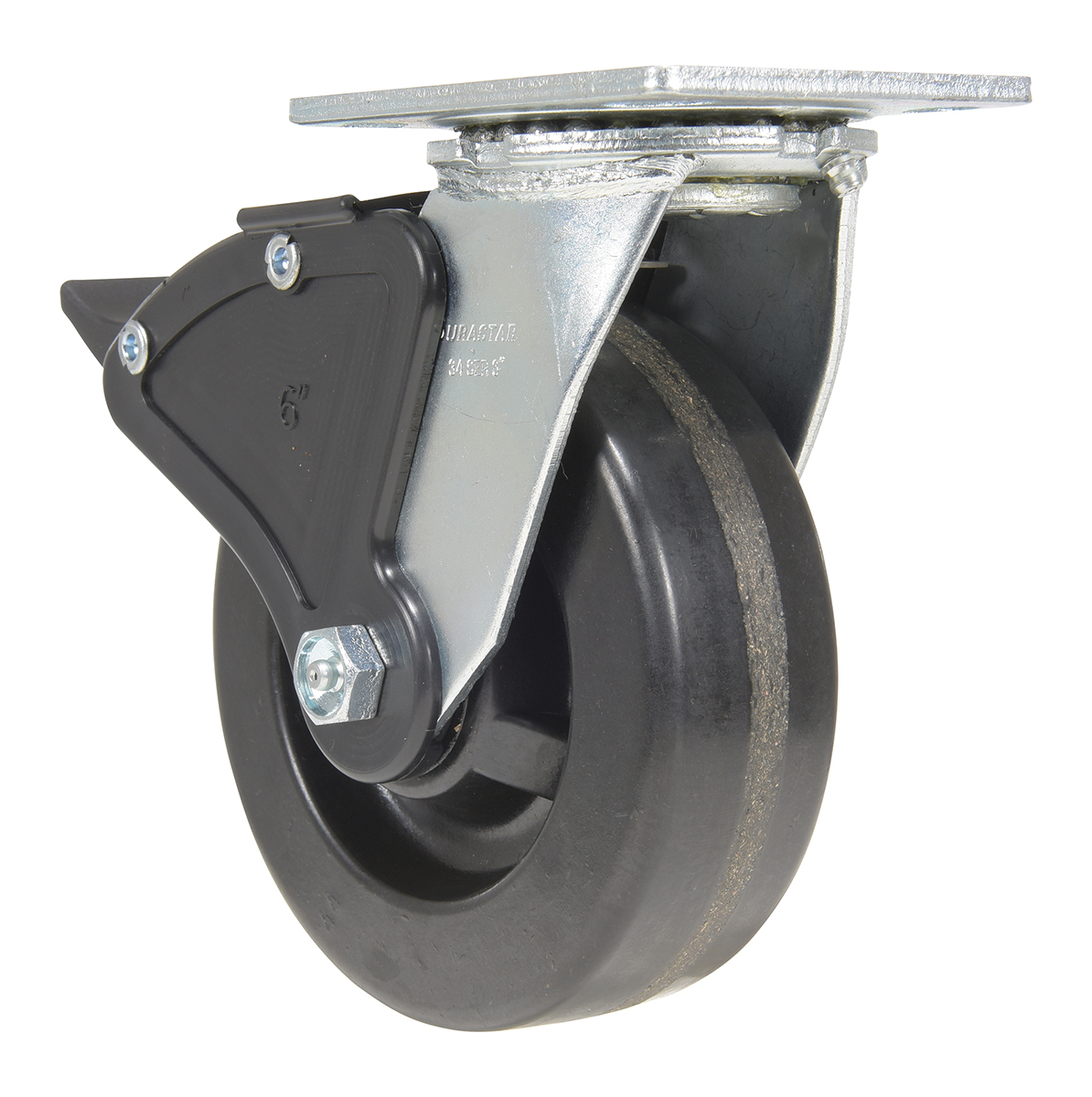

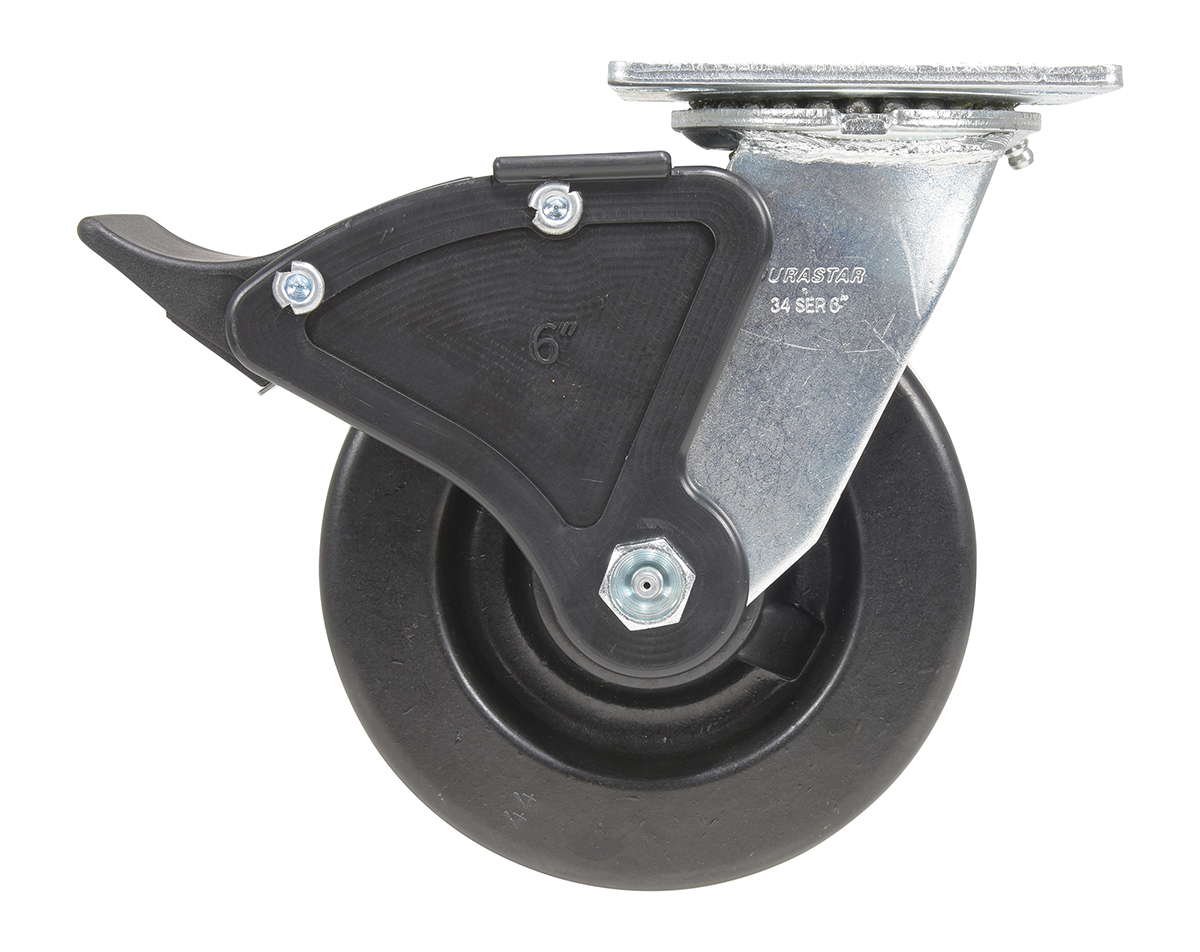

CST-VE-6X2PH-SWTB	1 YEAR Limited Warranty	6 x 2	SWIVEL W/TOTAL BRAKE	1200	7-1/2	4 x 4-1/2	7
CST-VE-8X2PH-R	1 YEAR Limited Warranty	8 x 2	RIGID	1250	9-1/2	4 x 4-1/2	7
