Work Station Electric Hydraulic Scissor Tables

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
EHLT-WSI-4048-1.5-36_A.jpg EHLT-WSI-4048-1.5-36_B.jpg EHLT-WSI-4048-1.5-36_C.jpg EHLT-WSI-4048-1.5-36_D.jpg
EHLT-WSI-4048-1.5-36_E.jpg EHLT-WSI-4048-1.5-36_F.jpg EHLT-WSI-4048-1.5-36_G.jpg EHLT-WSI-4048-1.5-36_H.jpg
Work Station Electric Hydraulic Scissor Tables

model: EHLT-WSI-4048-1.5-36



Work Station Electric Hydraulic Scissor Tables

model: EHLT-WSI-4048-1.5-36

Featured Ergonomic Solutions


Trash Can Carts

Deluxe Roller Stands

Portable Scissor Lift Tables

Gas Powered All Terrain Pallet Trucks & Stackers

Ground Lift & Tilt Tables

Ball Transfer Platforms

Narrow Mast Stackers with Powered Lift

Portable Uni-Tilts

Pallet Master Fork Extensions
model chart

Print Friendly
Work Station Electric Hydraulic Scissor Tables
SERIES: EHLT-WS / EHLT-WSI

Work station electric hydraulic scissor tables are designed to raise products up to an ergonomic working height. They maximizes safety with minimum space requirements and are ideal for all types of manufacturing and warehouse facilities. An electric toe guard also comes standard with the unit. External power unit models and internal power unit models both have a 13 Second travel time (based on 3 phase motor)

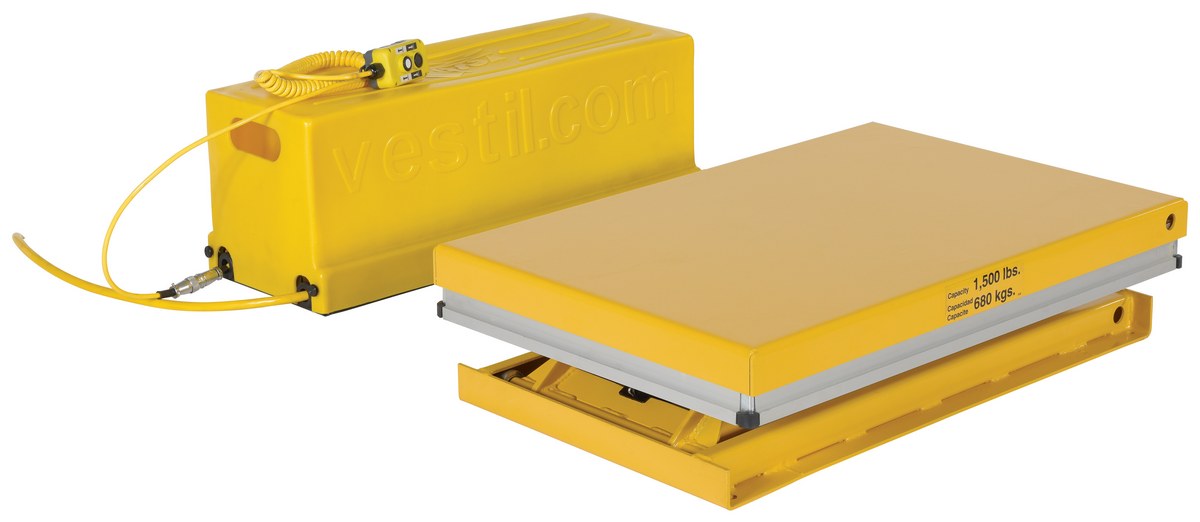

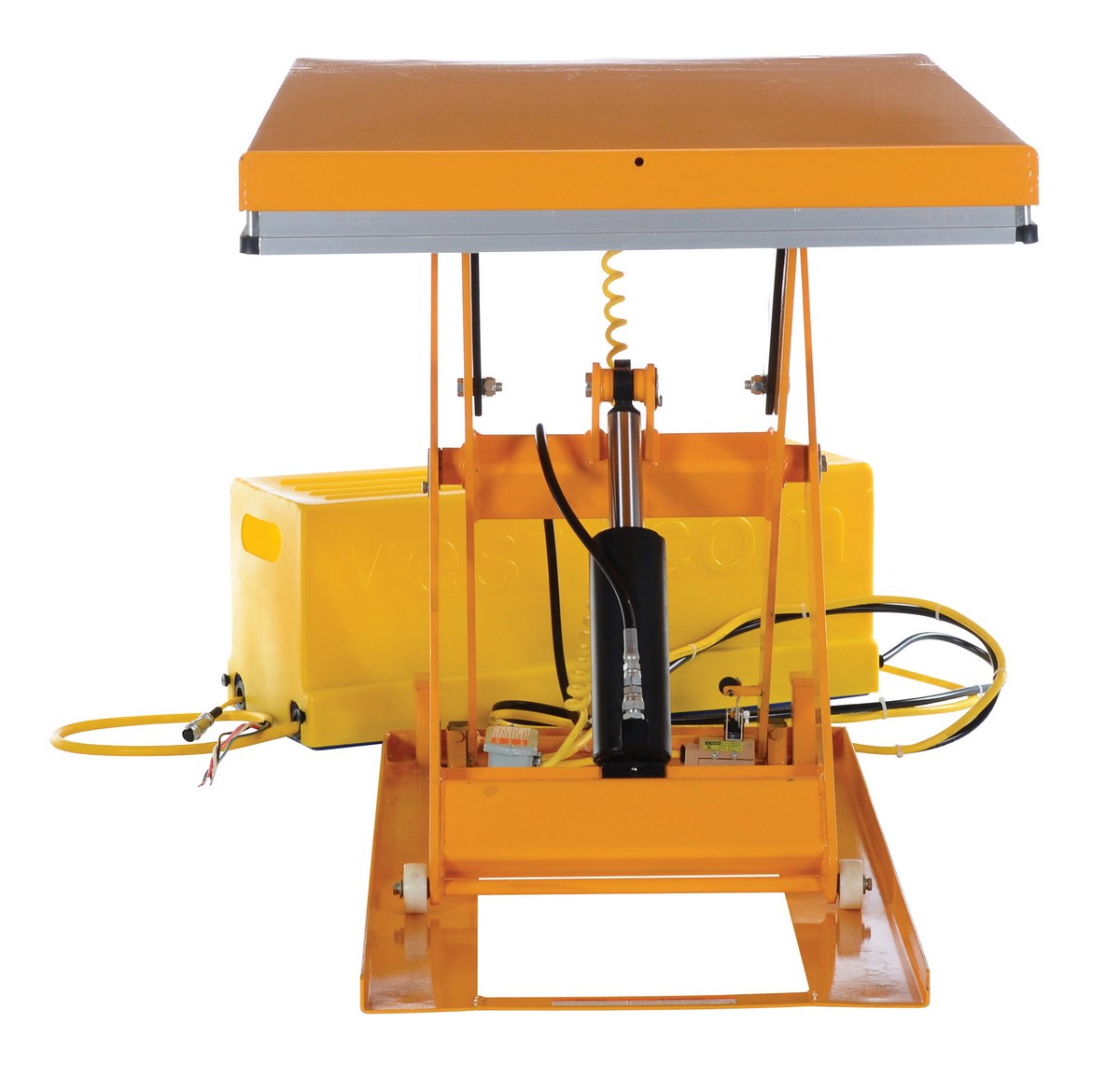

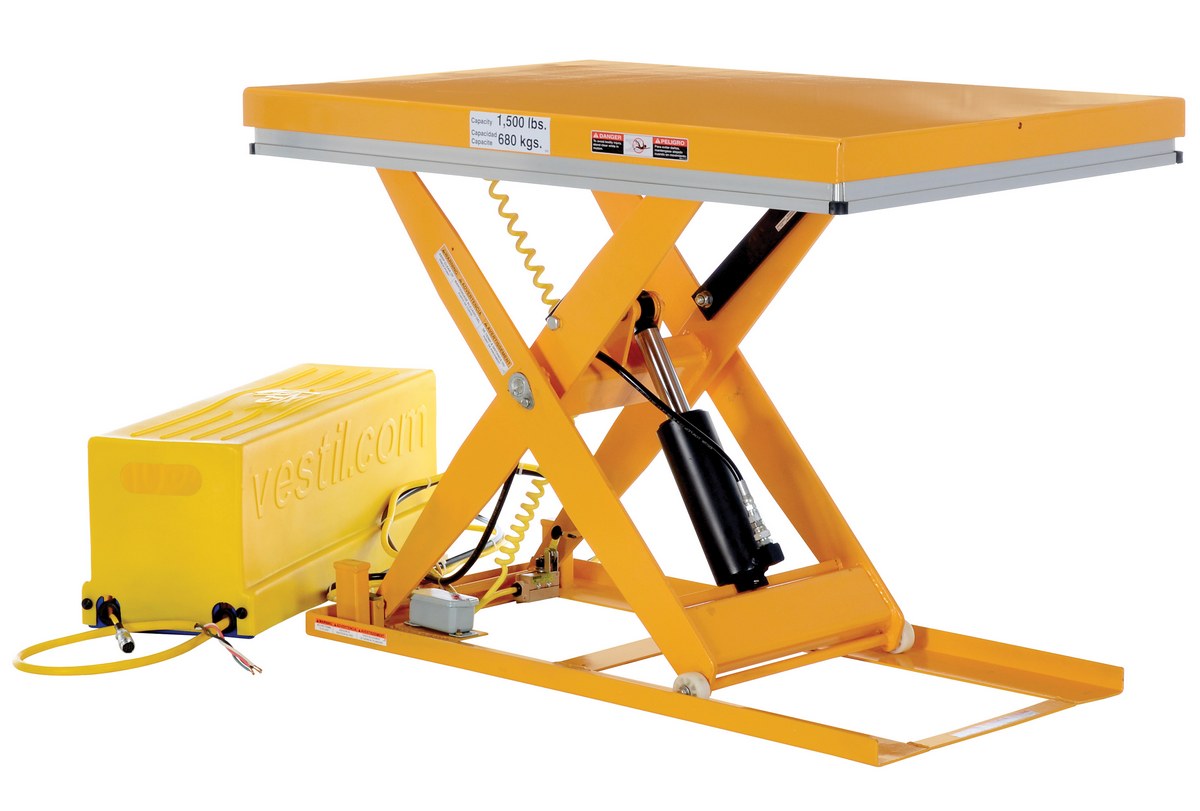

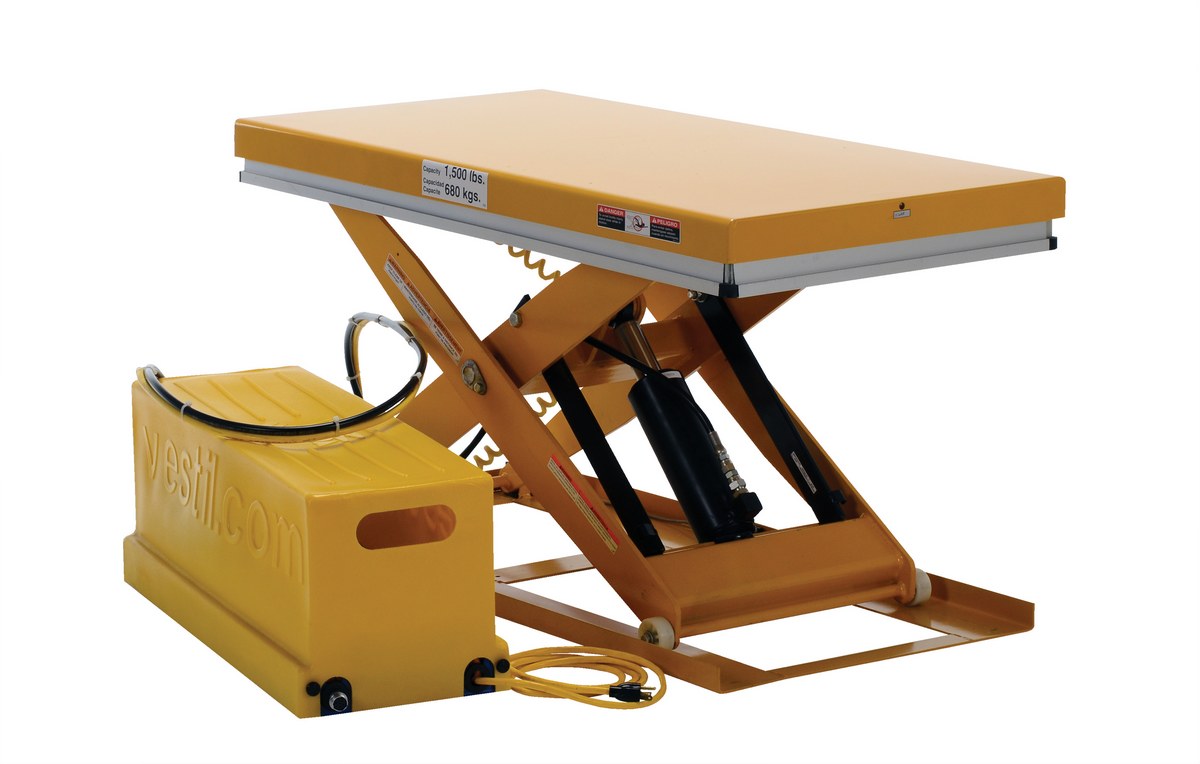

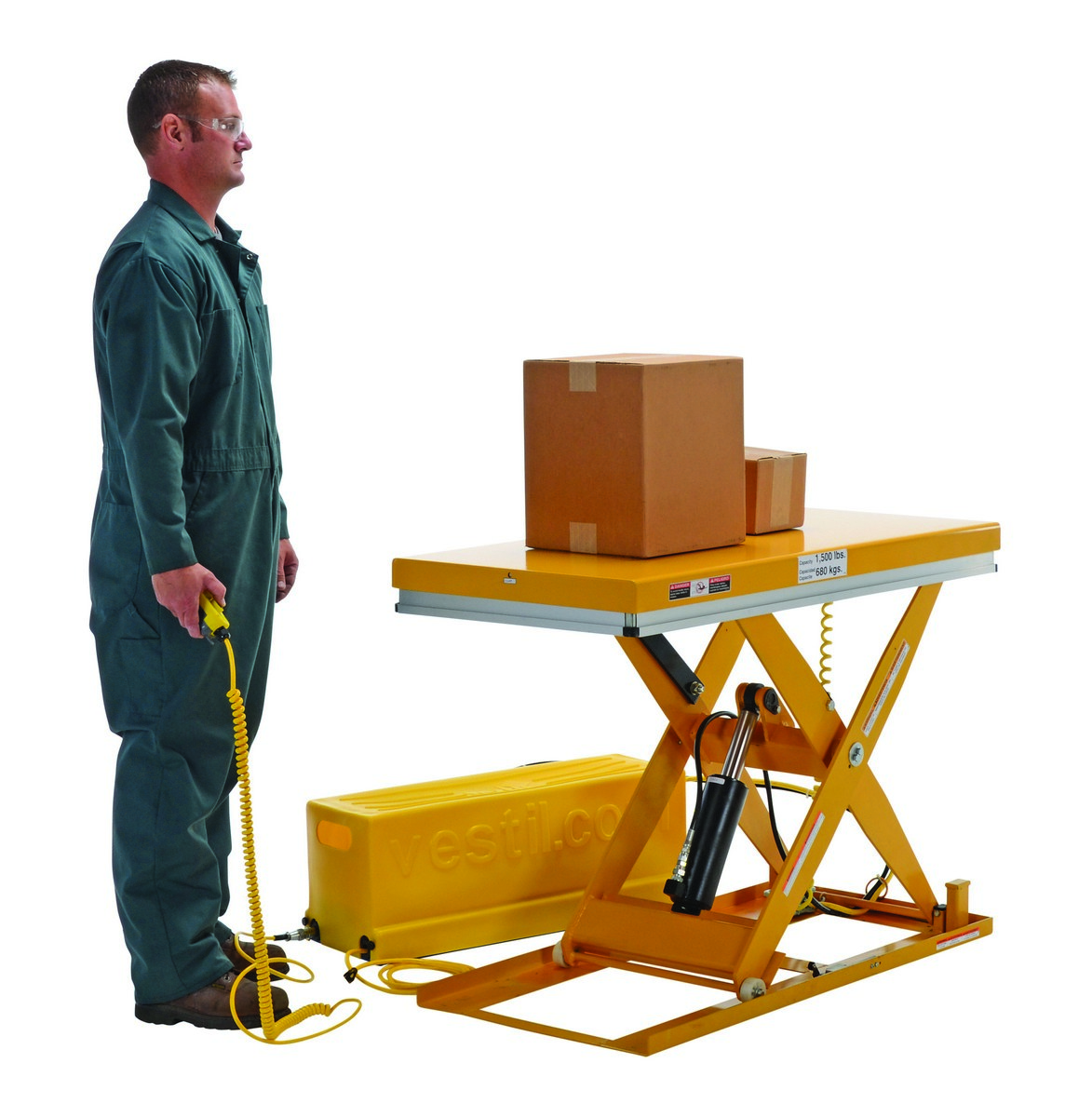

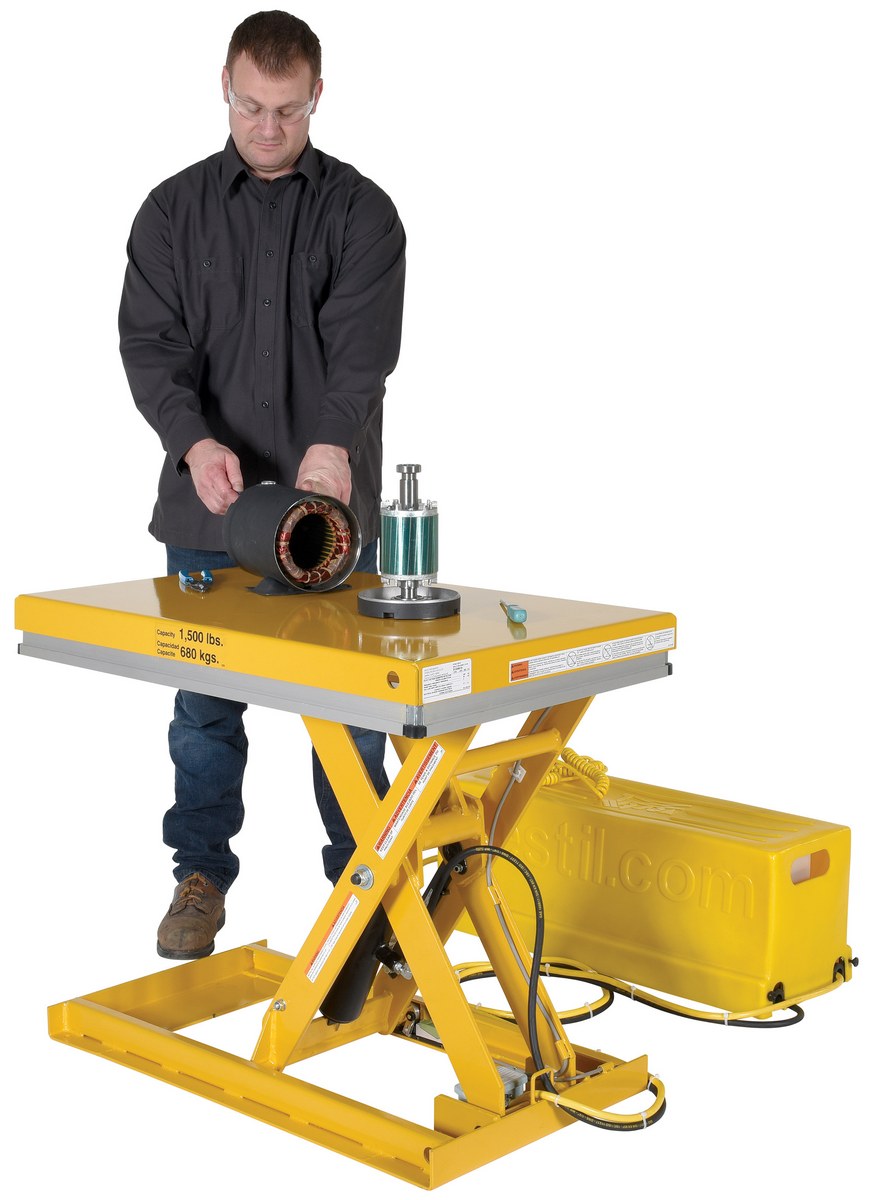

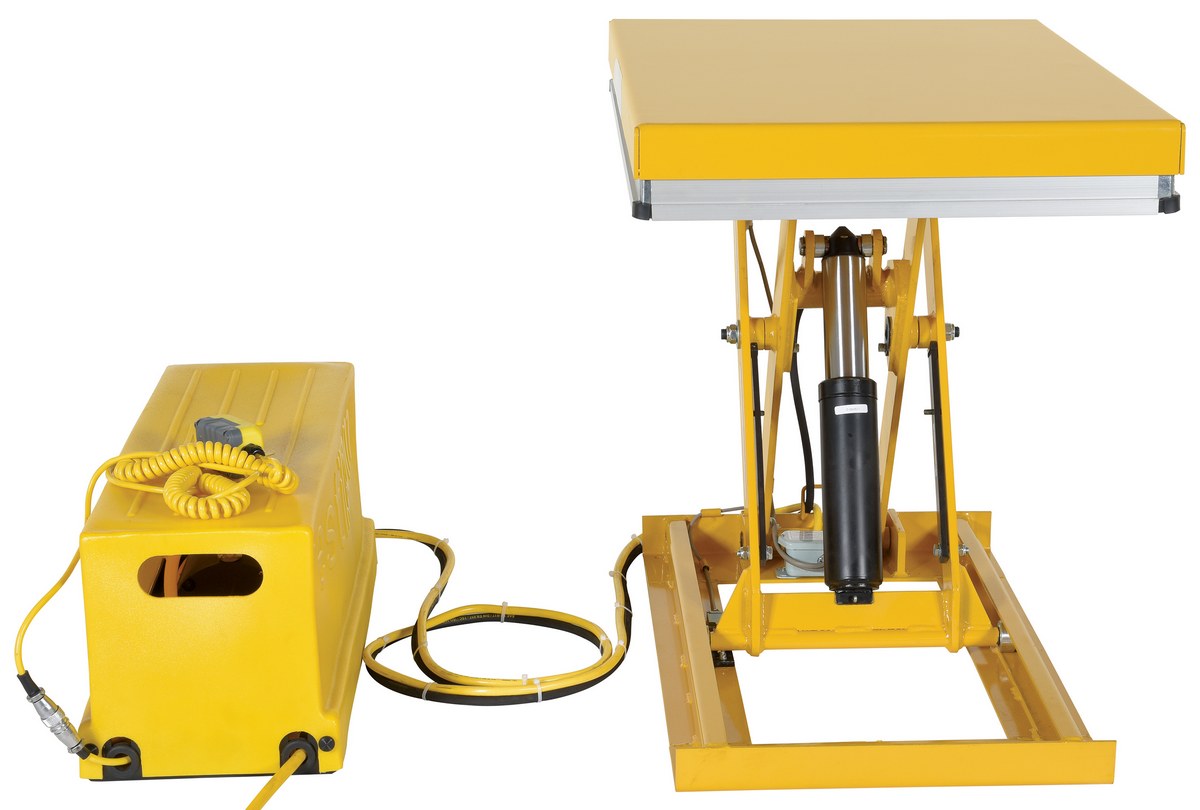

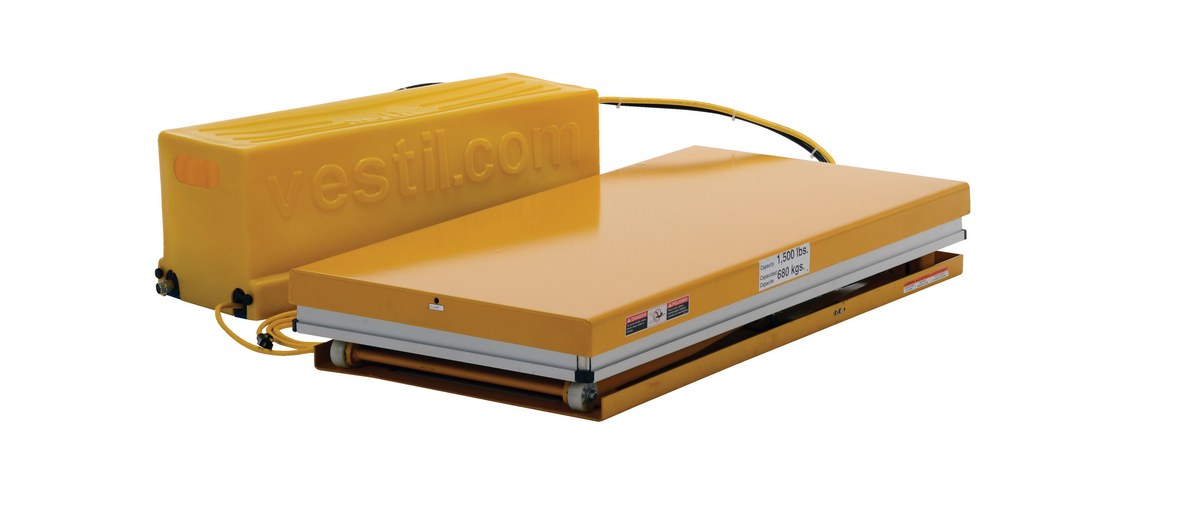

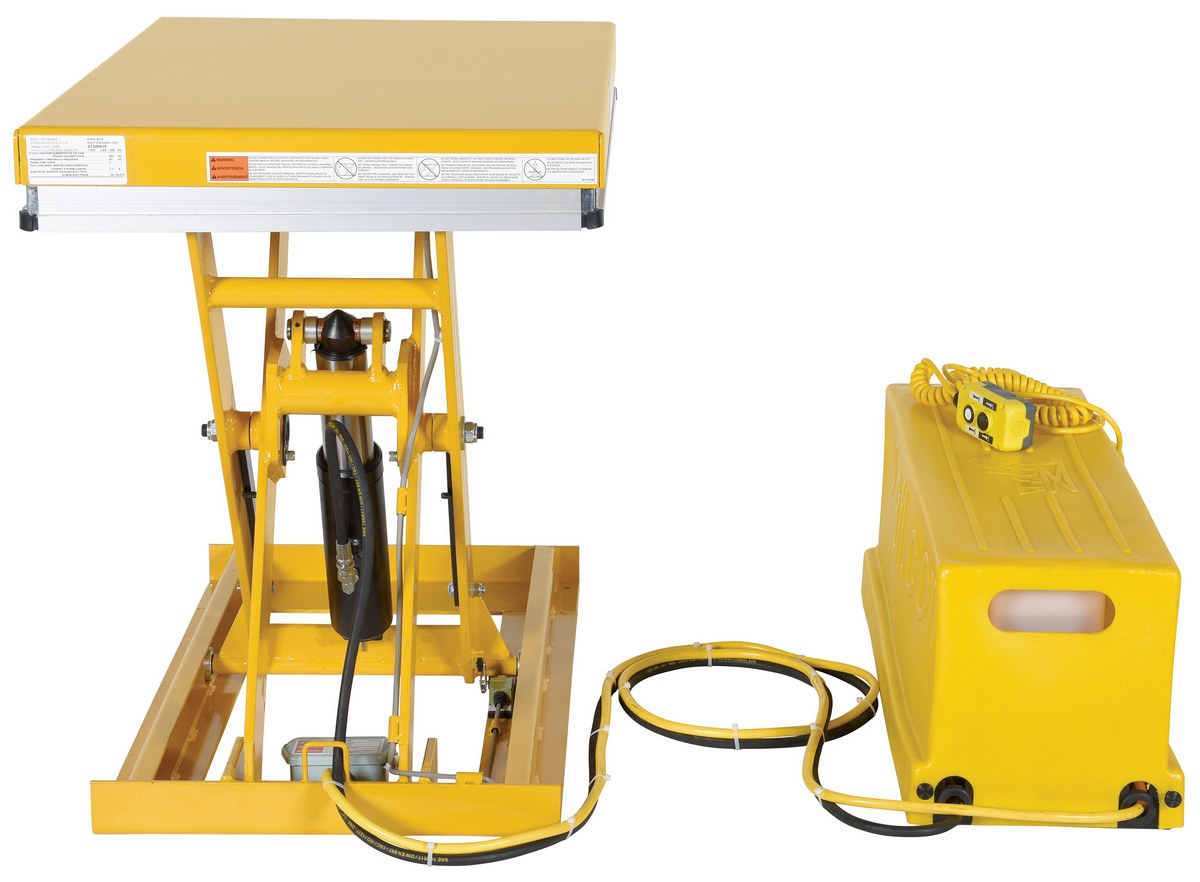

EHLT-WS-2436-1.5-31_E.jpgEHLT-WS (External Power Unit)

  • The 460V 3-Phase external power unit can be located eight (8) feet away from the unit
  • Steel & Partialy Stainless Steel Models available
  • Comes with a standard hand control

Partially Stainless Steel Models Available!
(See Chart Below)

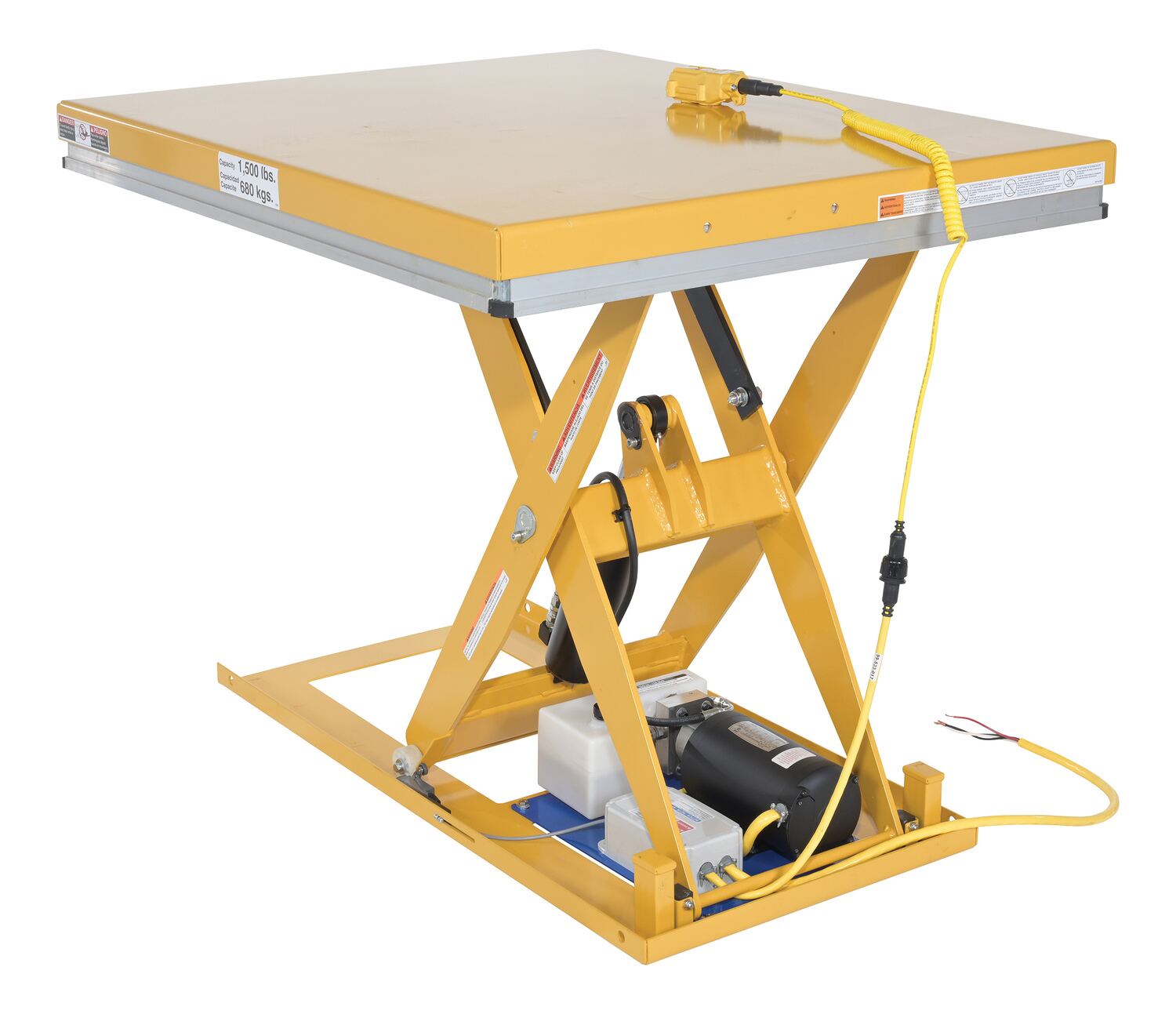

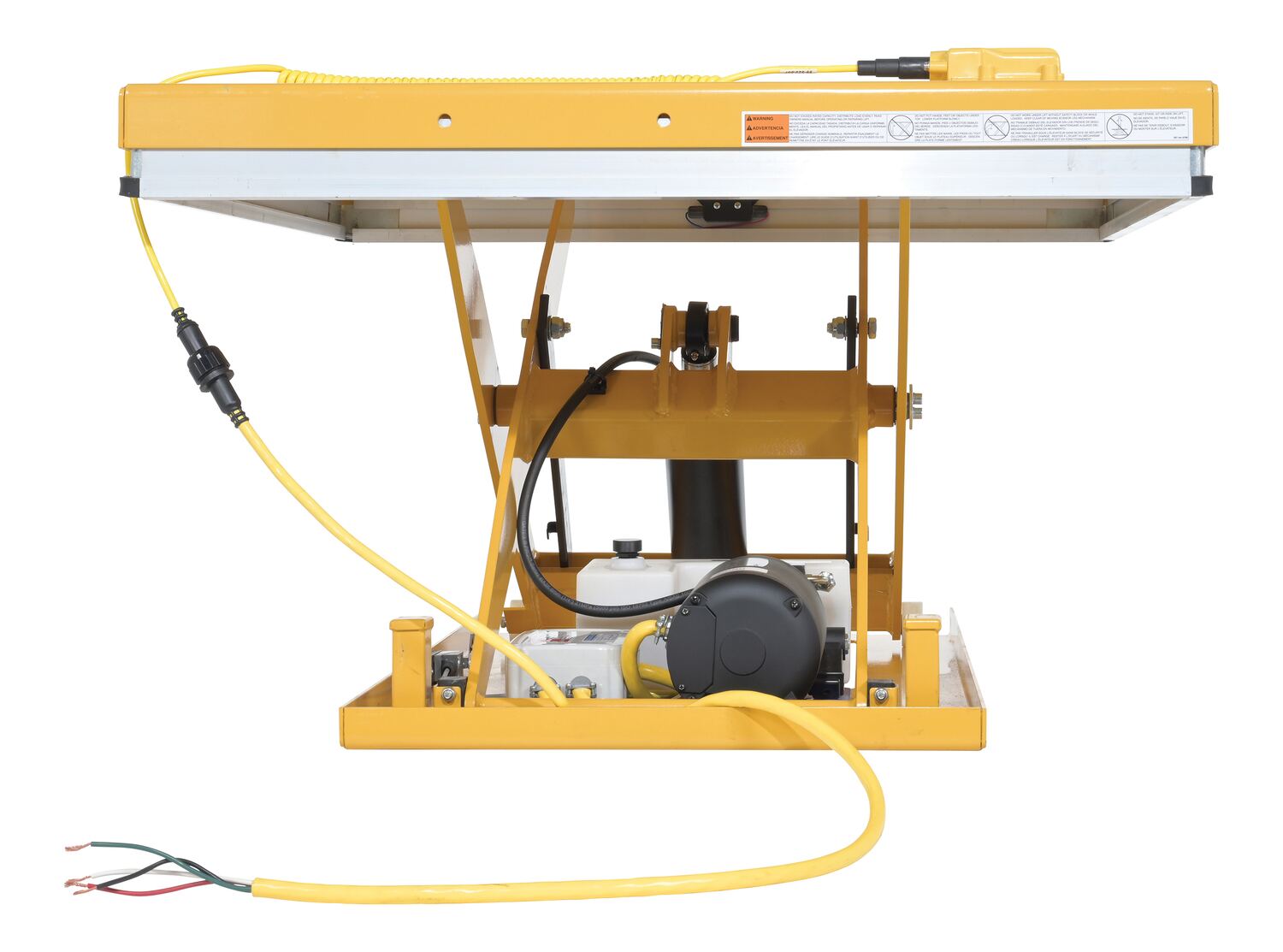

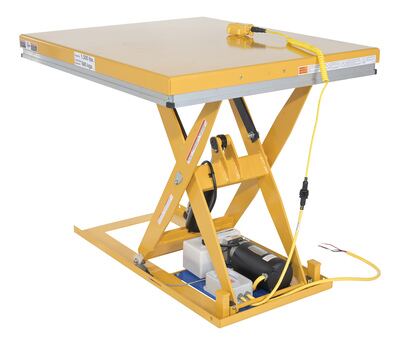

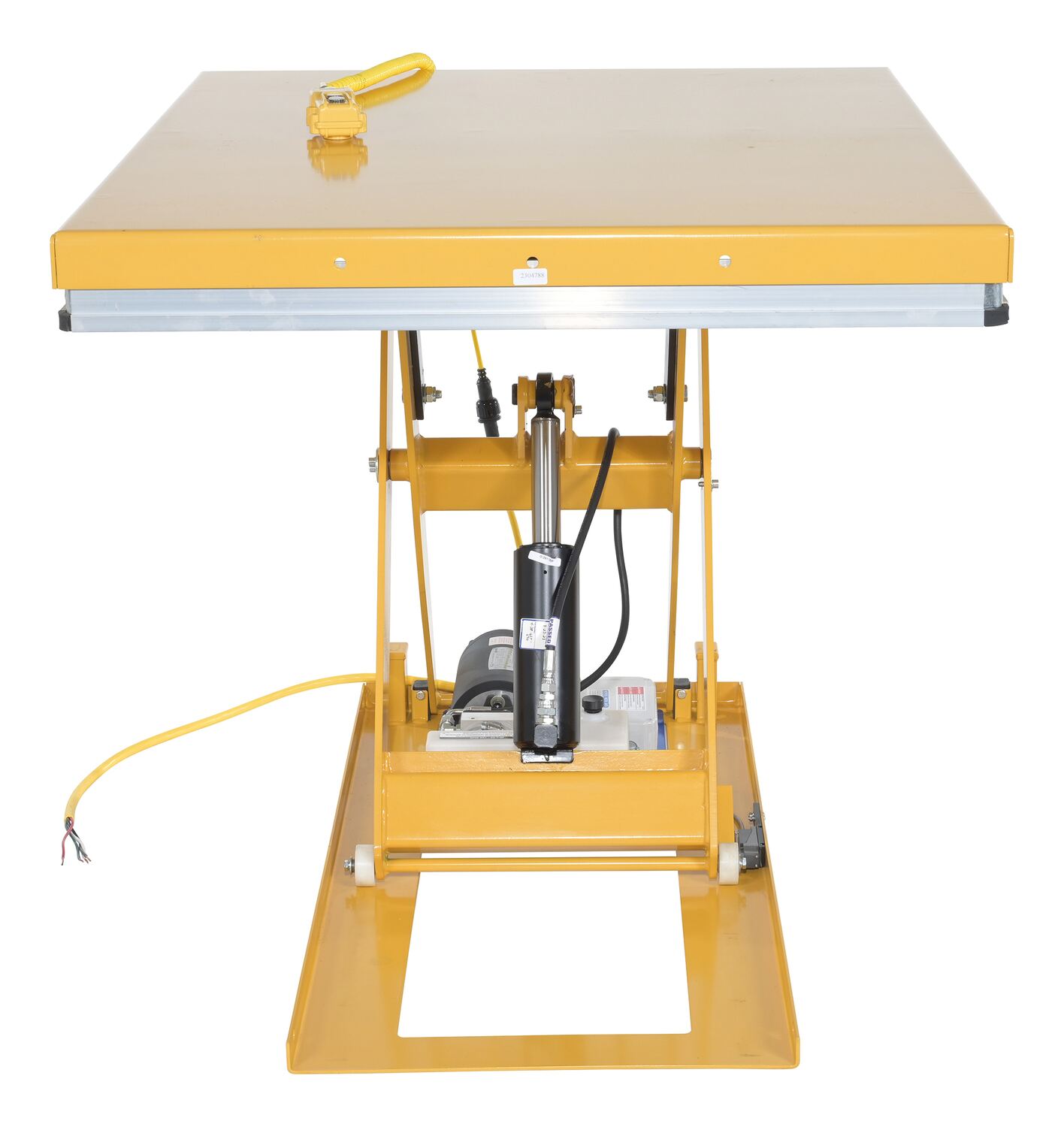

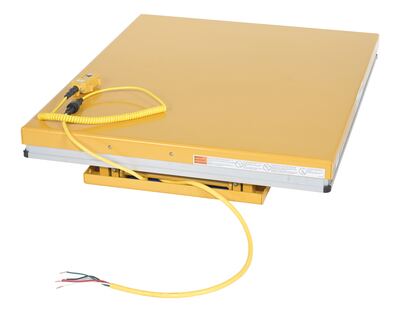

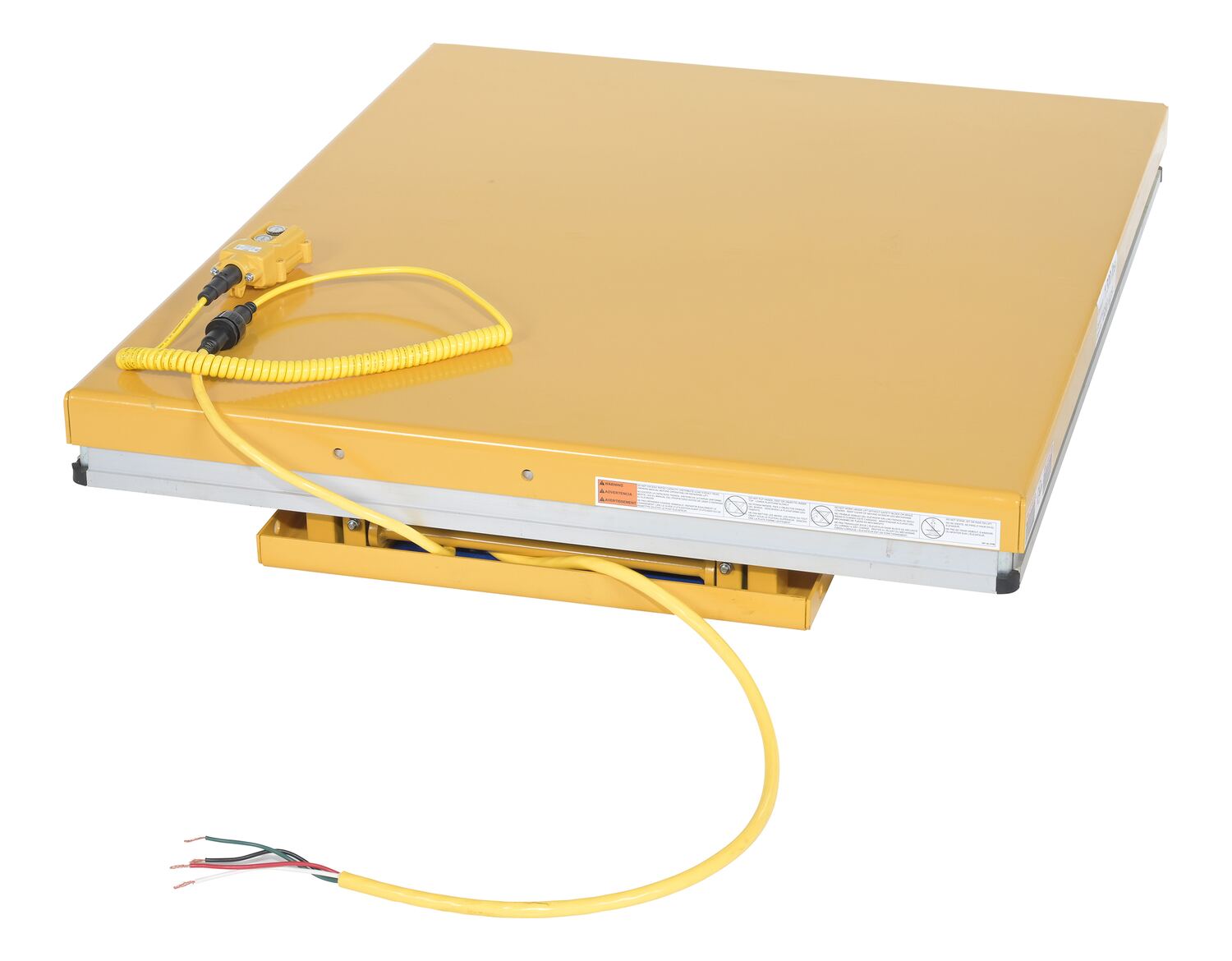

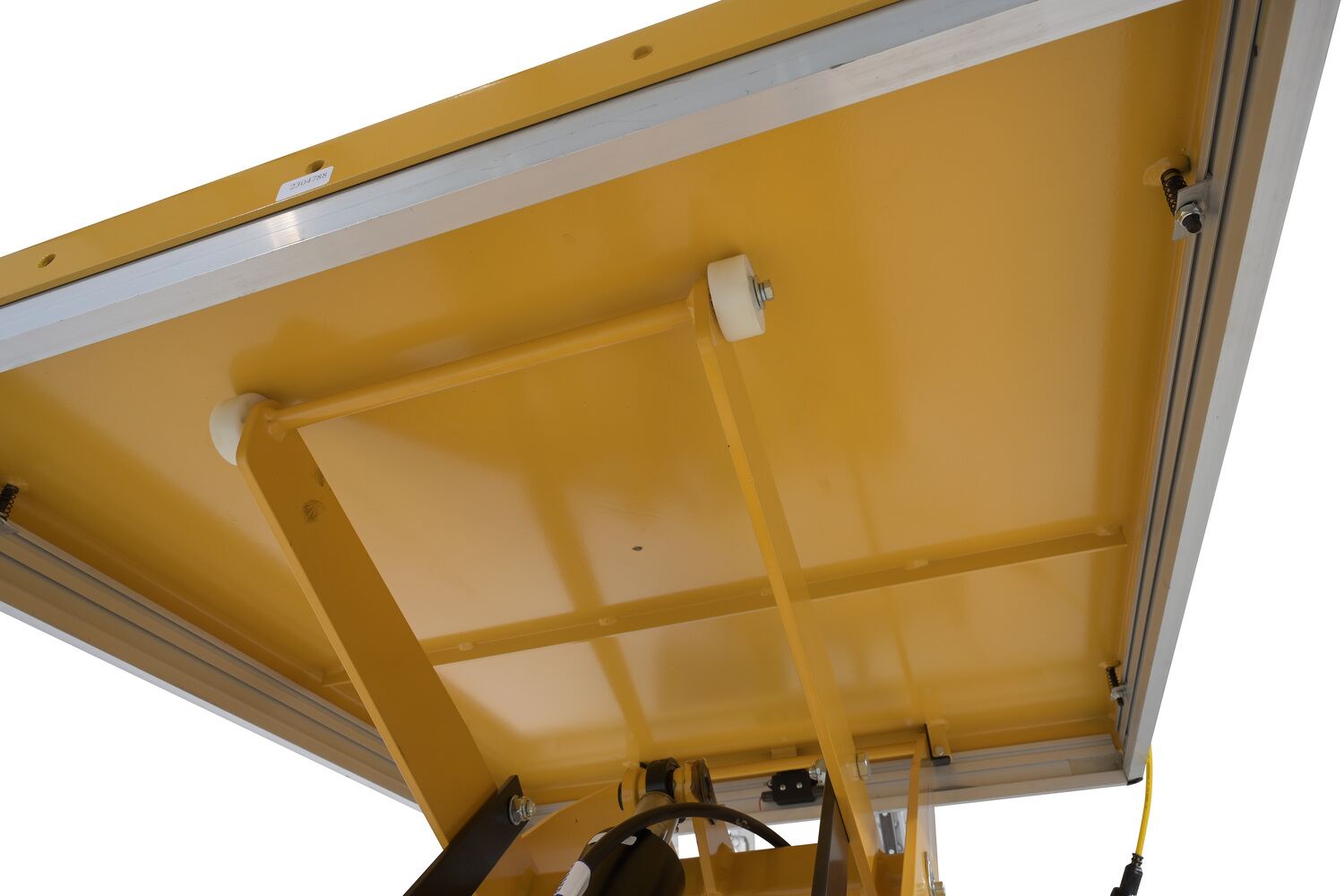

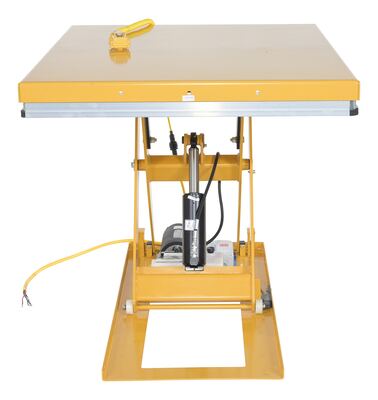

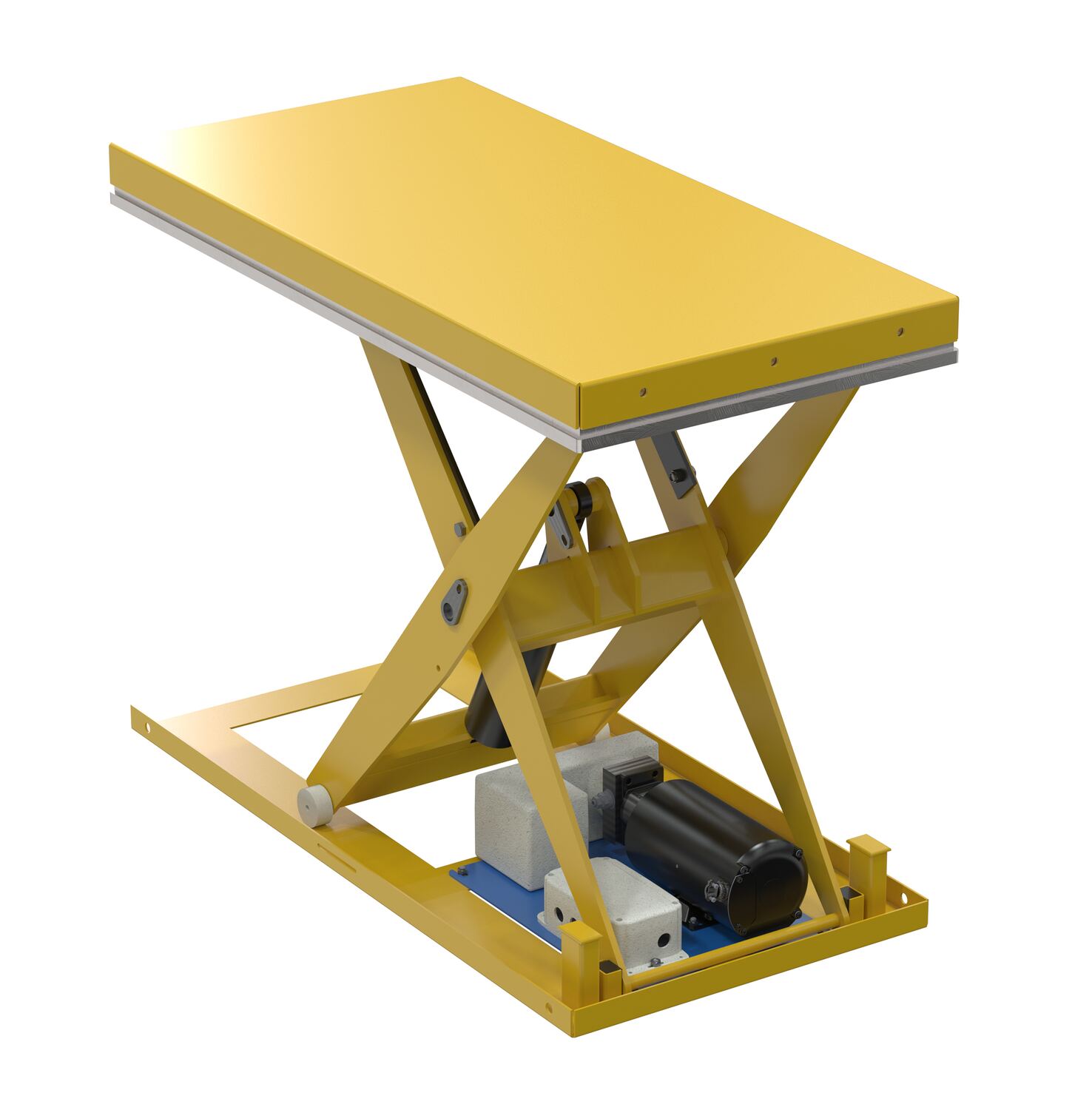

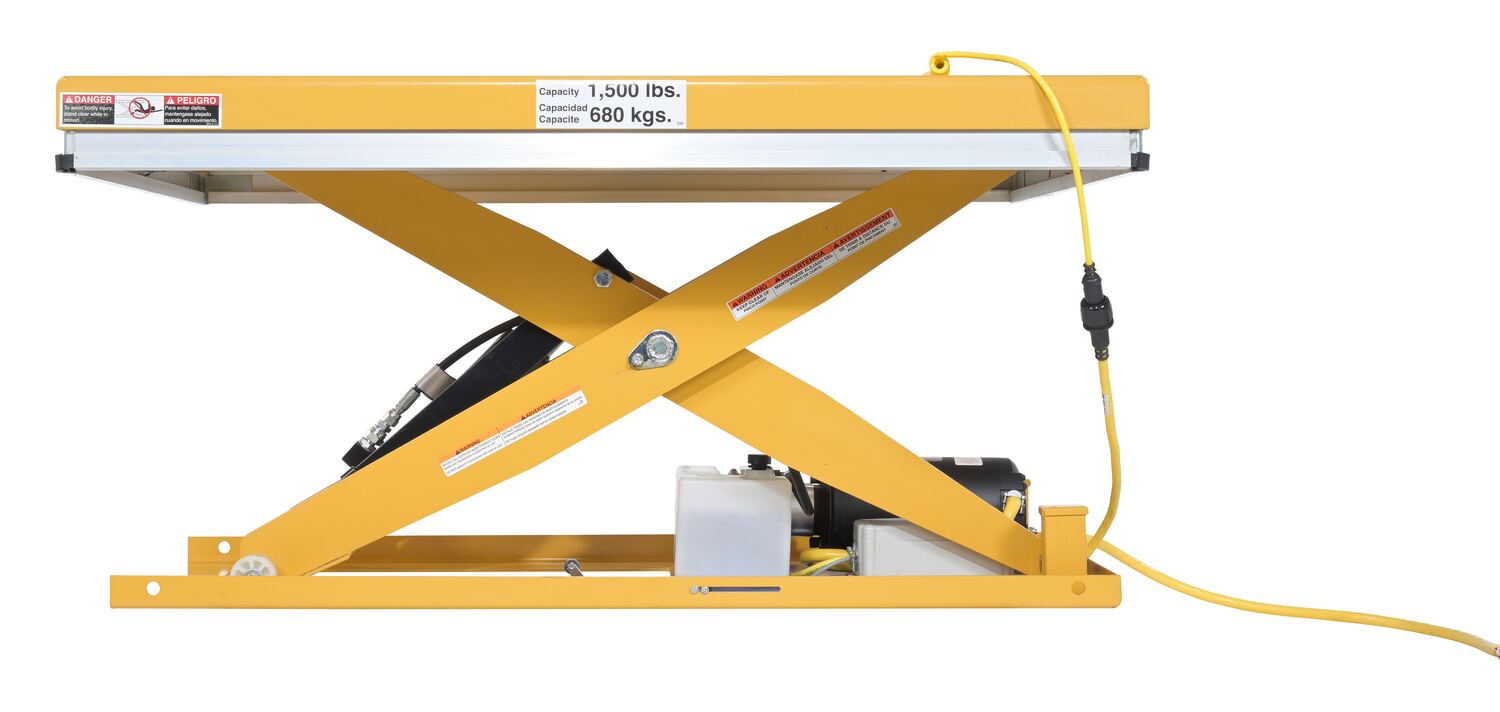

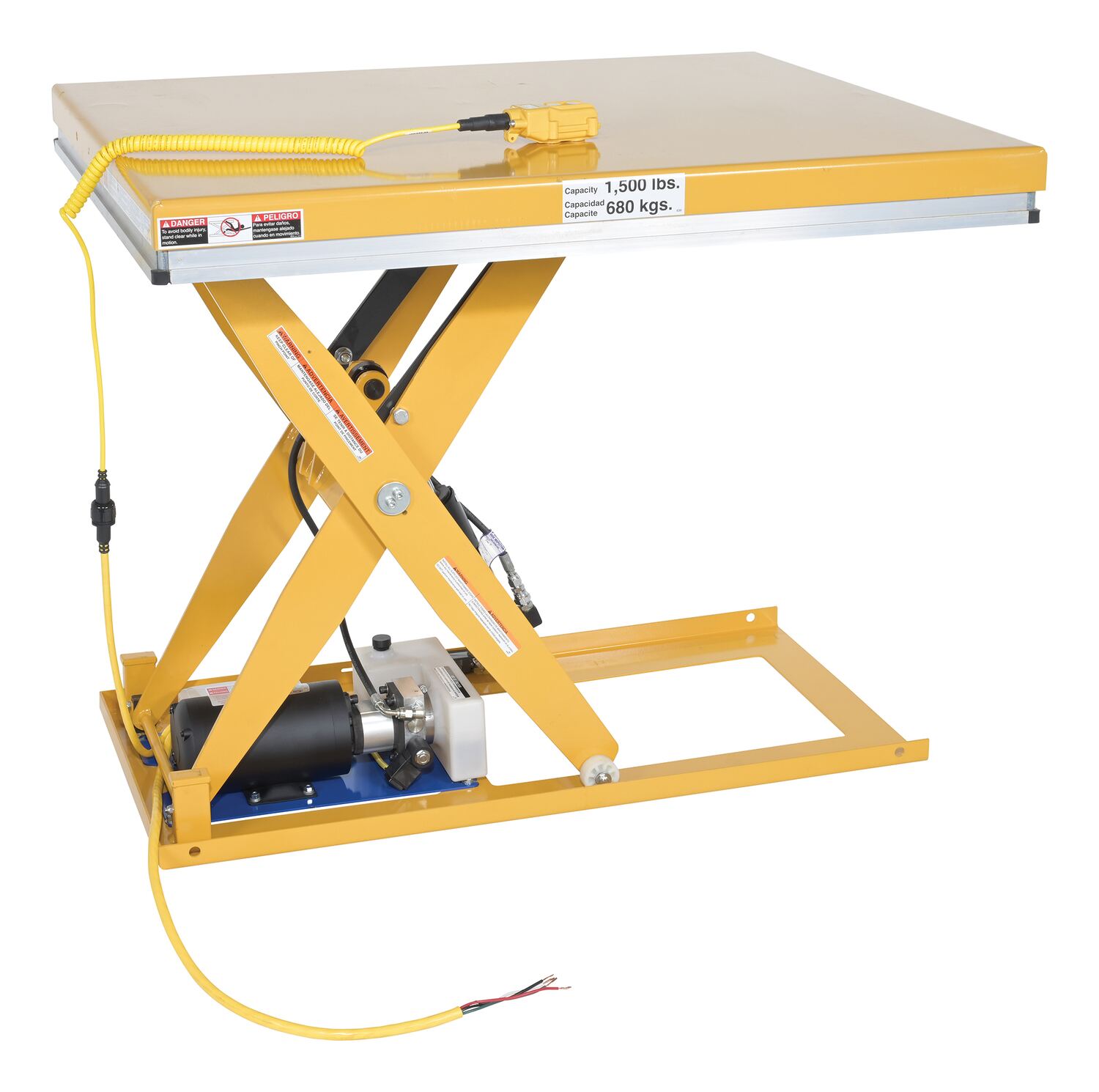

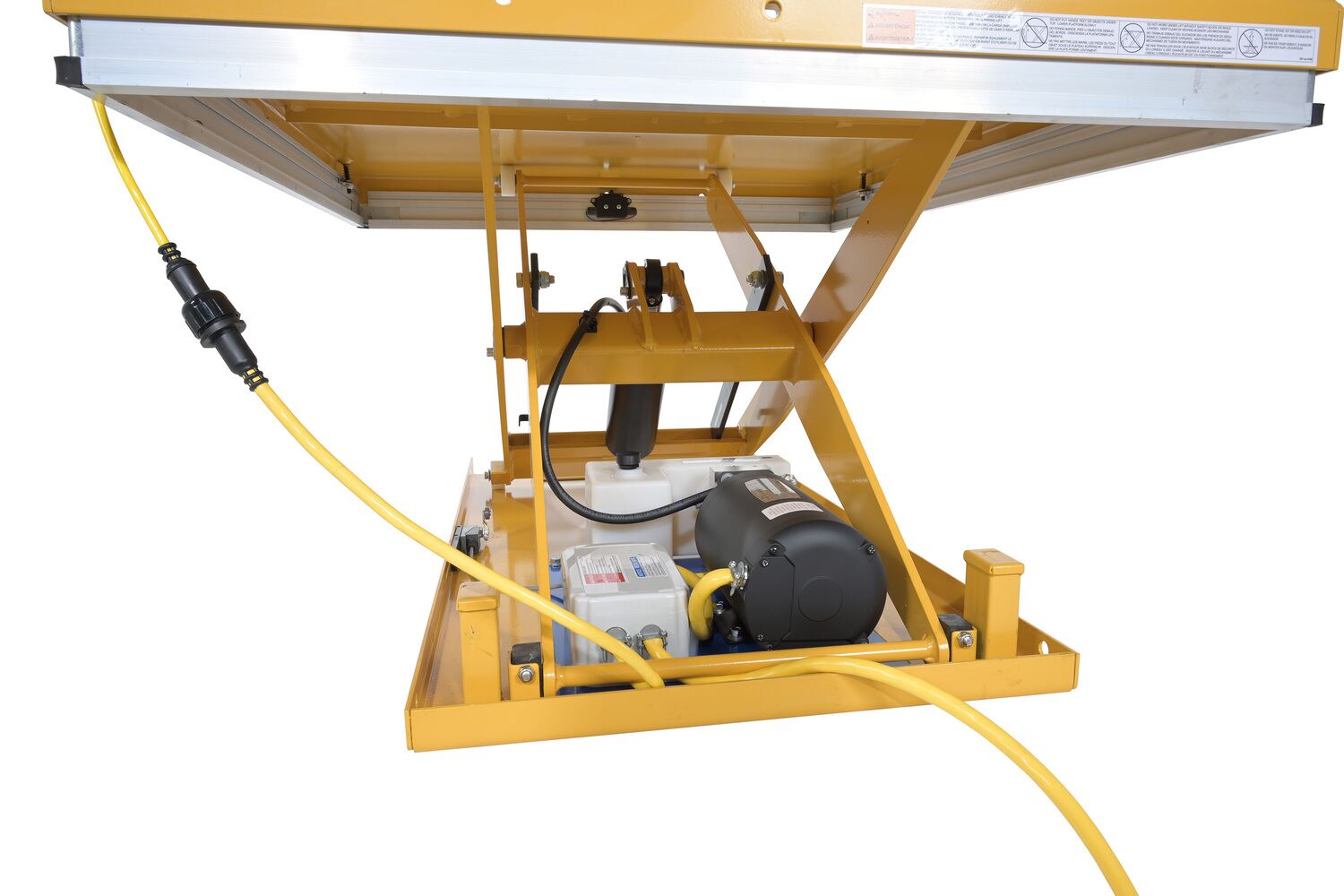

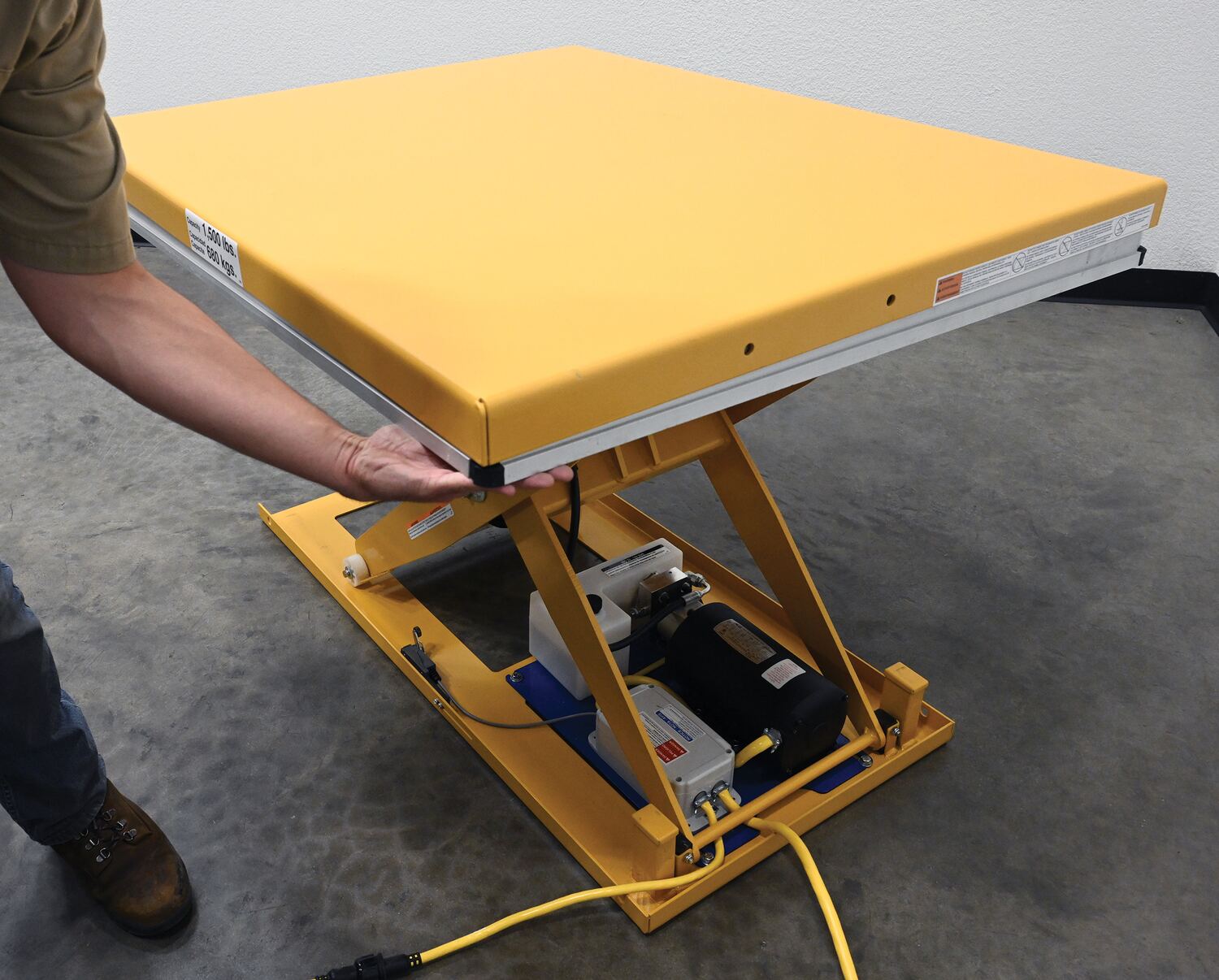

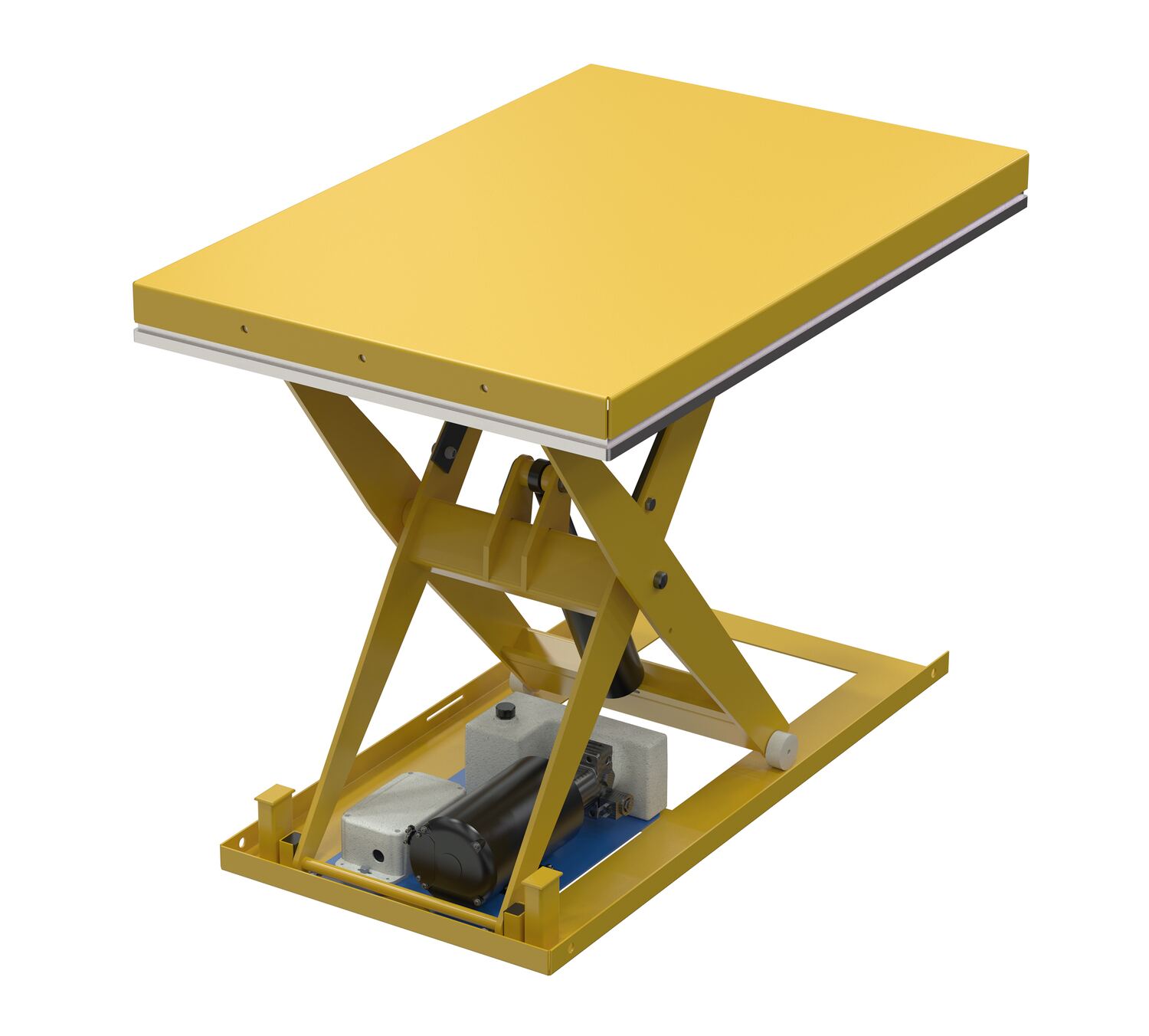

EHLT-WSI-4048-1.5-36_I.jpgEHLT-WSI (Internal Power Unit) New!

  • The 460V 3-phase internal power unit comes with a standard hand control
  • Open design, functional from all four sides
  • Emergency safety-stop hydraulic fuses
  • Lengthy 8' hand pendant cord


Check out Vestil's Economical Powered Lift Table

Work station electric hydraulic scissor tables are designed to raise products up to an ergonomic working height. They maximizes safety with minimum space requirements and are ideal for all types of manufacturing and warehouse facilities. An electric toe guard also comes standard with the unit. External power unit models and internal power unit models both have a 13 Second travel time (based on 3 phase motor)

EHLT-WS-2436-1.5-31_E.jpgEHLT-WS (External Power Unit)

  • The 460V 3-Phase external power unit can be located eight (8) feet away from the unit
  • Steel & Partialy Stainless Steel Models available
  • Comes with a standard hand control

Partially Stainless Steel Models Available!
(See Chart Below)

EHLT-WSI-4048-1.5-36_I.jpgEHLT-WSI (Internal Power Unit) New!

  • The 460V 3-phase internal power unit comes with a standard hand control
  • Open design, functional from all four sides
  • Emergency safety-stop hydraulic fuses
  • Lengthy 8' hand pendant cord


Check out Vestil's Economical Powered Lift Table

Other Lift & Tilt Tables

 Portable Scissor Lift Tables Shorty Scissor Lift Tables Single Scissor Lift & Tilt Tables Radio Remote Control

Additional Models In This Family
view entire Image Gallery

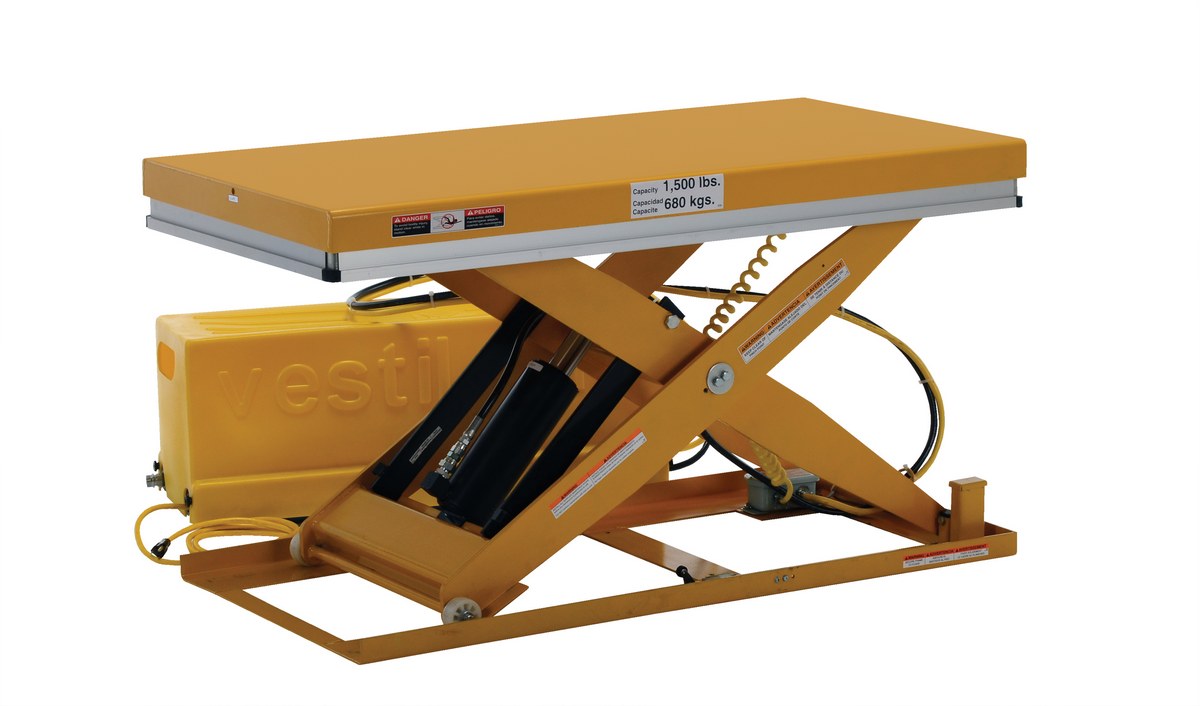

EHLT-WS-2448-1.5-36

EHLT-WS-2448-1.5-36

EHLT-WS-2436-1.5-31

EHLT-WS-2436-1.5-31

EHLT-WSI-4048-1.5-36

EHLT-WSI-4048-1.5-36

EHLT-WSI-4048-1.5-36

EHLT-WSI-4048-1.5-36

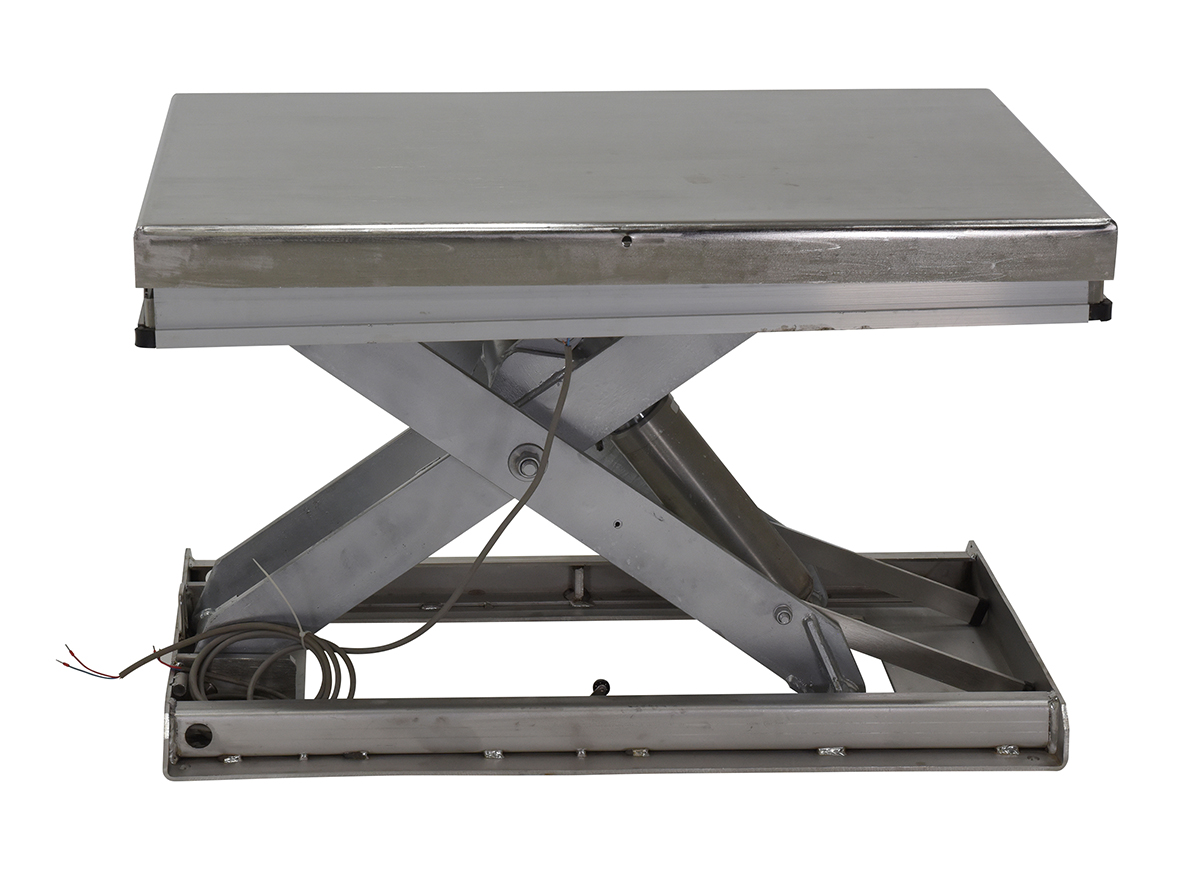

EHLT-WS-2436-PSS

EHLT-WS-2436-PSS

EHLT-WS-4048-PSS

EHLT-WS-4048-PSS

EHLT-WS-4048-1.5-36

EHLT-WS-4048-1.5-36

EHLT-WSI-3248-1.5-36

EHLT-WSI-3248-1.5-36

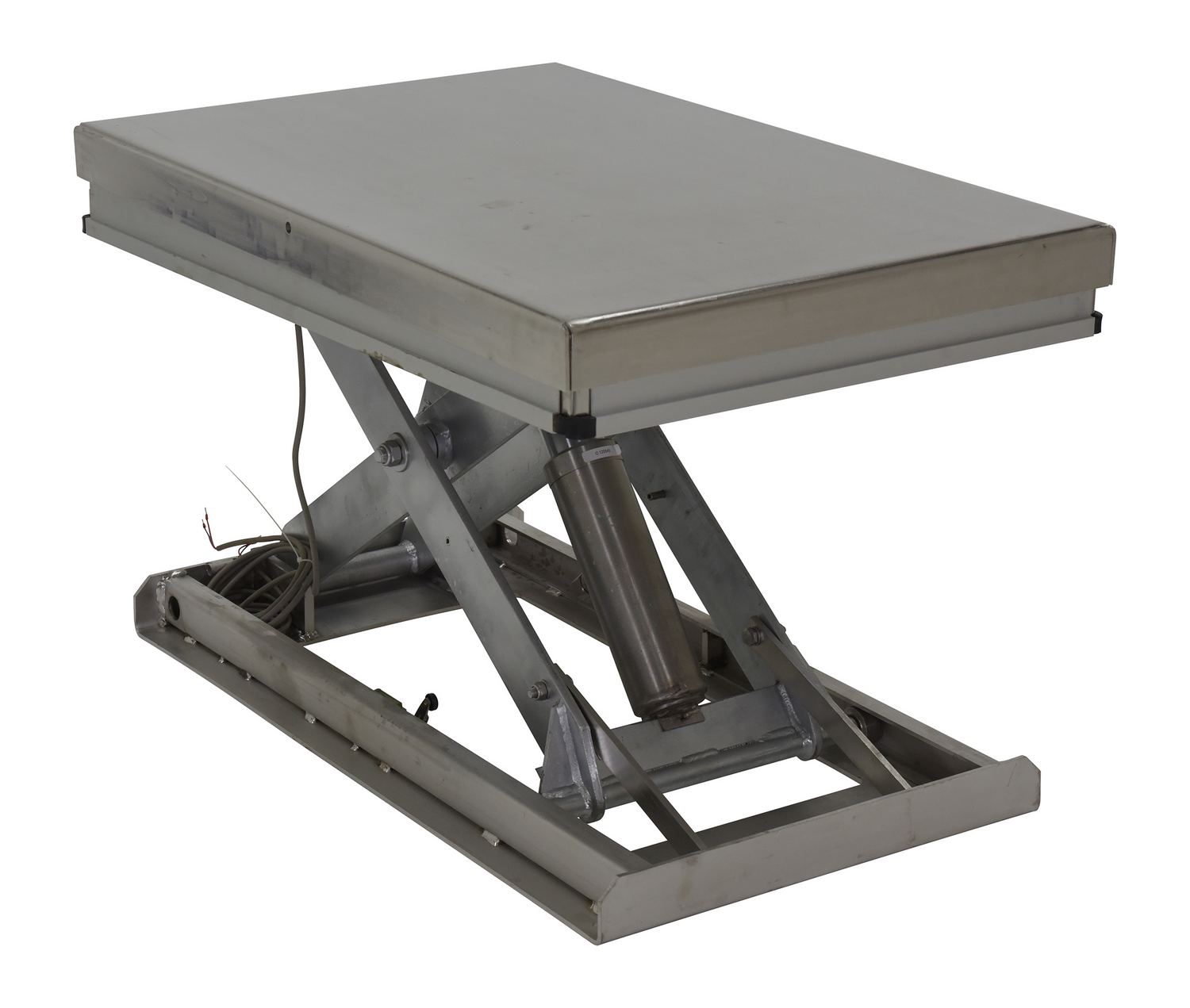

EHLT-WS-2448-PSS

EHLT-WS-2448-PSS

EHLT-WS-2436-PSS

EHLT-WS-2436-PSS

EHLT-WS-2436-1.5-31

EHLT-WS-2436-1.5-31

EHLT-WSI-4048-1.5-36

EHLT-WSI-4048-1.5-36

EHLT-WS-3248-1.5-36

EHLT-WS-3248-1.5-36

EHLT-WSI-4048-1.5-36

EHLT-WSI-4048-1.5-36

EHLT-WS-2448-1.5-36

EHLT-WS-2448-1.5-36

model chart
Table Search, not an entire site search.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

EHLT-WS-2436-1.5-31
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 8-5/8 to 31
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 8-5/8 to 31

EHLT-WS-2436-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36

EHLT-WS-2448-1.5-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36

EHLT-WS-3248-1.5-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36

EHLT-WS-4048-1.5-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36

EHLT-WSI-2448-1.5-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36

EHLT-WSI-3248-1.5-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36

EHLT-WSI-4048-1.5-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36

EHLT-WS-2448-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36

EHLT-WS-4048-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
Uniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36
For More Details of the Option Click the Red Model Button
Model Image Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Work Station Electric Hydraulic Scissor Tables PDF's will open in a new window when clicked.

Manuals


EHLT-WSI
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


EHLT-WS-2436-1.5-31

EHLT-WS-2436-PSS

EHLT-WS-2448-1.5-36

EHLT-WS-3248-1.5-36

EHLT-WS-4048-1.5-36

EHLT-WSI-2448-1.5-36

EHLT-WSI-3248-1.5-36

EHLT-WSI-4048-1.5-36

EHLT-WS-2448-PSS

Testing Certificates


EHLT-WS-2436-1.5-31

EHLT-WS-2436-PSS

EHLT-WS-2448-1.5-36

EHLT-WS-2448-PSS

EHLT-WS-3248-1.5-36

EHLT-WS-4048-1.5-36

EHLT-WS-4048-PSS

EHLT-WSI-2448-1.5-36

EHLT-WSI-3248-1.5-36

EHLT-WSI-4048-1.5-36

SDS Sheets

Hydraulic Oil SDS Sheet for: EHLT-WS-2436-1.5-31
Hydraulic Oil SDS Sheet for: EHLT-WS-2436-PSS
Hydraulic Oil SDS Sheet for: EHLT-WS-2448-1.5-36
Hydraulic Oil SDS Sheet for: EHLT-WS-2448-PSS
Hydraulic Oil SDS Sheet for: EHLT-WS-3248-1.5-36
Hydraulic Oil SDS Sheet for: EHLT-WS-4048-1.5-36
Hydraulic Oil SDS Sheet for: EHLT-WS-4048-PSS
Hydraulic Oil SDS Sheet for: EHLT-WSI-2448-1.5-36
Hydraulic Oil SDS Sheet for: EHLT-WSI-3248-1.5-36
Hydraulic Oil SDS Sheet for: EHLT-WSI-4048-1.5-36

Other PDF's


Work Station Electric Hydraulic Scissor Table Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

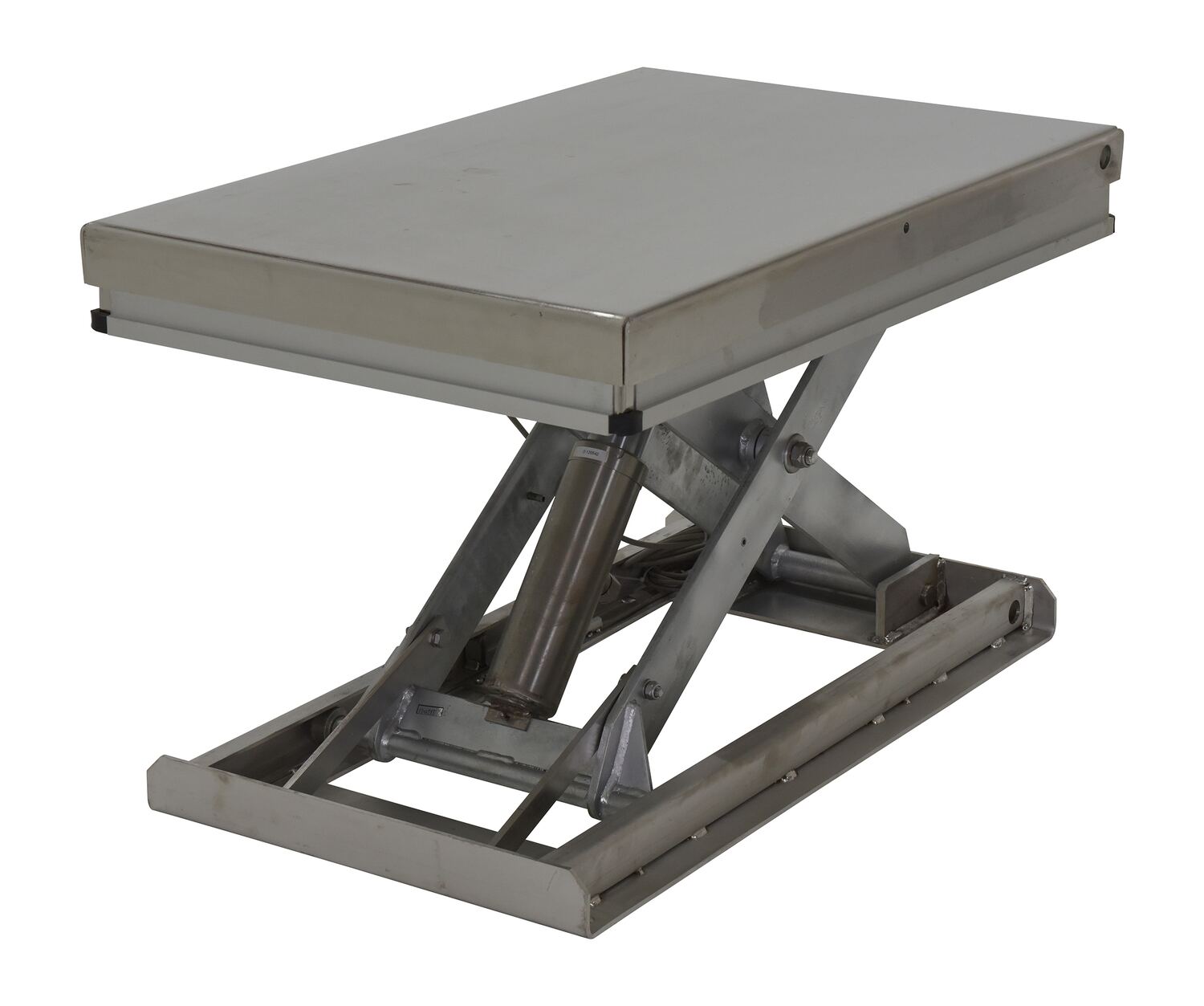

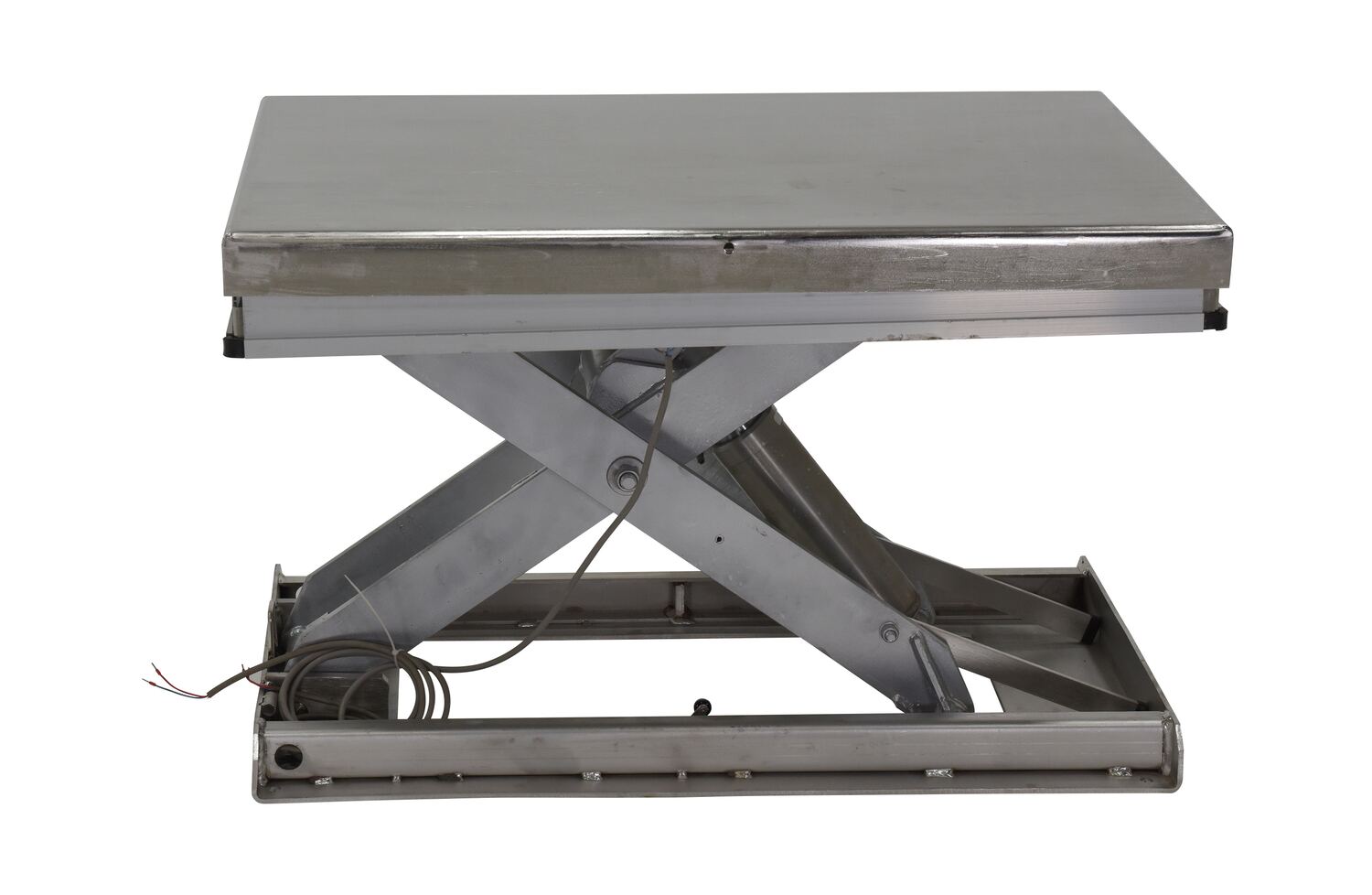

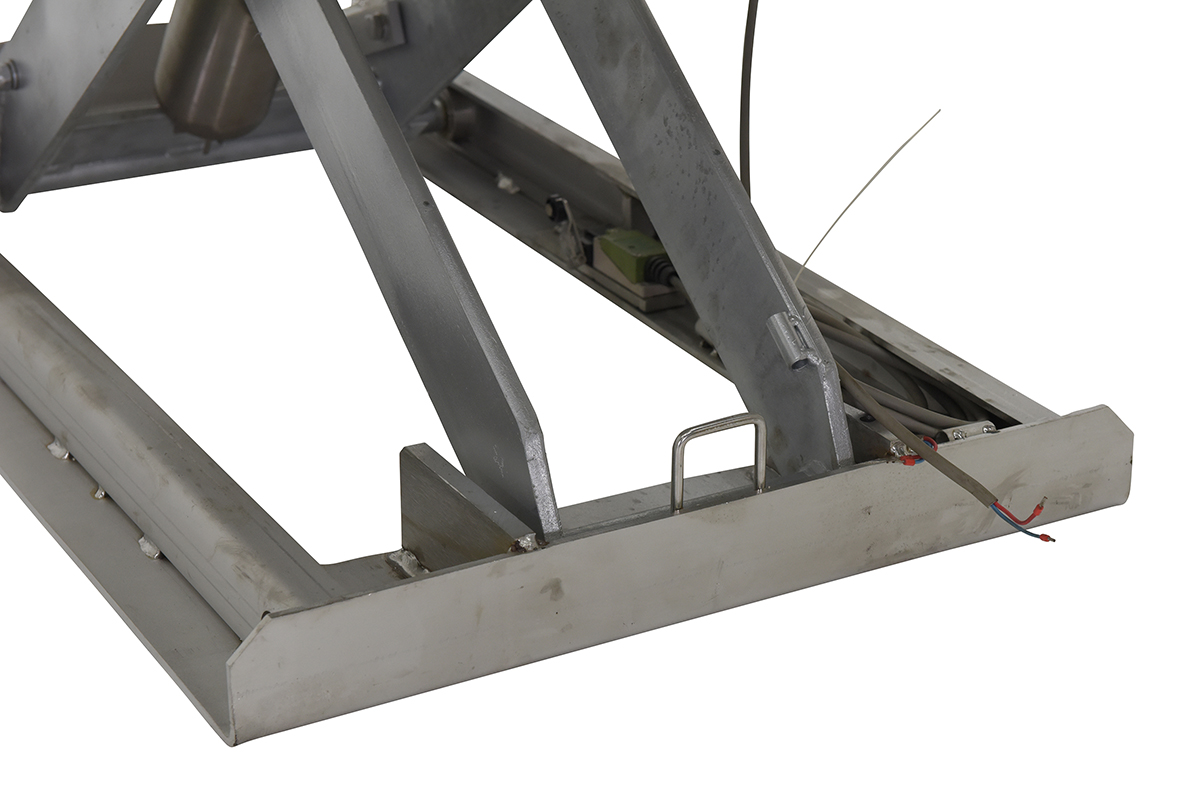

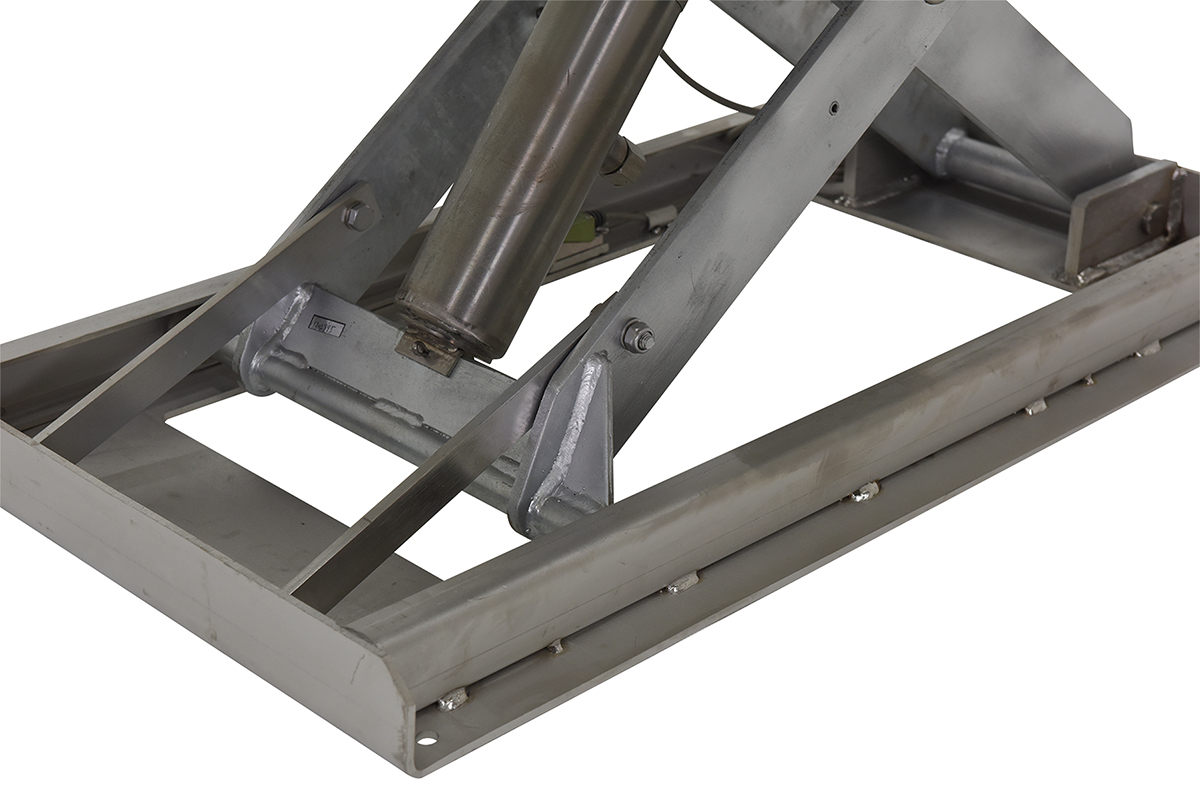

Q: On series EHLT-WS-XXXX-PSS, what parts are not stainless steel?

A: All parts are stainless steel except the scissor legs (galvanized) and toe guards (aluminum/rubber)




Related or Similar Products:

Low Profile Electric/Hydraulic Scissor Lift Tables
Product

Low Profile Electric/Hydraulic Scissor Lift Tables

Low Profile Electric Lift Tables
Product

Low Profile Electric Lift Tables

Ground Lift Scissor Tables
Product

Ground Lift Scissor Tables

Lift & Tilt Scissor Tables
Product

Lift & Tilt Scissor Tables

Zero Lift & Tilt Tables
Product

Zero Lift & Tilt Tables

Single Scissor Lift & Tilt Tables
Product

Single Scissor Lift & Tilt Tables





Work Station Electric Hydrauli...




Work station electric hydraulic scissor tables are designed to raise products up to an ergonomic working height. They maximizes safety with minimum space requirements and are ideal for all types of manufacturing and warehouse facilities. An electric toe guard also comes standard with the unit. External power unit models and internal power unit models both have a 13 Second travel time (based on 3 phase motor)

EHLT-WS-2436-1.5-31_E.jpgEHLT-WS (External Power Unit)

  • The 460V 3-Phase external power unit can be located eight (8) feet away from the unit
  • Steel & Partialy Stainless Steel Models available
  • Comes with a standard hand control

Partially Stainless Steel Models Available!
(See Chart Below)

EHLT-WSI-4048-1.5-36_I.jpgEHLT-WSI (Internal Power Unit) New!

  • The 460V 3-phase internal power unit comes with a standard hand control
  • Open design, functional from all four sides
  • Emergency safety-stop hydraulic fuses
  • Lengthy 8' hand pendant cord


Check out Vestil's Economical Powered Lift Table


Model # Description Attributes Net Wt.
(lbs)
EHLT-WS-2436-1.5-31 EHLT-WS-2436-1.5-31Steel Work Station Electric Hydraulic Scissor Table 24 In. x 36 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 8-5/8 to 31		385

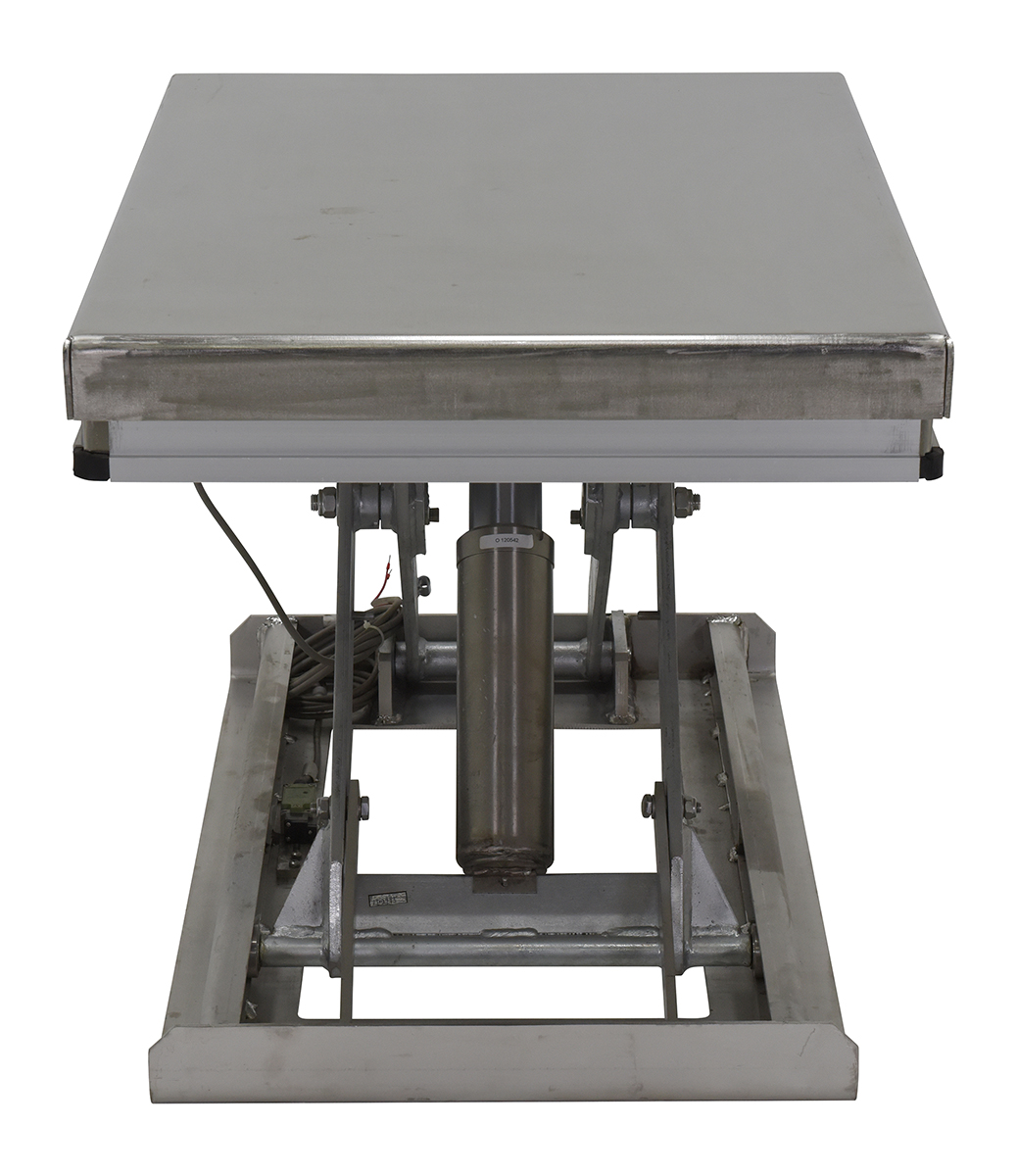

EHLT-WS-2436-PSS EHLT-WS-2436-PSSPartially Stainless Steel Work Station Electric Hydraulic Scissor Table 24 In. x 36 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		407
EHLT-WS-2448-1.5-36 EHLT-WS-2448-1.5-36Steel Work Station Electric Hydraulic Scissor Table 24 In. x 48 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		404
EHLT-WS-2448-PSS EHLT-WS-2448-PSSPartially Stainless Steel Work Station Electric Hydraulic Scissor Table 24 In. x 48 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		404

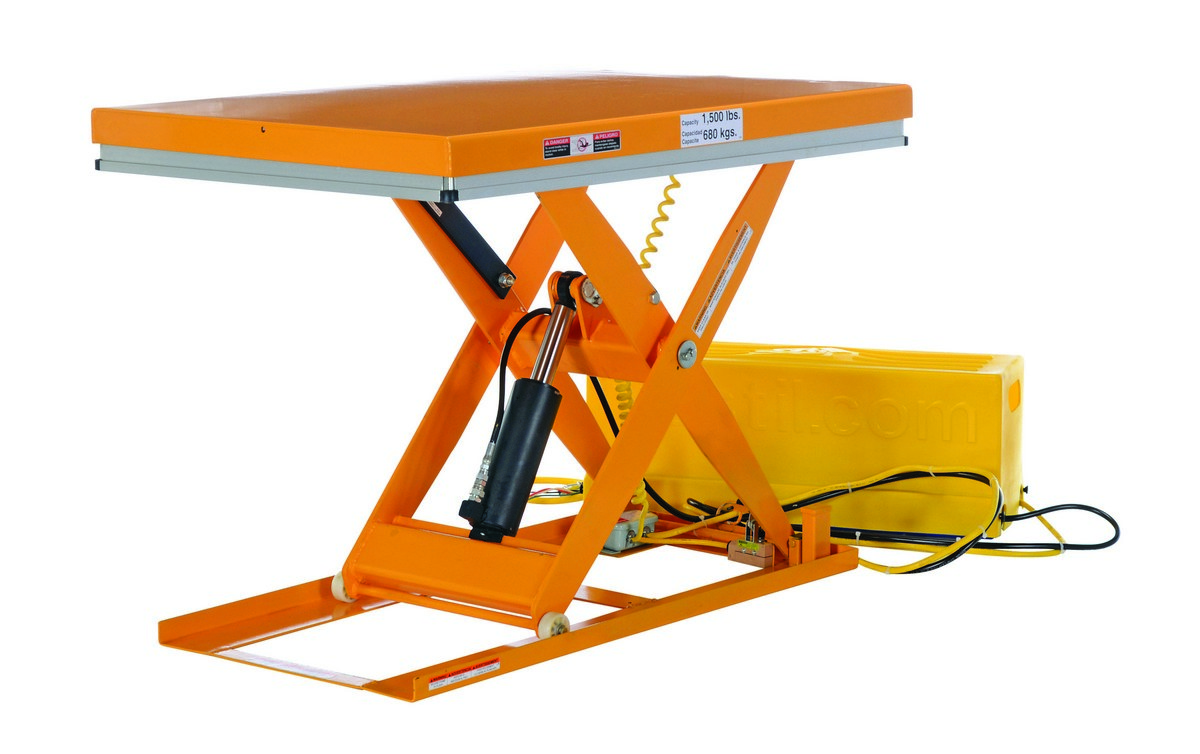

EHLT-WS-3248-1.5-36 EHLT-WS-3248-1.5-36Steel Work Station Electric Hydraulic Scissor Table 32 In. x 48 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		430
EHLT-WS-4048-1.5-36 EHLT-WS-4048-1.5-36Steel Work Station Electric Hydraulic Scissor Table 40 In. x 48 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		457
EHLT-WS-4048-PSS EHLT-WS-4048-PSSPartially Stainless Steel Work Station Electric Hydraulic Scissor Table 40 In. x 48 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		457
EHLT-WSI-2448-1.5-36 EHLT-WSI-2448-1.5-36Steel Electric Hydraulic Scissor Table 24"x48" With Internal Power Unit 1,500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		331
EHLT-WSI-3248-1.5-36 EHLT-WSI-3248-1.5-36Steel Electric Hydraulic Scissor Table 32"x48" With Internal Power Unit 1,500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		356
EHLT-WSI-4048-1.5-36 EHLT-WSI-4048-1.5-36Steel Electric Hydraulic Scissor Table 40"x48" With Internal Power Unit 1,500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Lower/Raised Height (in.): 7 to 36		381

Options


Model Image Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
