Loop-Style Fork Extensions
Loop-Style Fork Extensions

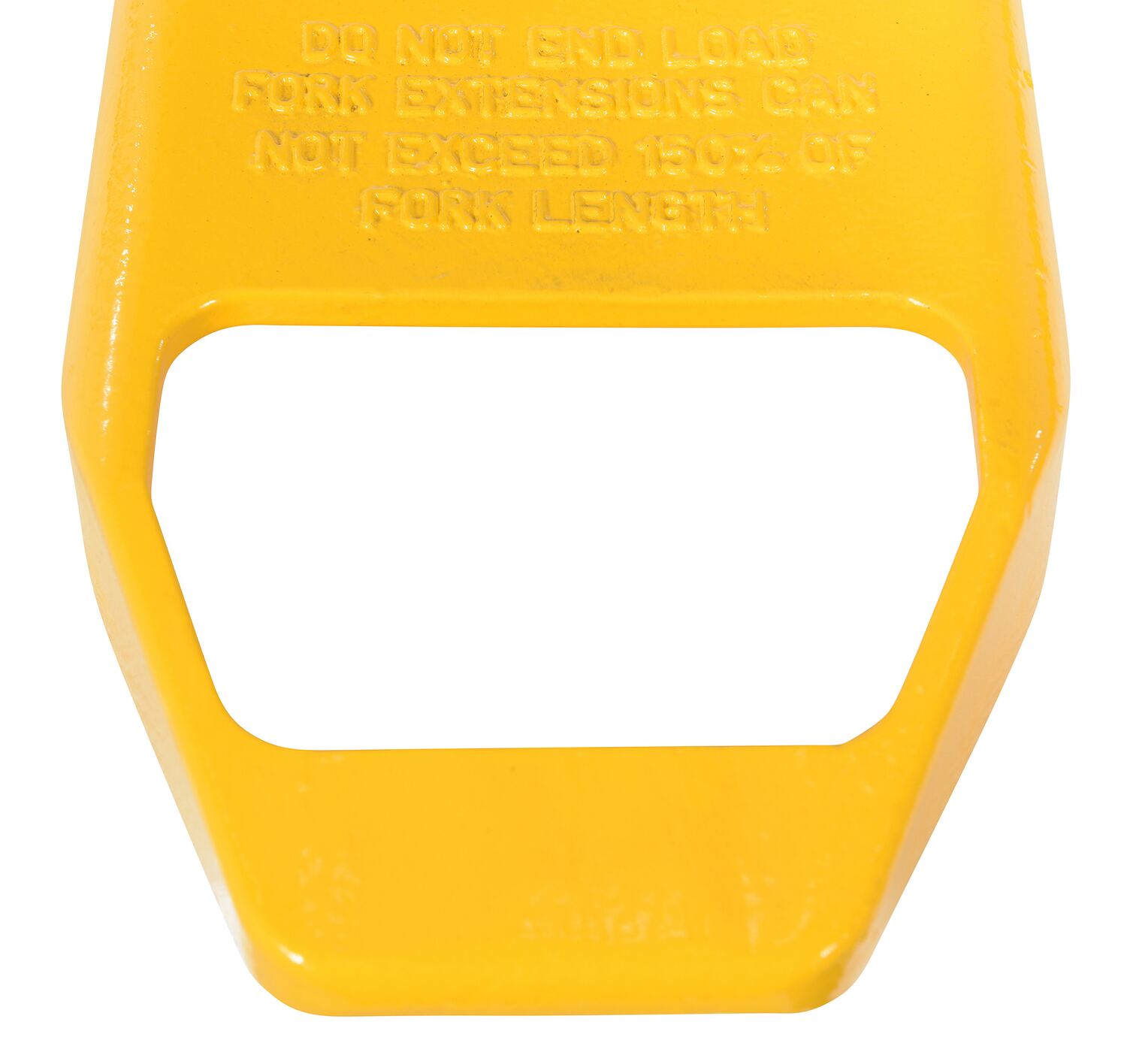

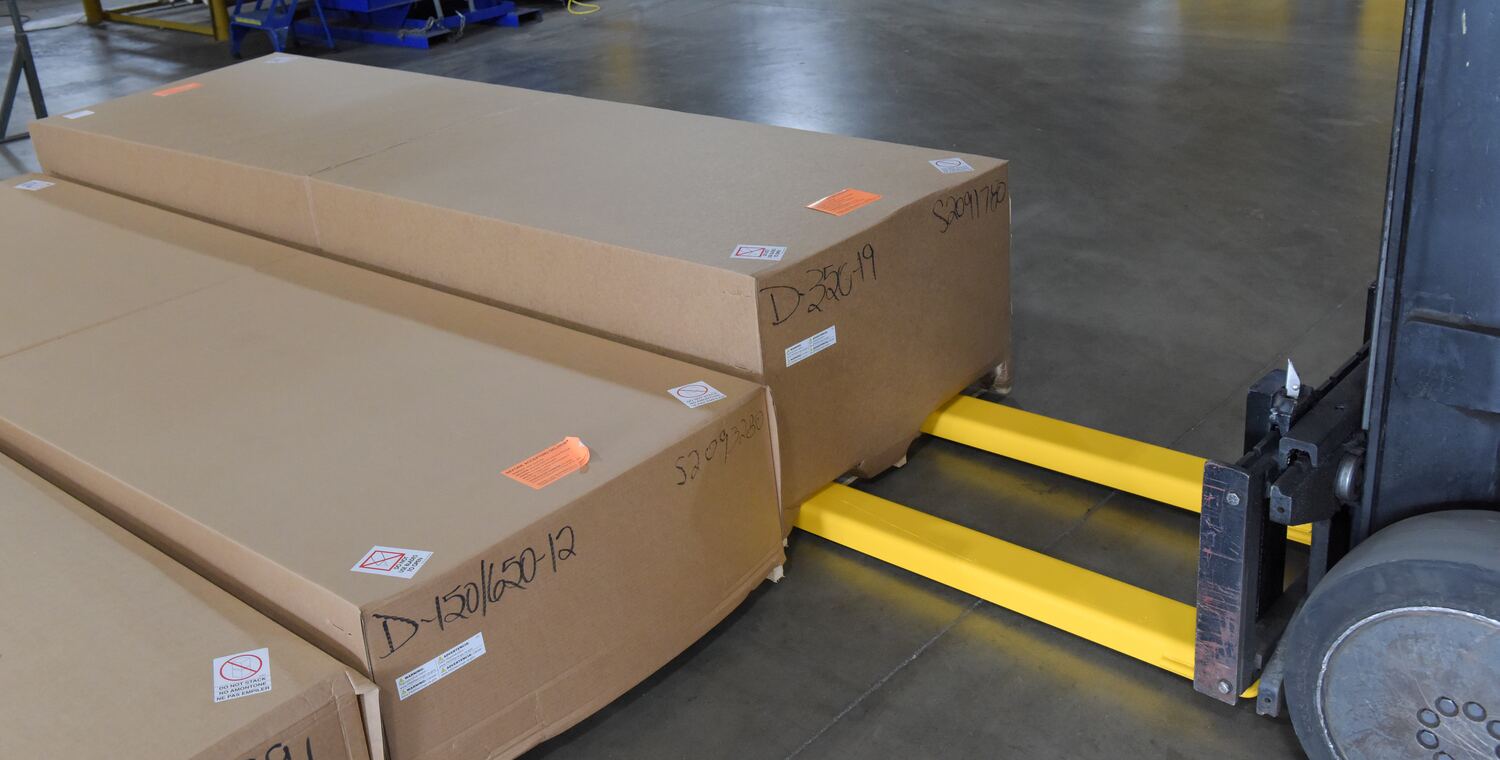

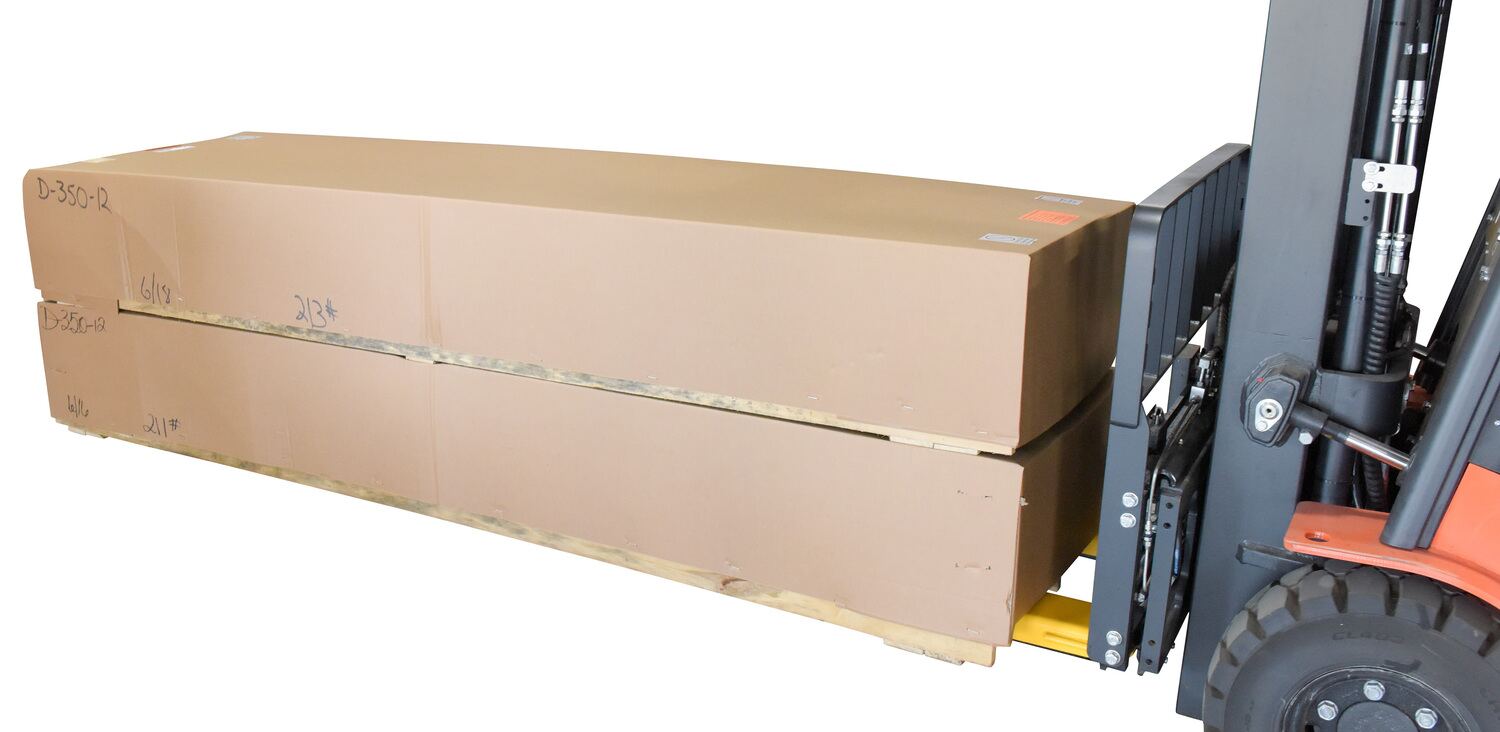

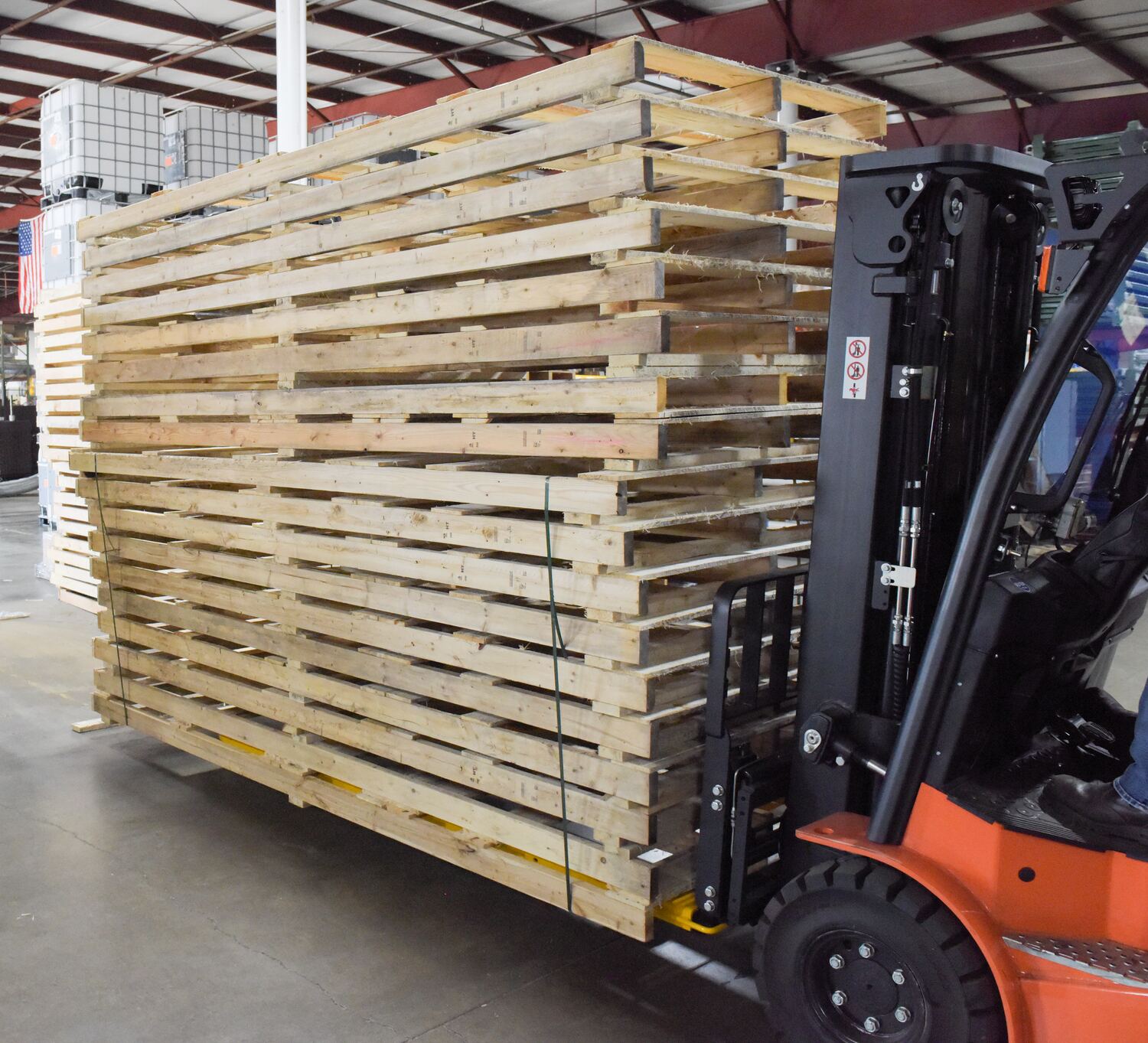

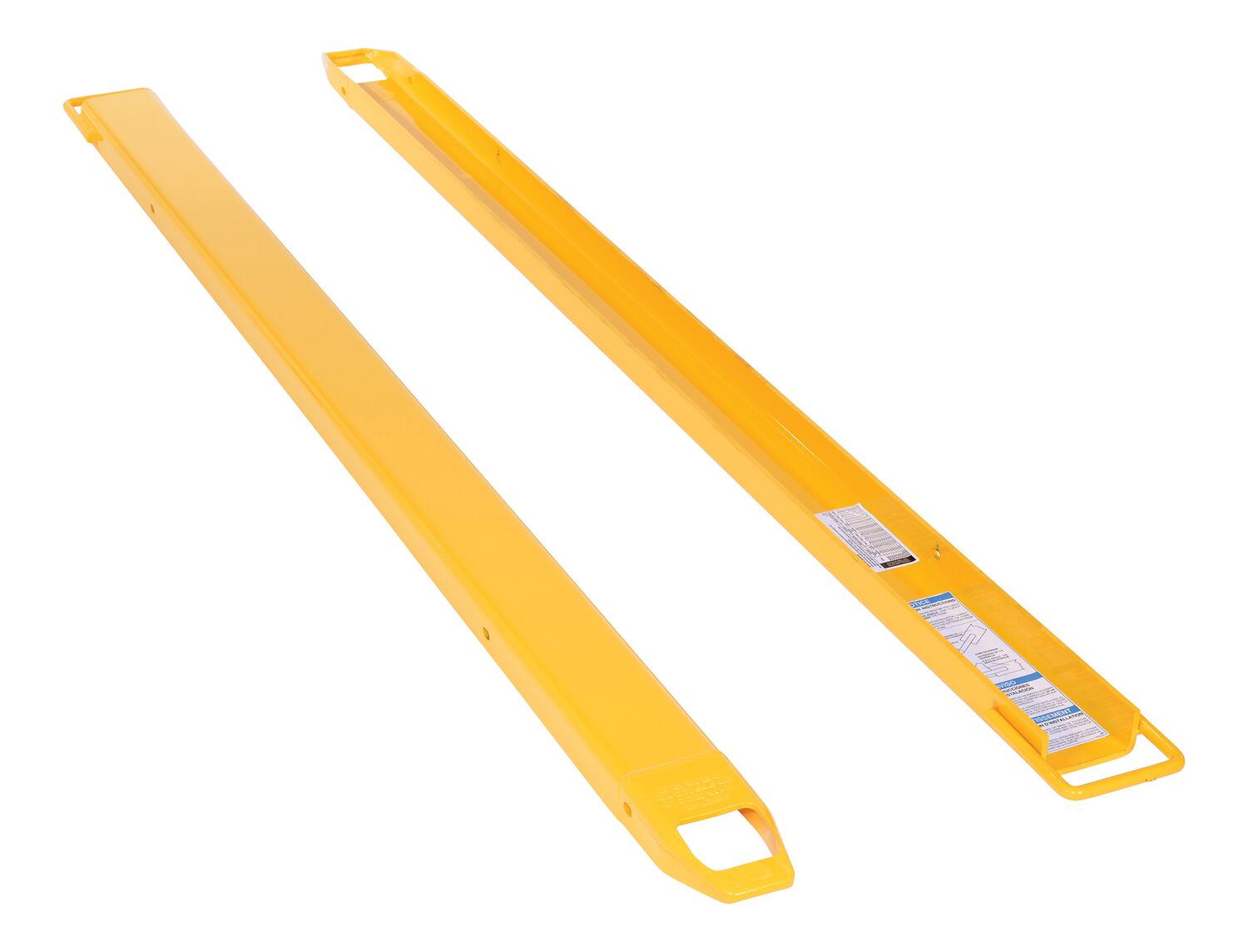

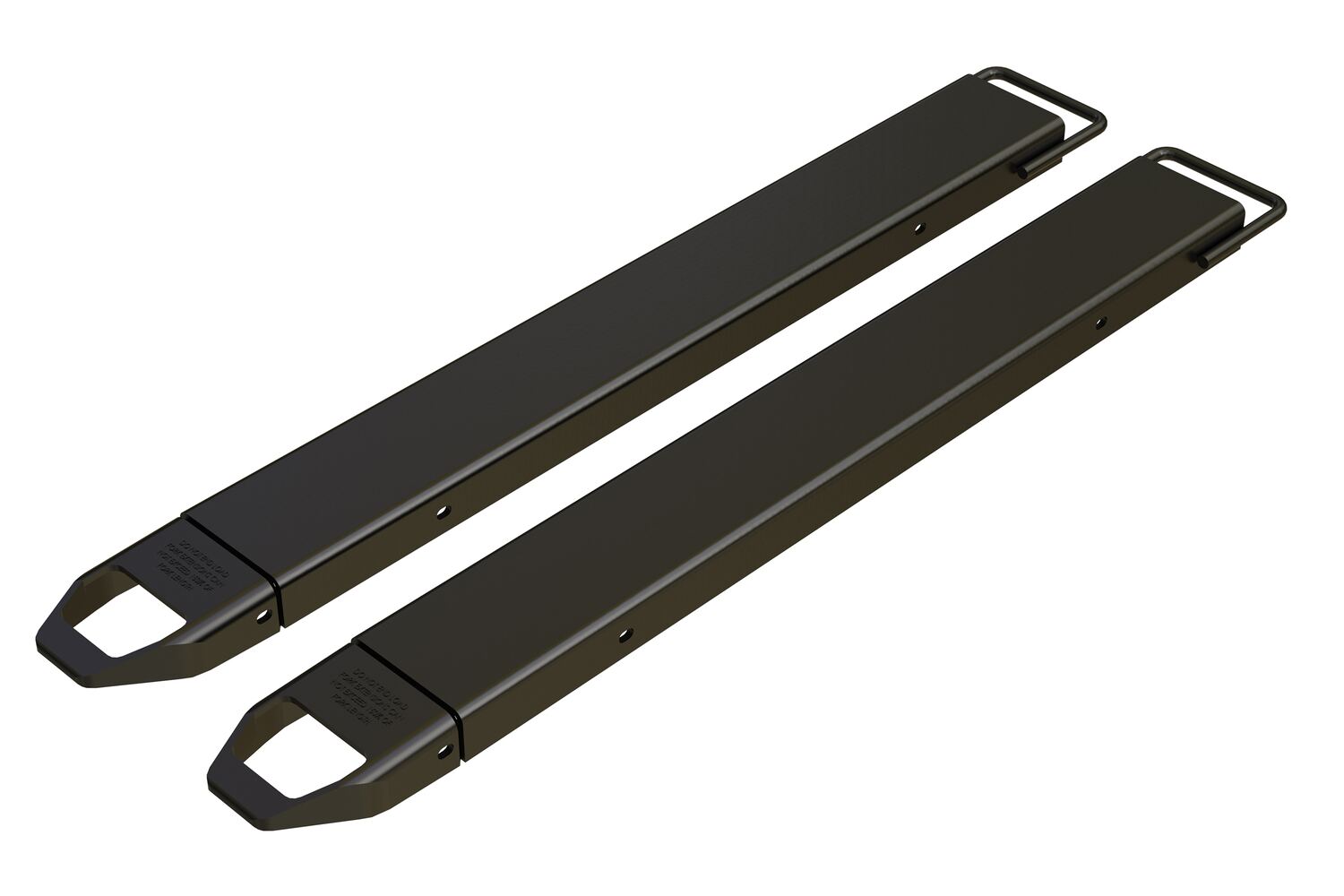

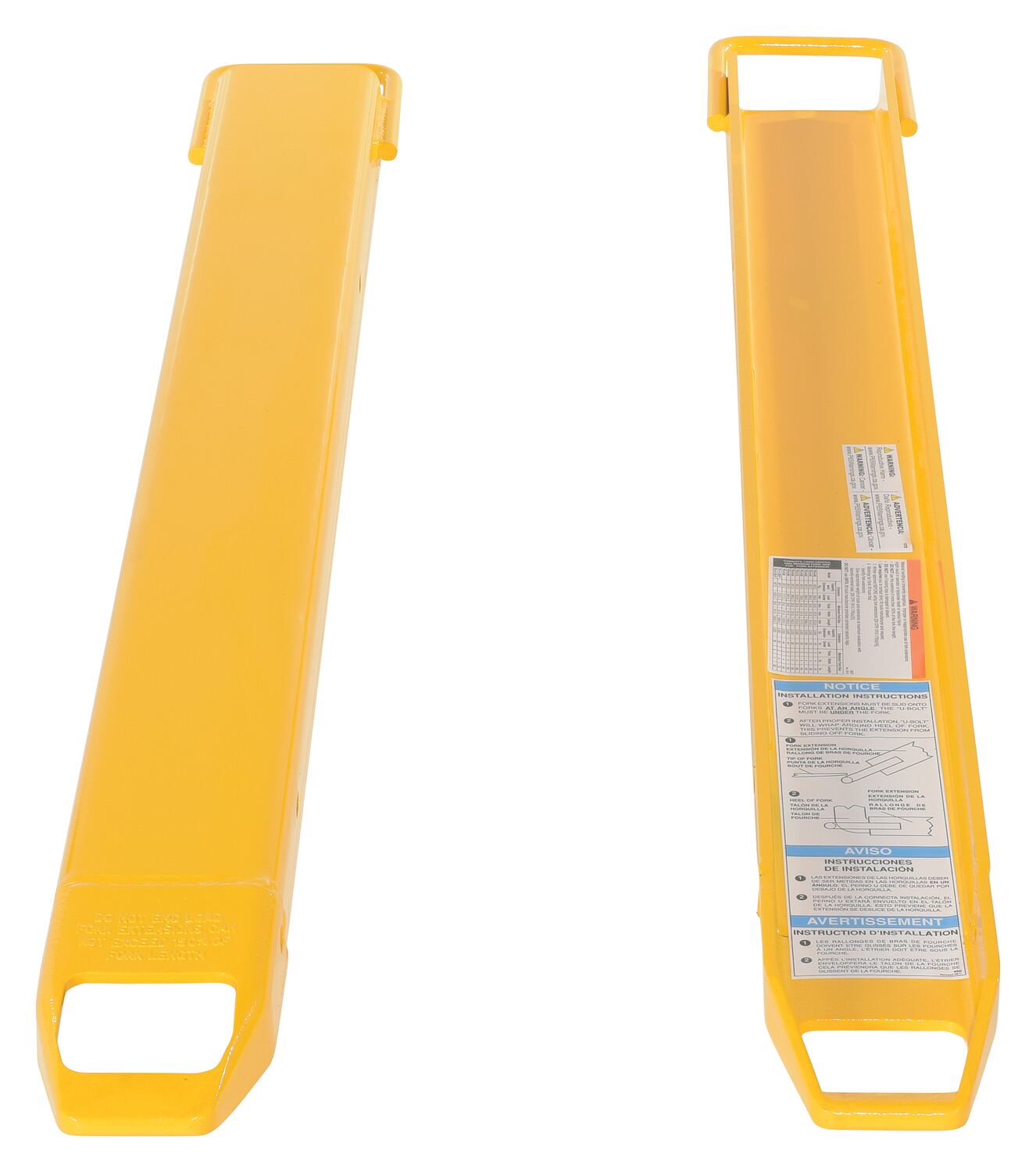

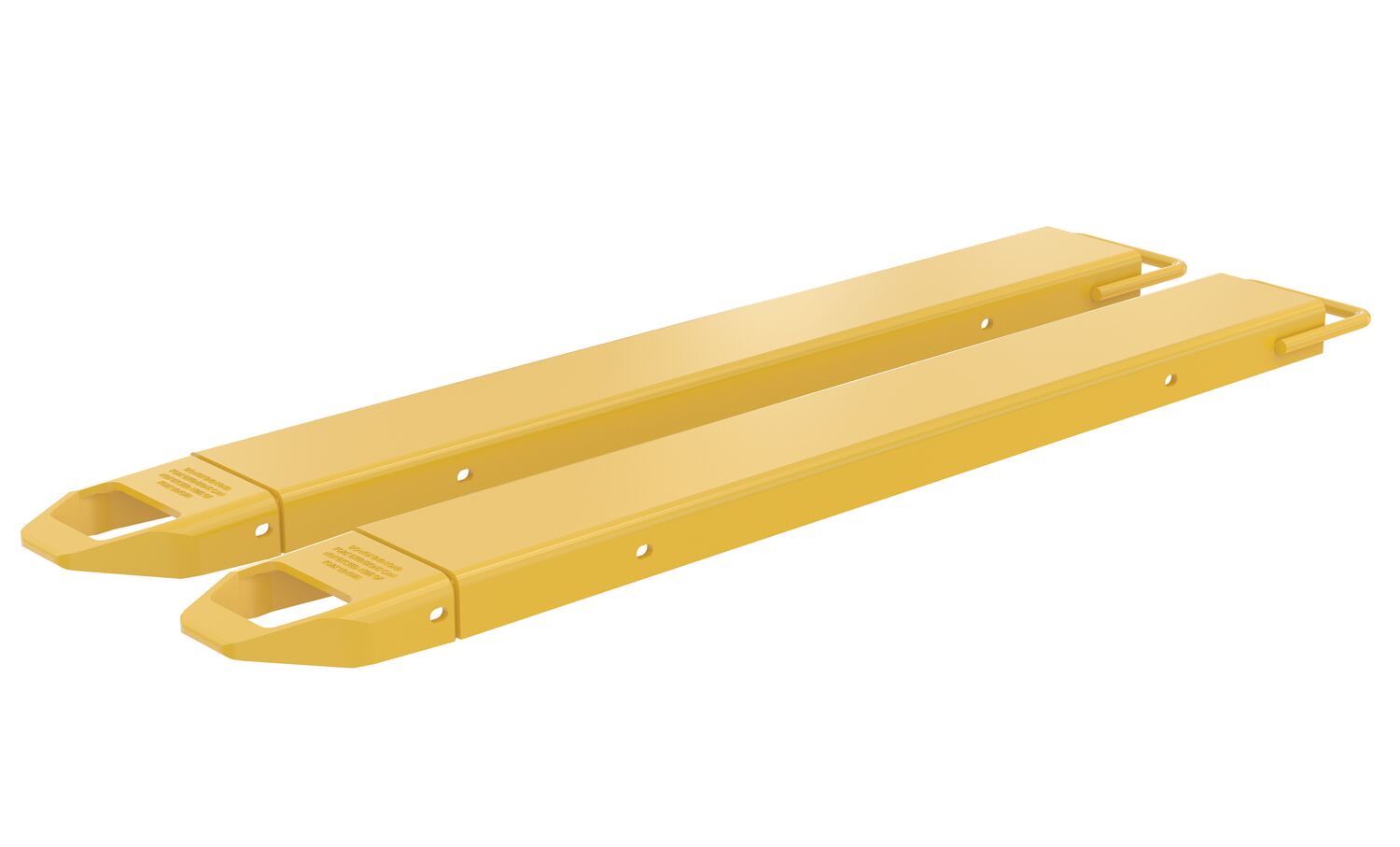

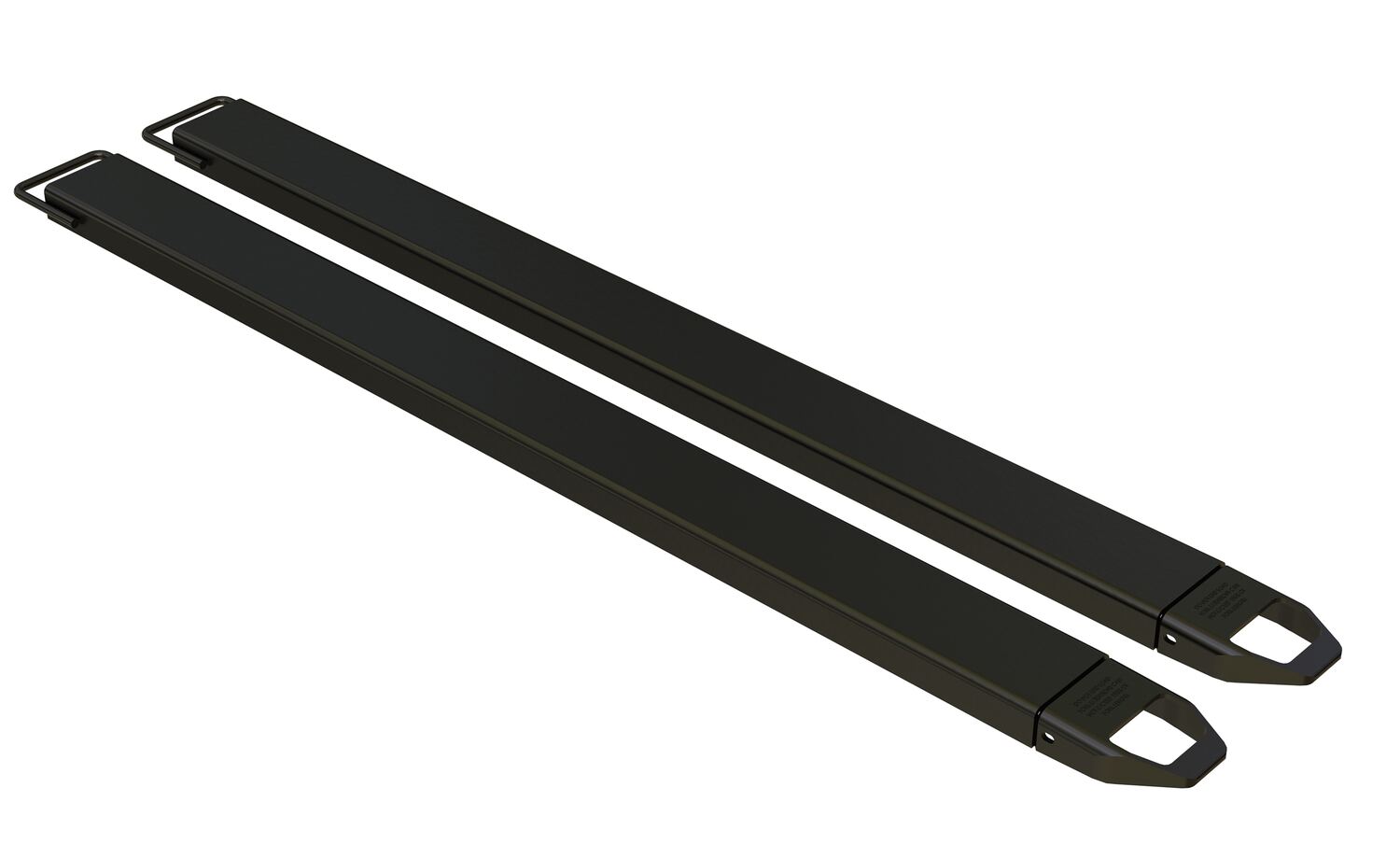

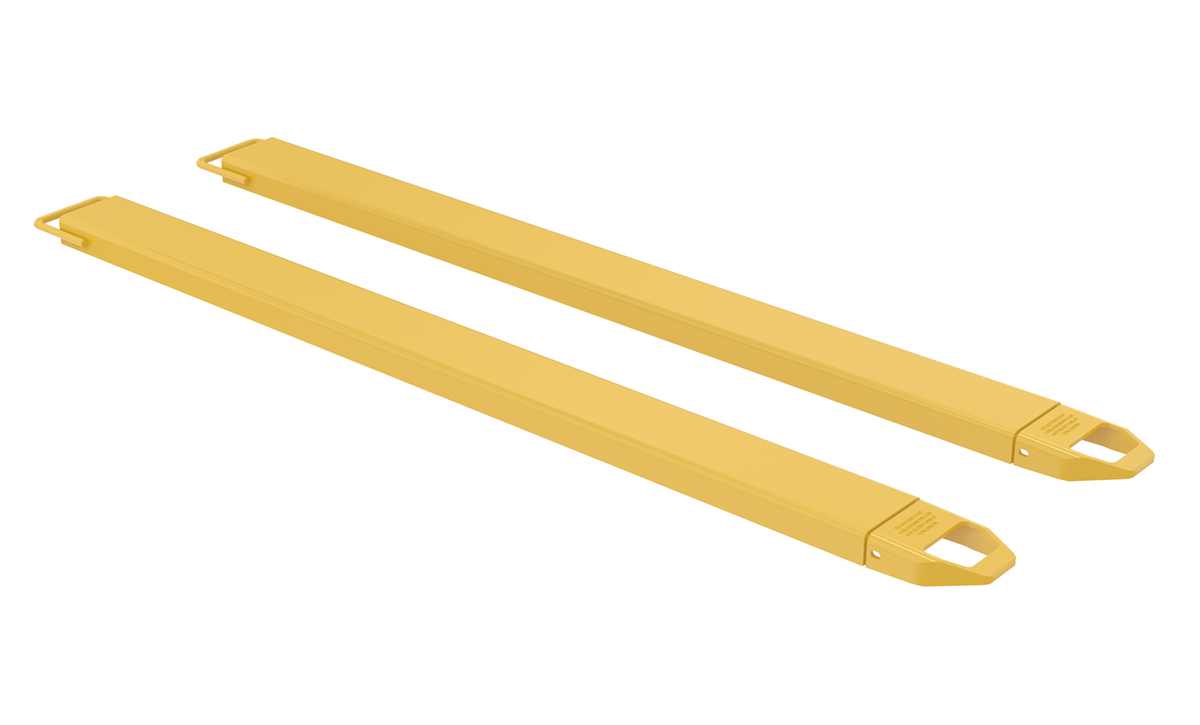

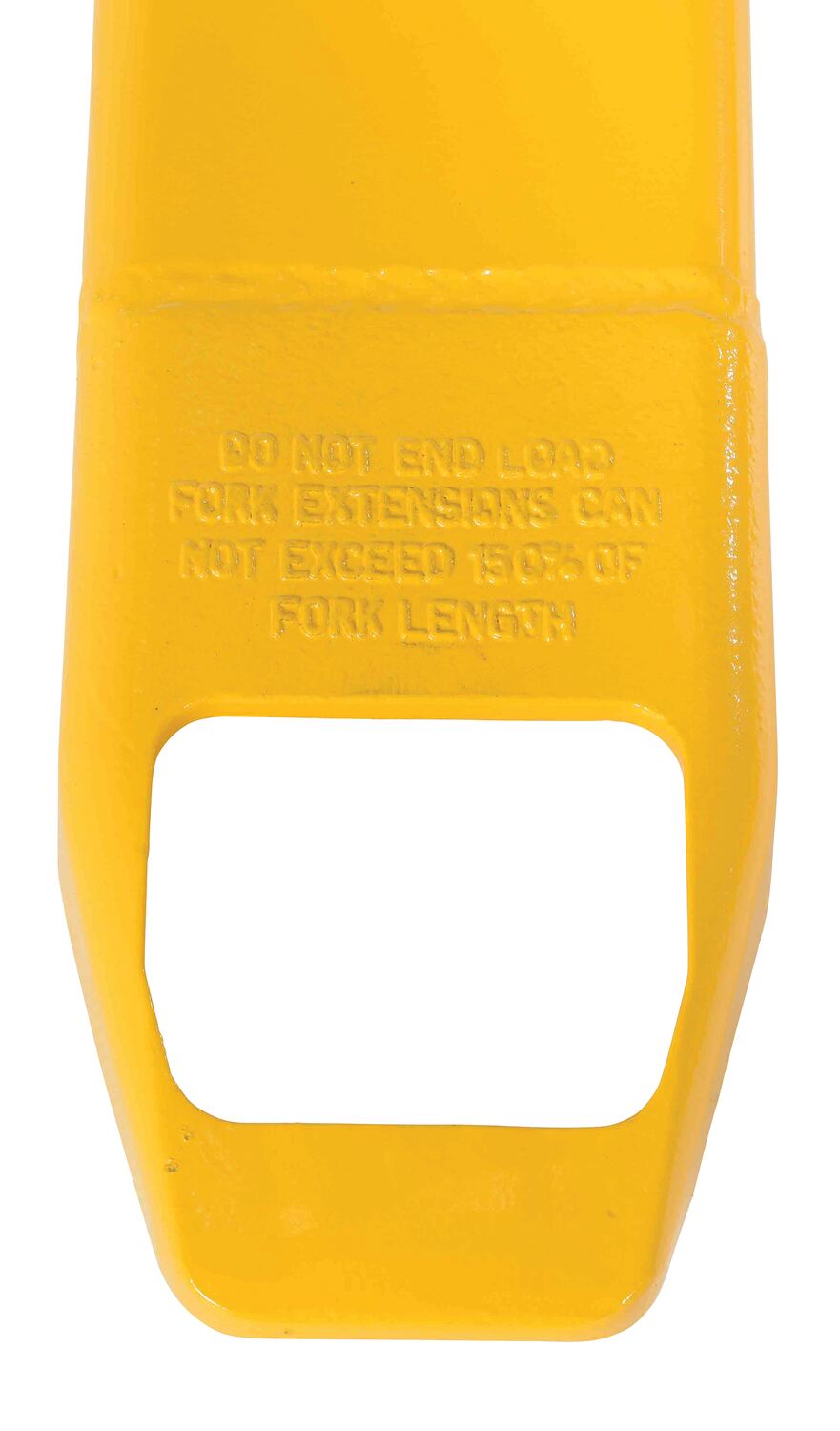

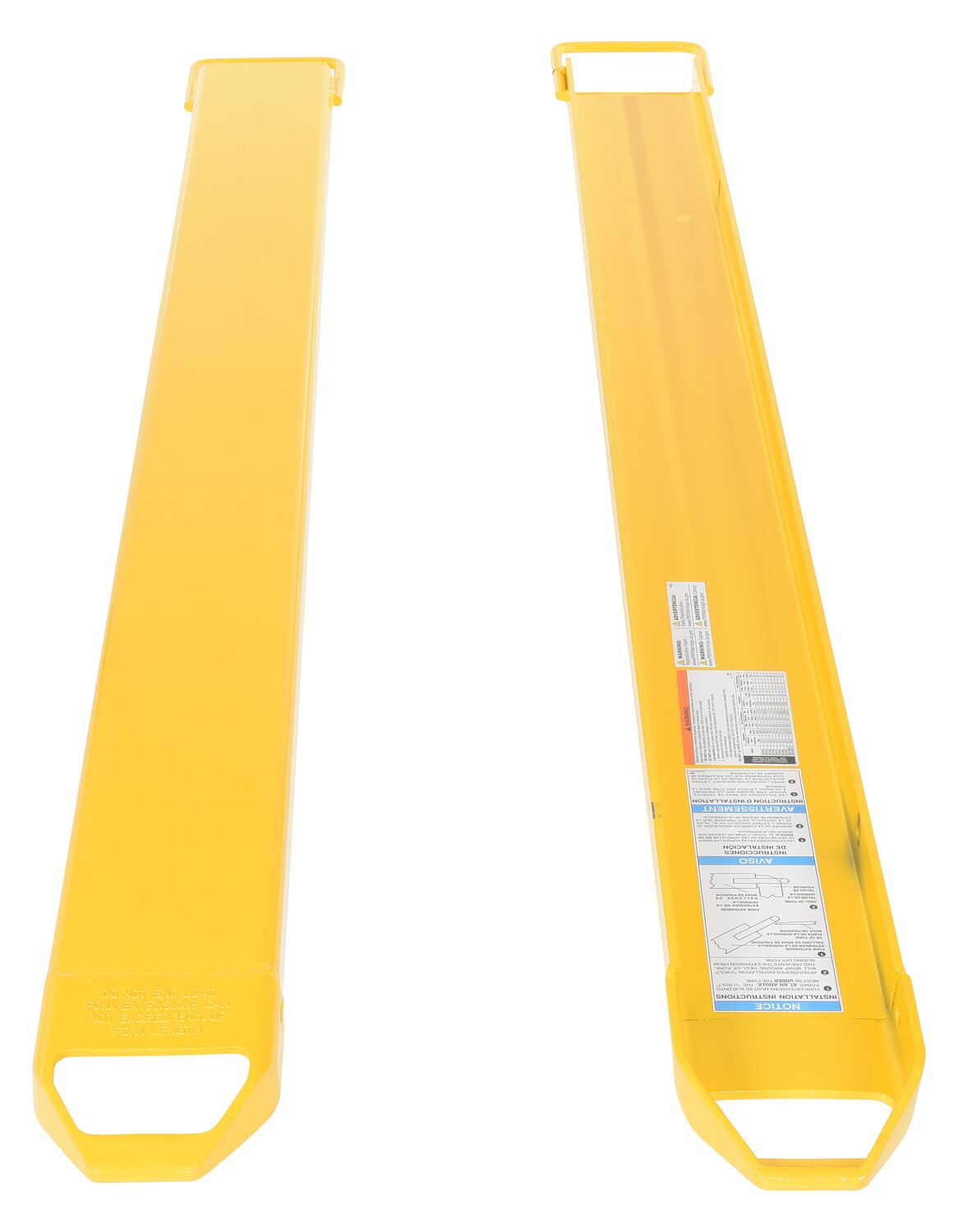

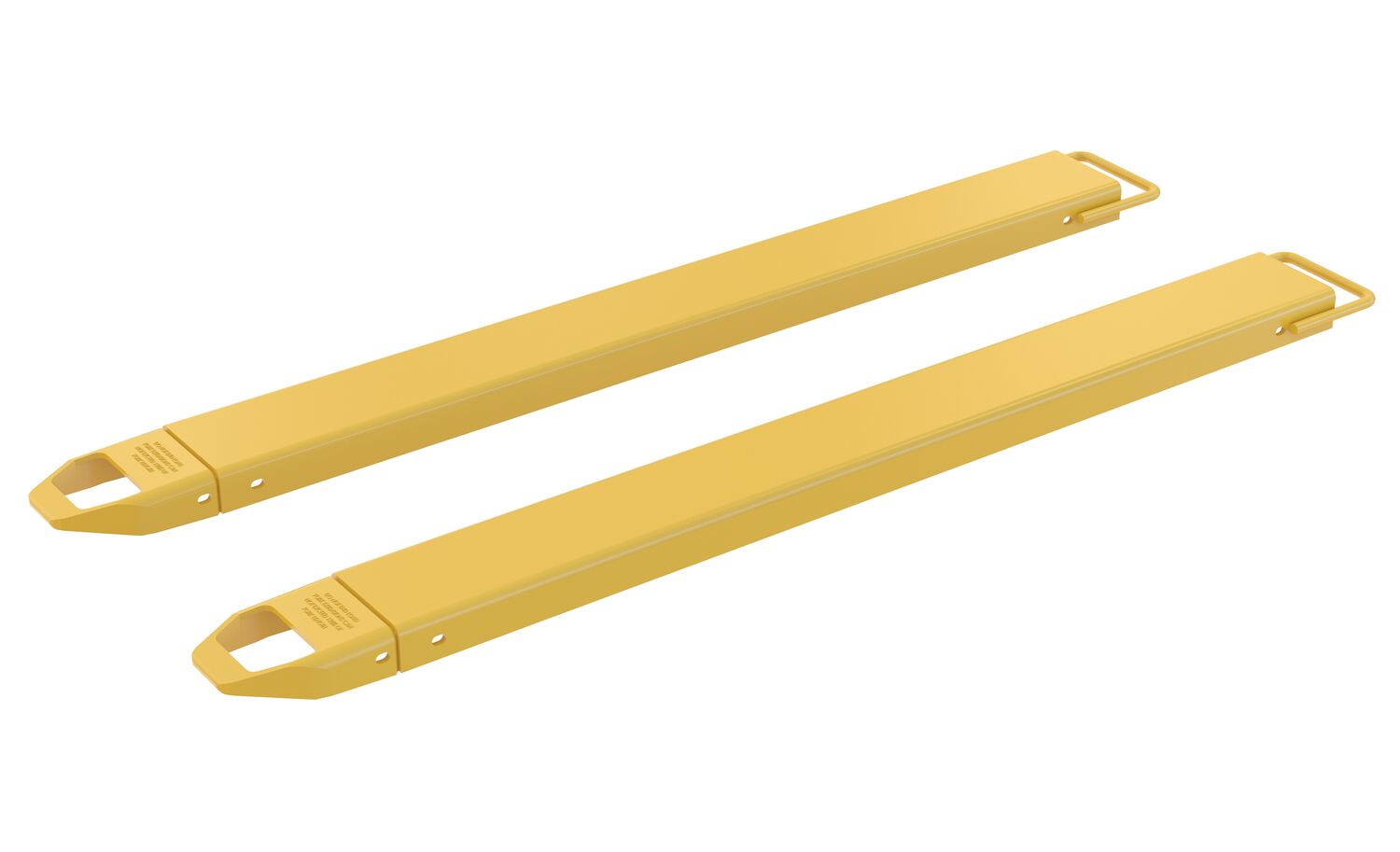

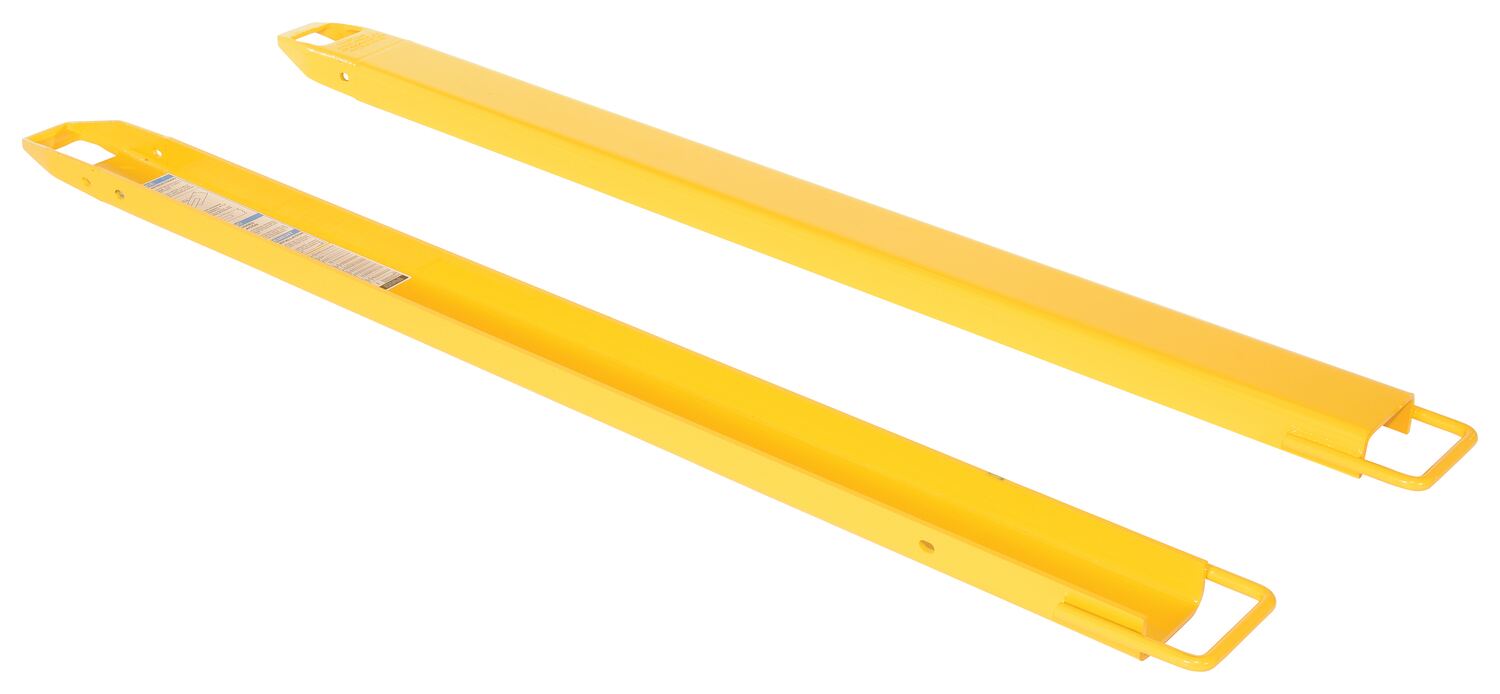

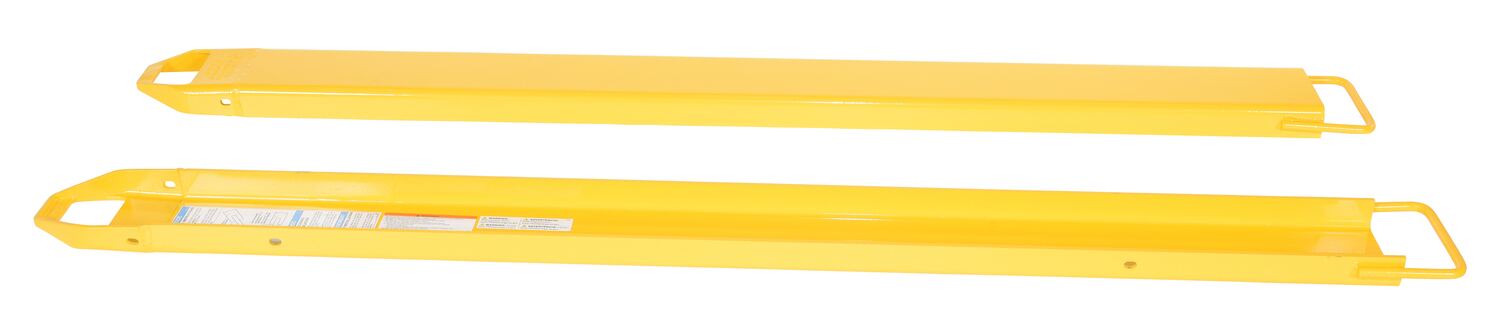

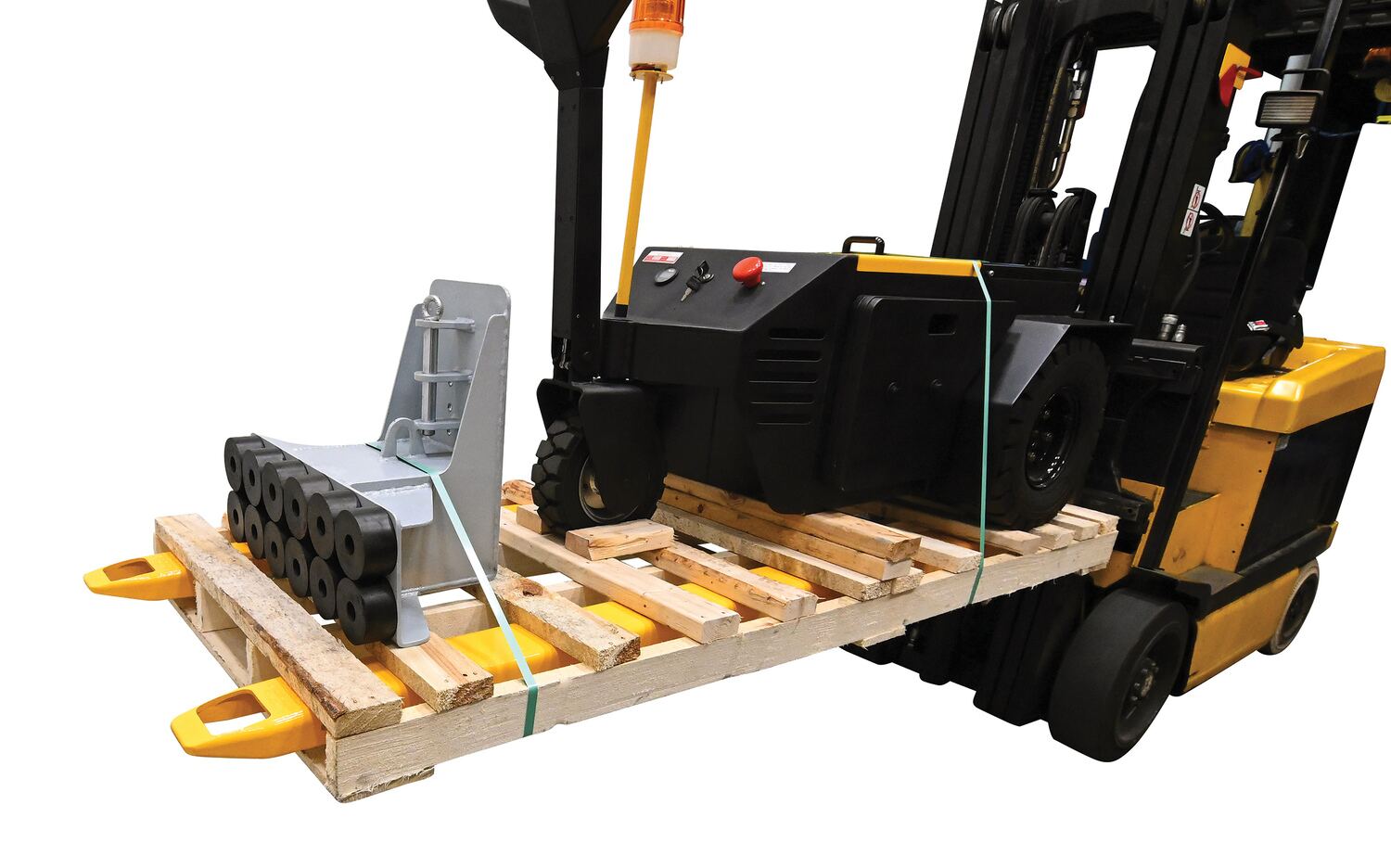

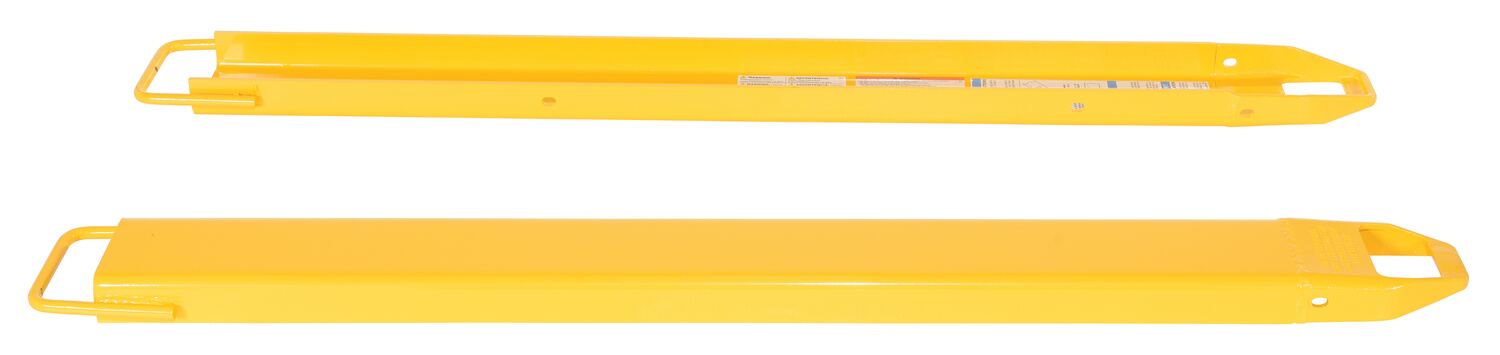

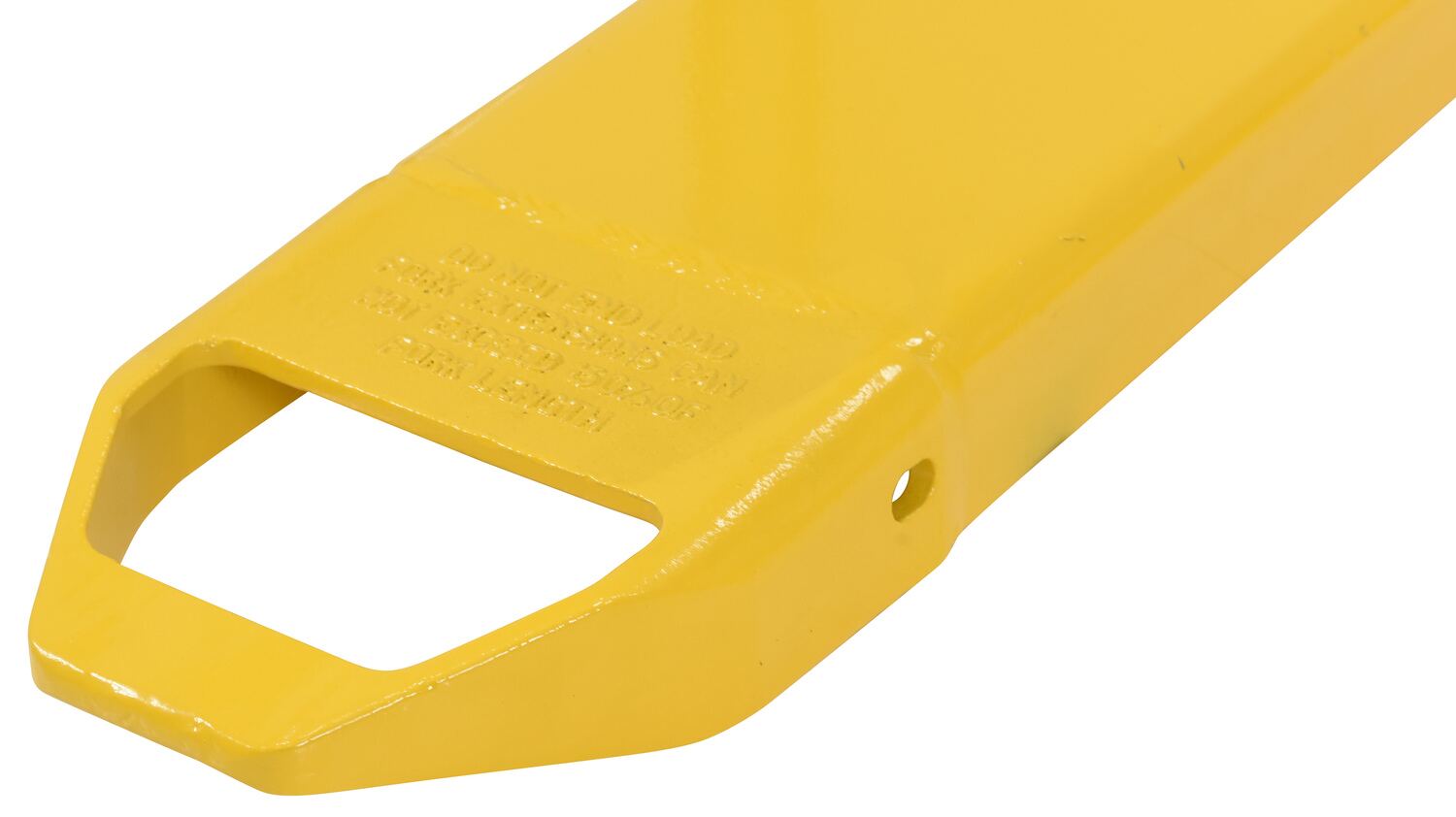

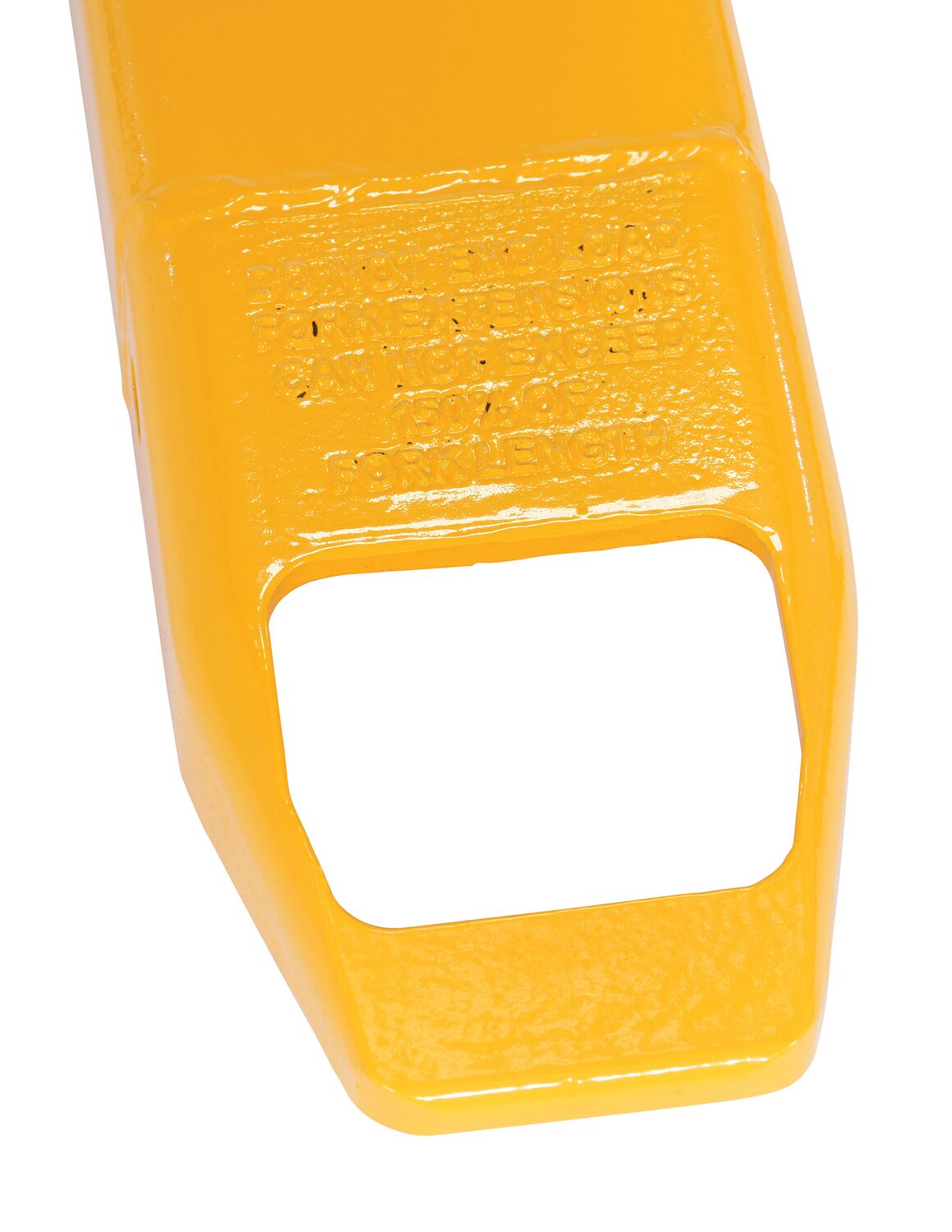

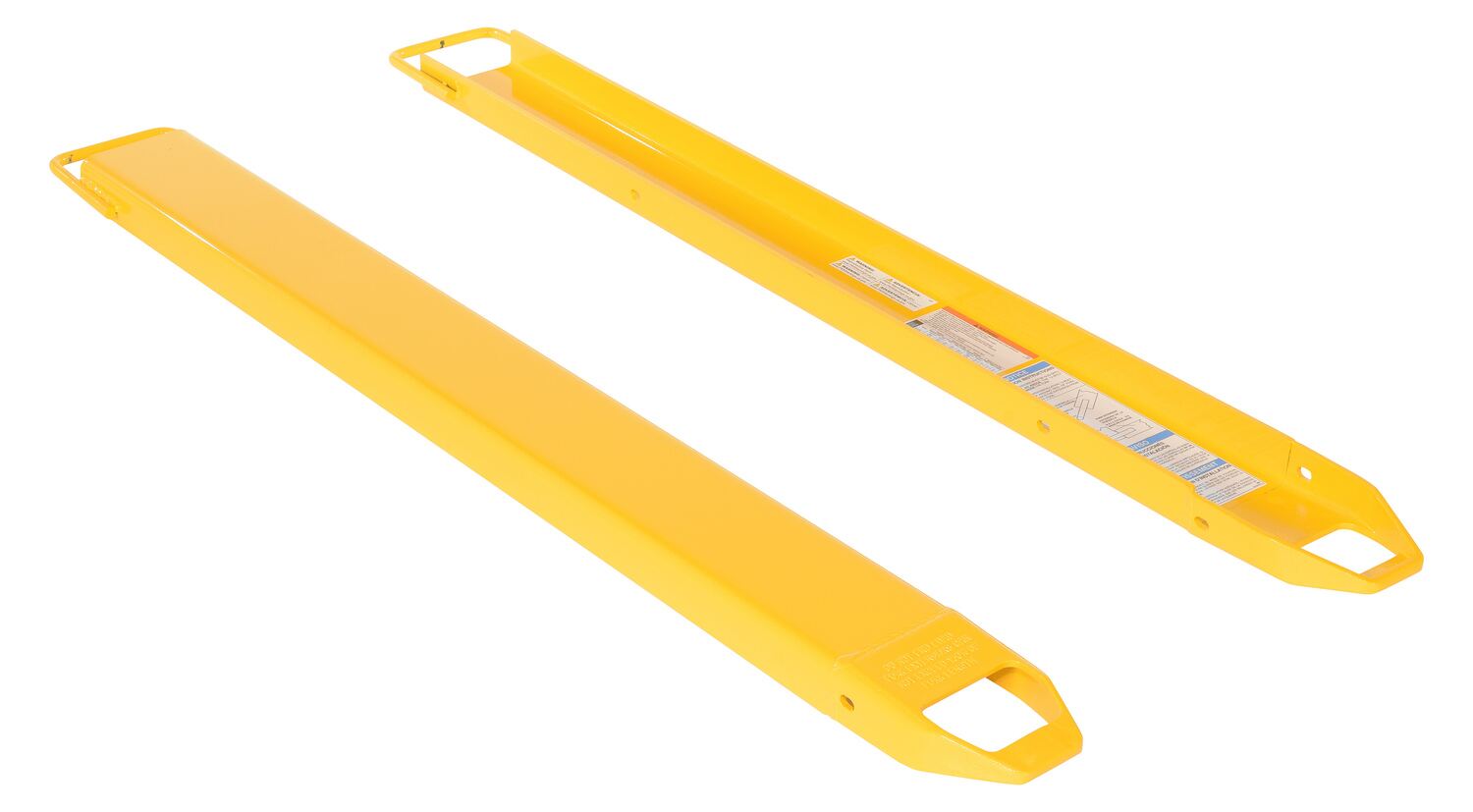

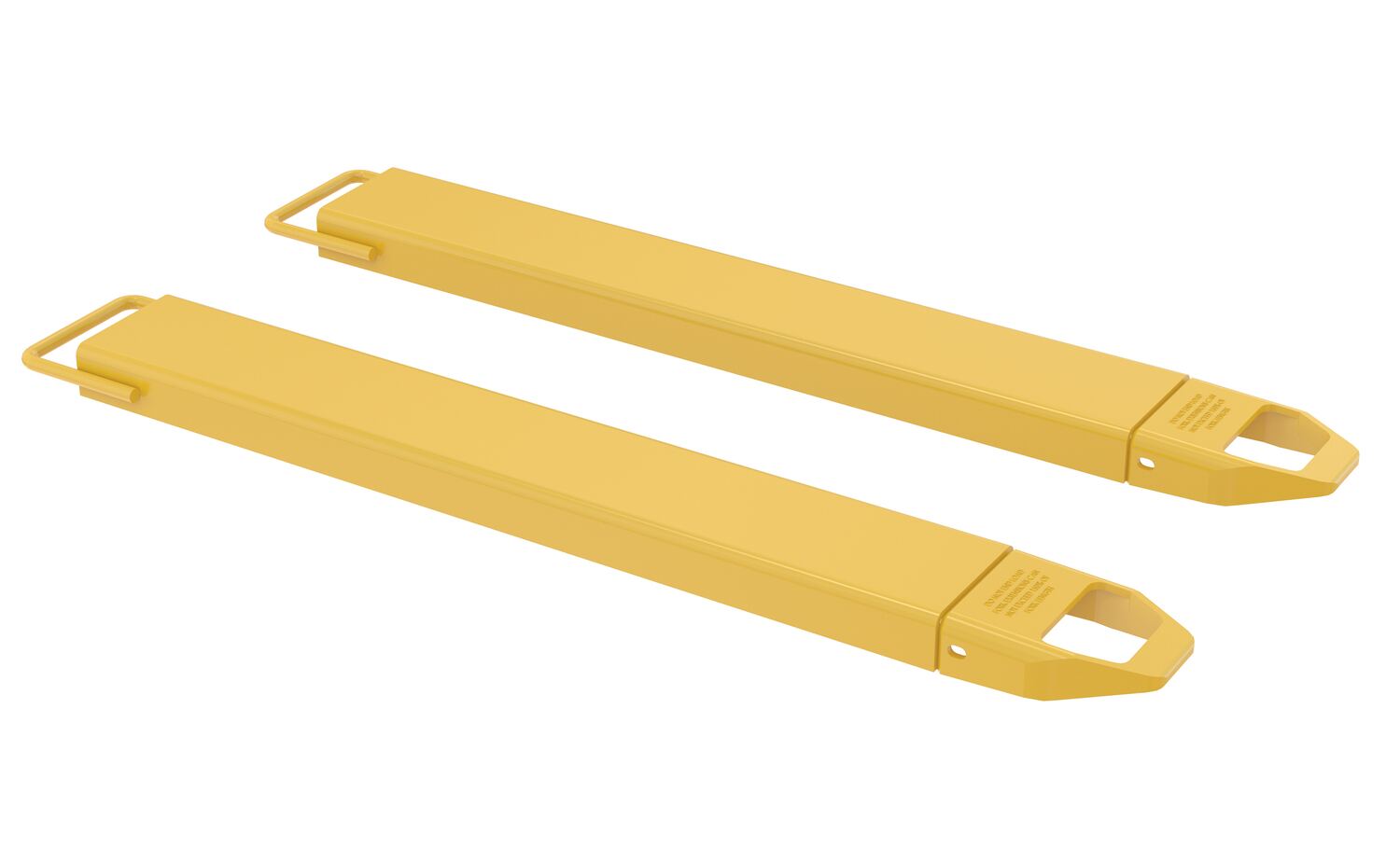

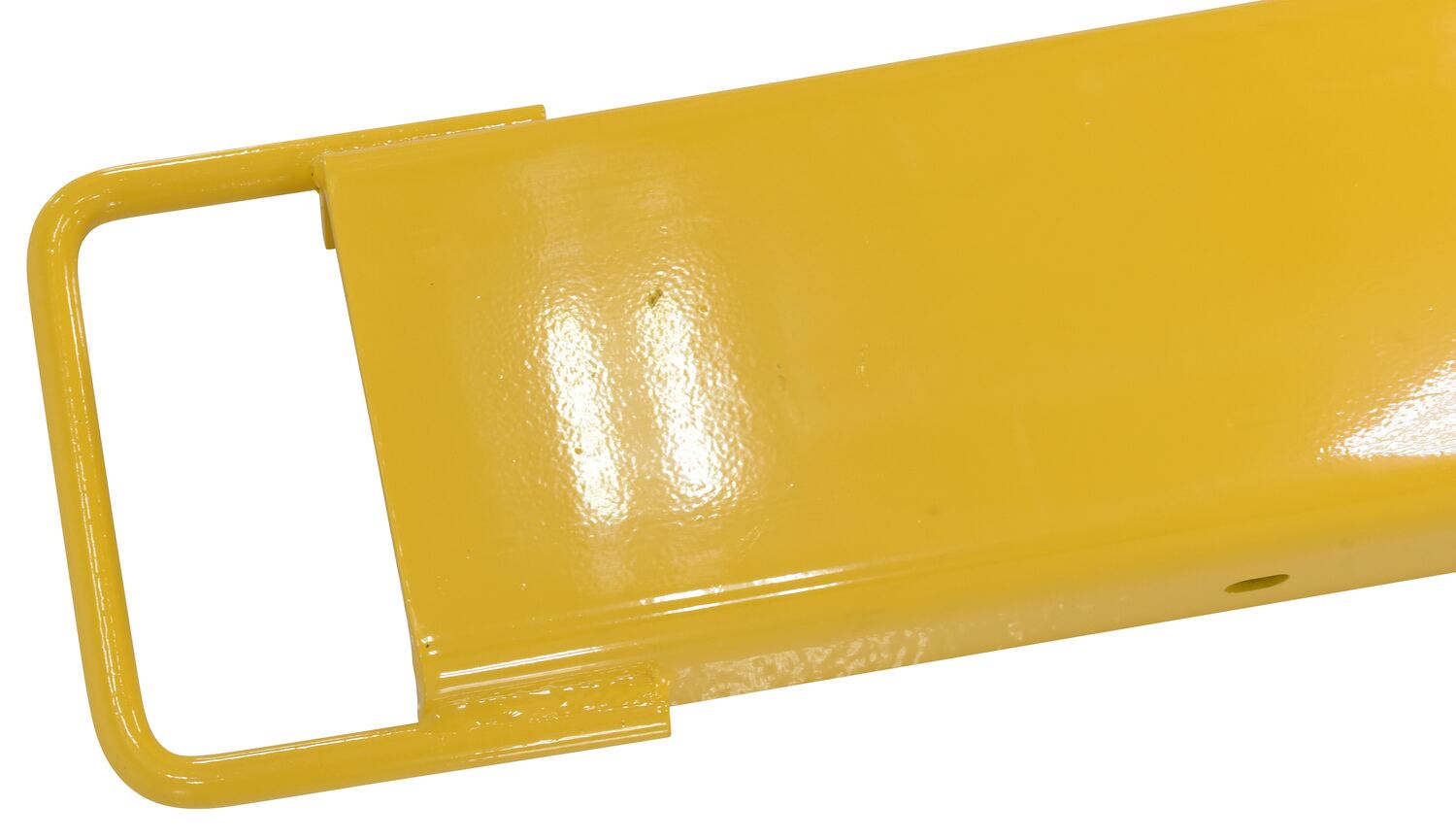

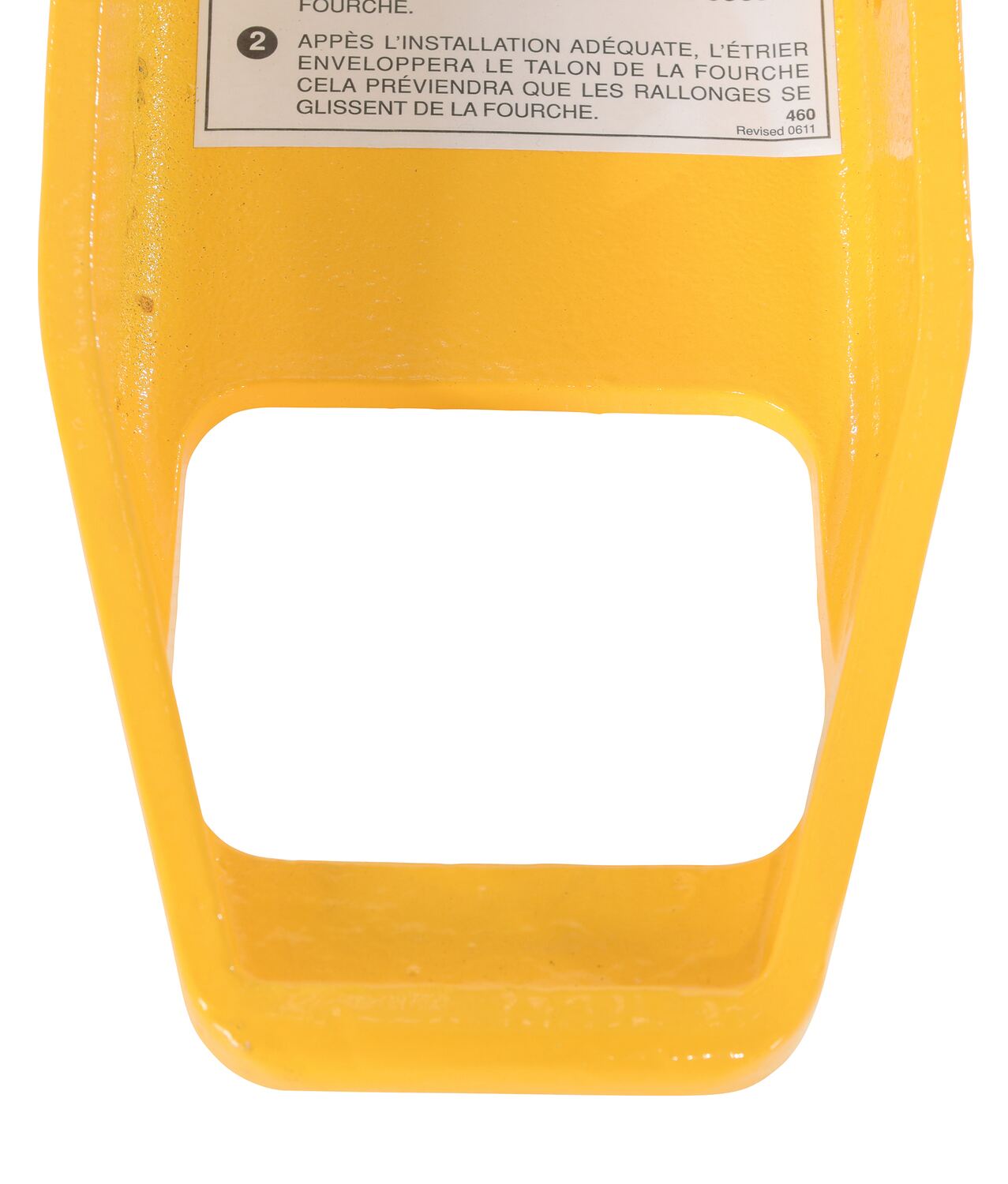

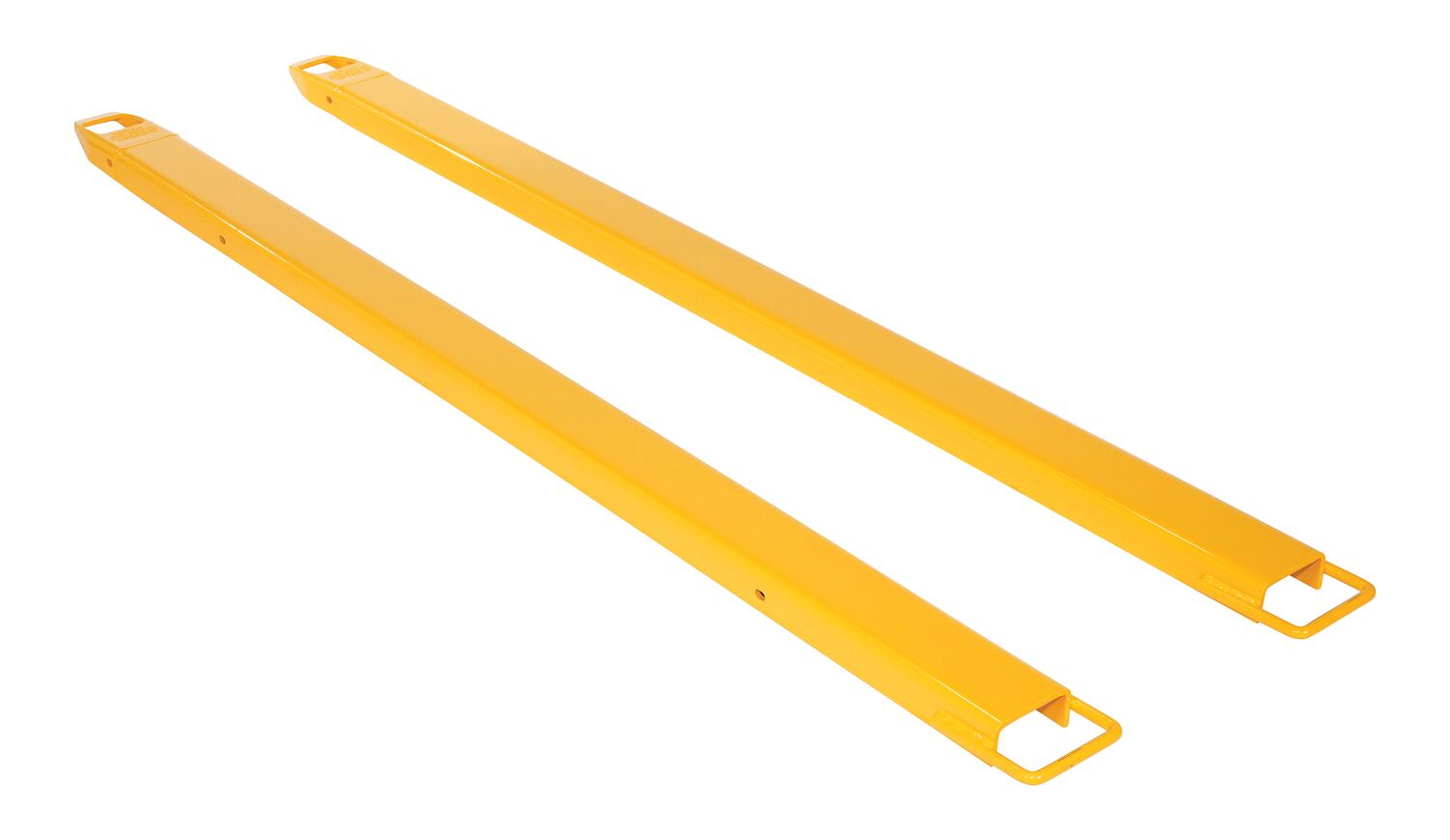

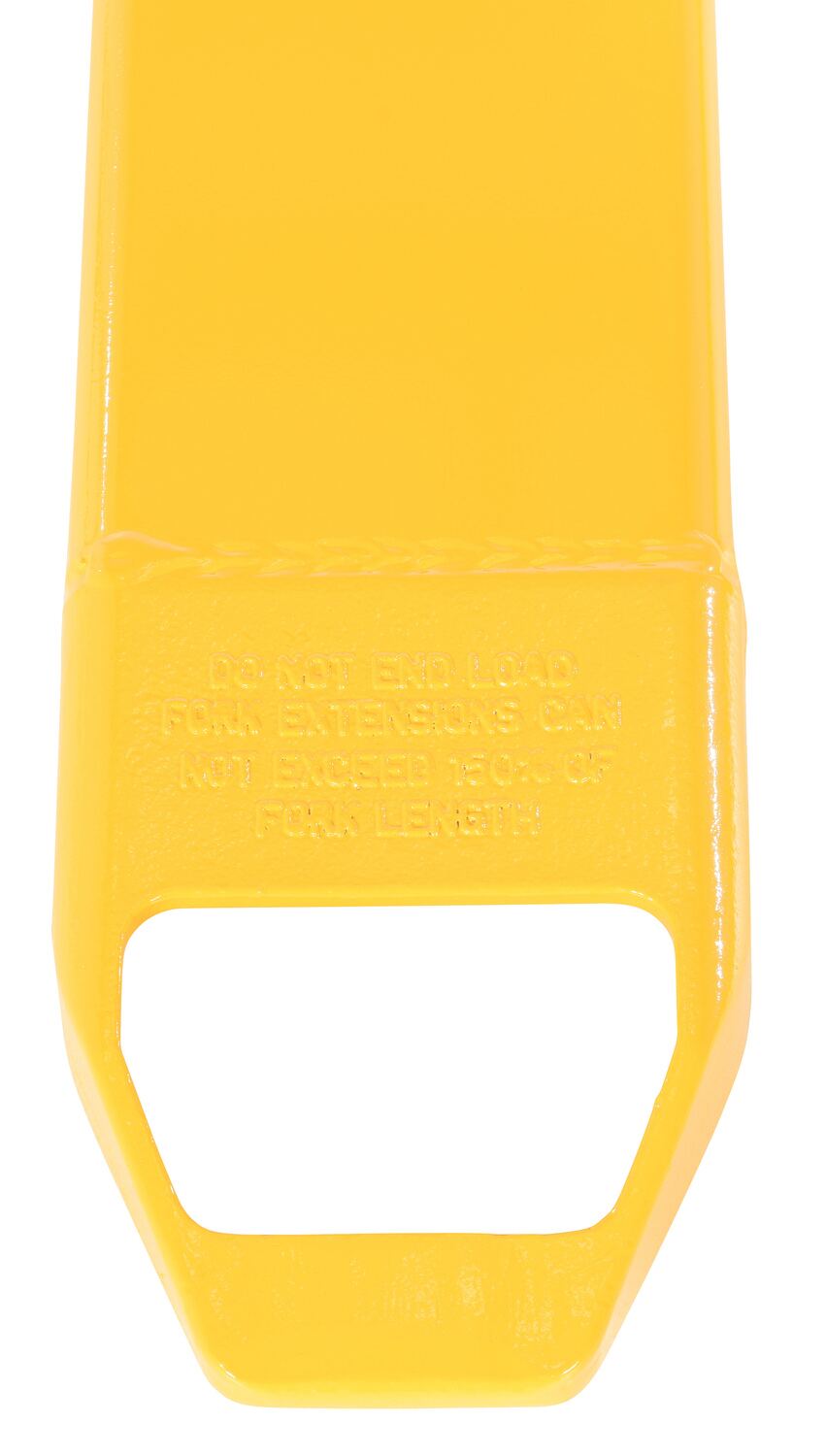

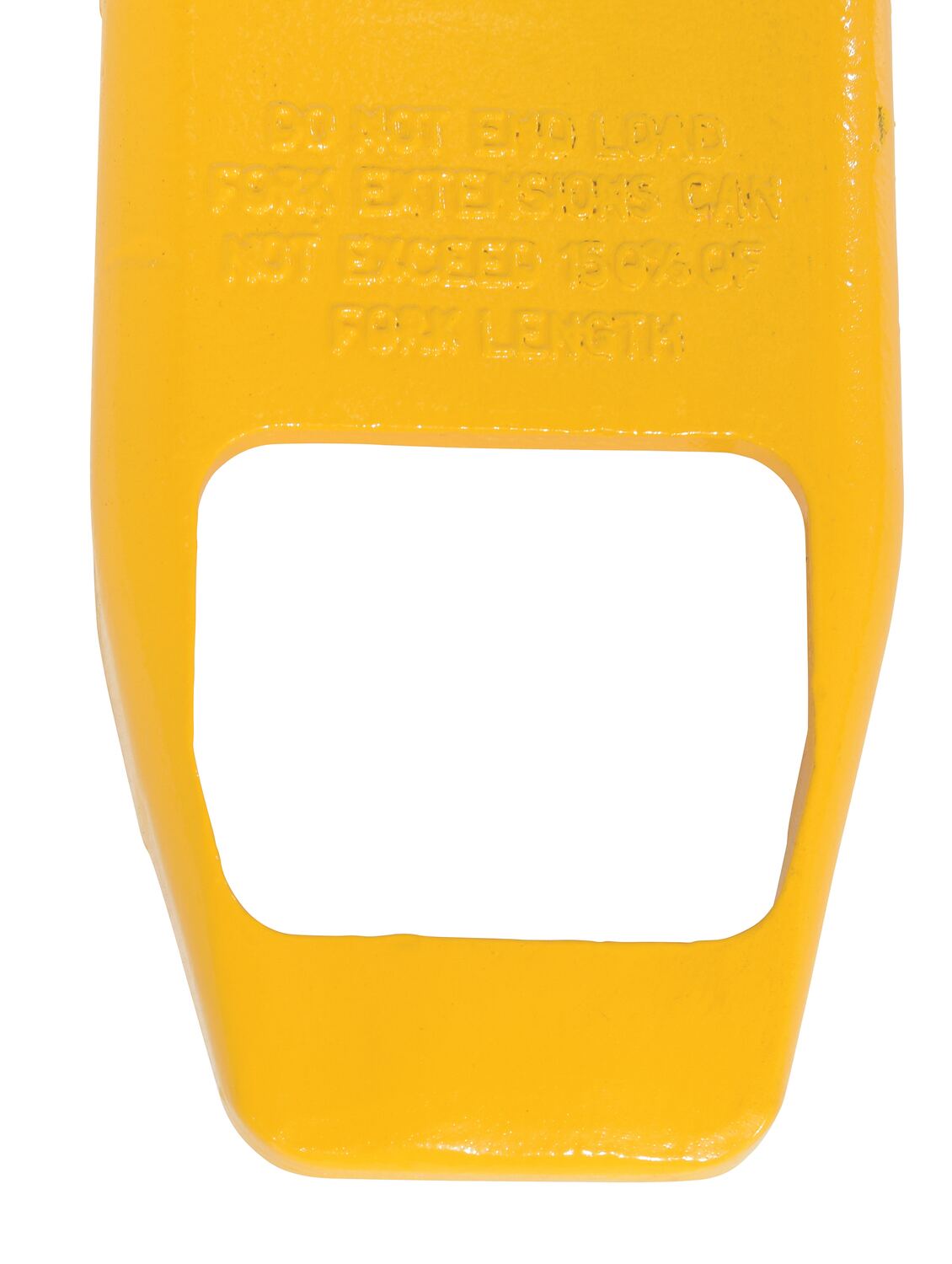

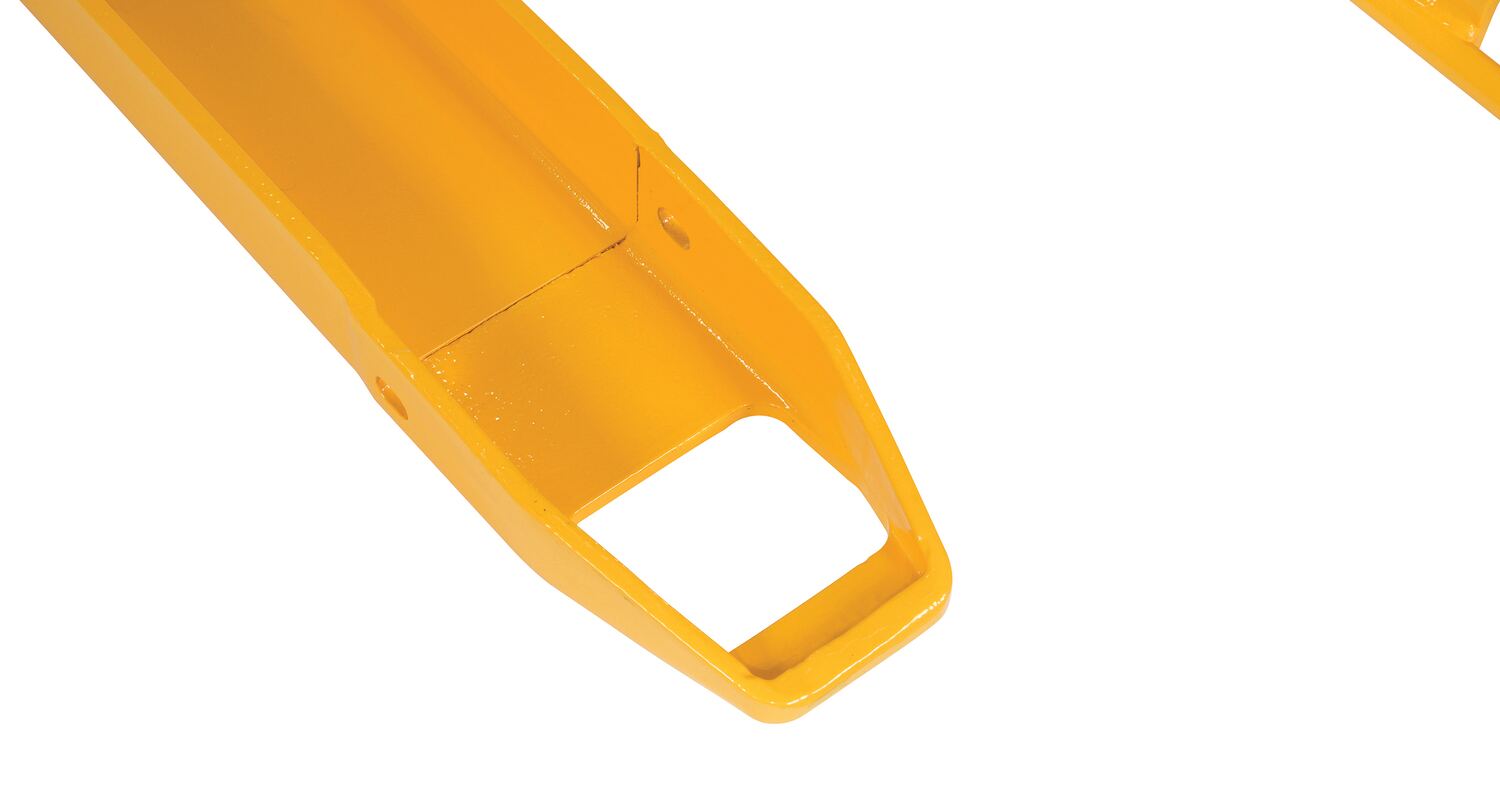

Provide the extra support needed to lift long or large objects with a fork truck. All model are designed of a welded steel construction. Models with prefix FE-4, FE-5 and FE-6 have cast steel tips, while models with prefix FE-7 and FE-8 have a tapered cut front end. Loop style prevents fork extensions from sliding off forks during use. Baked-in powder coat finish for added toughness. OSHA regulations require that extensions are no more than 150% of the existing fork length. (e.g. 48" existing forks, the fork extension should not exceed 72"). Maximum uniform capacity is 4,000 pounds evenly distributed per pair.
HOW TO USE / INSTALLATION

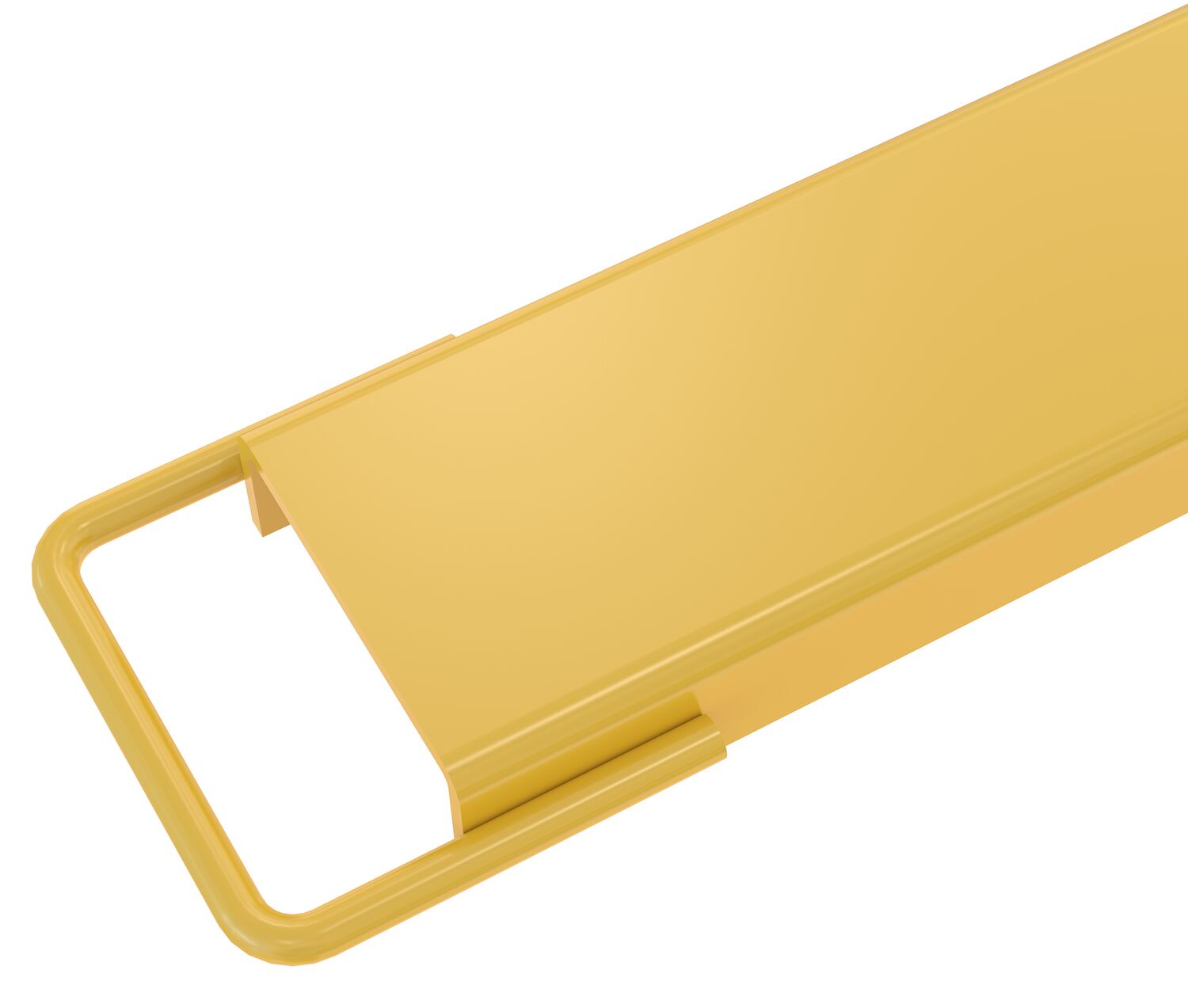

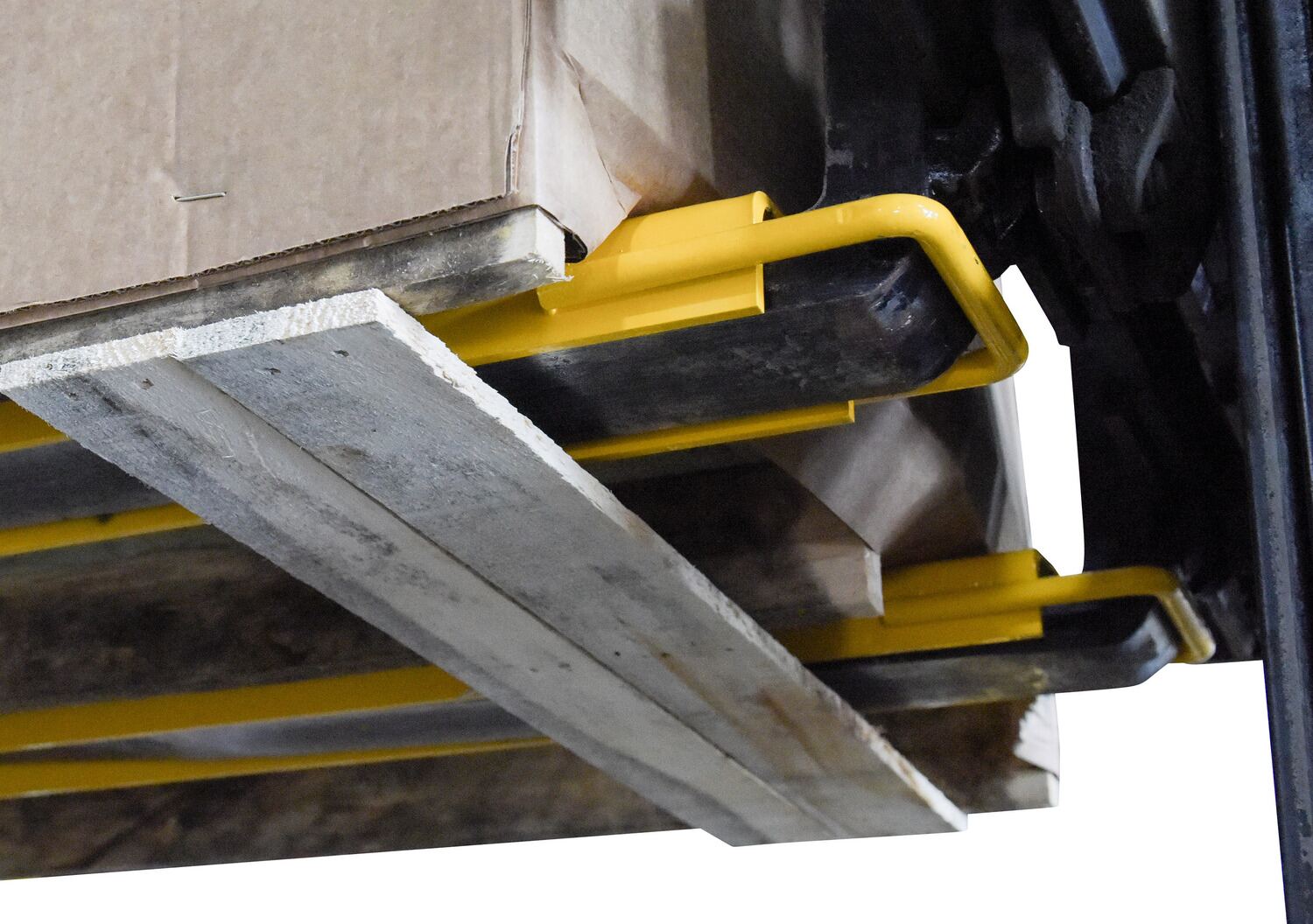

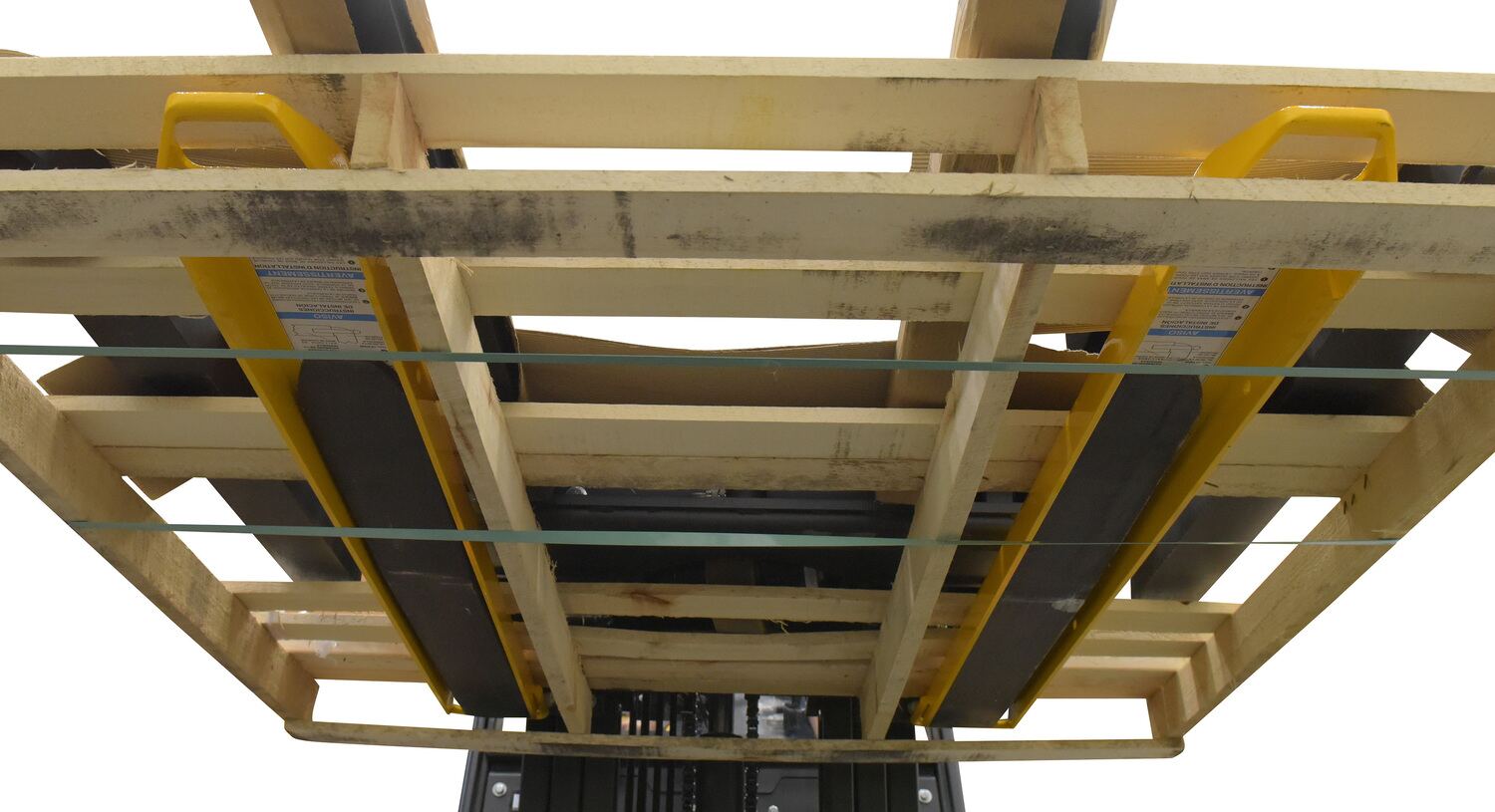

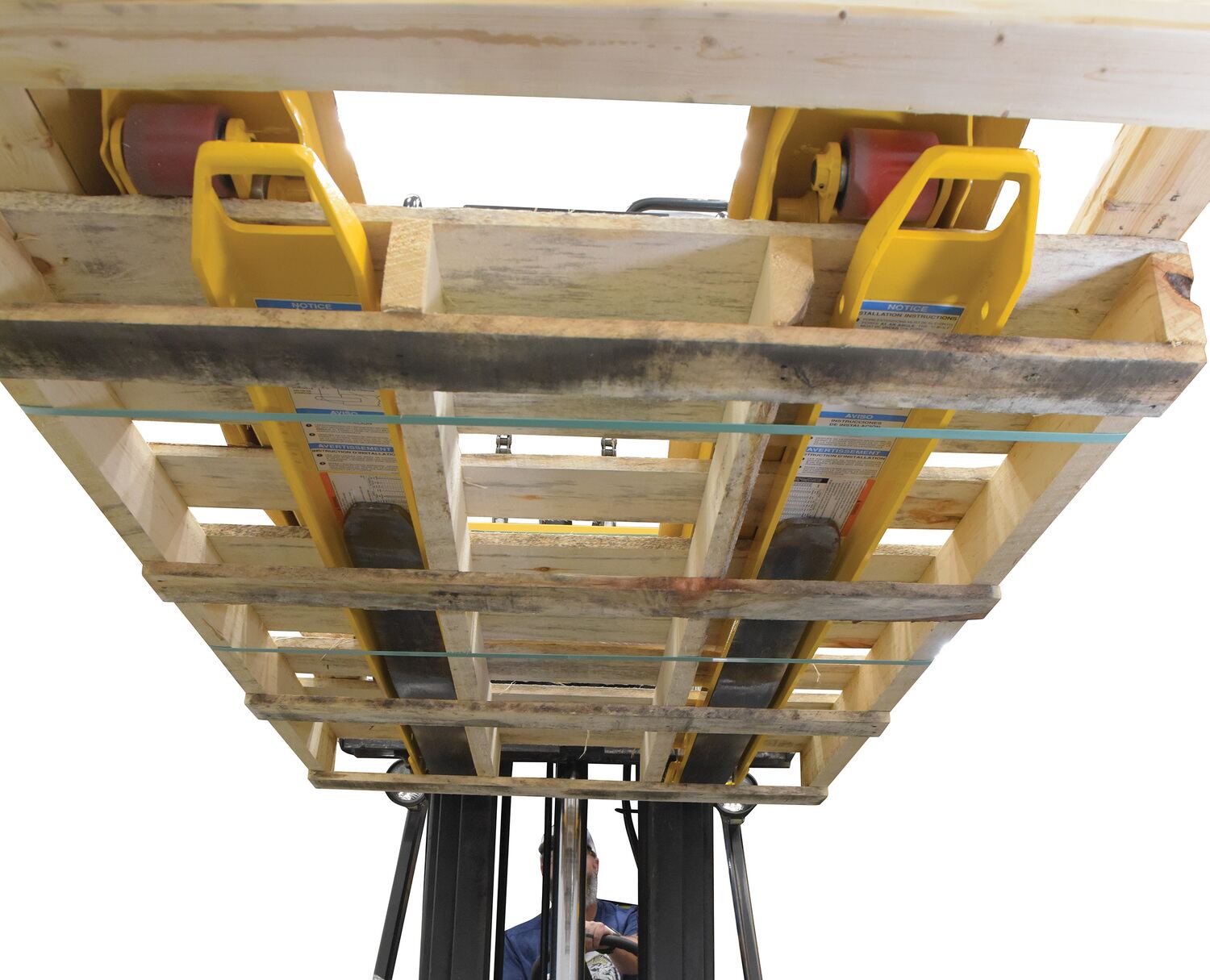

Insert loop at the tip of the fork and slide it up at a 45 degree angle then lay it down over the existing fork.
To be used with class 2 and class 3 forks only.
Check Out Vestil's Other Fork Extension Styles:
 High Strength Fork Extensions |
 Pin-Style Fork Extensions |
 Pin Style Fork Extensions with Load Rails |

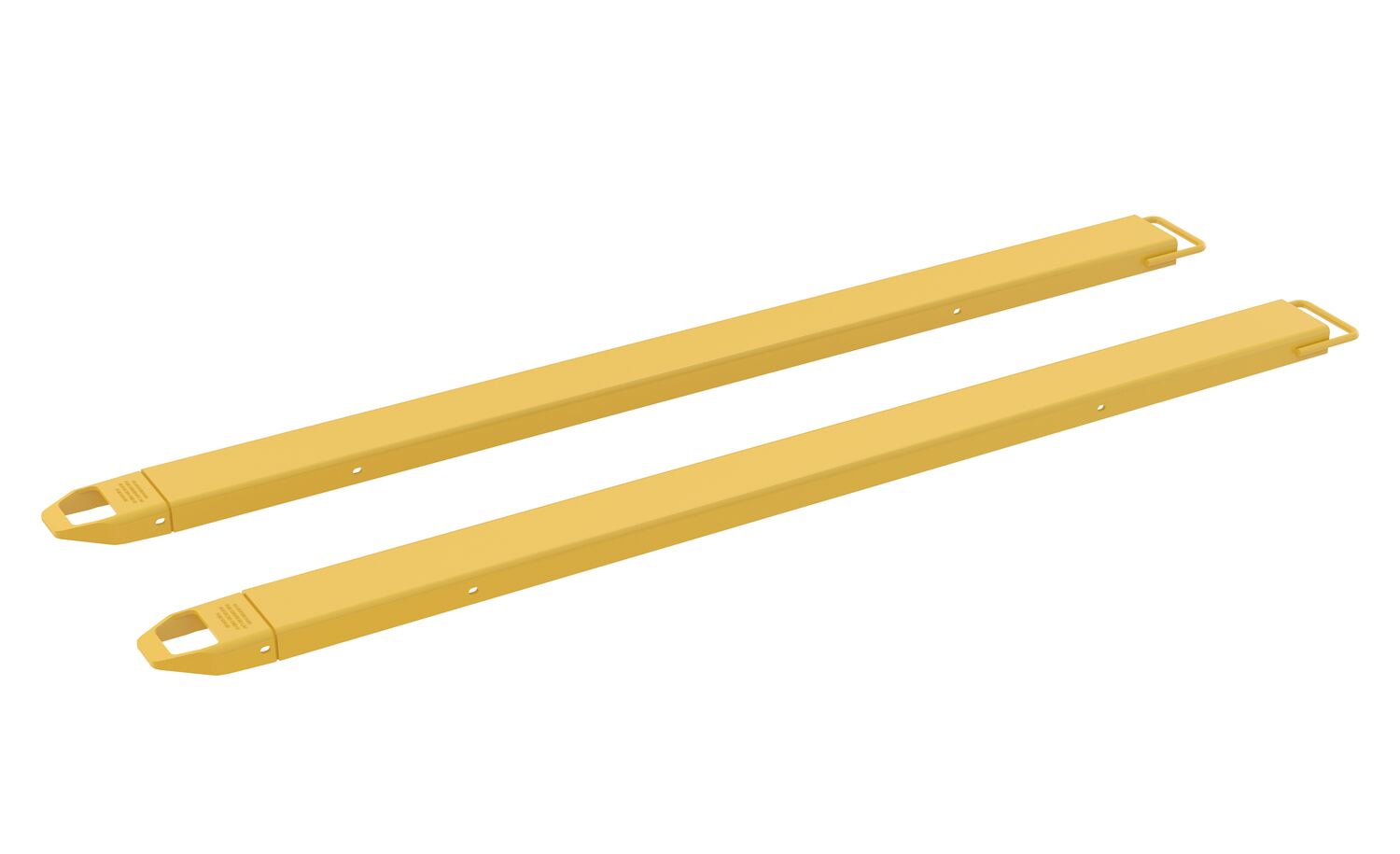

FE-6-96

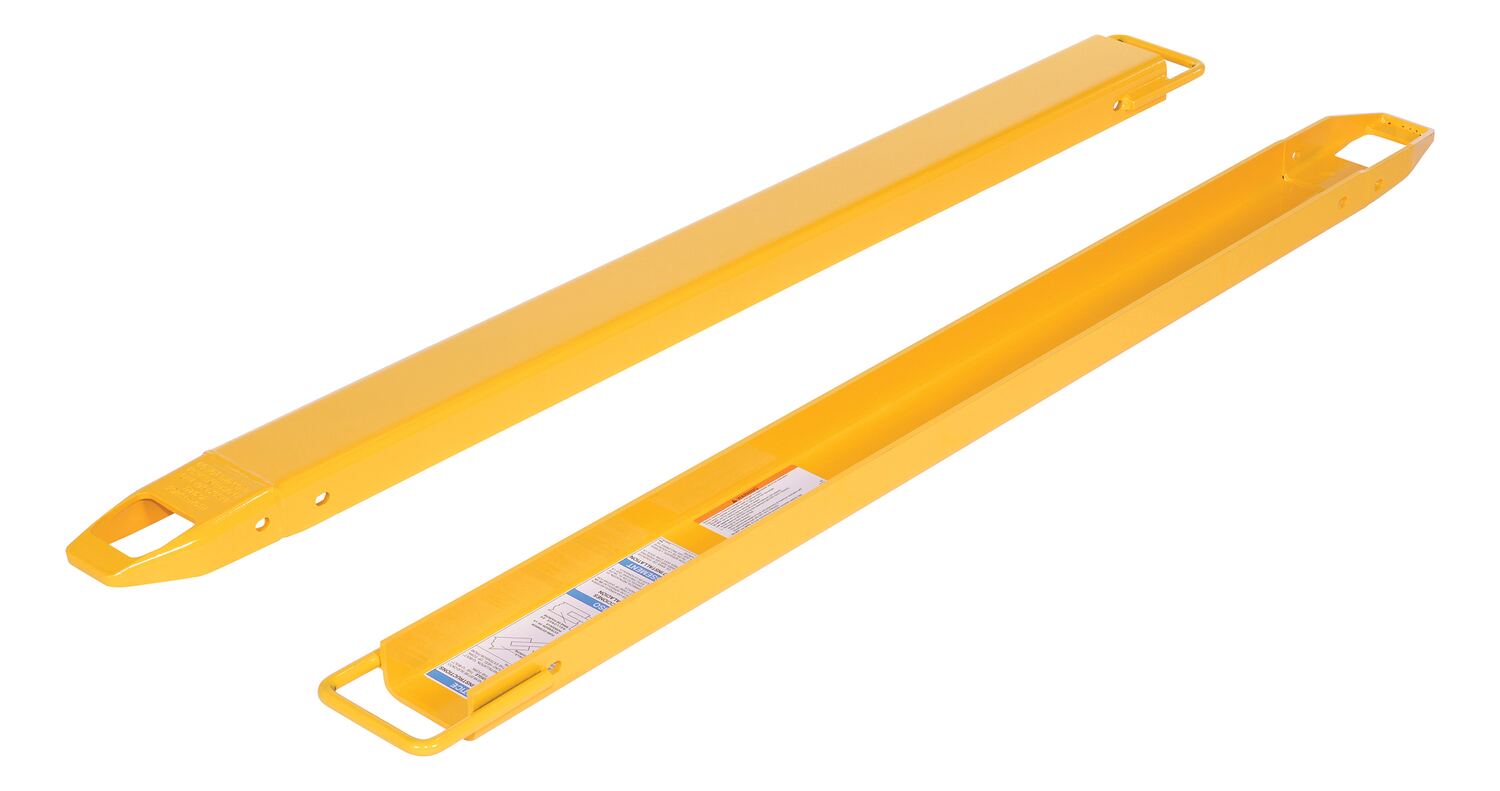

FE-4-66

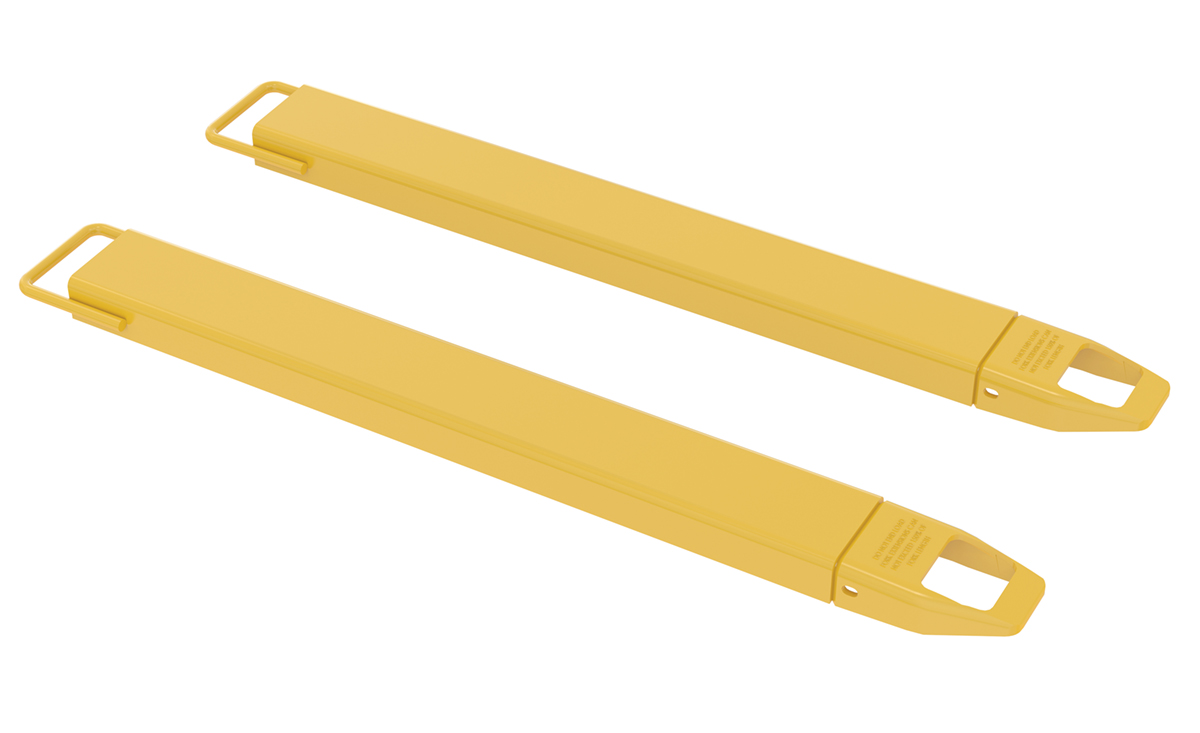

FE-4-48

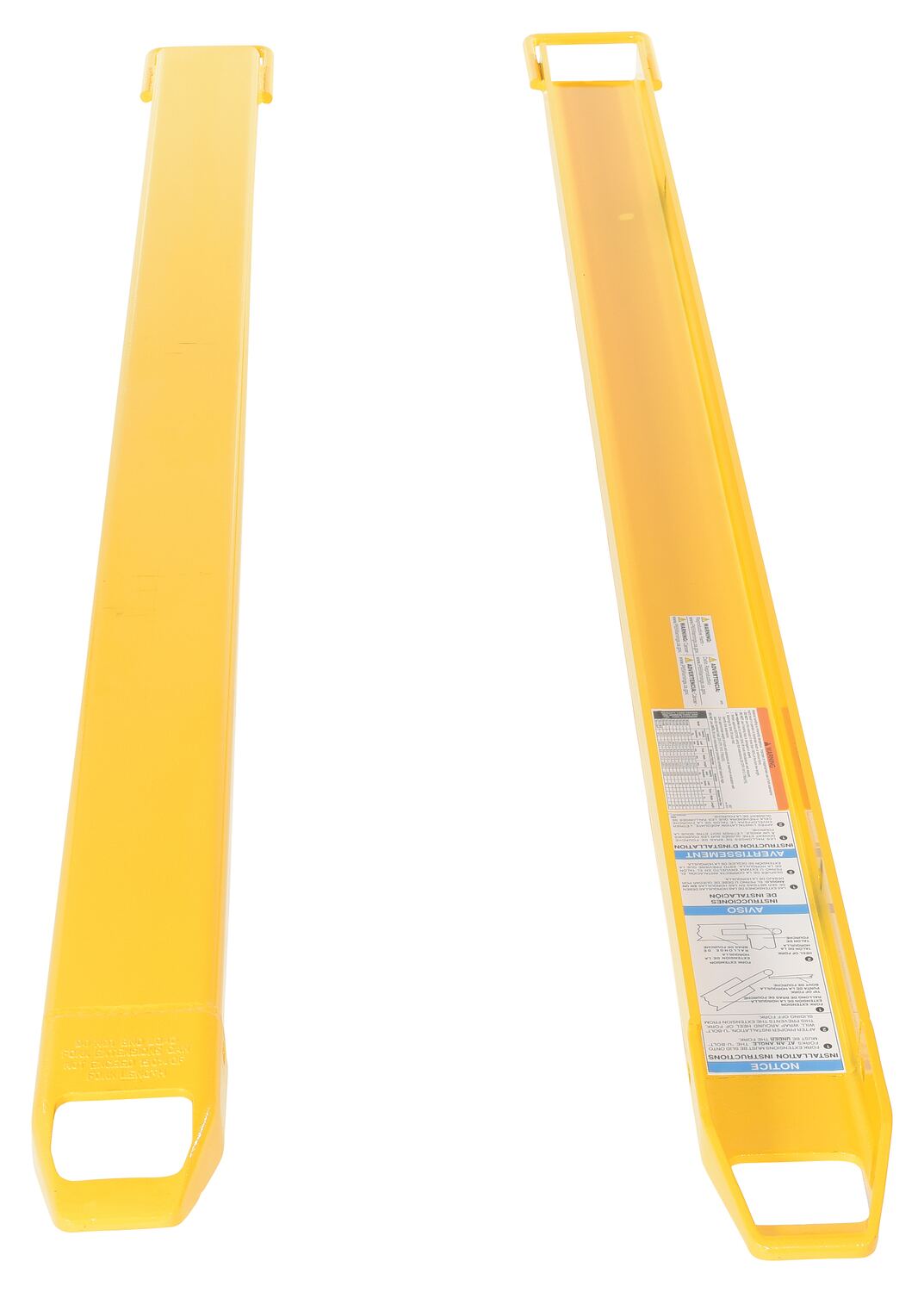

FE-4-84
FE-5-84

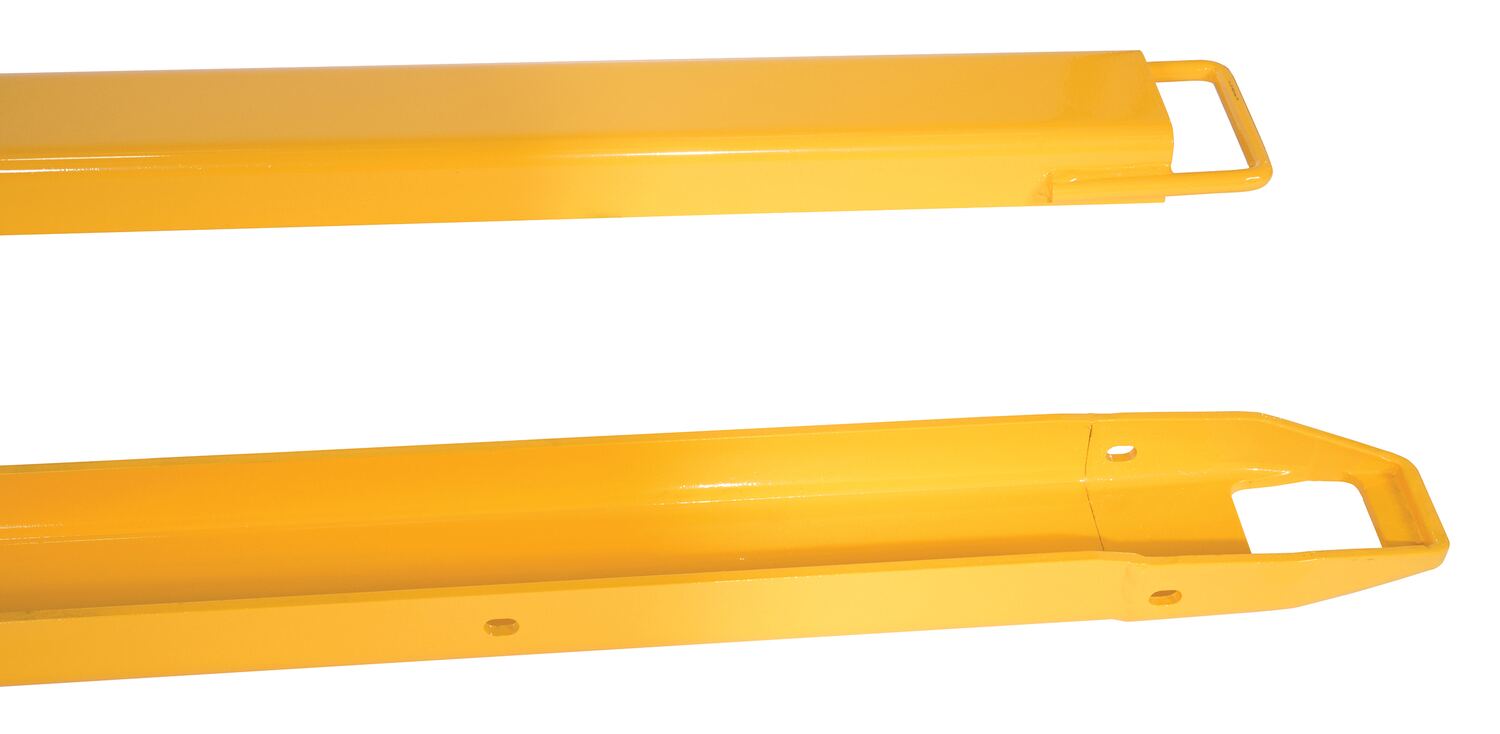

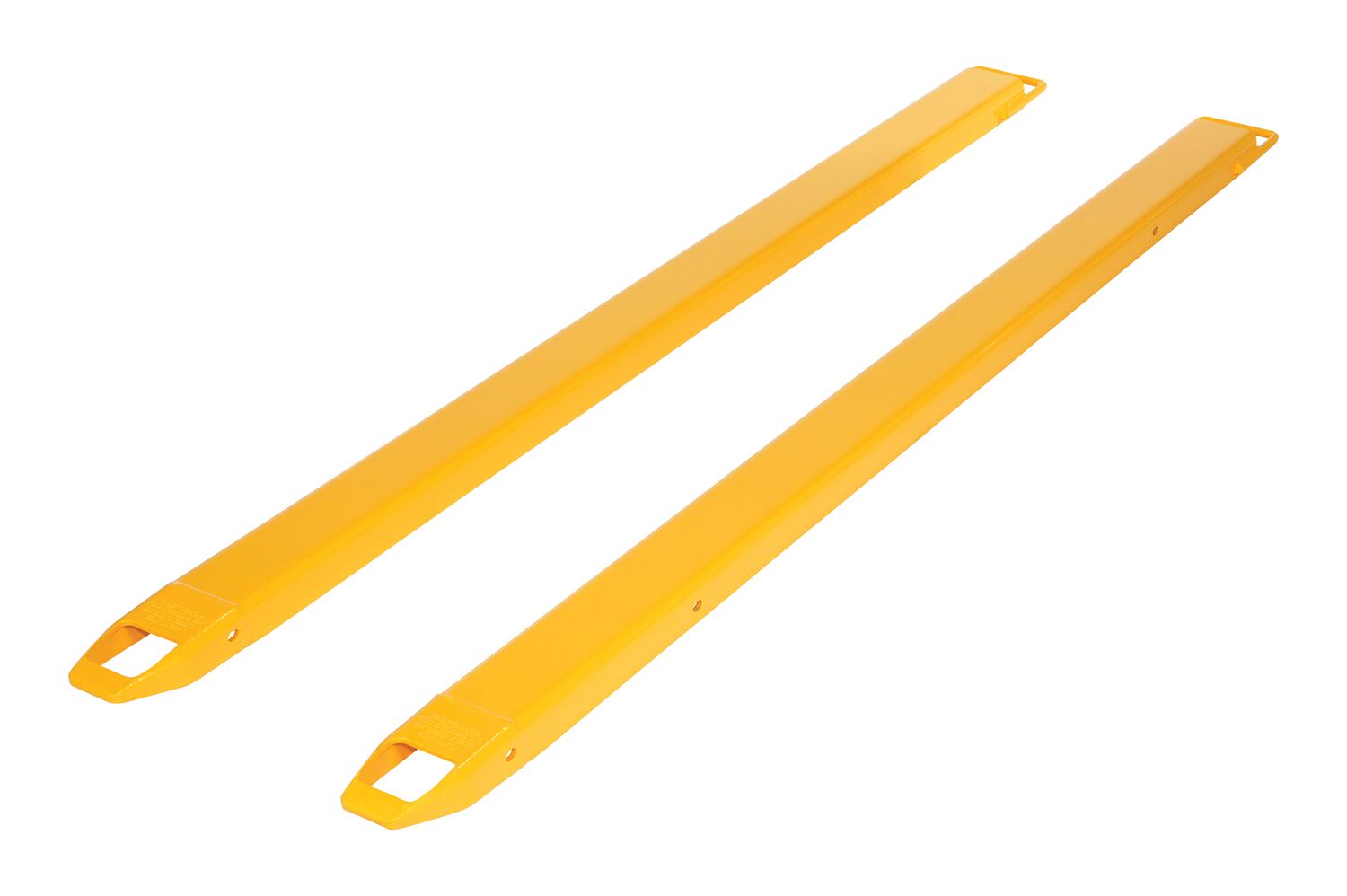

FE-4-90

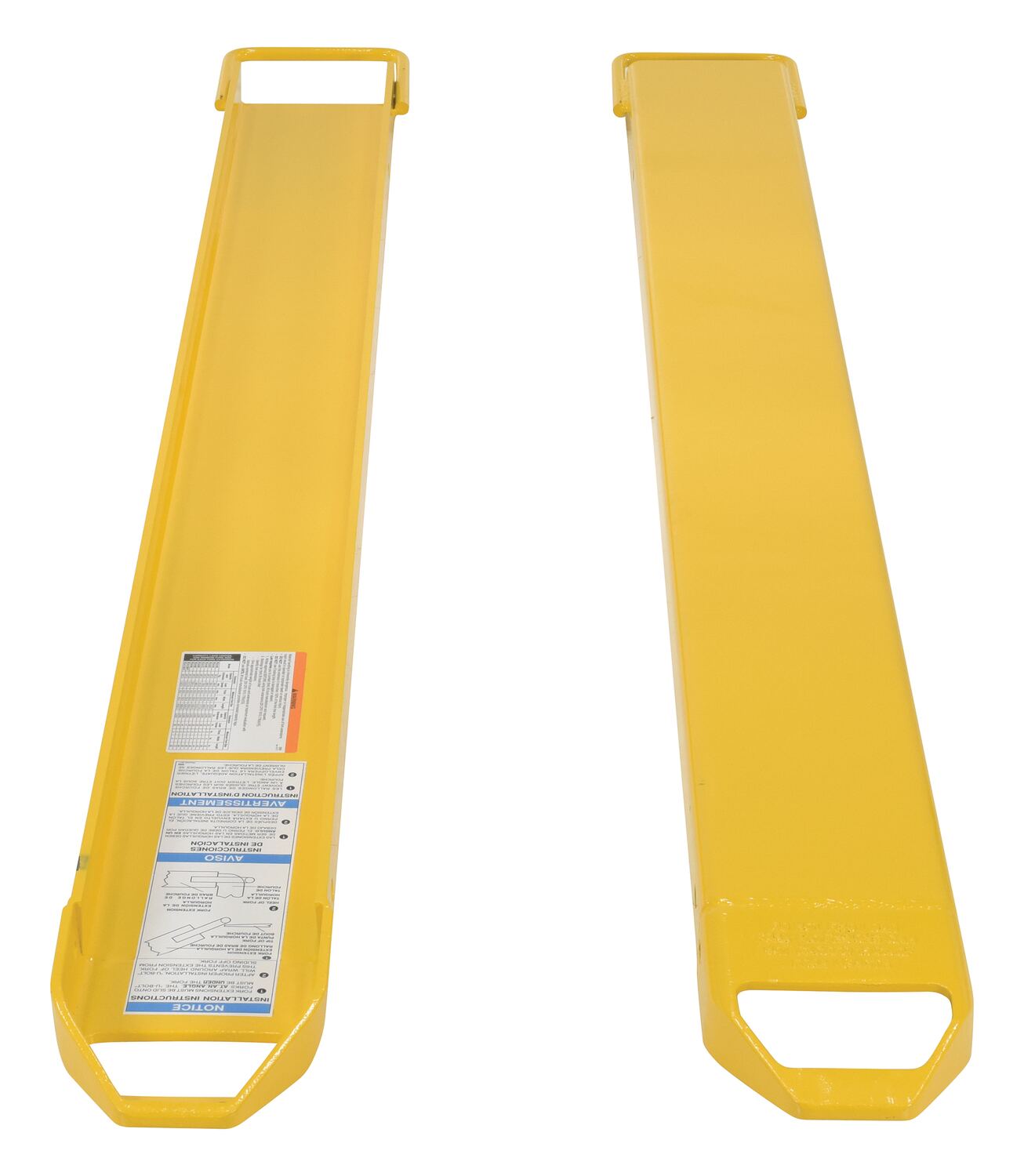

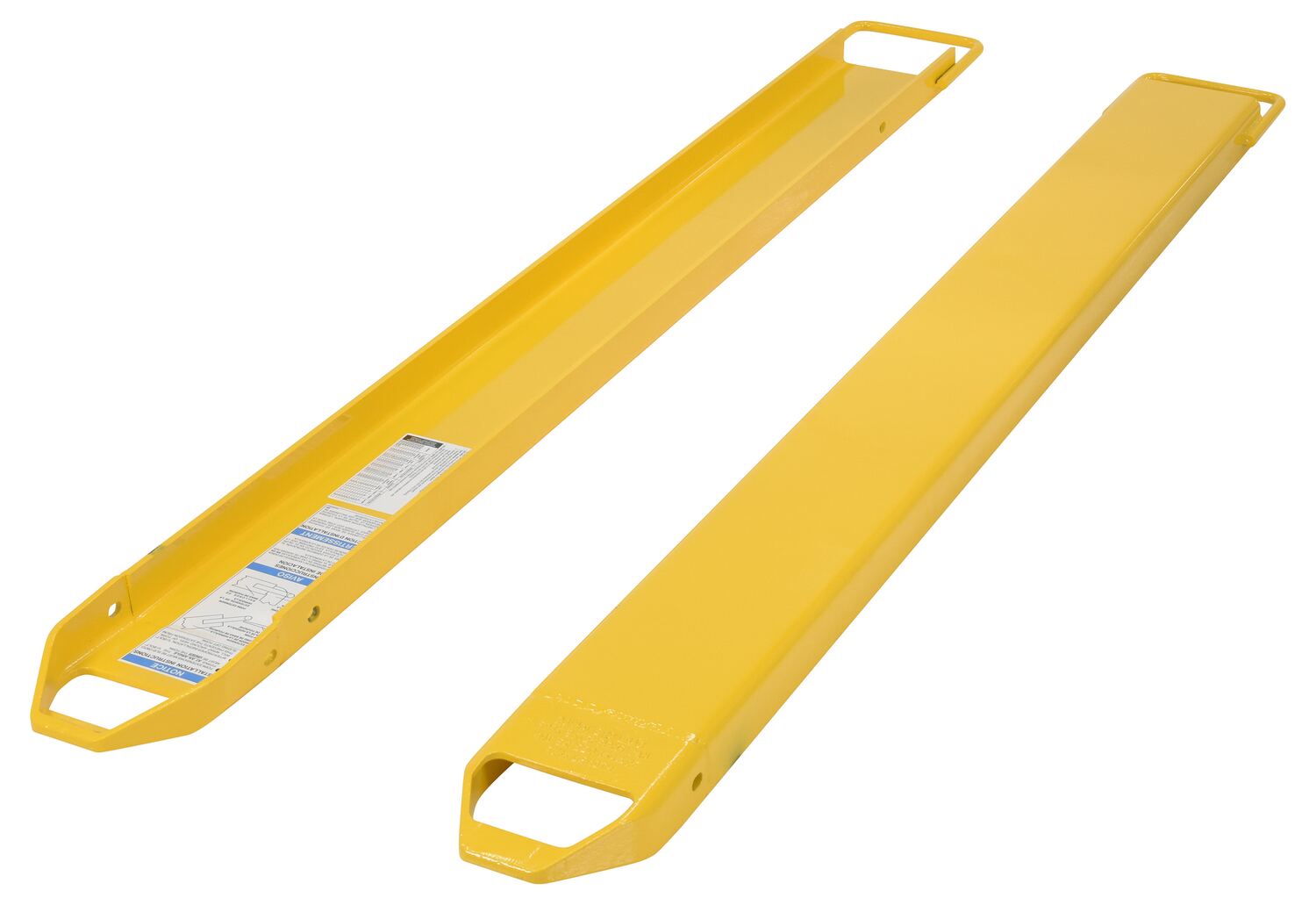

FE-6-72

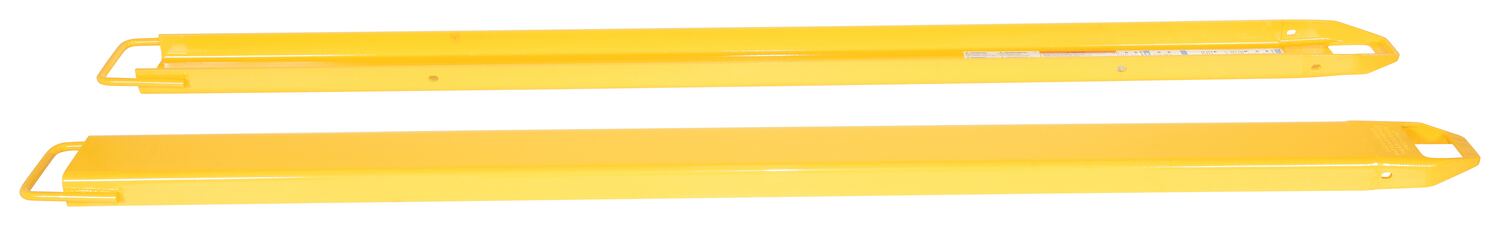

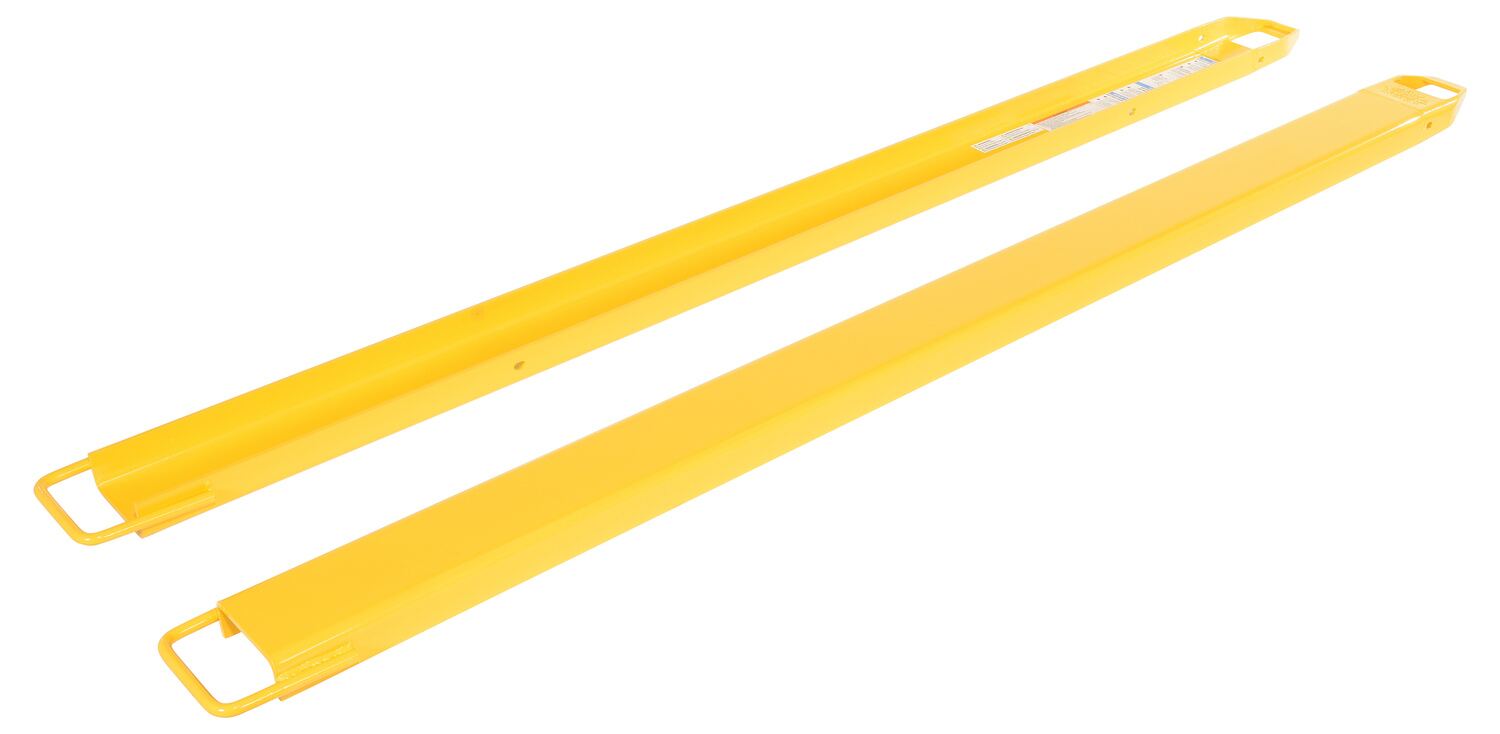

FE-5-96

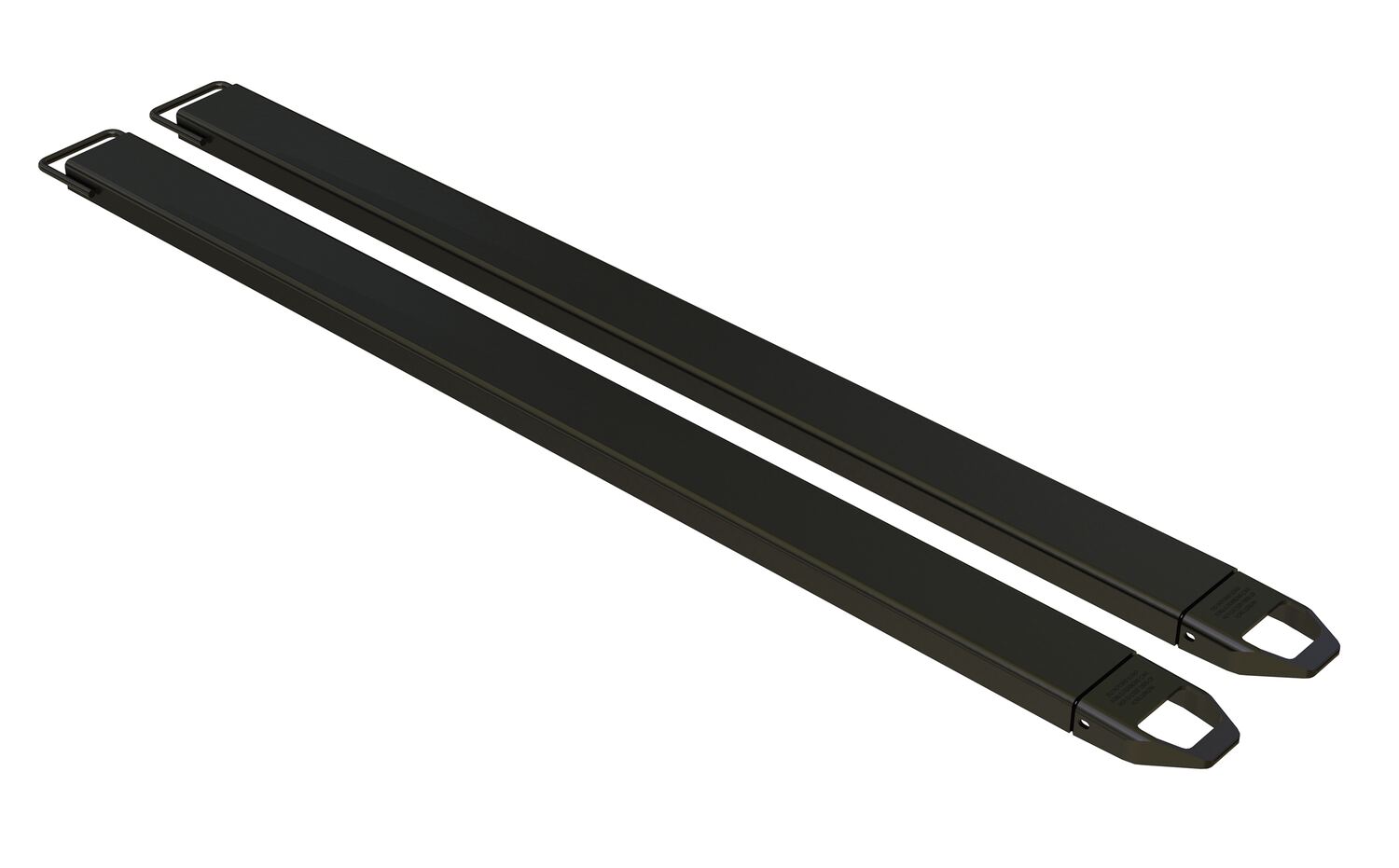

FE-6-96-BK

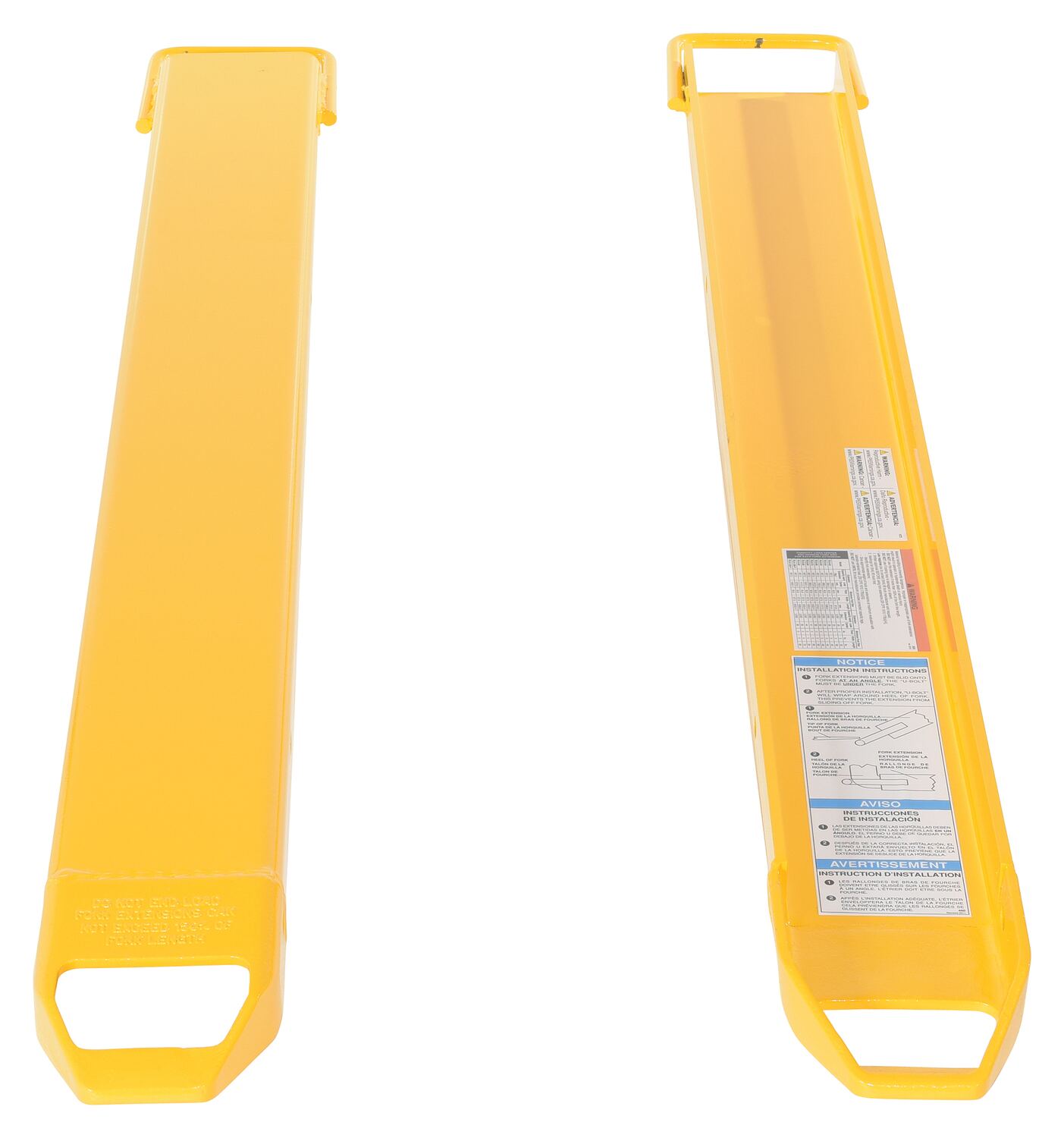

FE-5-63
FE-5-60

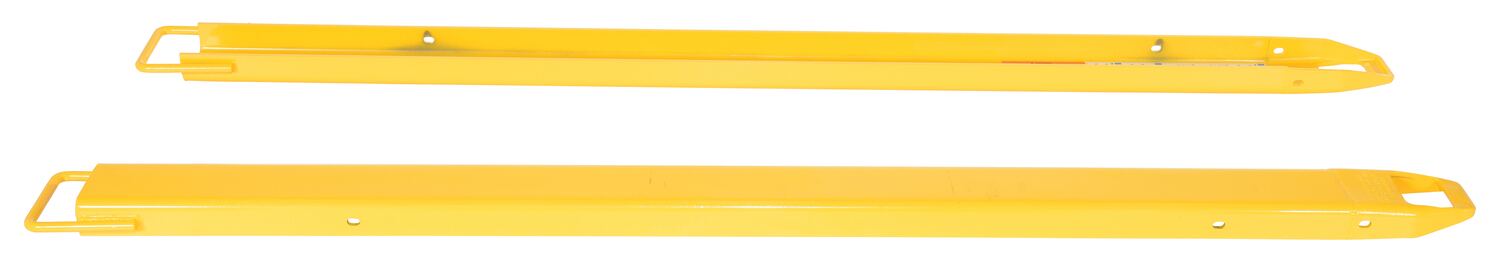

FE-4-84
FE-4-90
FE-4-84

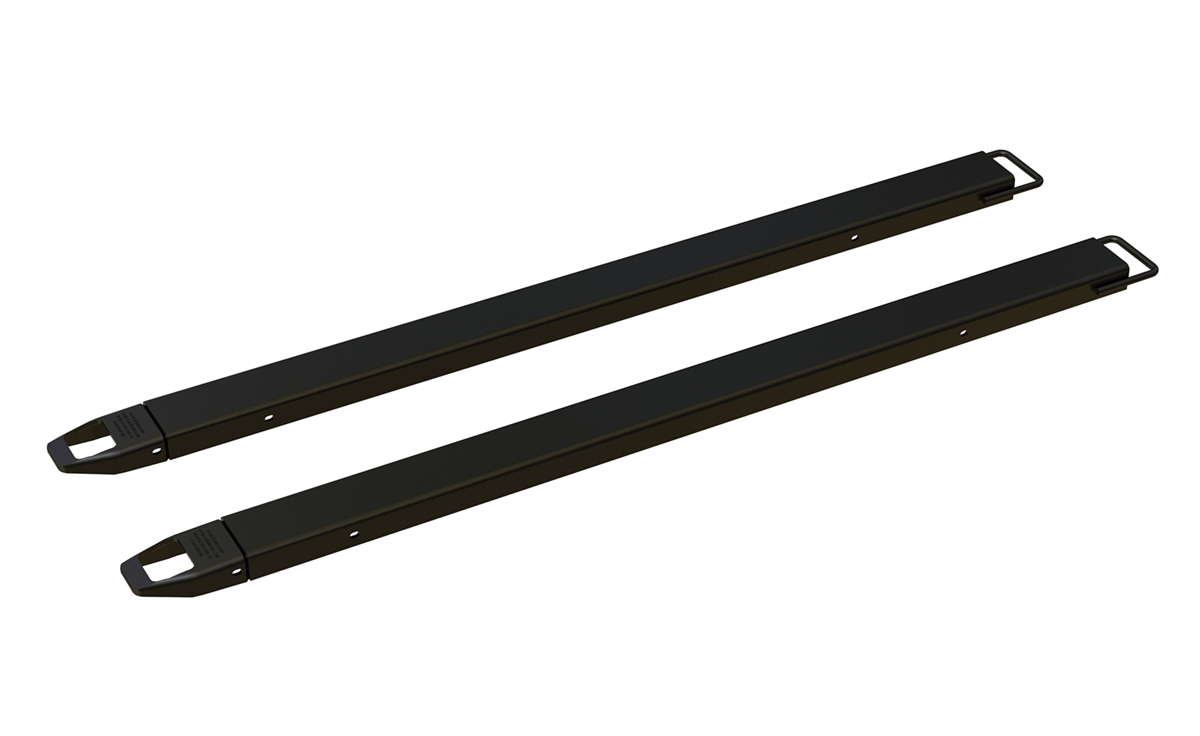

FE-4-72-BK
| Model # | Description | Attributes | Net Wt. (lbs) | ||||
|---|---|---|---|---|---|---|---|

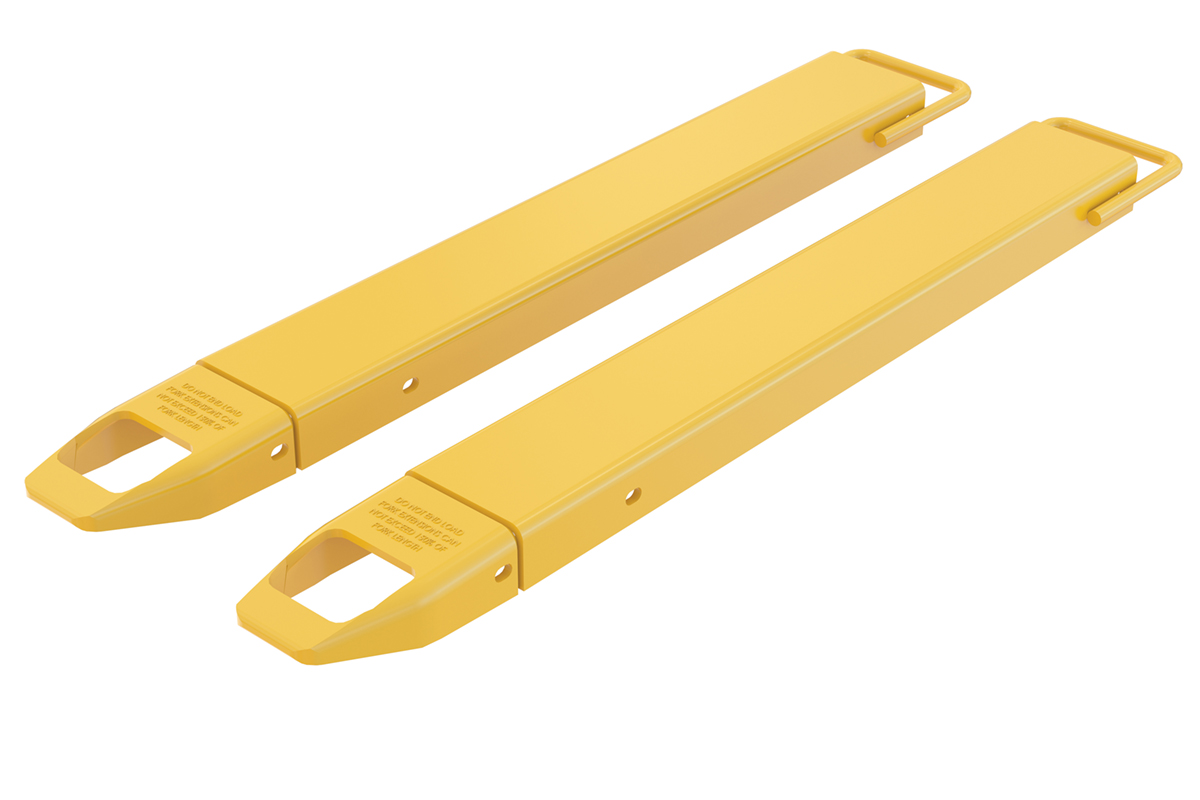

| FE-4-42 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 42 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 42 | 270 | ||
| FE-4-48 | | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 48 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 48 | 276 | ||
| FE-4-54 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 54 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 284 | ||

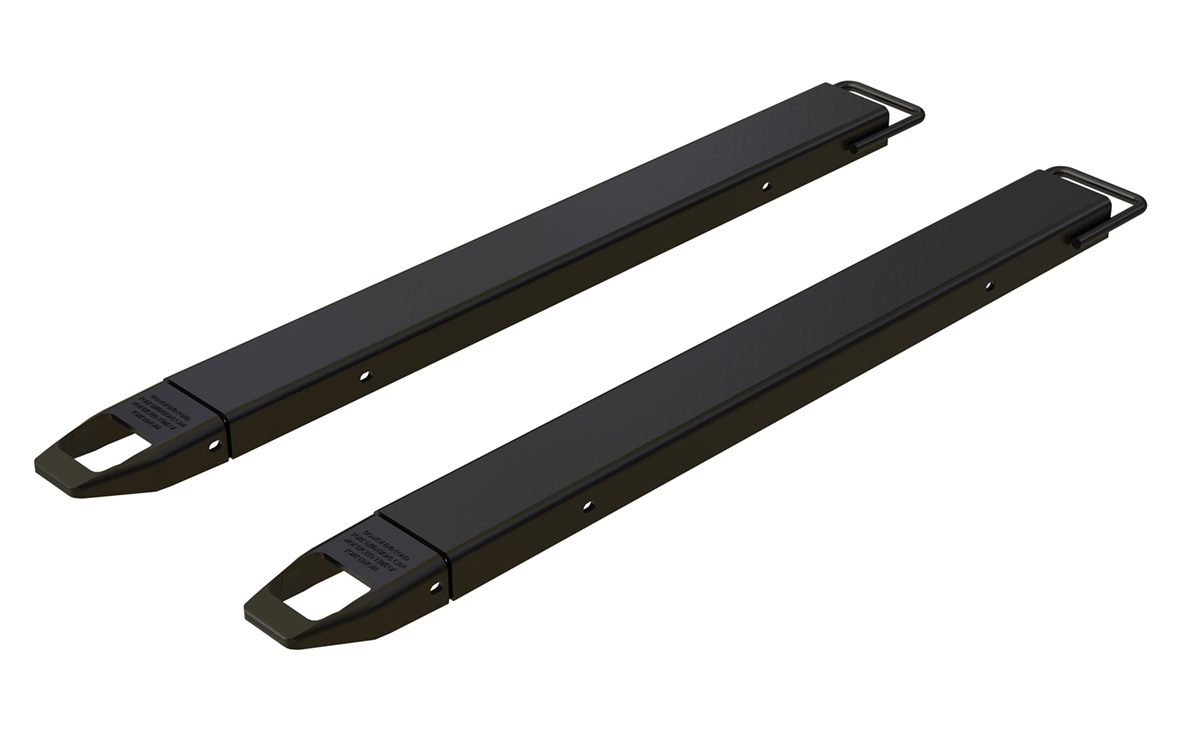

| FE-4-54-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 54 In. 4000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 286 | ||

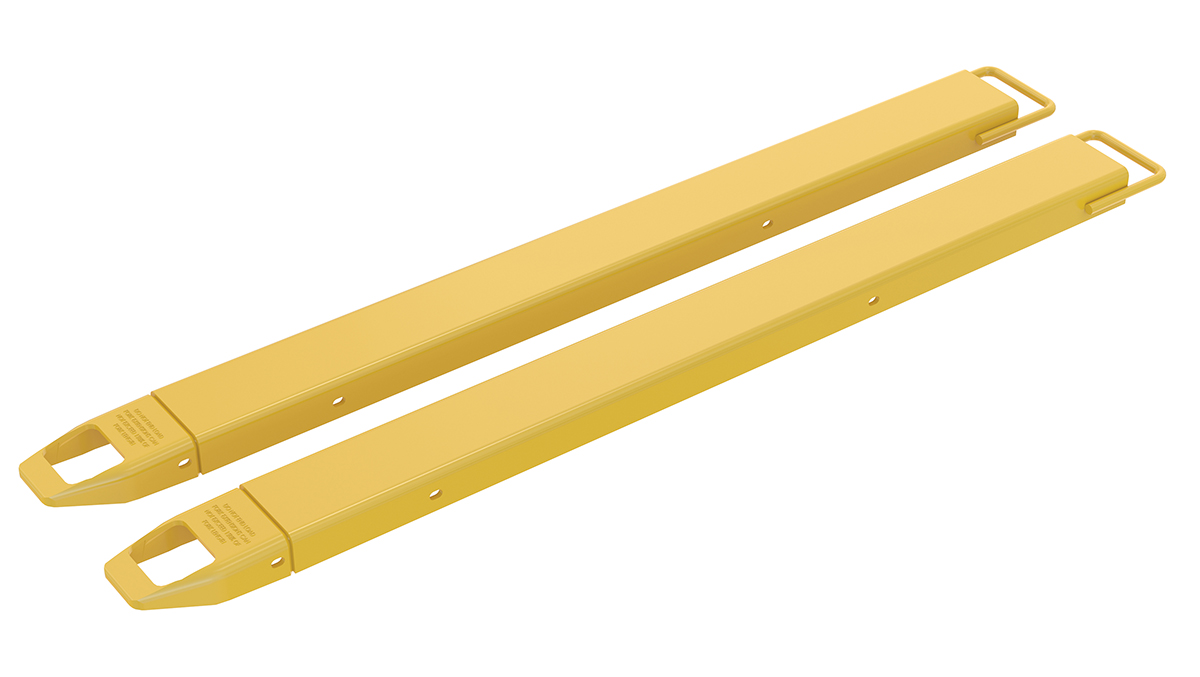

| FE-4-60 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 60 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4000 Usable Length (in.): 60 | 294 | ||
| FE-4-63 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 63 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 298 | ||

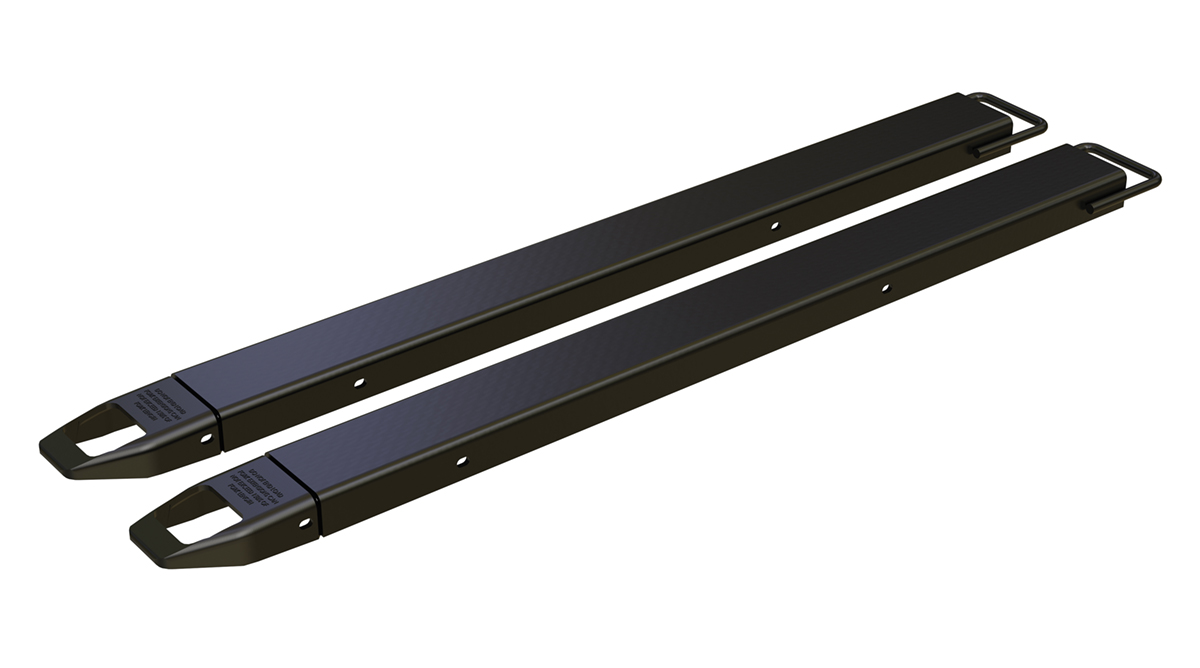

| FE-4-63-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 63 In. 4000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 298 | ||
| FE-4-66 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 66 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 66 | 2102 | ||

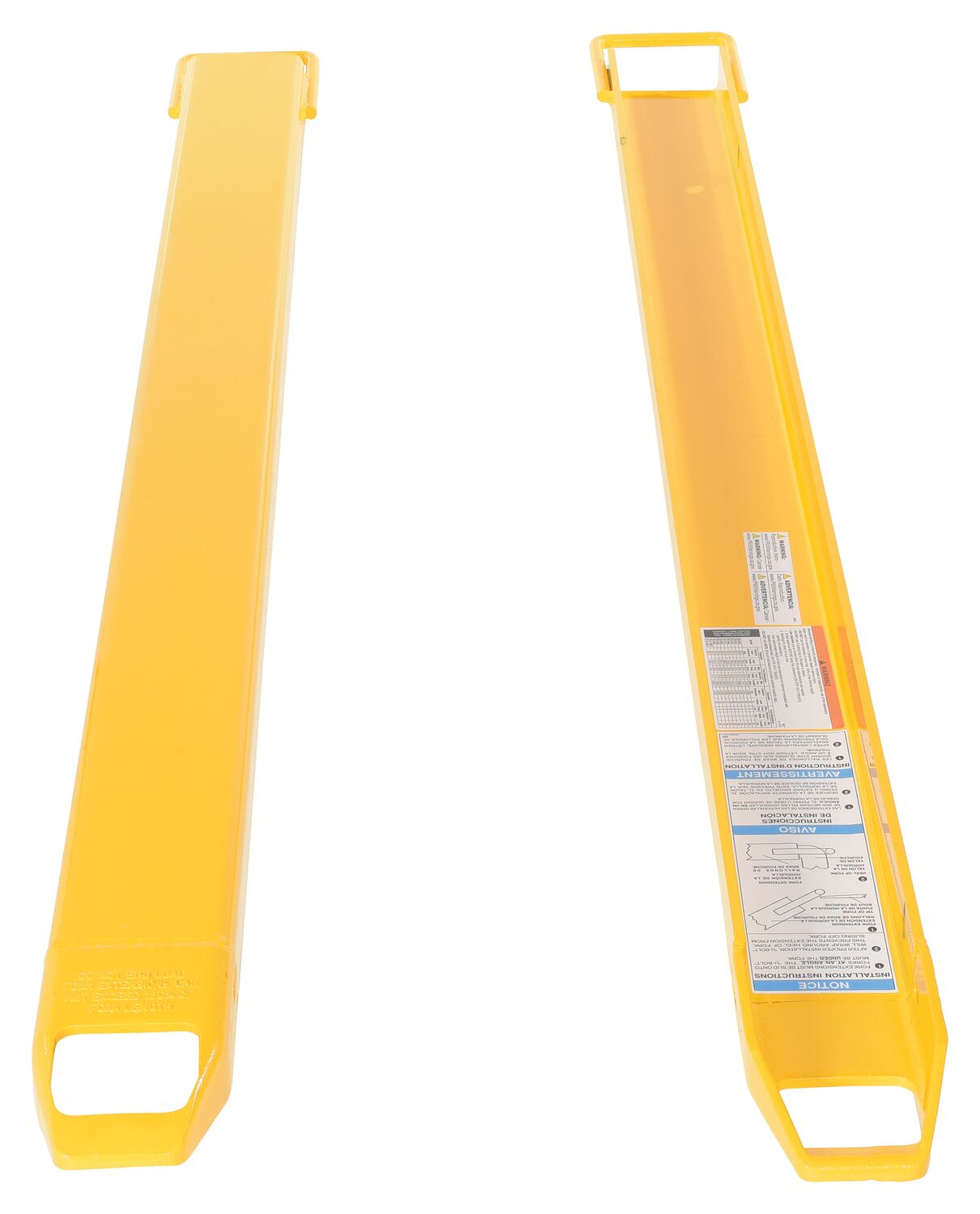

| FE-4-72 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 72 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2114 | ||

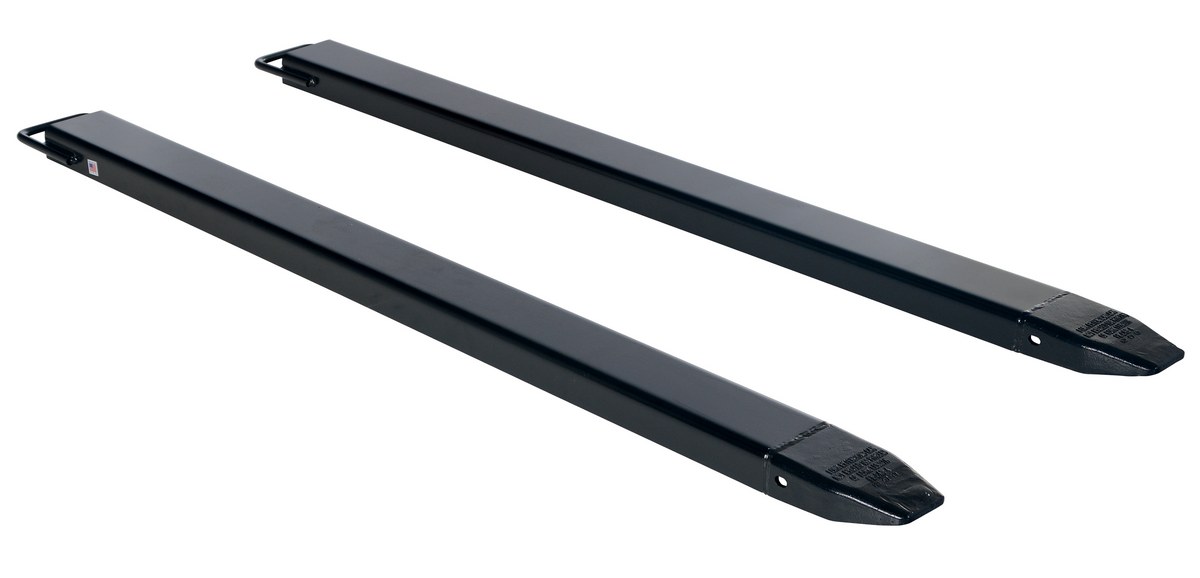

| FE-4-72-BK | | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 72 In. 4000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2114 | ||
| FE-4-84 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 84 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 145 | ||
| FE-4-84-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 84 In. 4000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 145 | ||
| FE-4-90 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 90 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 90 | 166 | ||

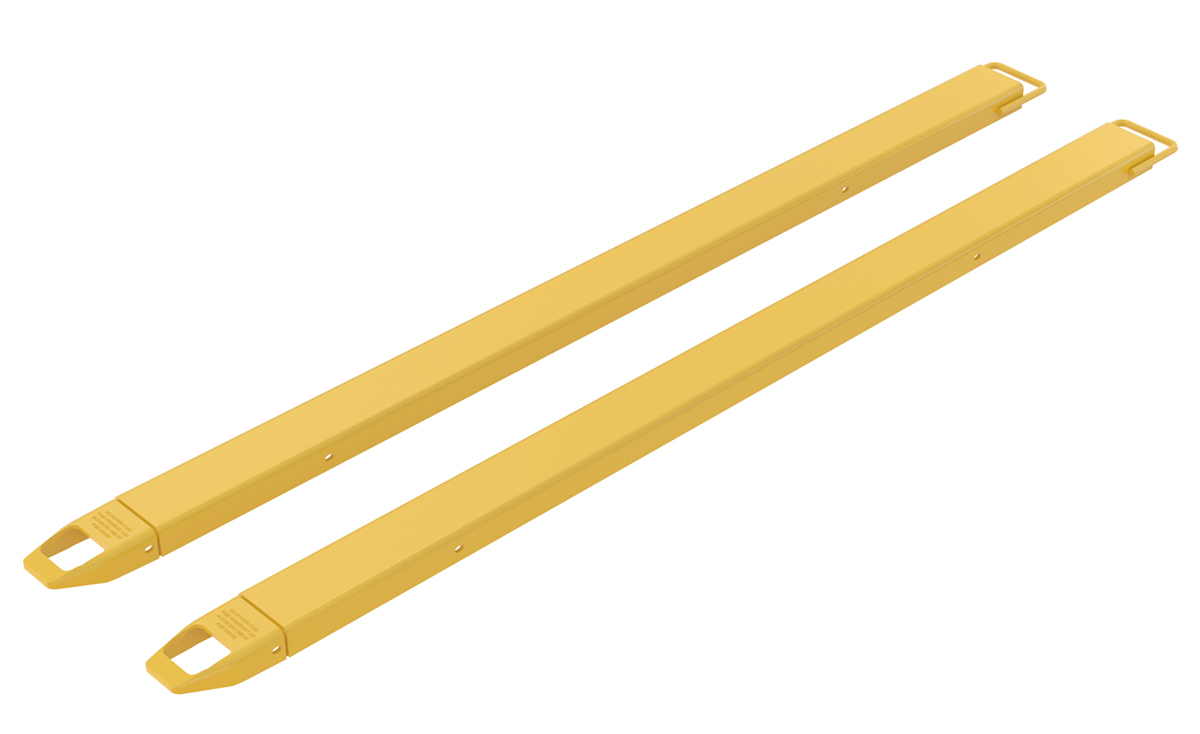

| FE-4-96 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 96 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 172 | ||

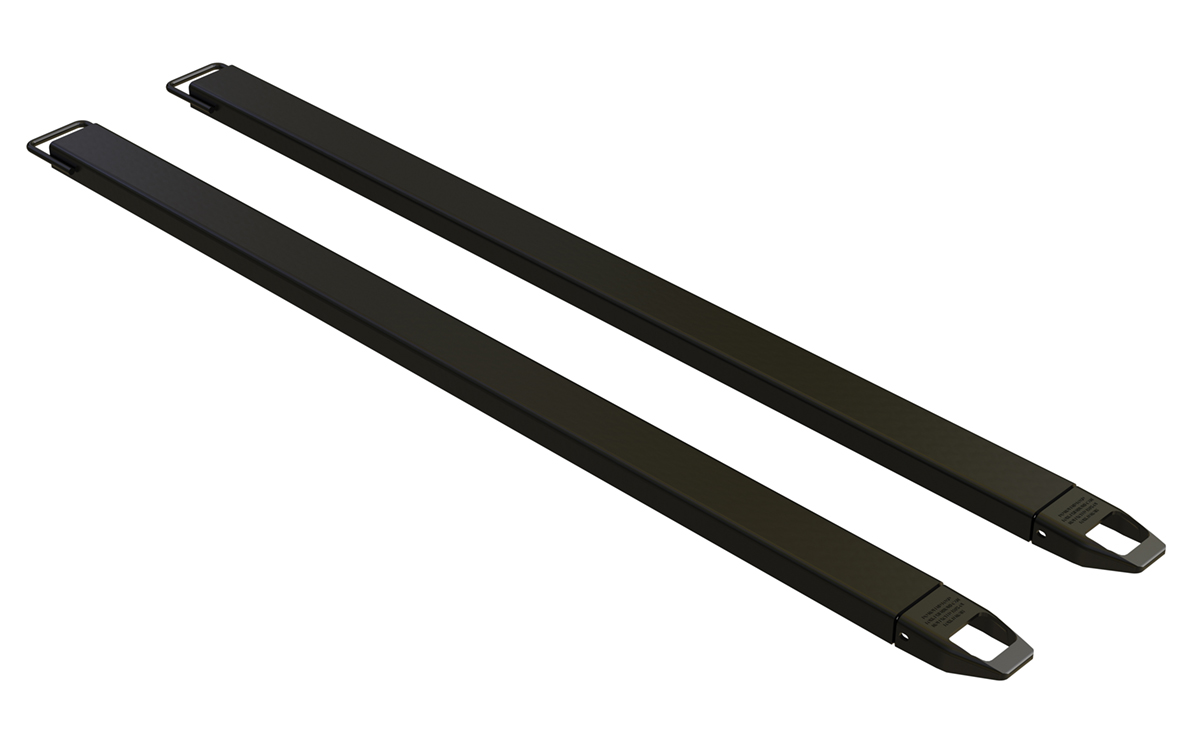

| FE-4-96-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 96 In. 4000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 172 | ||
| FE-5-48 |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 48 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 48 | 286 | ||
| FE-5-54 |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 54 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 296 | ||
| FE-5-54-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 54 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 296 | ||
| FE-5-60 | | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 60 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4000 Usable Length (in.): 60 | 2106 | ||
| FE-5-63 | | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 63 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 2110 | ||
| FE-5-63-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 63 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 2110 | ||
| FE-5-66 |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 66 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 66 | 2116 | ||

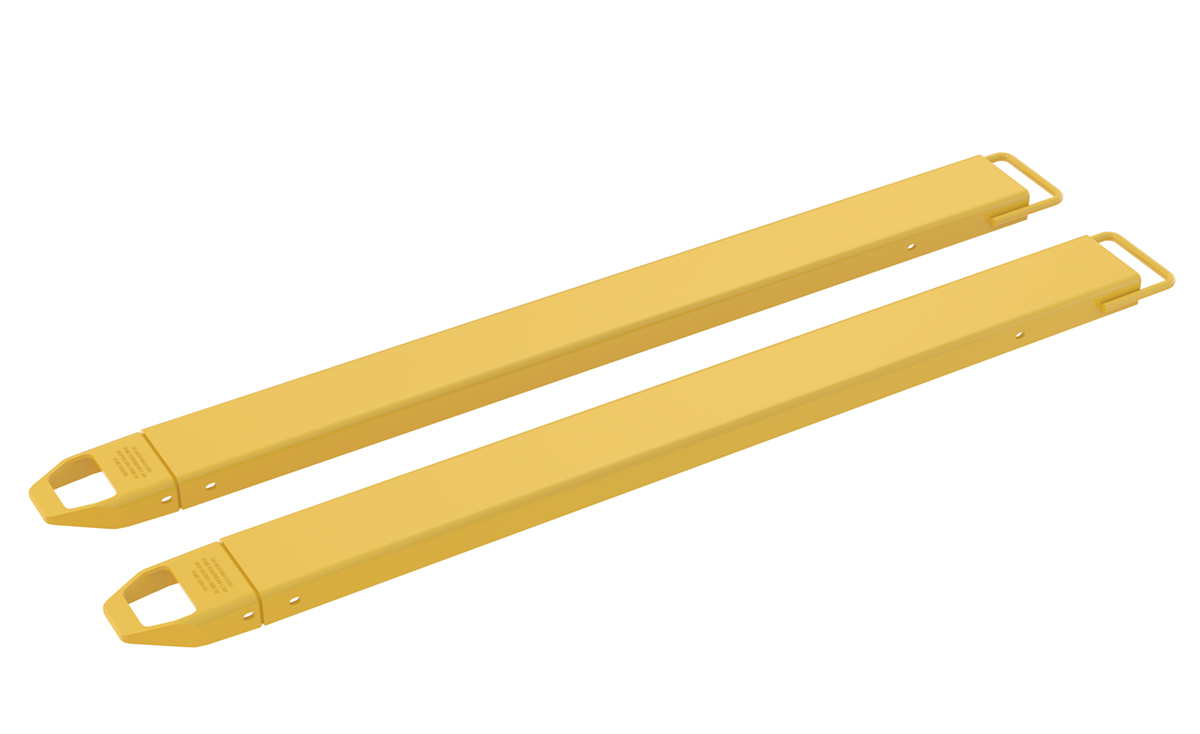

| FE-5-72 | POPULAR |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 72 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2128 | |
| FE-5-72-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 72 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2128 | ||
| FE-5-84 | | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 84 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 168 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Loop-Style Fork Extensions |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HOW TO USE / INSTALLATION Insert loop at the tip of the fork and slide it up at a 45 degree angle then lay it down over the existing fork. To be used with class 2 and class 3 forks only. Check Out Vestil's Other Fork Extension Styles:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
