Magnetic Lifters
Magnetic Lifters

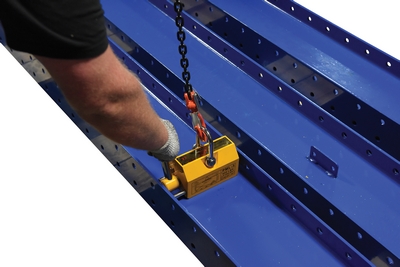

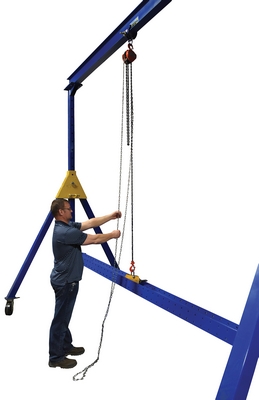

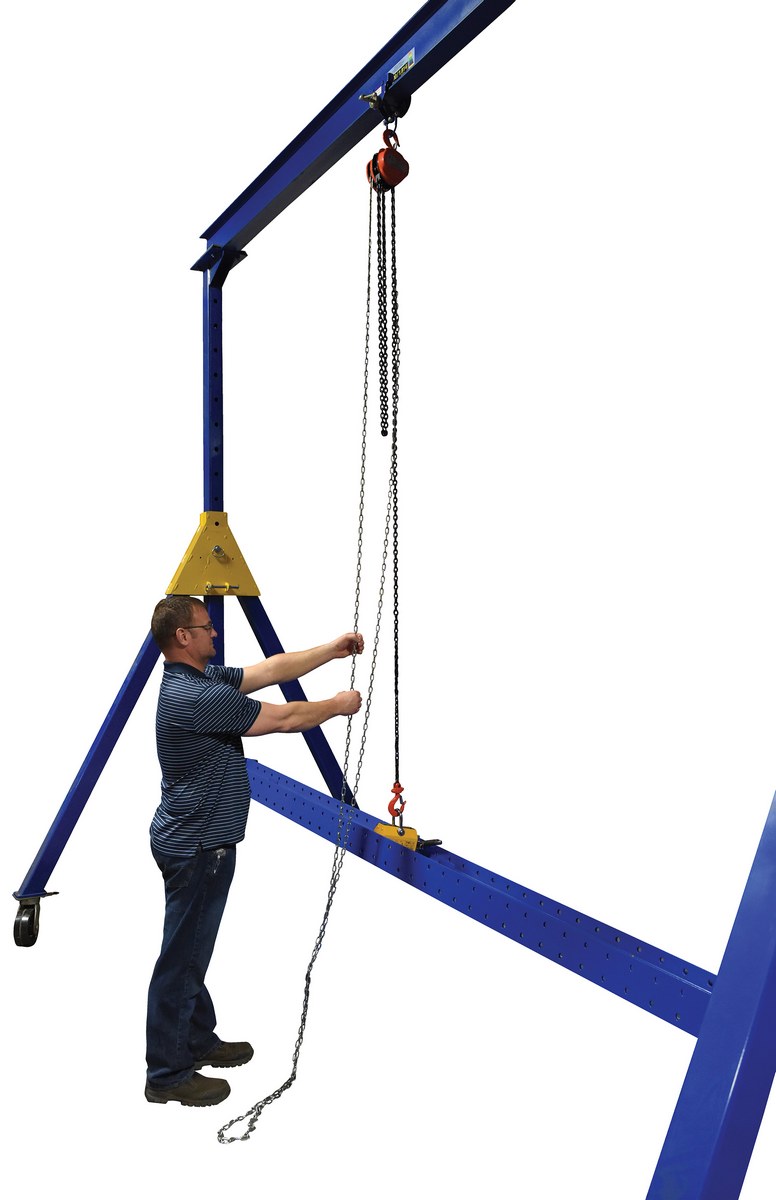

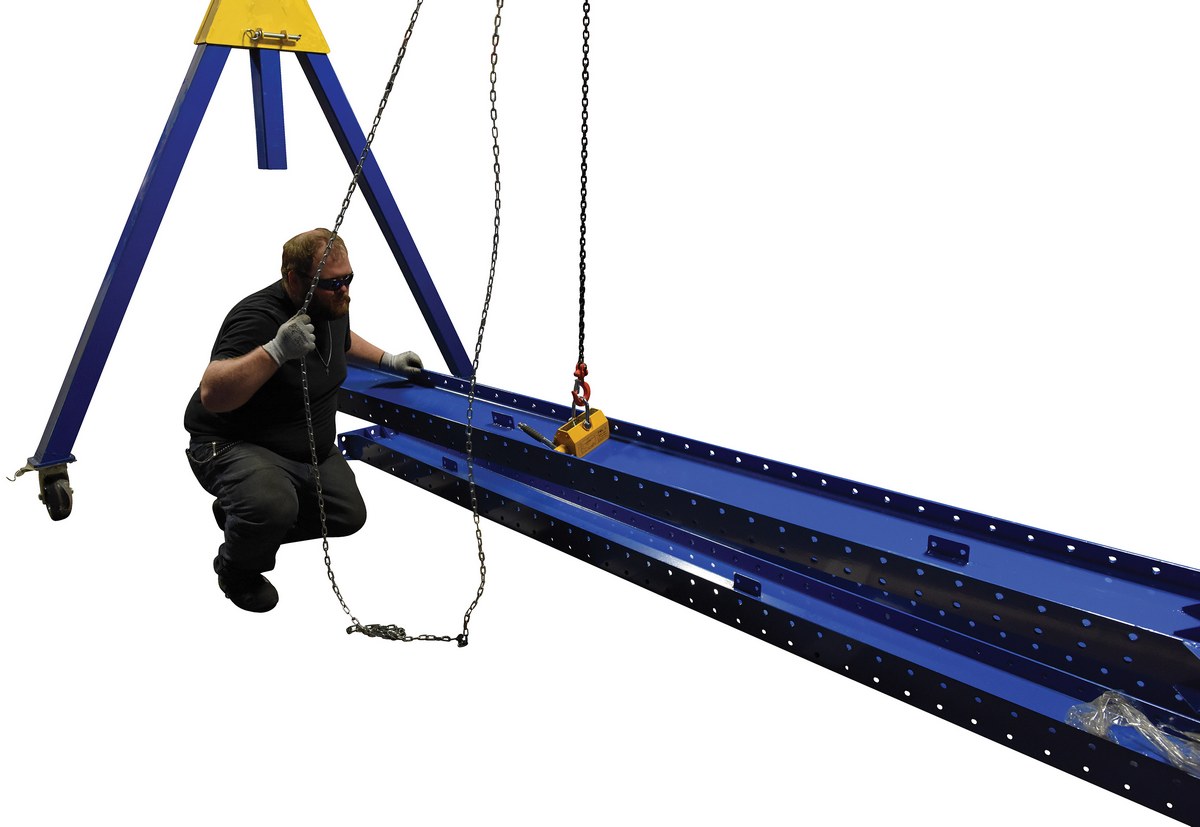

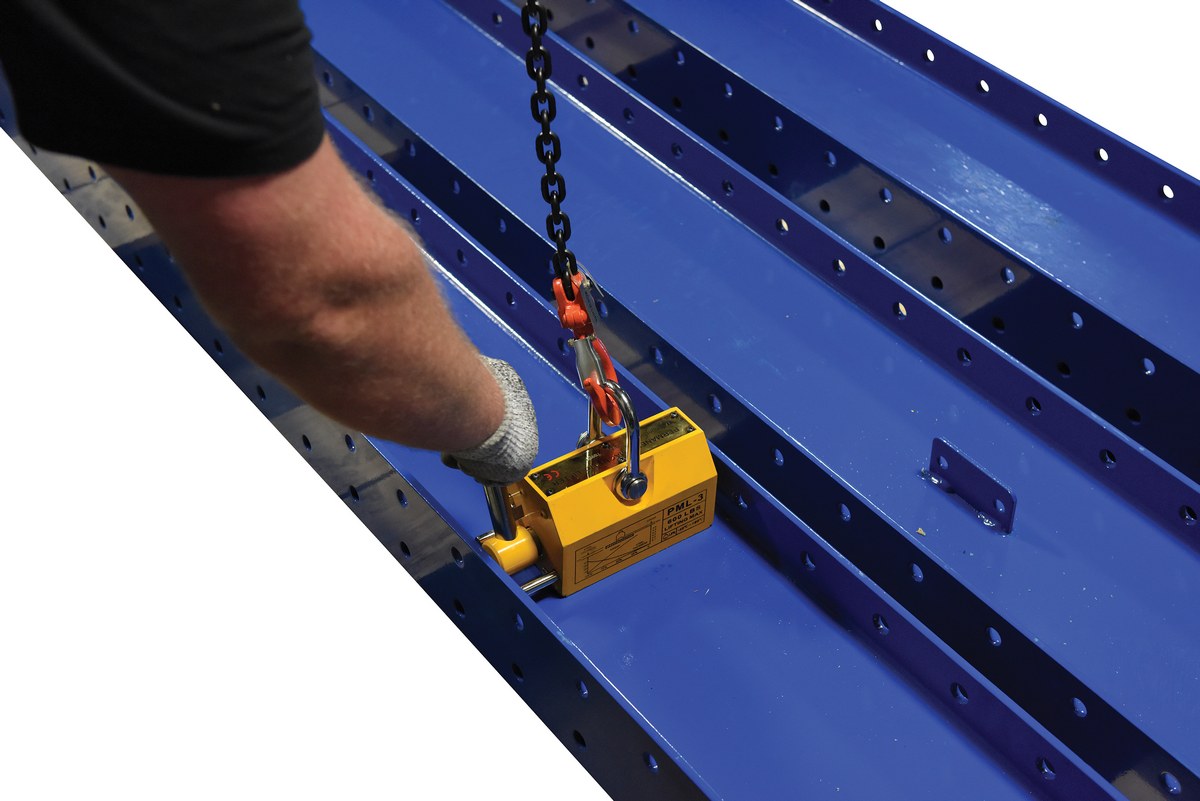

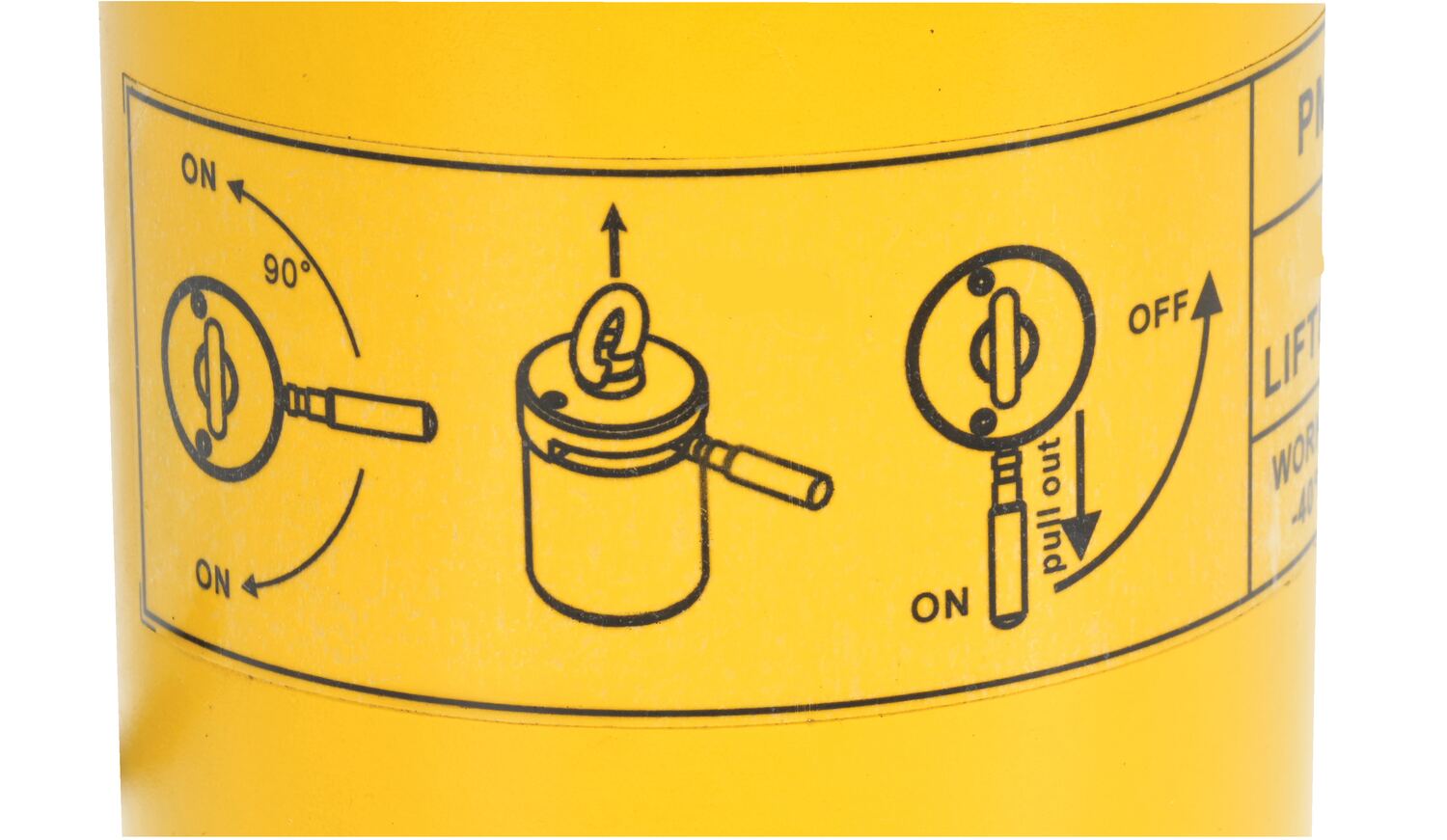

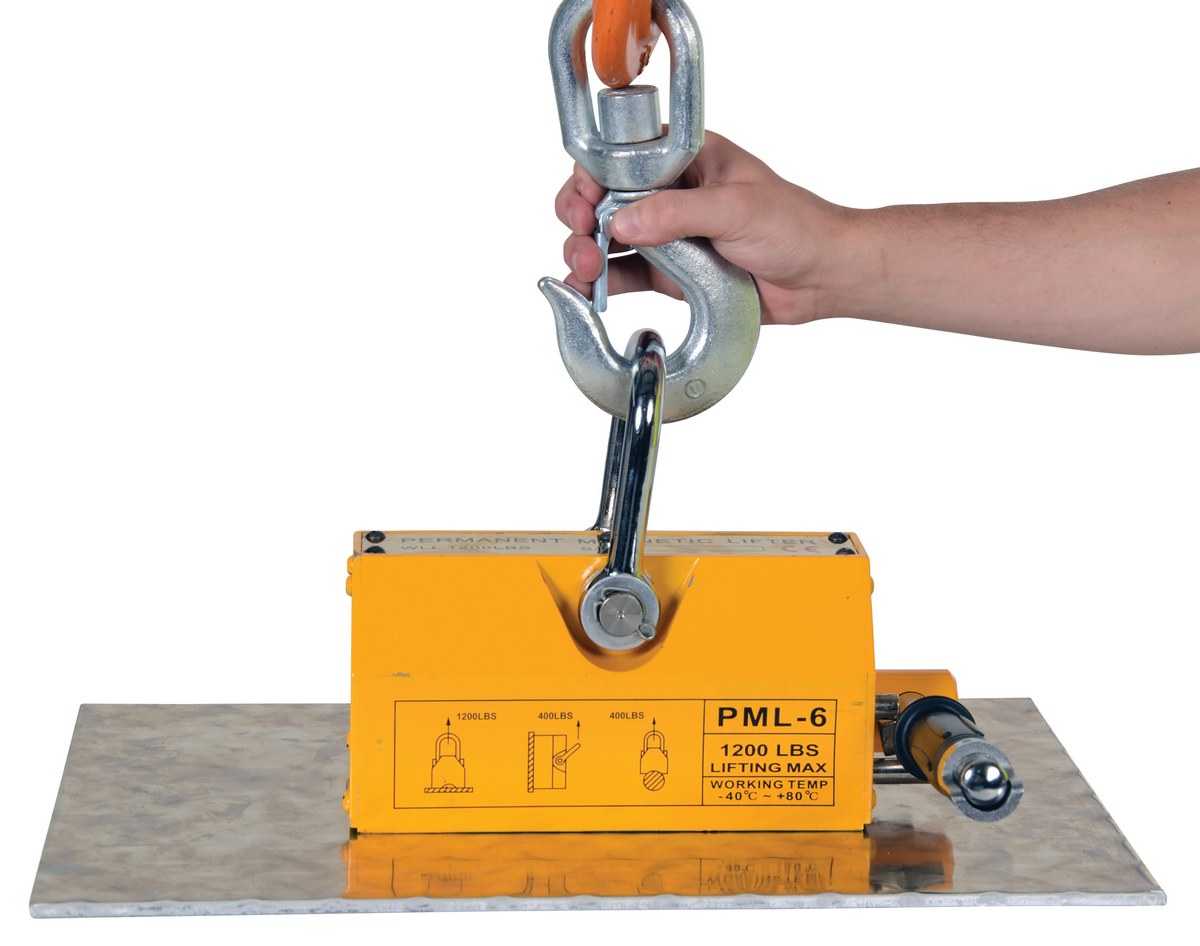

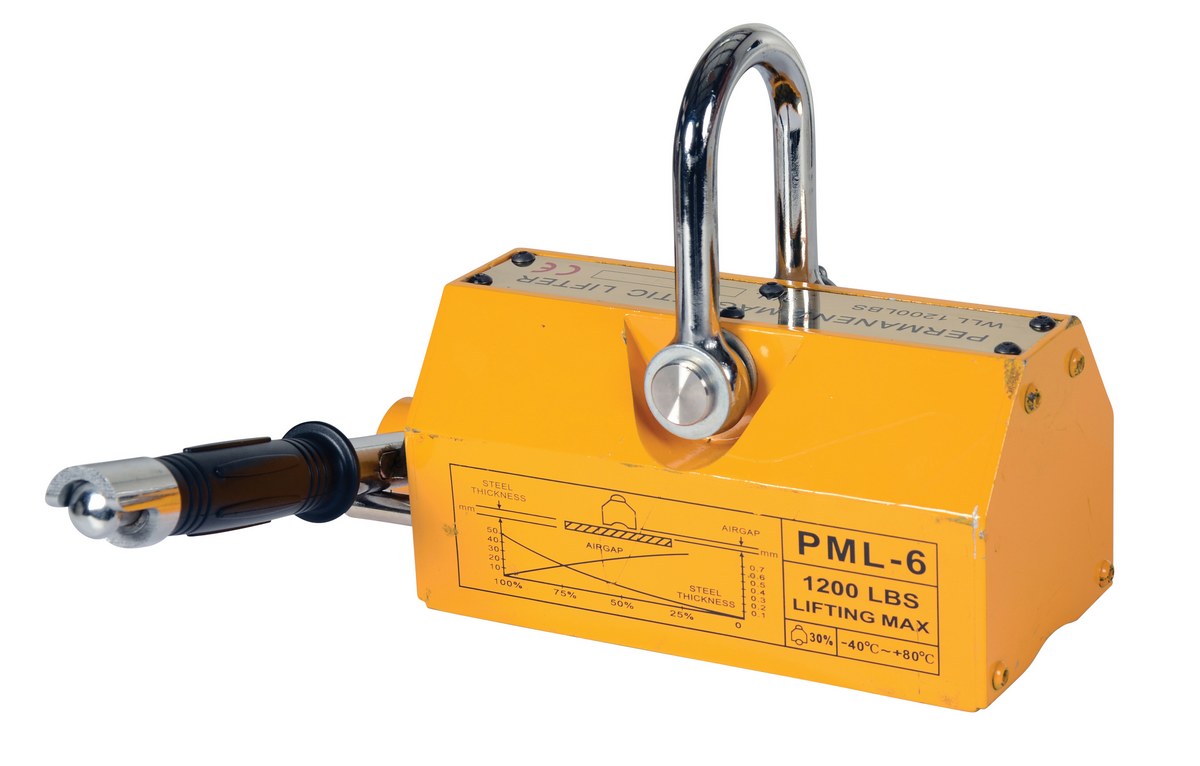

Pick up sheets of material by use of overhead crane or chain with the permanent Magnetic Lifter. Magnet is activated or deactivated by simply rotating the lever. Units are lightweight, so transporting from work area to work area is convenient.

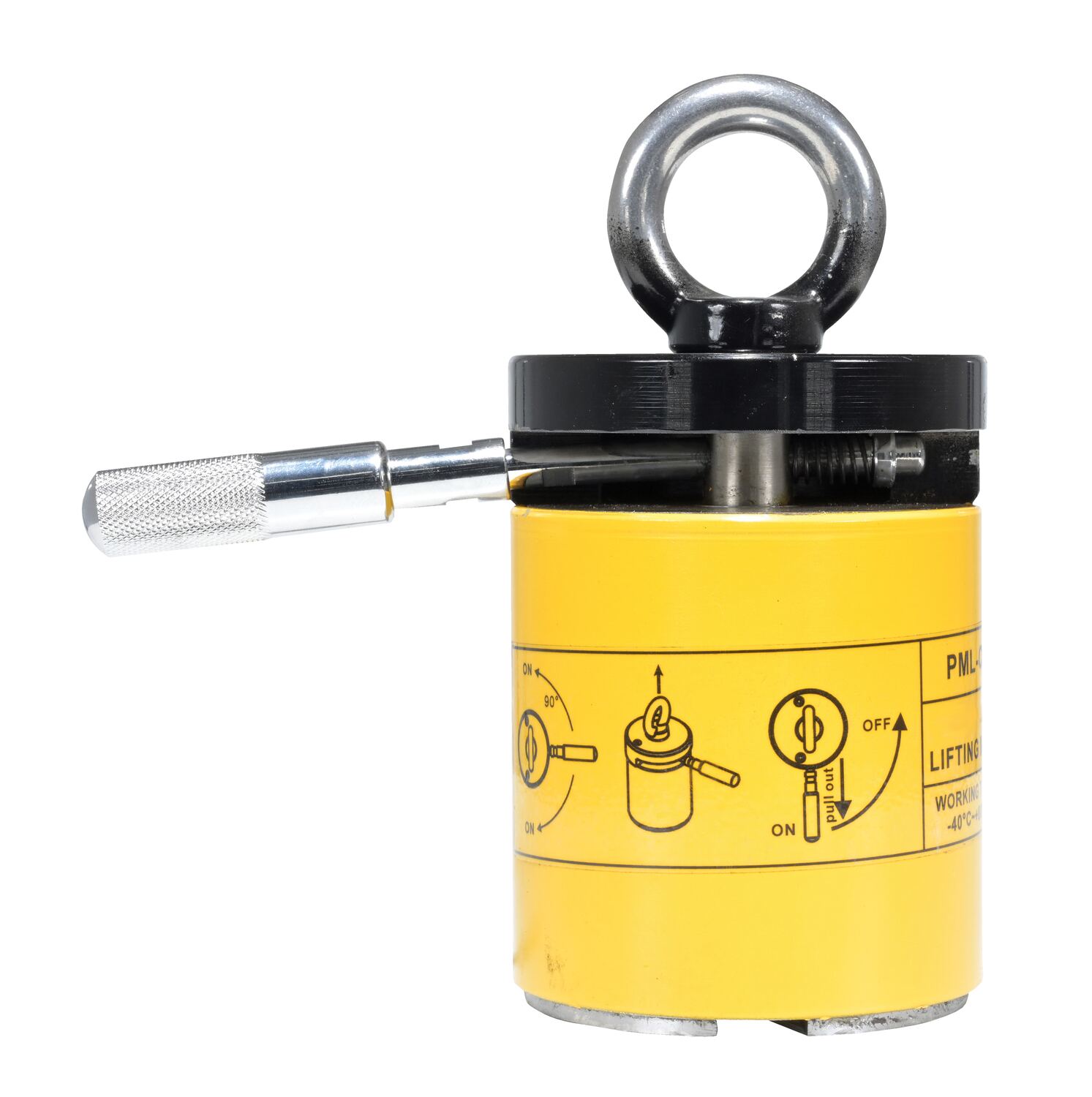

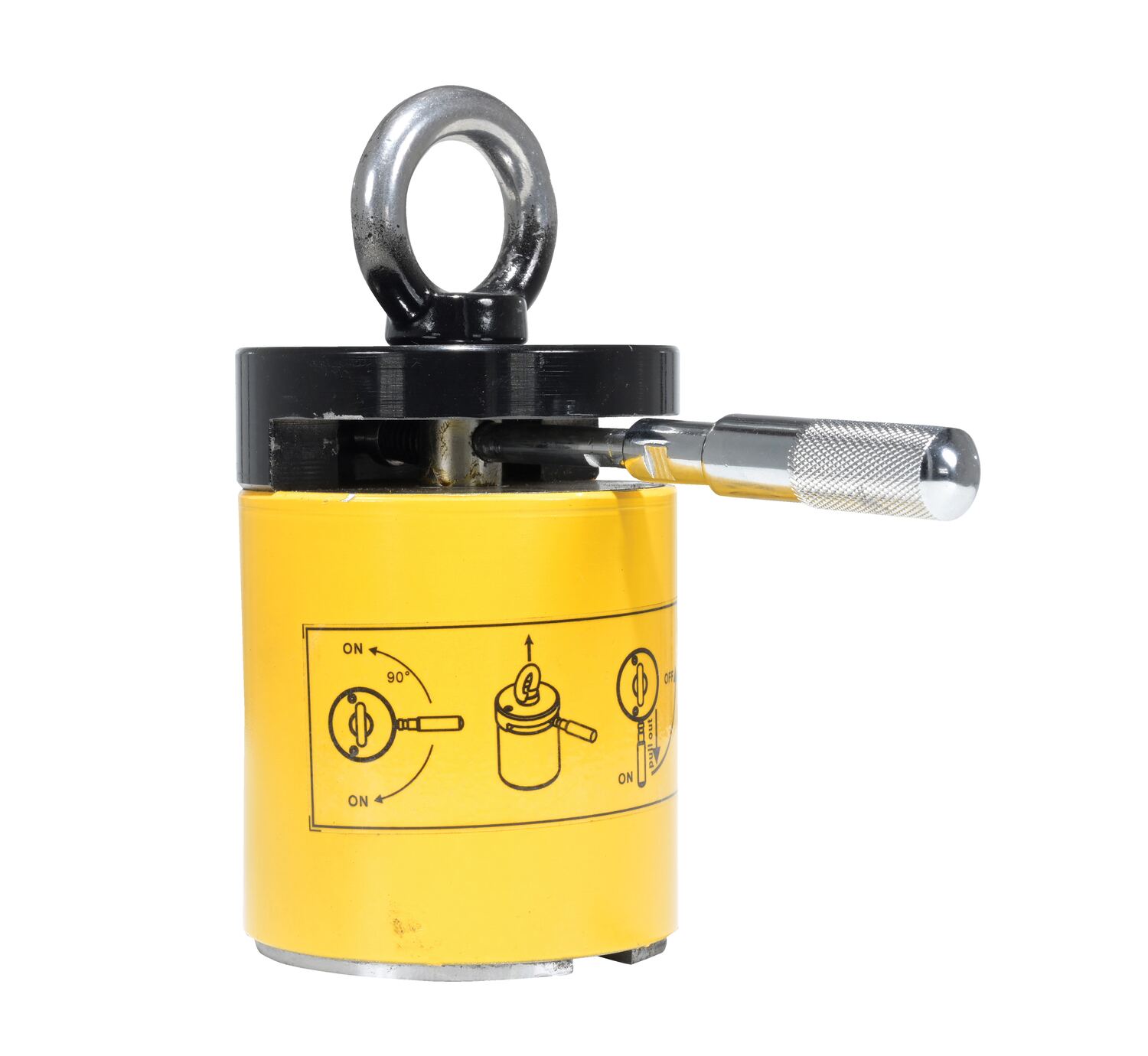

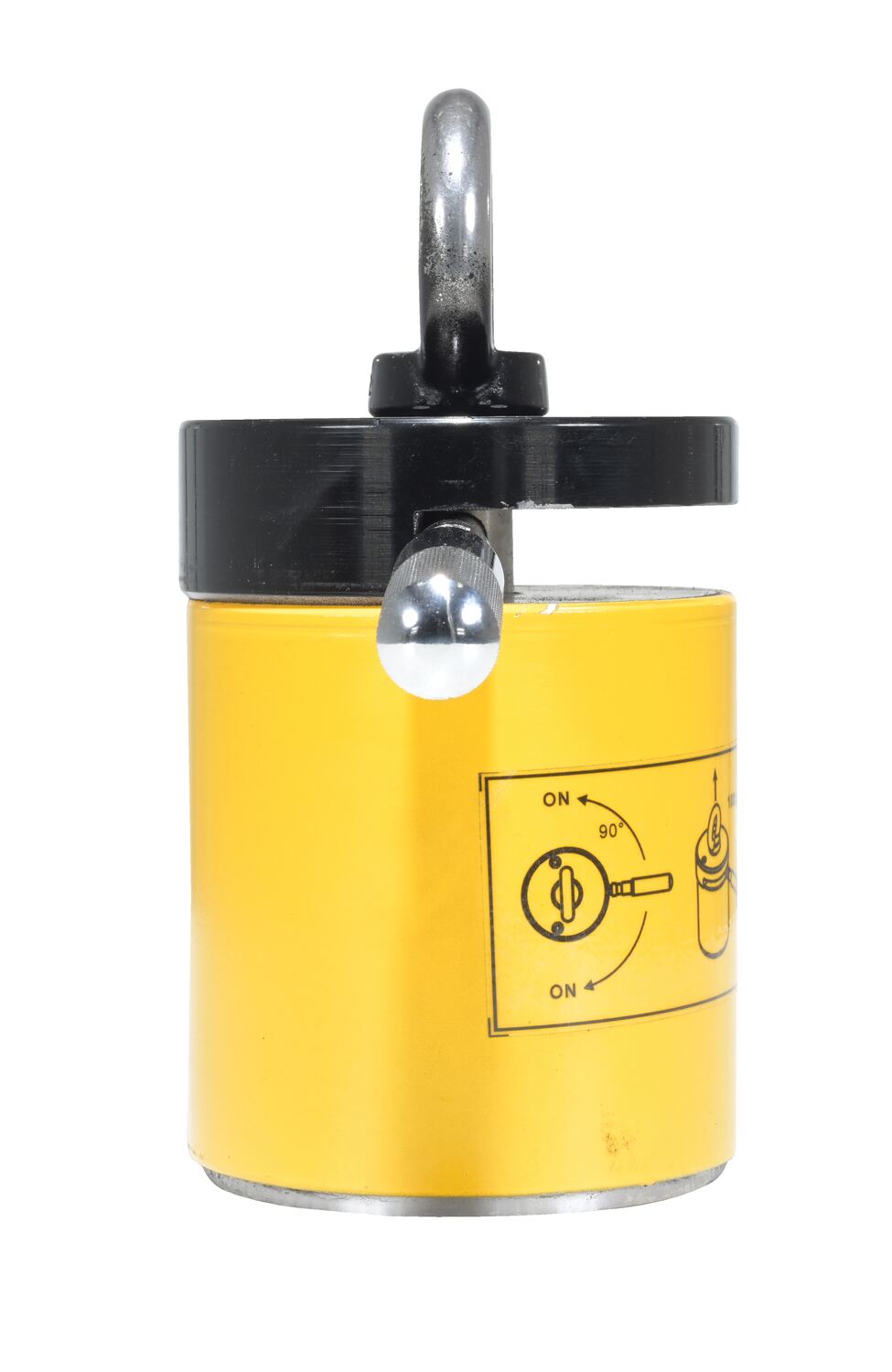

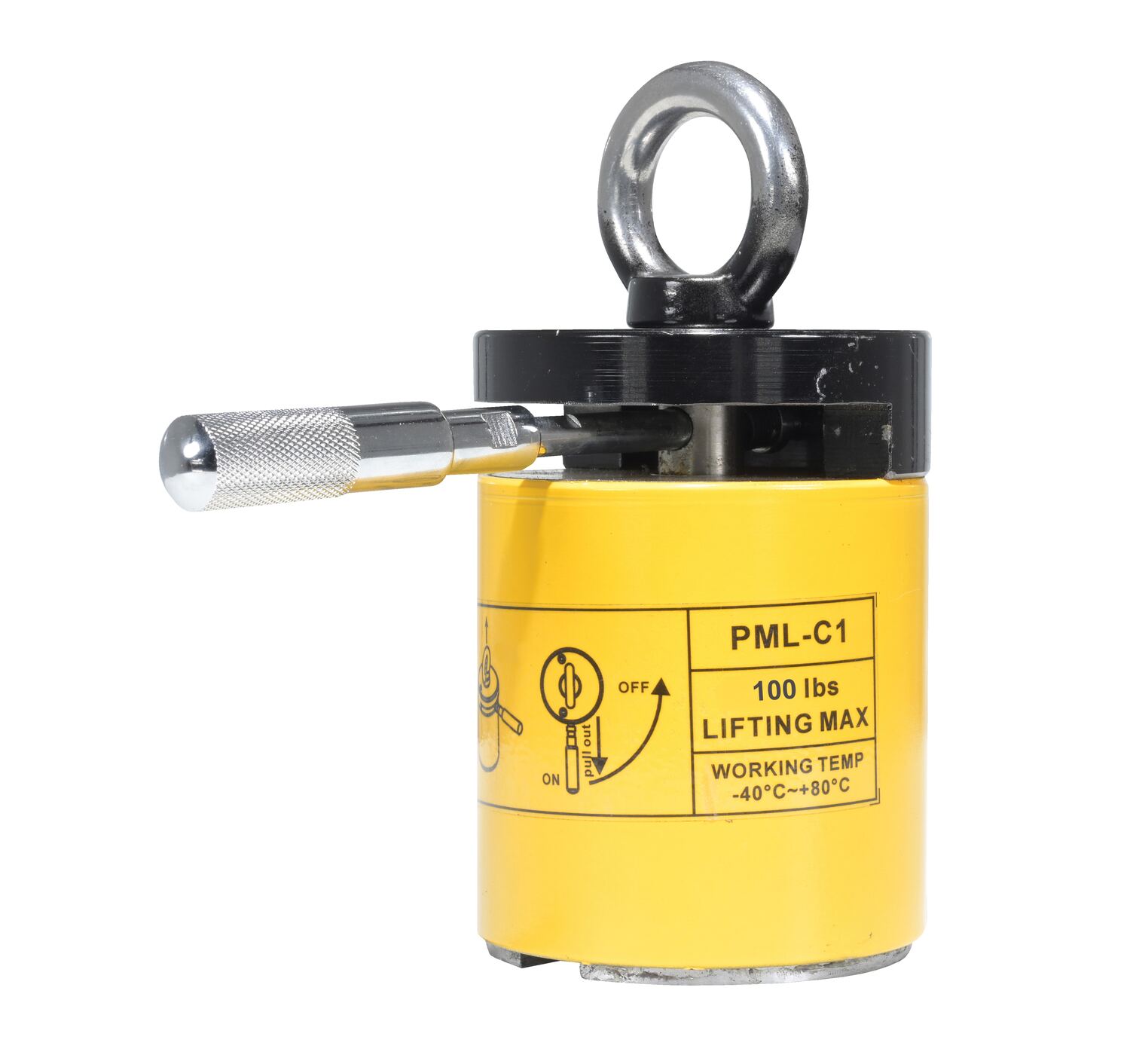

Cylindrical Magnetic Lifter
Model ML-C-2 is a 3.5" cylinder diameter providing a substantial lifting force in a condensed area, making it a convenient choice for lifting large and small items with an overhead lift. This magnet is built of steel with a yellow powder coat finish.
| Model | Description Chart | ||||||
| Rated lifting Capacity (lbs) | Size (in.) | Weight (lbs) |
|||||
| Flat Steel |
Round Steel |
L | B | H | R | ||
| ML-2 | 200 | 60 | 3.5 | 2.5 | 2.7 | 5.7 | 6 |
| ML-6 | 600 | 200 | 6.7 | 3.7 | 3.9 | 6.3 | 22 |
| ML-12 | 1200 | 400 | 8.7 | 5.5 | 4.9 | 9.1 | 52 |
| ML-22 | 2200 | 990 | 10.2 | 5.7 | 5.7 | 11 | 110 |
|
KEY |
|||||||
| Model # | Description | Attributes | Net Wt. (lbs) | ||||
|---|---|---|---|---|---|---|---|

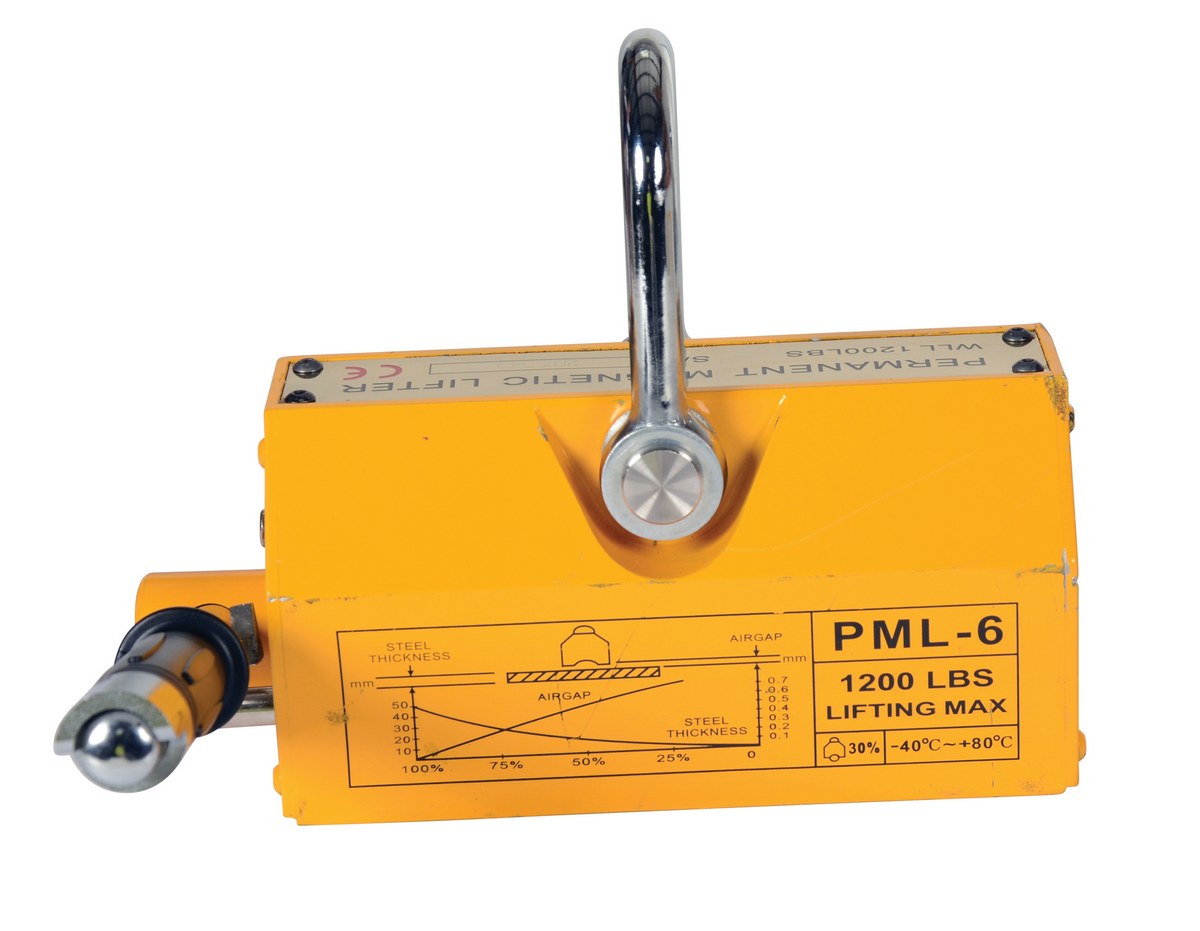

| ML-12 | POPULAR |  | 90 Days Limited Warranty | Steel and Neodymium Magnetic Lifter 10-3/4 In. x 11 In. x 8-1/2 In. 1,200 Lb. Capacity Yellow | Uniform Flat Surface Capacity (lb.): 1,200 Uniform Round Surface Capacity (lb.): 400 | 52 | |

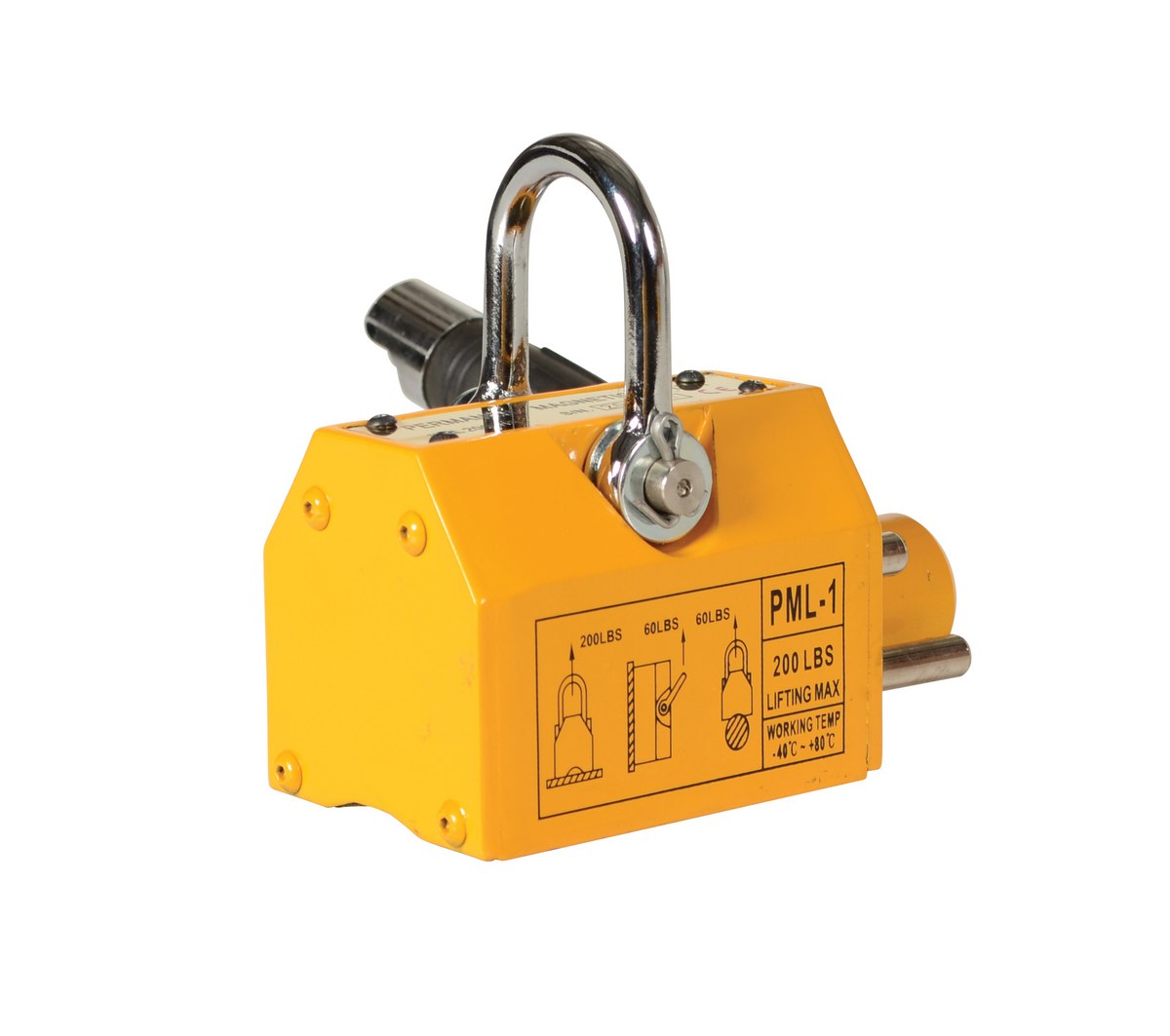

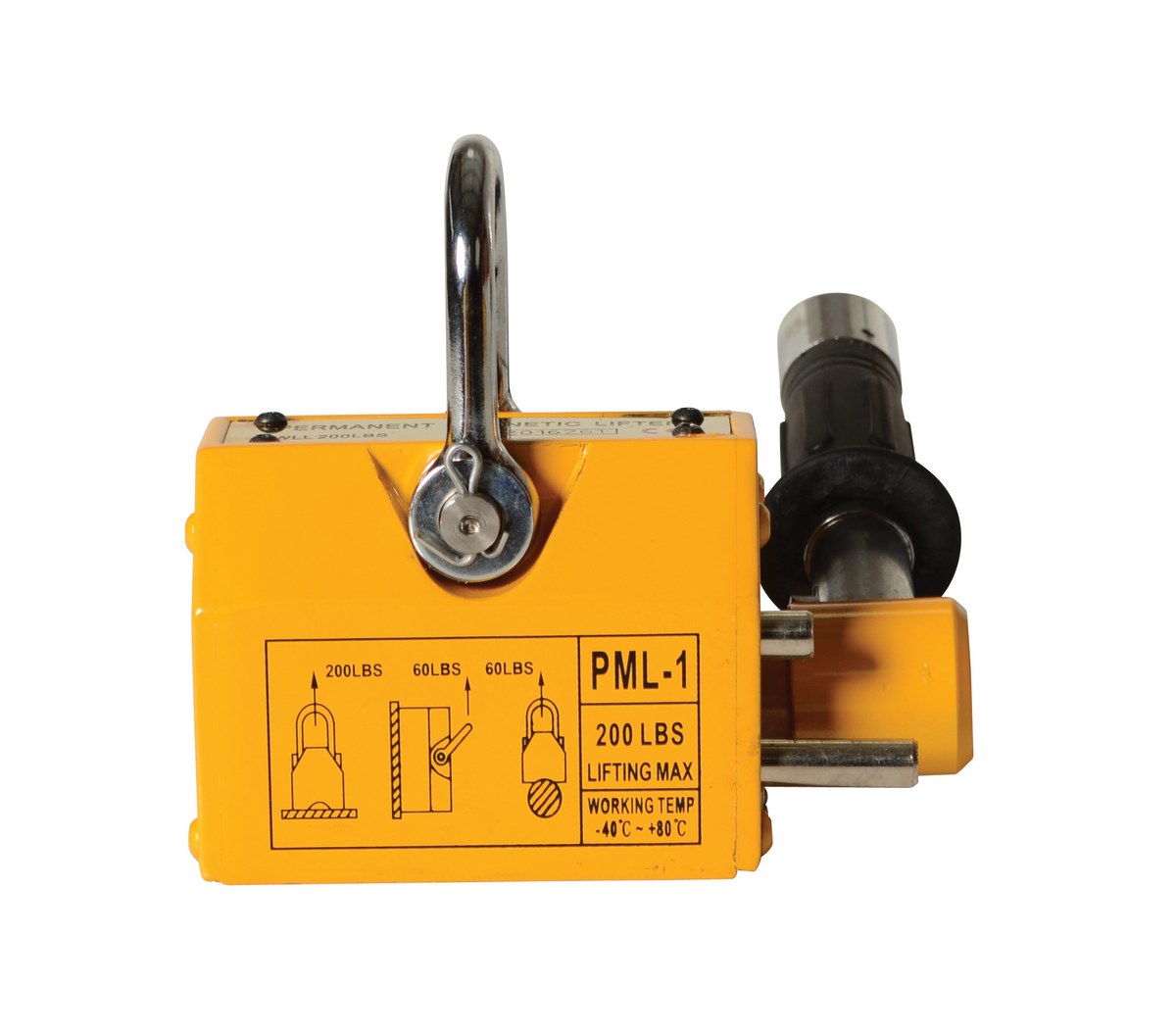

| ML-2 |  | 90 Days Limited Warranty | Steel and Neodymium Magnetic Lifter 5-15/16 In. x 6-3/4 In. x 4-29/32 In. 200 Lb. Capacity Yellow | Uniform Flat Surface Capacity (lb.): 200 Uniform Round Surface Capacity (lb.): 60 | 7 | ||

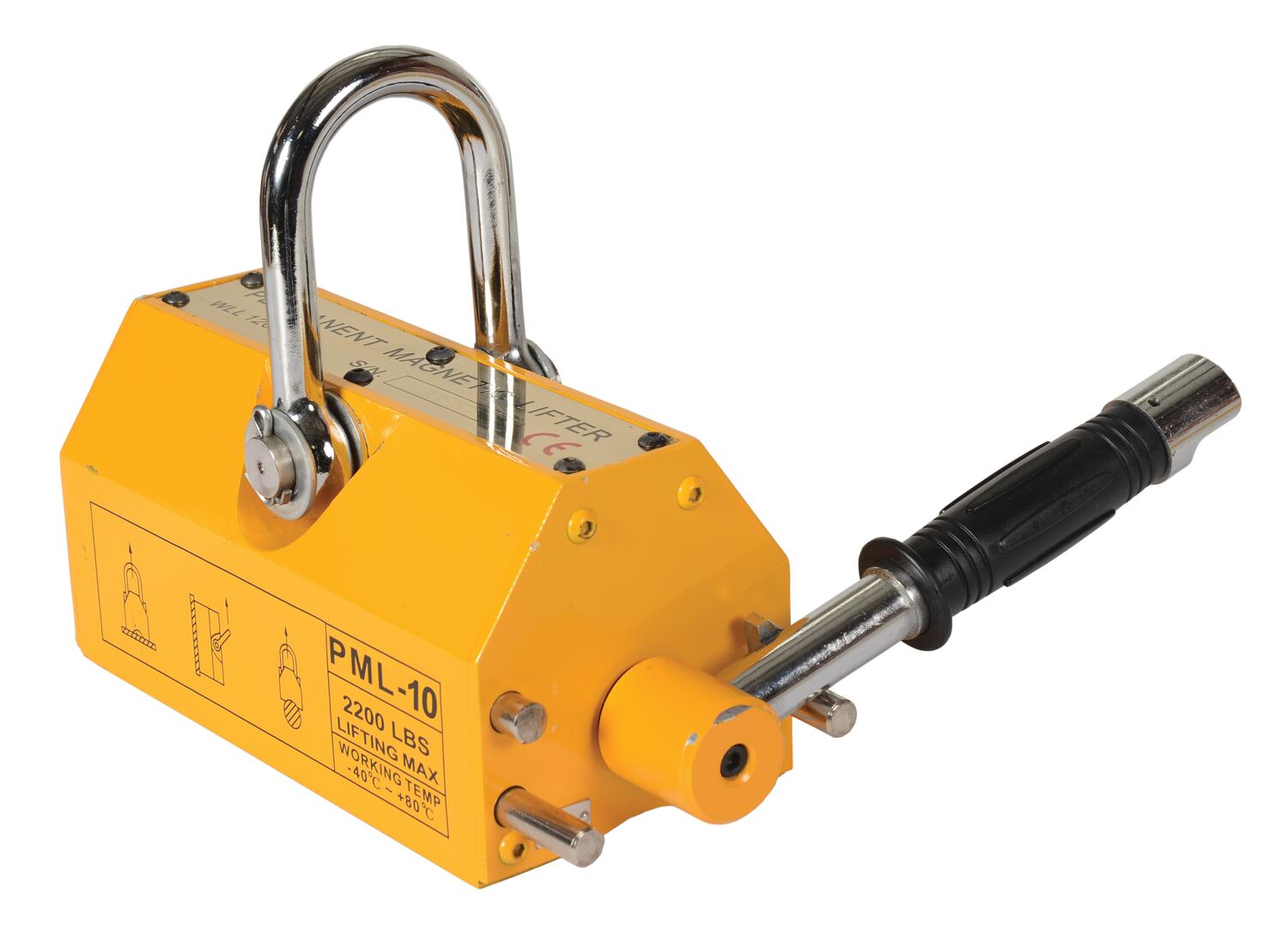

| ML-22 | NEW |  | 90 Days Limited Warranty | Steel and Neodymium Magnetic Lifter 10-3/8 In. x 6-5/8 In. x 6-5/8 In. 2,200 Lb. Capacity Yellow | Uniform Flat Surface Capacity (lbs): 2,200 Uniform Round Surface Capacity (lbs): 990 | 115 | |

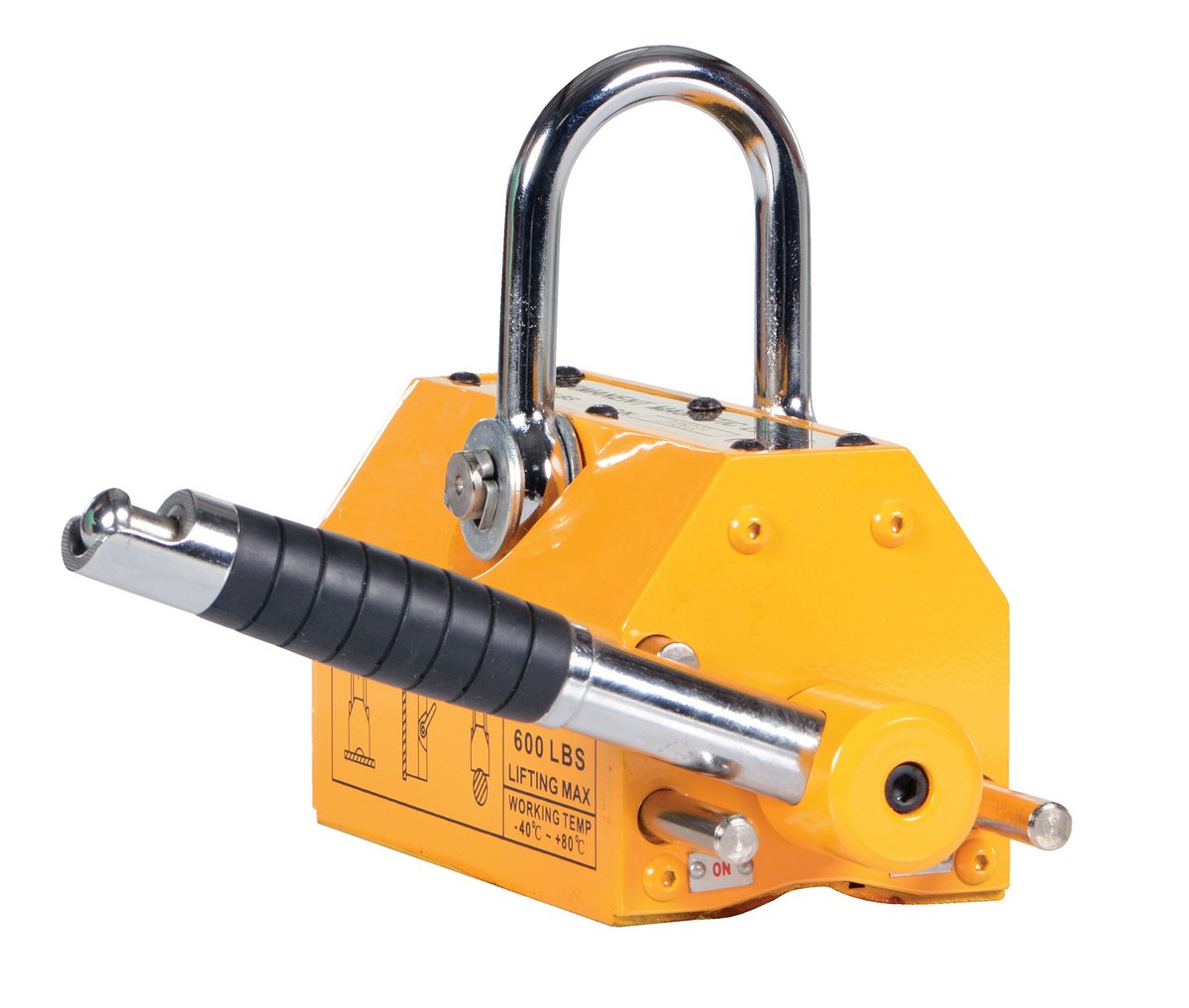

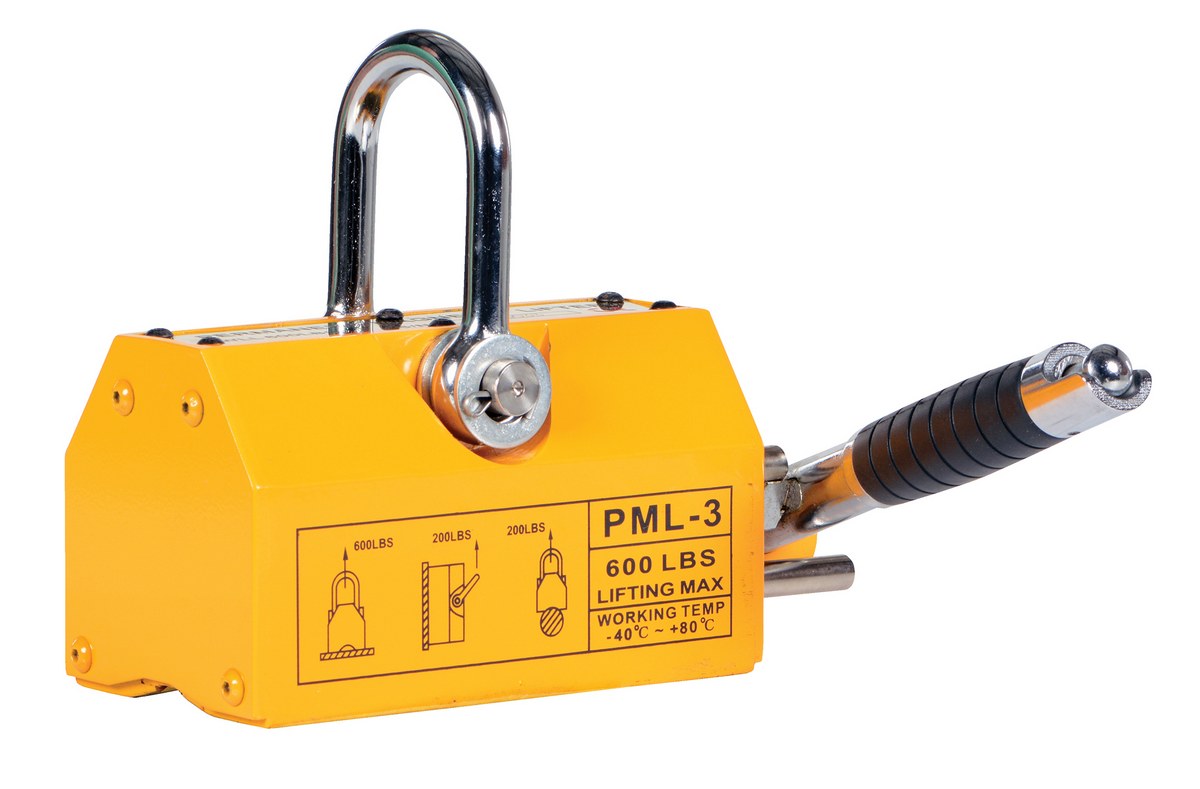

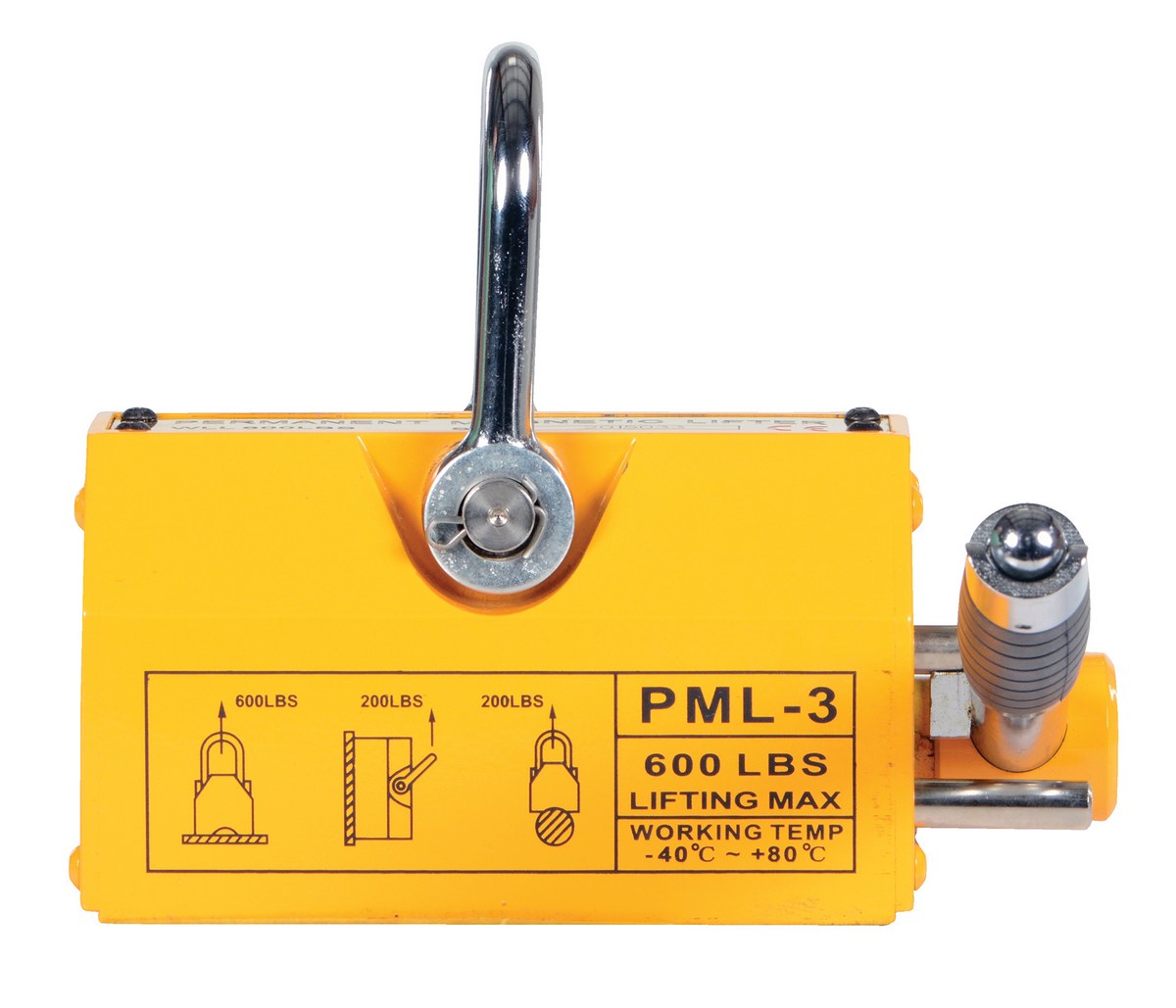

| ML-6 |  | 90 Days Limited Warranty | Steel and Neodymium Magnetic Lifter 8 In. x 8-11/16 In. x 6-13/16 In. 600 Lb. Capacity Yellow | Uniform Flat Surface Capacity (lb.): 600 Uniform Round Surface Capacity (lb.): 200 | 22 | ||

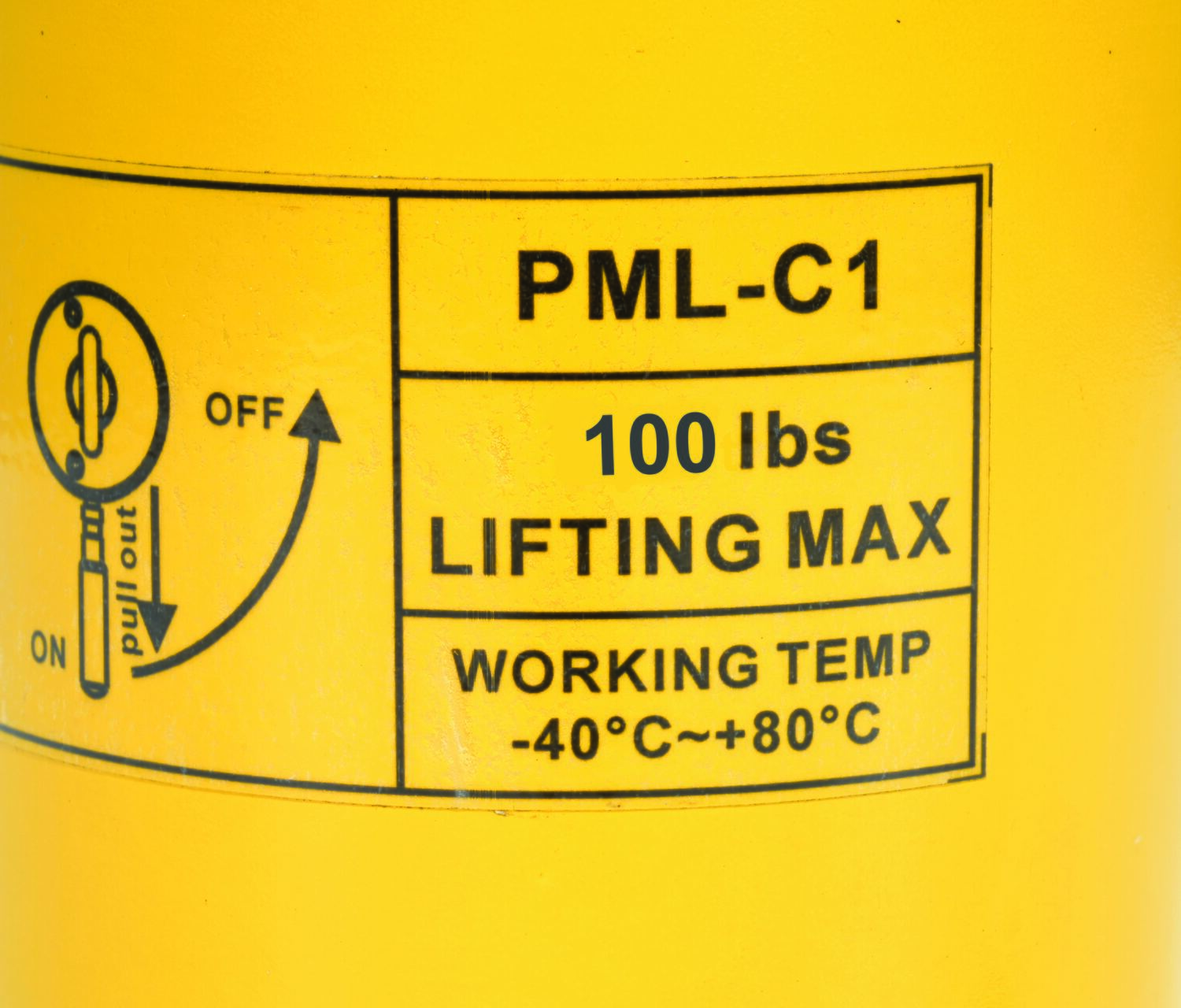

| ML-C-2 | NEW |  | 90 Days Limited Warranty | Steel Magnetic Lifter Cylindrical 3-1/2 x 6-7/8 x6-7/8 100 Lb. Capacity Yellow | Uniform Flat Surface Capacity (lb.): 100 Uniform Round Surface Capacity (lb.): 40 | 11 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The safety factor on the magnetic lifters depends on the material thickness of the plate.
A: Uniform round capacity is the total capacity of the unit when lifting round steel. Because there is less surface contact with a round pipe the capacity is depleted.
