Crowd Control Interlocking Barriers
Crowd Control Interlocking Barriers

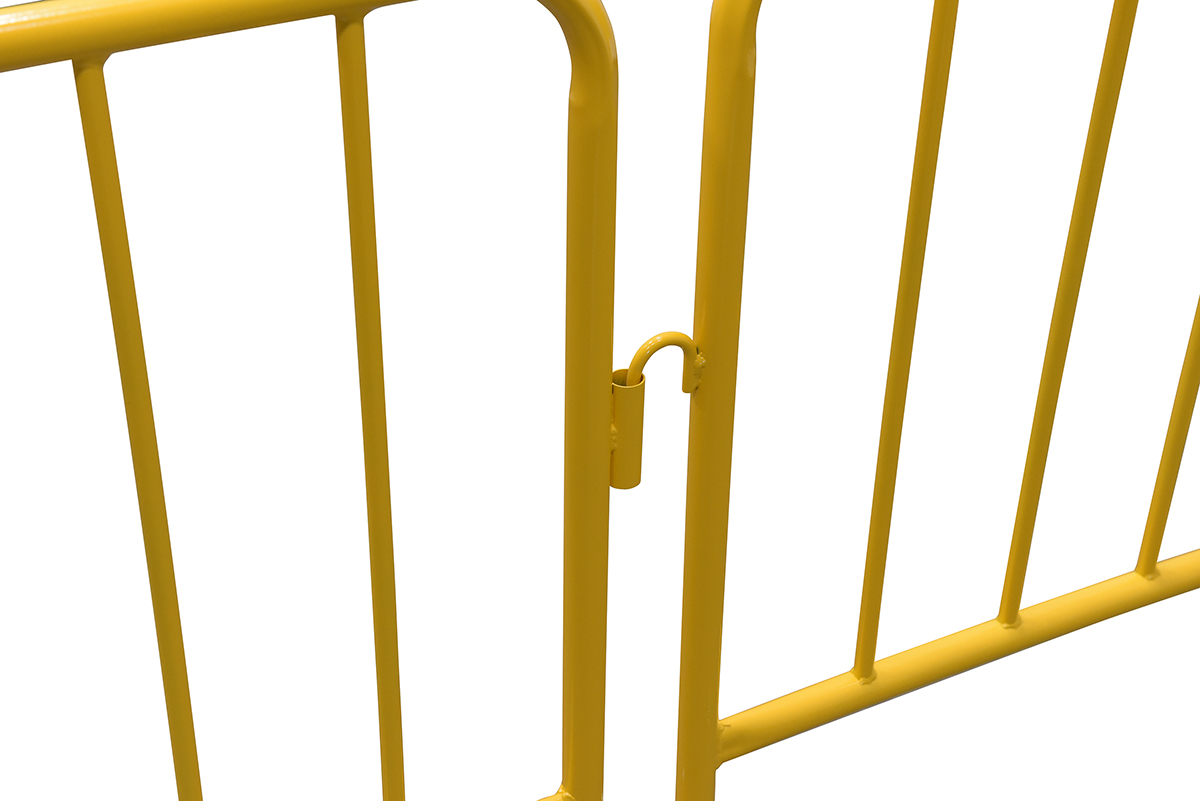

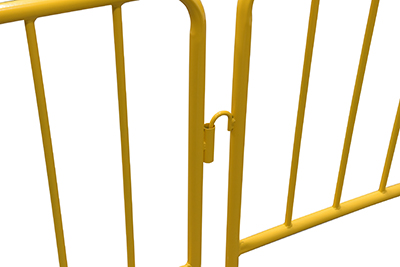

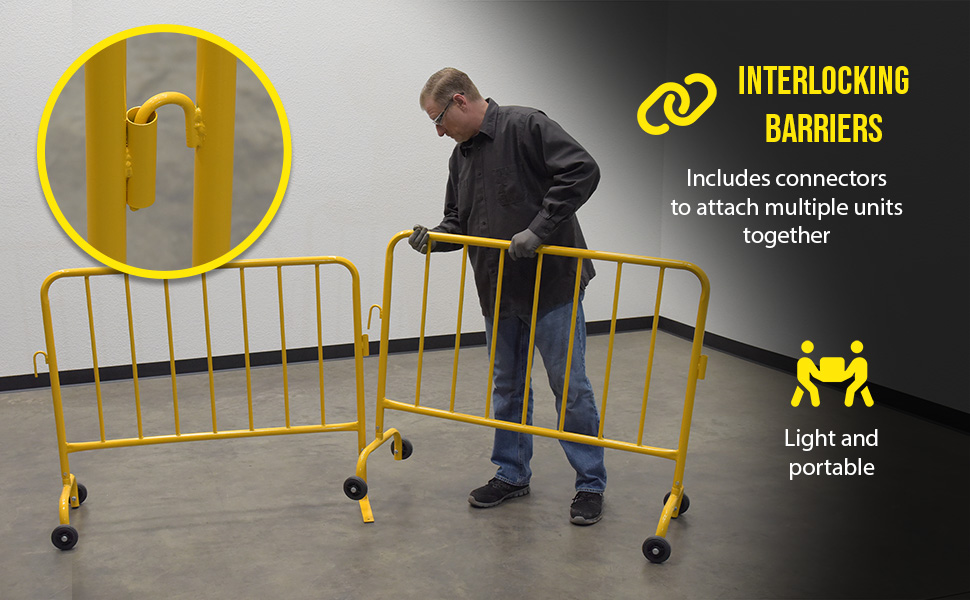

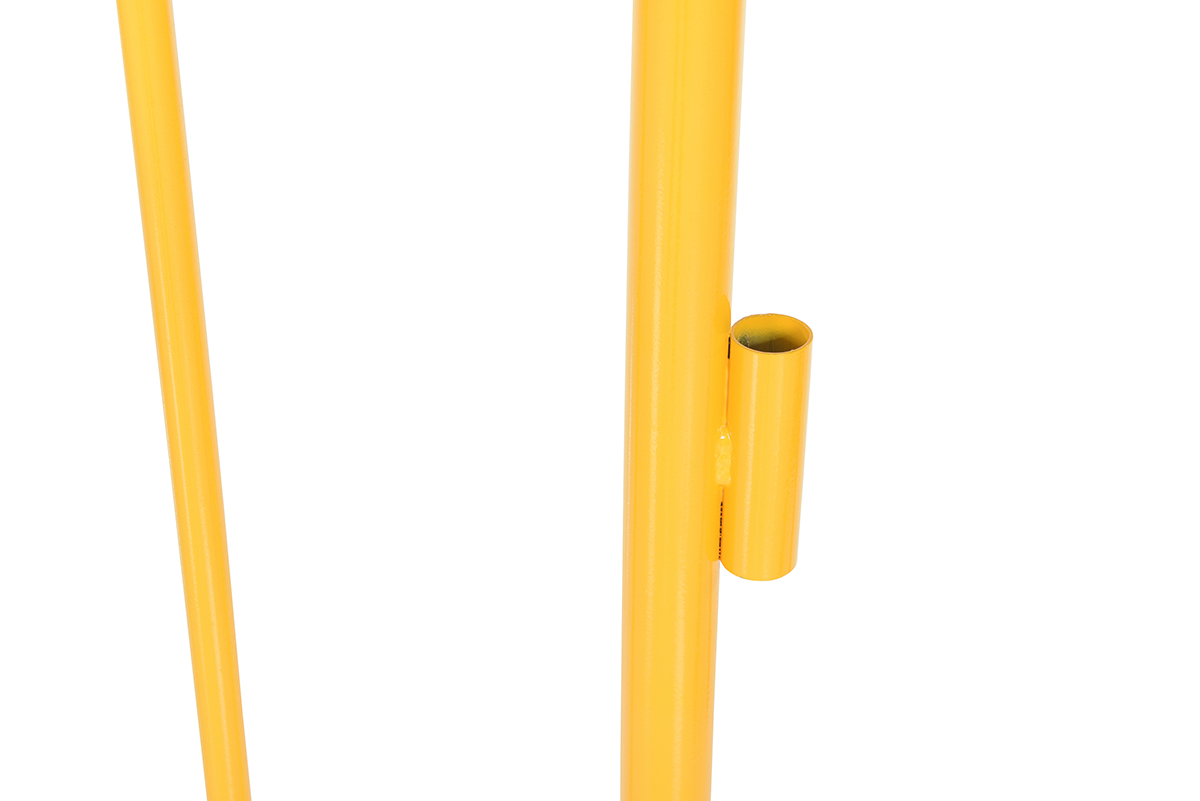

Attractive and functional design ideal for directing personnel. Interlocking portable railing has many commercial and industrial applications. Easy to move to meet changing needs. Upright bars are vertically spaced at 5-7/8" intervals for the light-weight barriers and 5-3/4" for the heavy-duty style. Each railing includes connectors to attach multiple units together to form long runs. Overall size is 102"L x 40"H. Feet are removable so railing will lay flat for shipping and storage. Variety of foot styles available. Rugged welded steel construction.

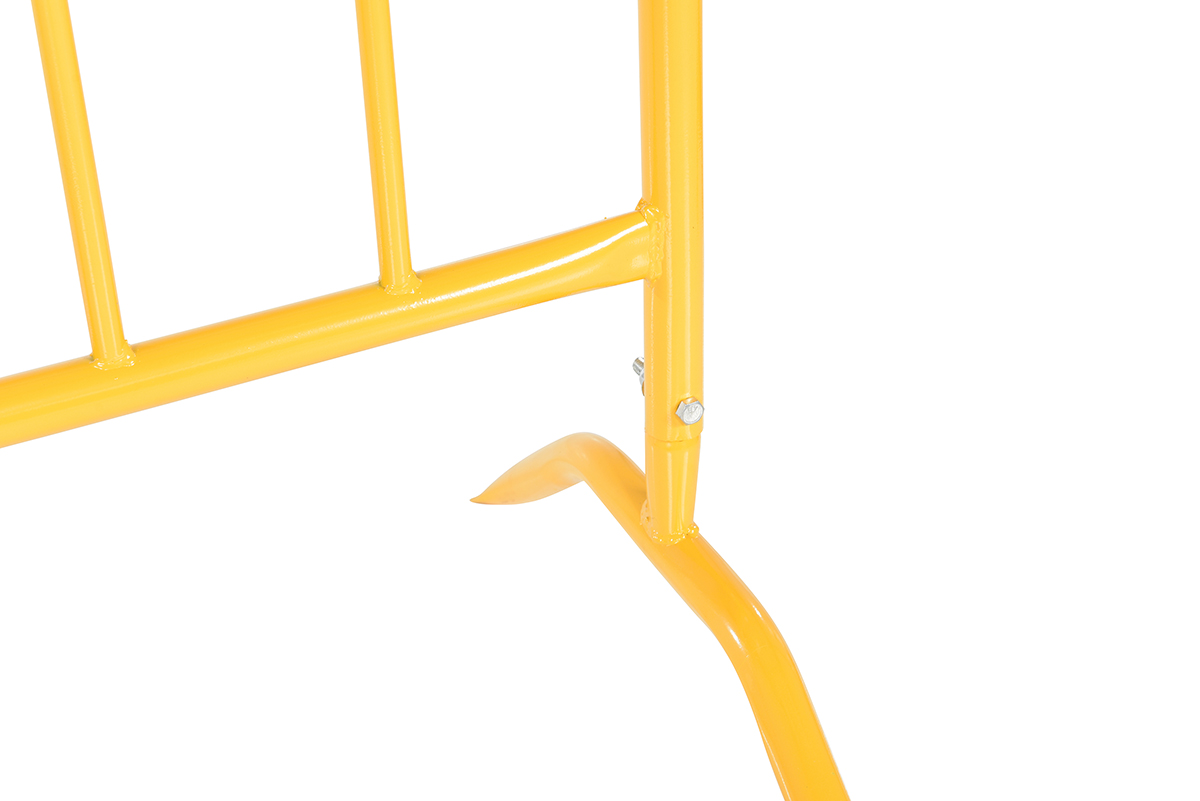

Feet Type (Available in different combinations):

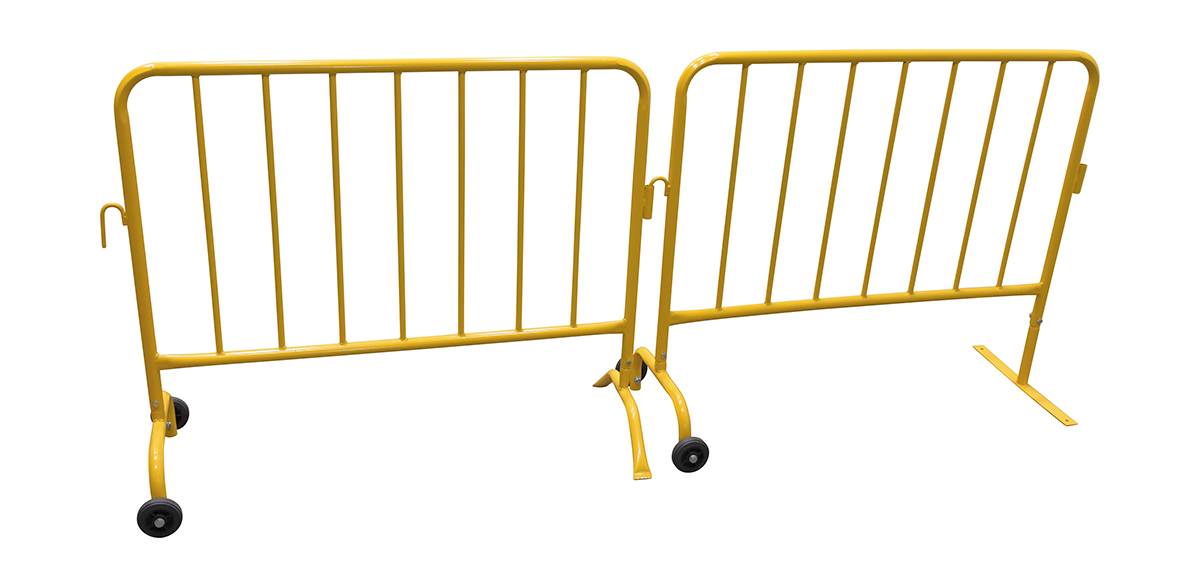

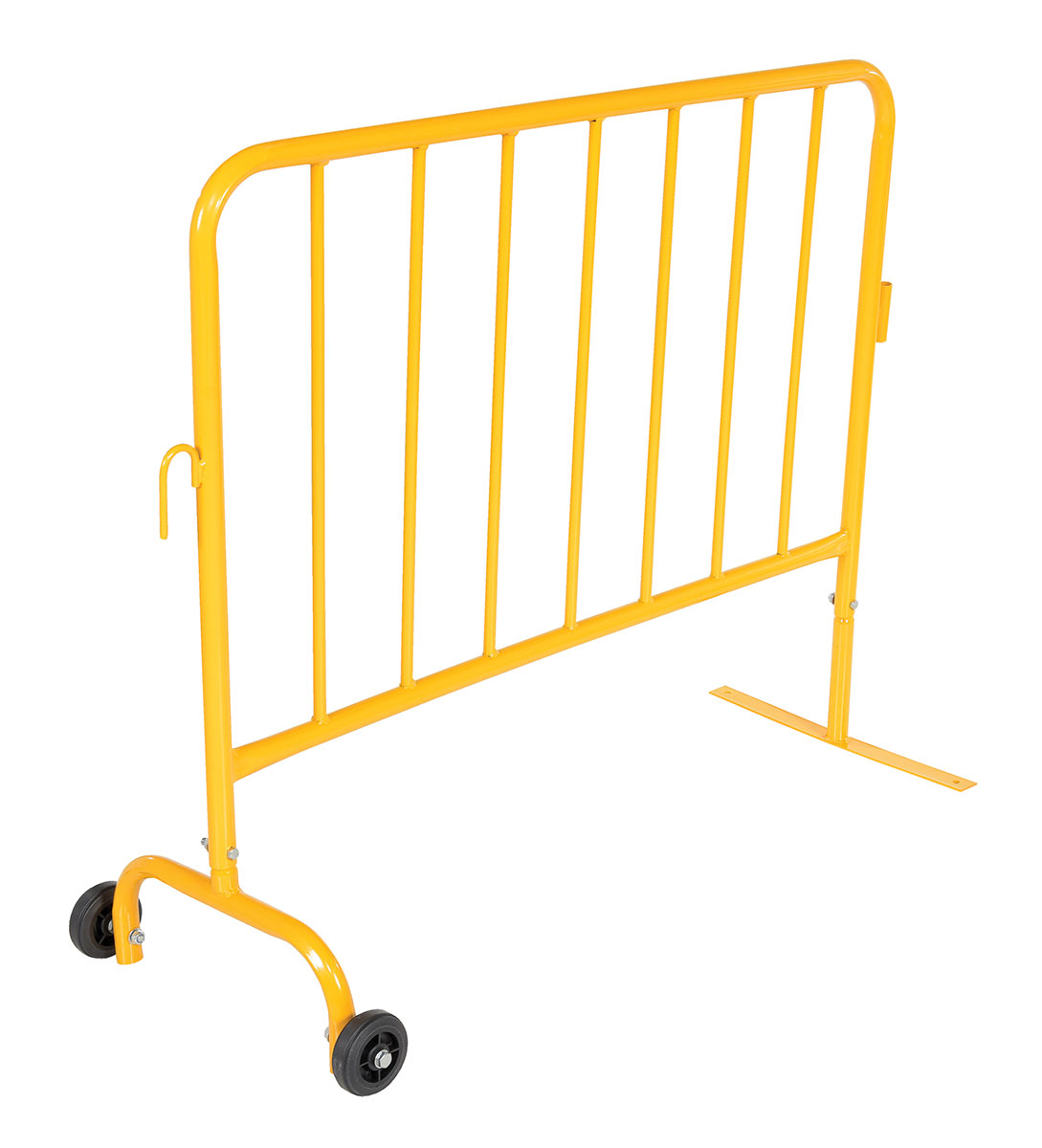

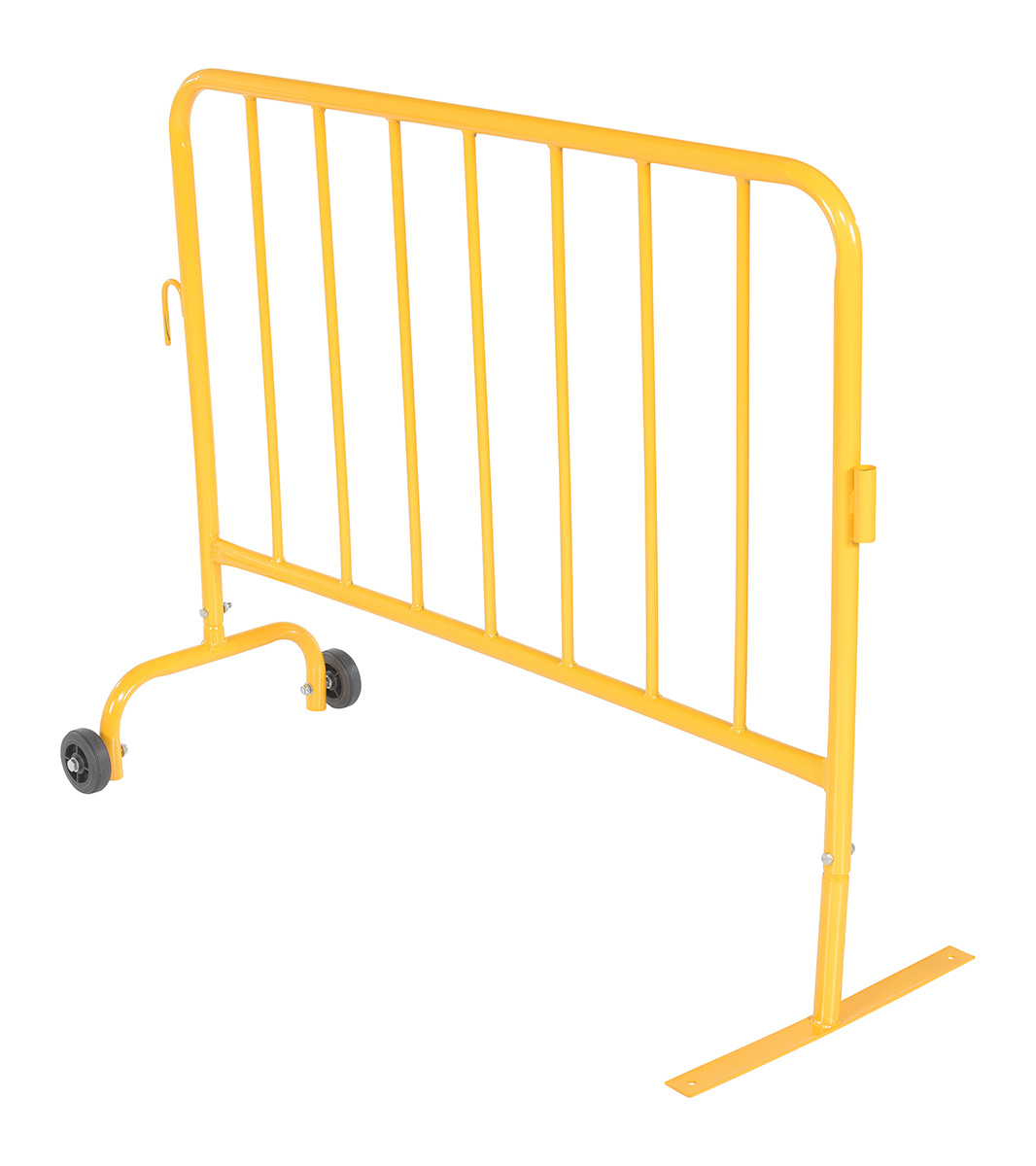

PRAIL-48-Y-WF

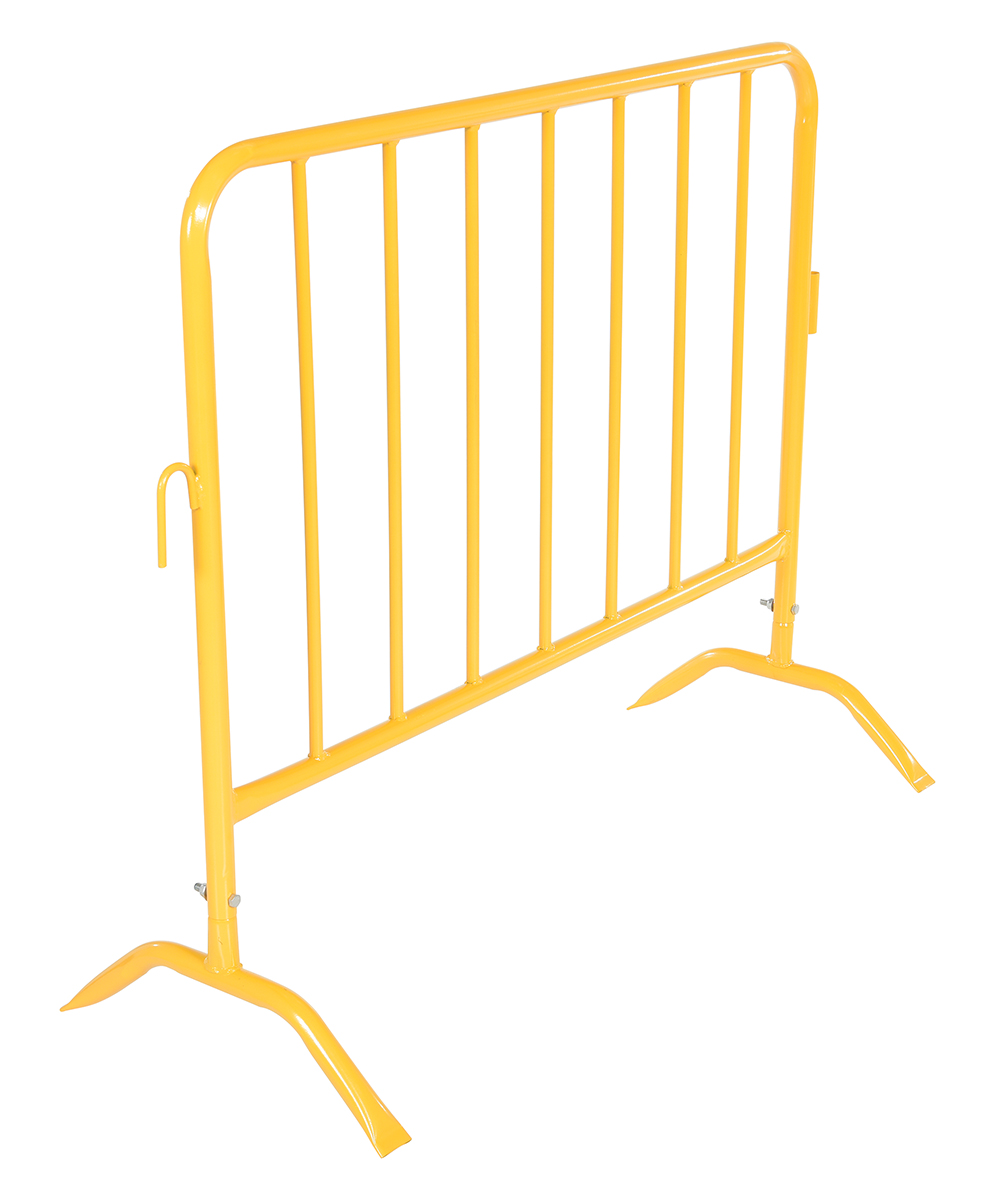

PRAIL-48-Y
PRAIL-102-HD-Y-W
PRAIL-102-Y-WF
PRAIL-102-G-W

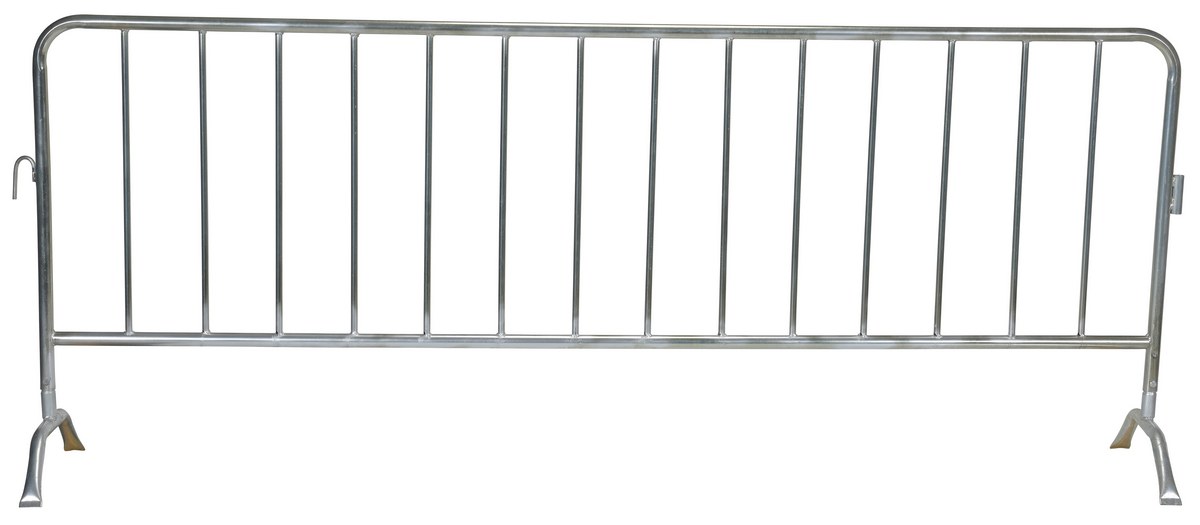

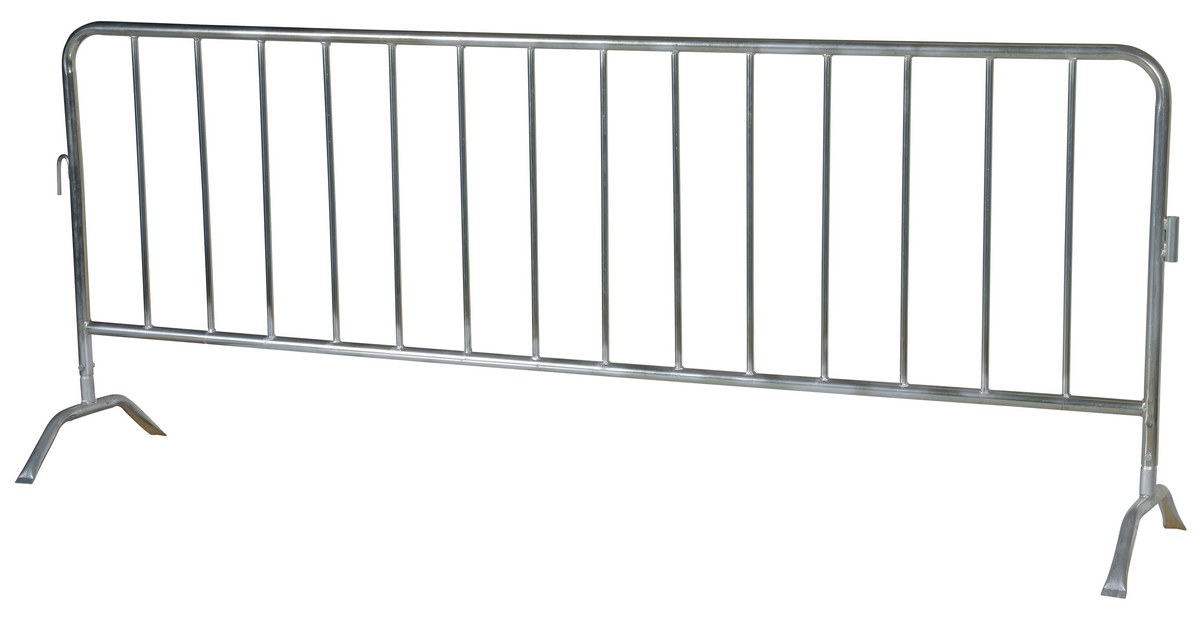

PRAIL-102-G
PRAIL-48-Y

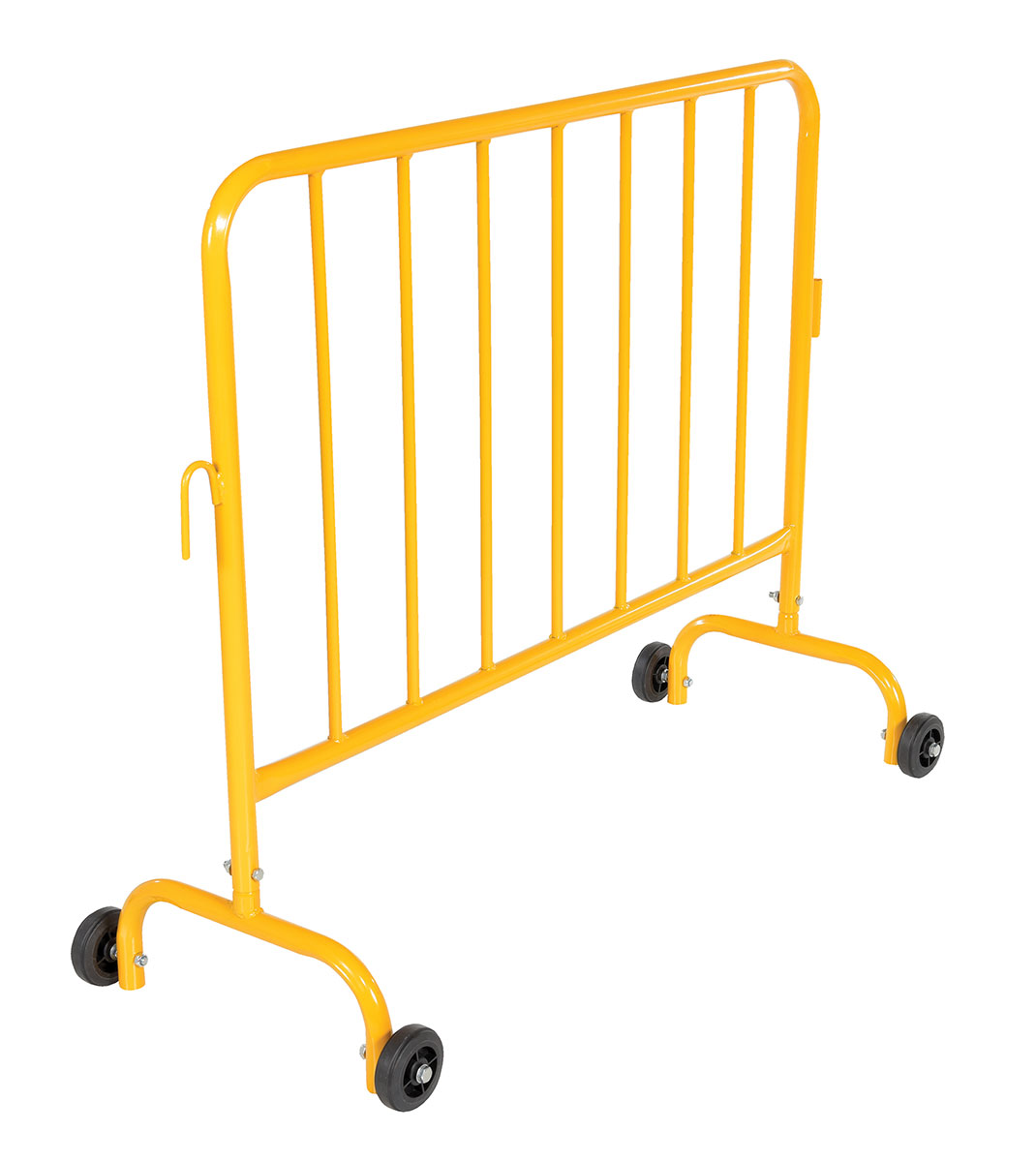

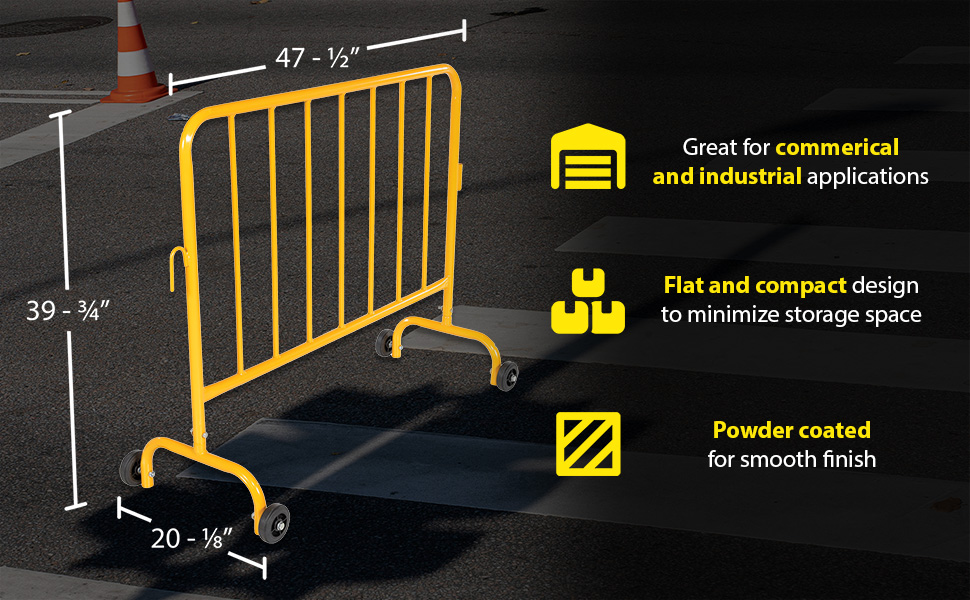

PRAIL-48-Y-WW

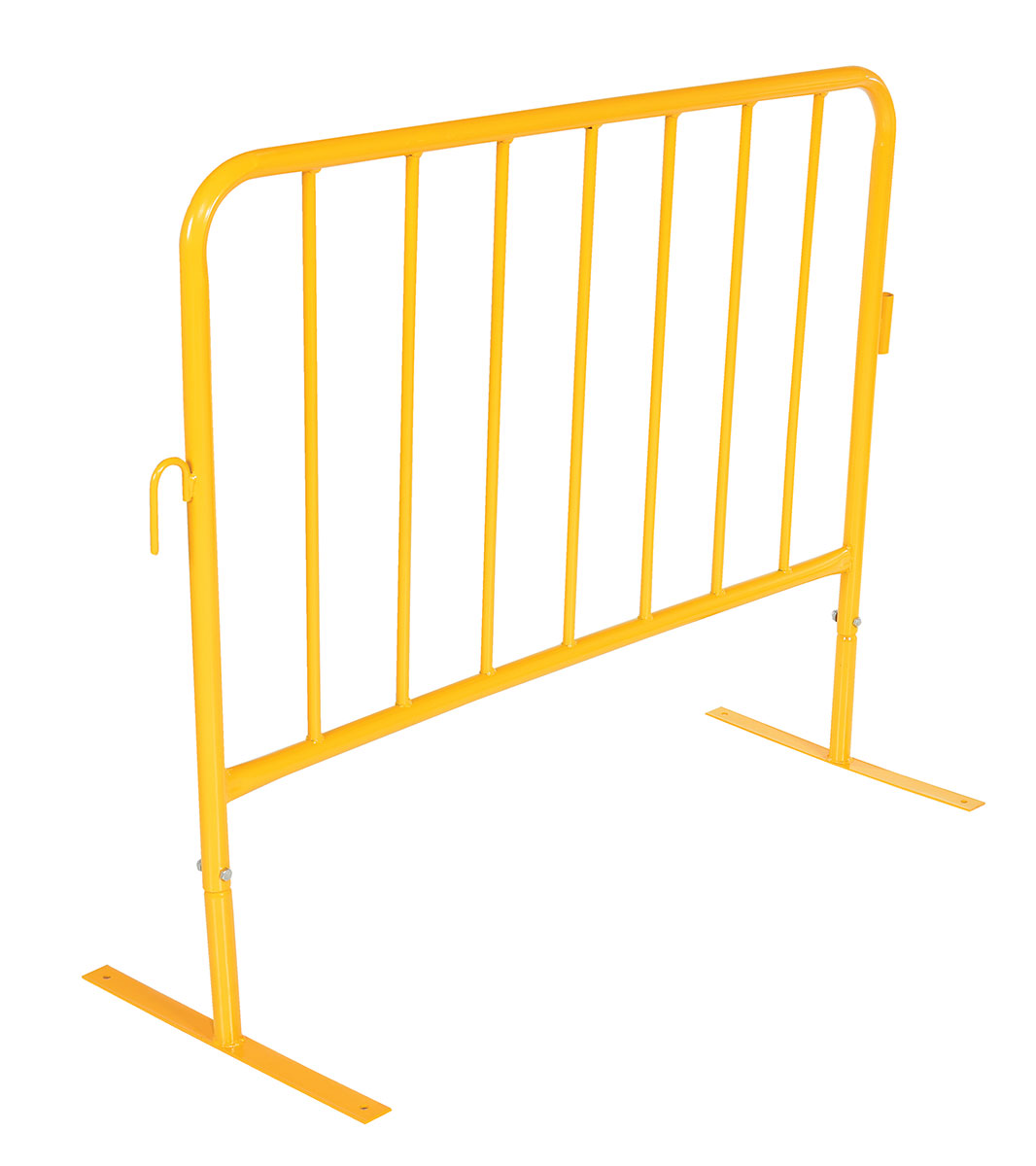

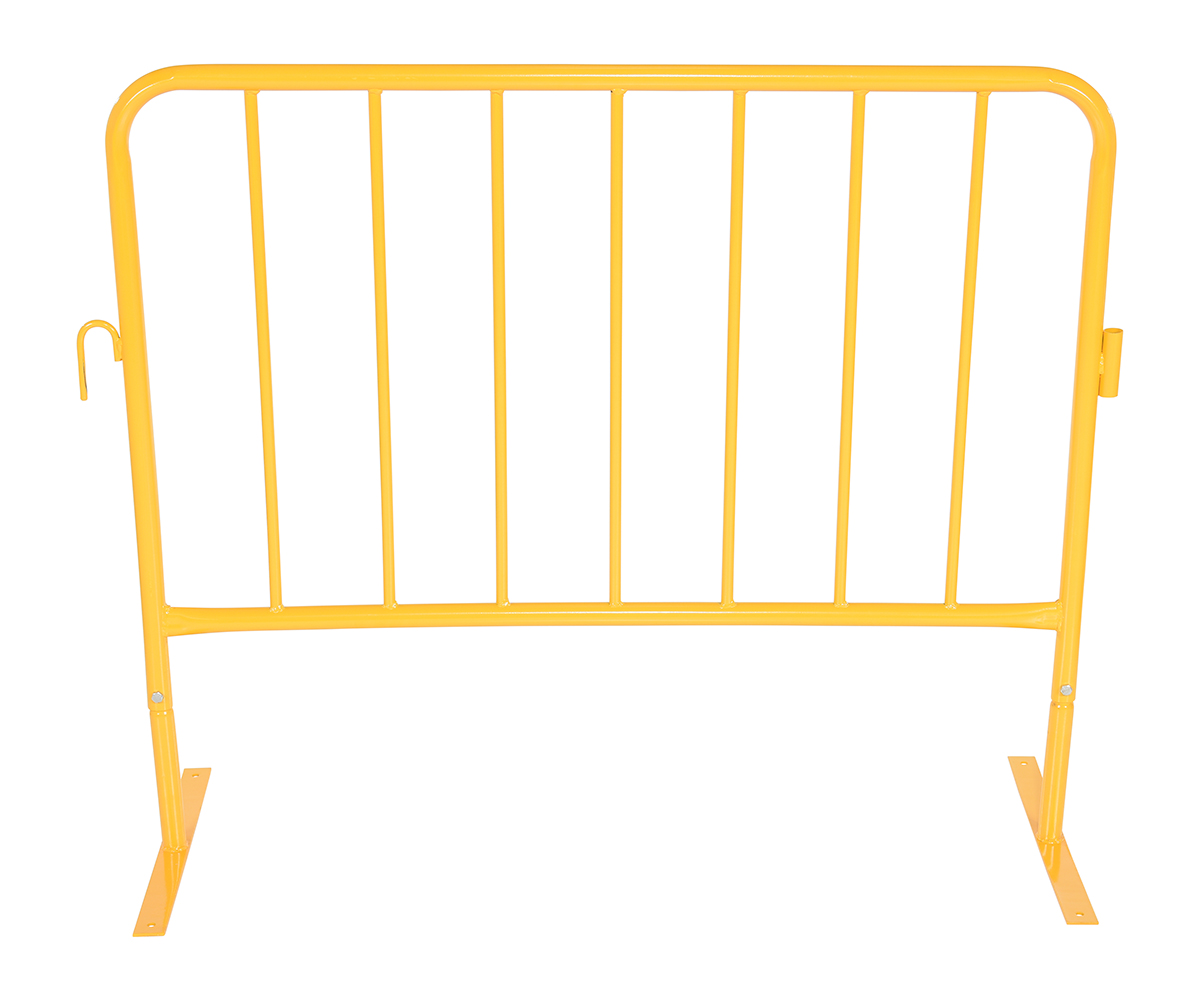

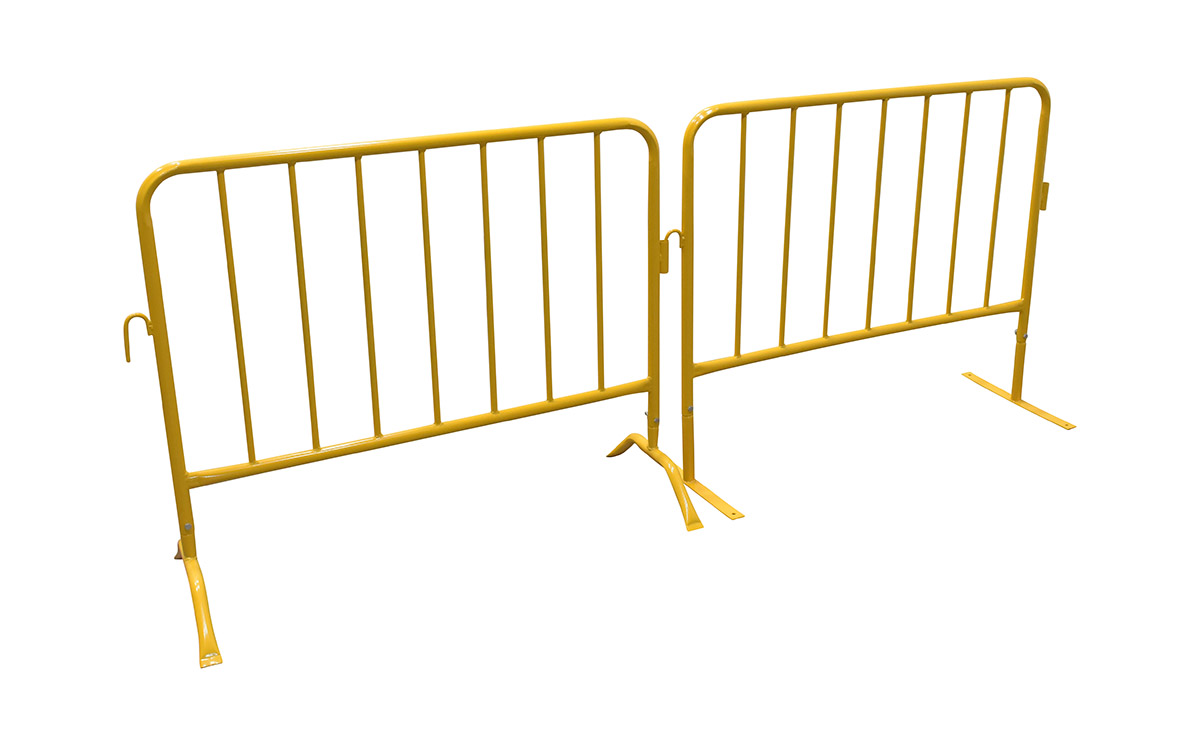

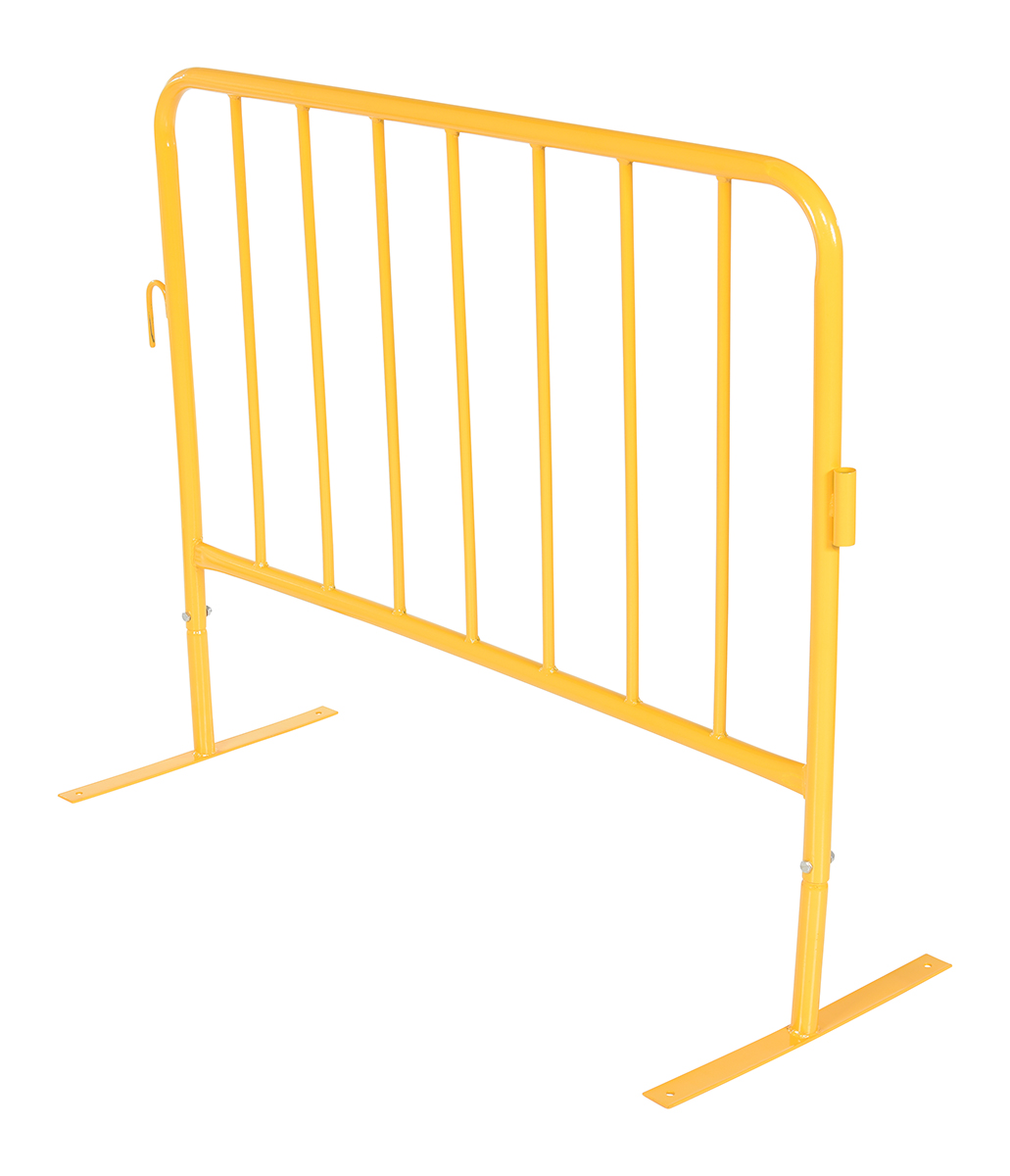

PRAIL-48-Y-FF

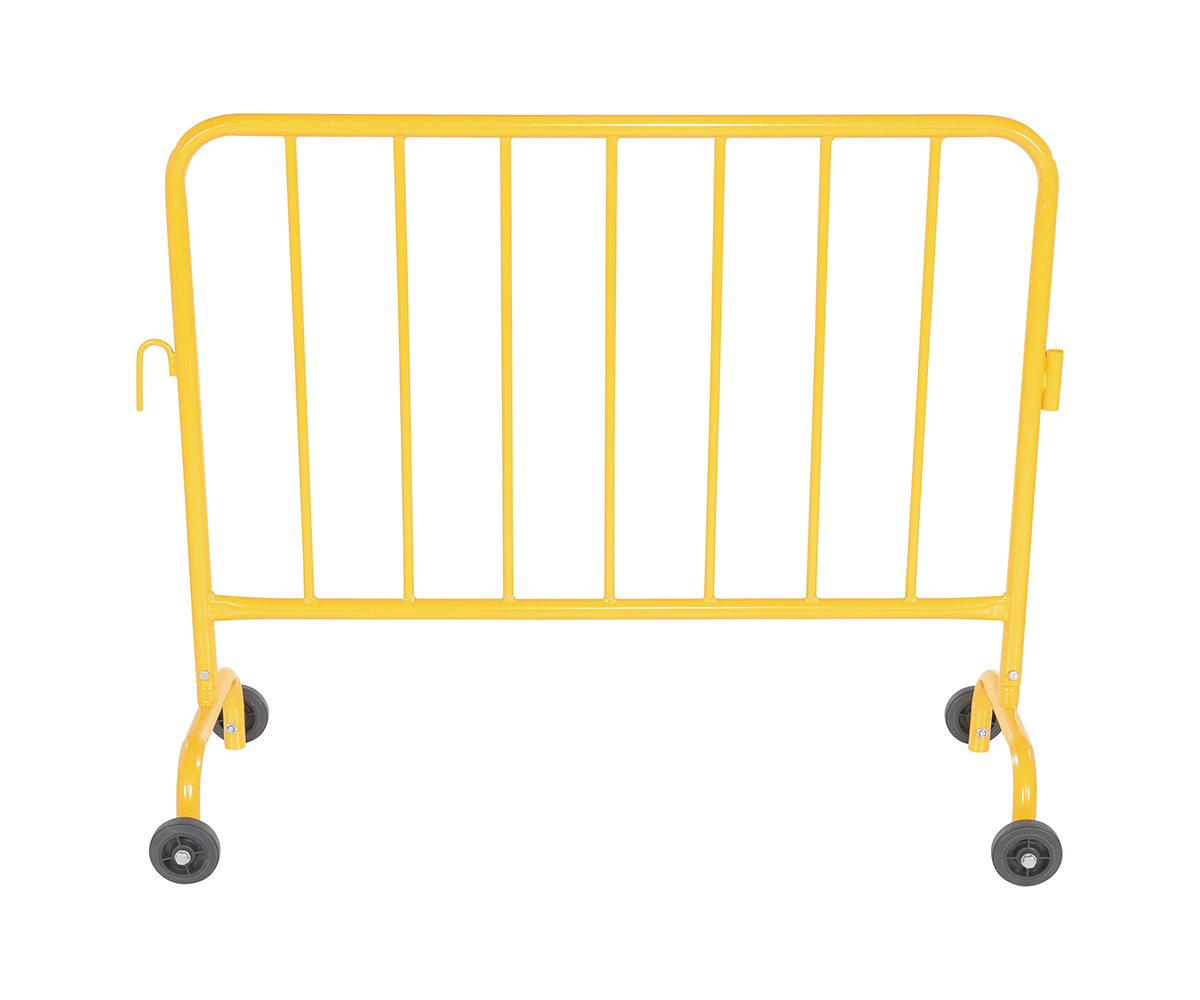

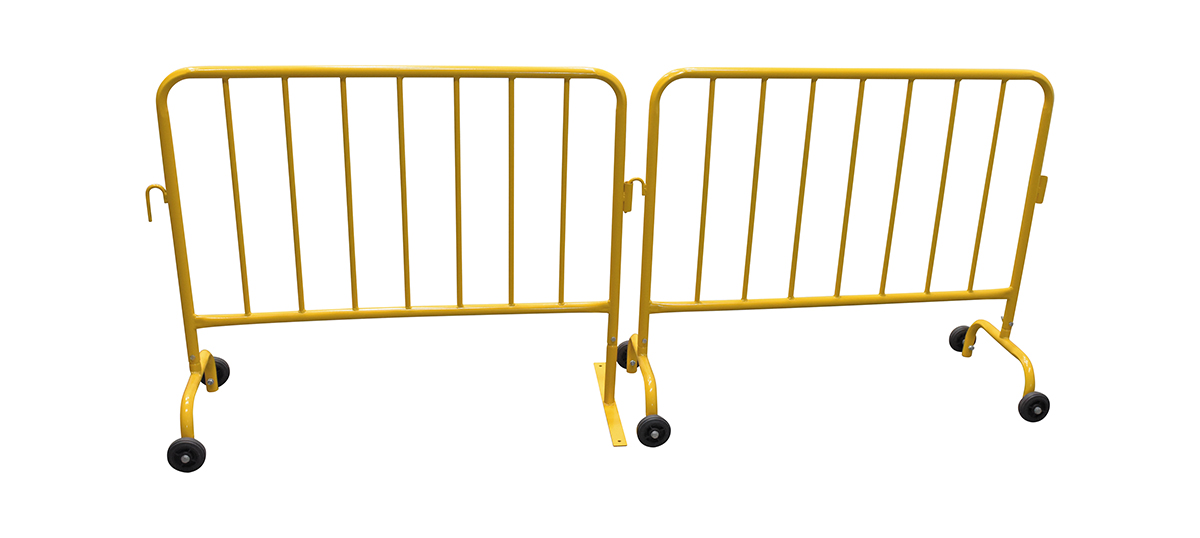

PRAIL-48-Y-WW
PRAIL-102-Y
PRAIL-102-G-WF

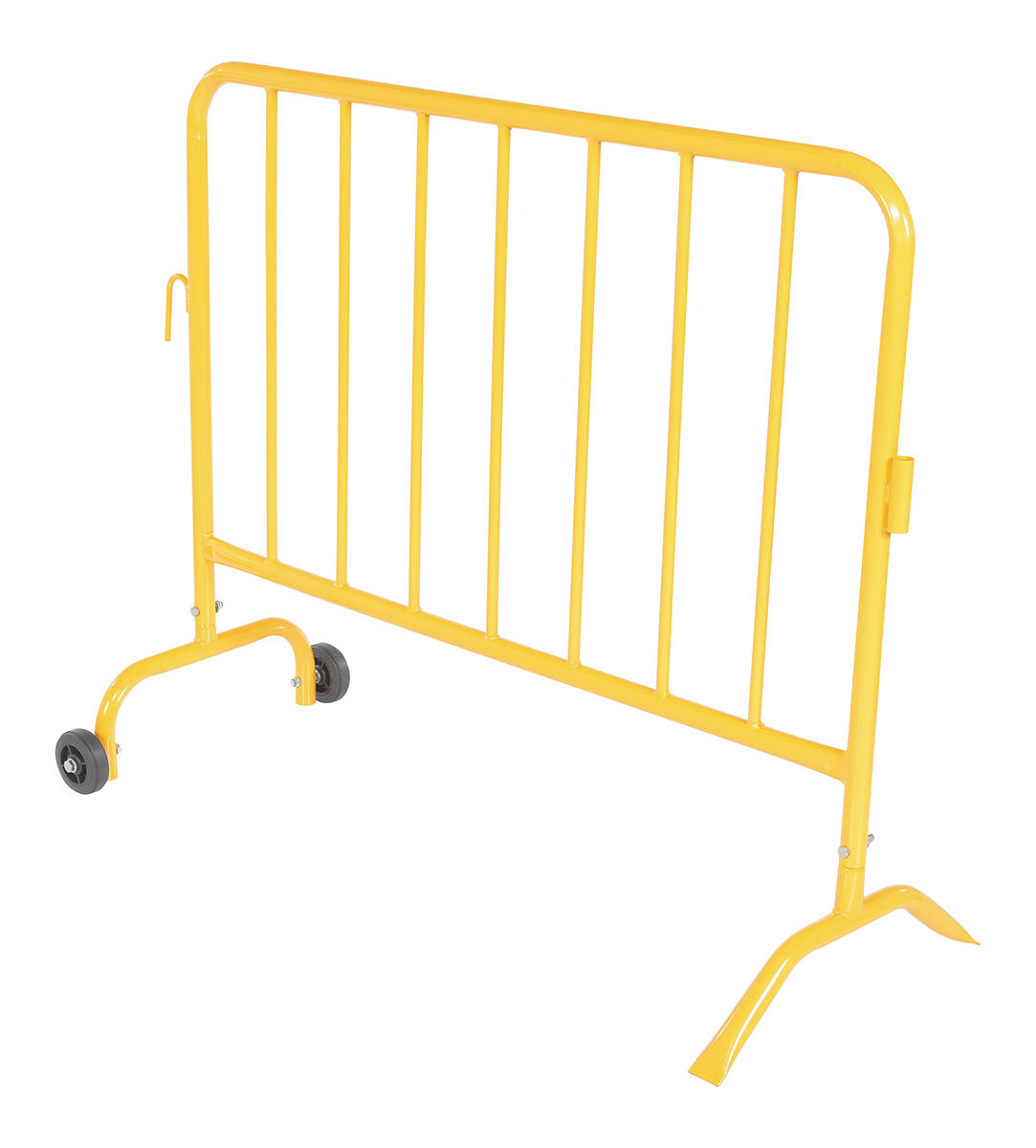

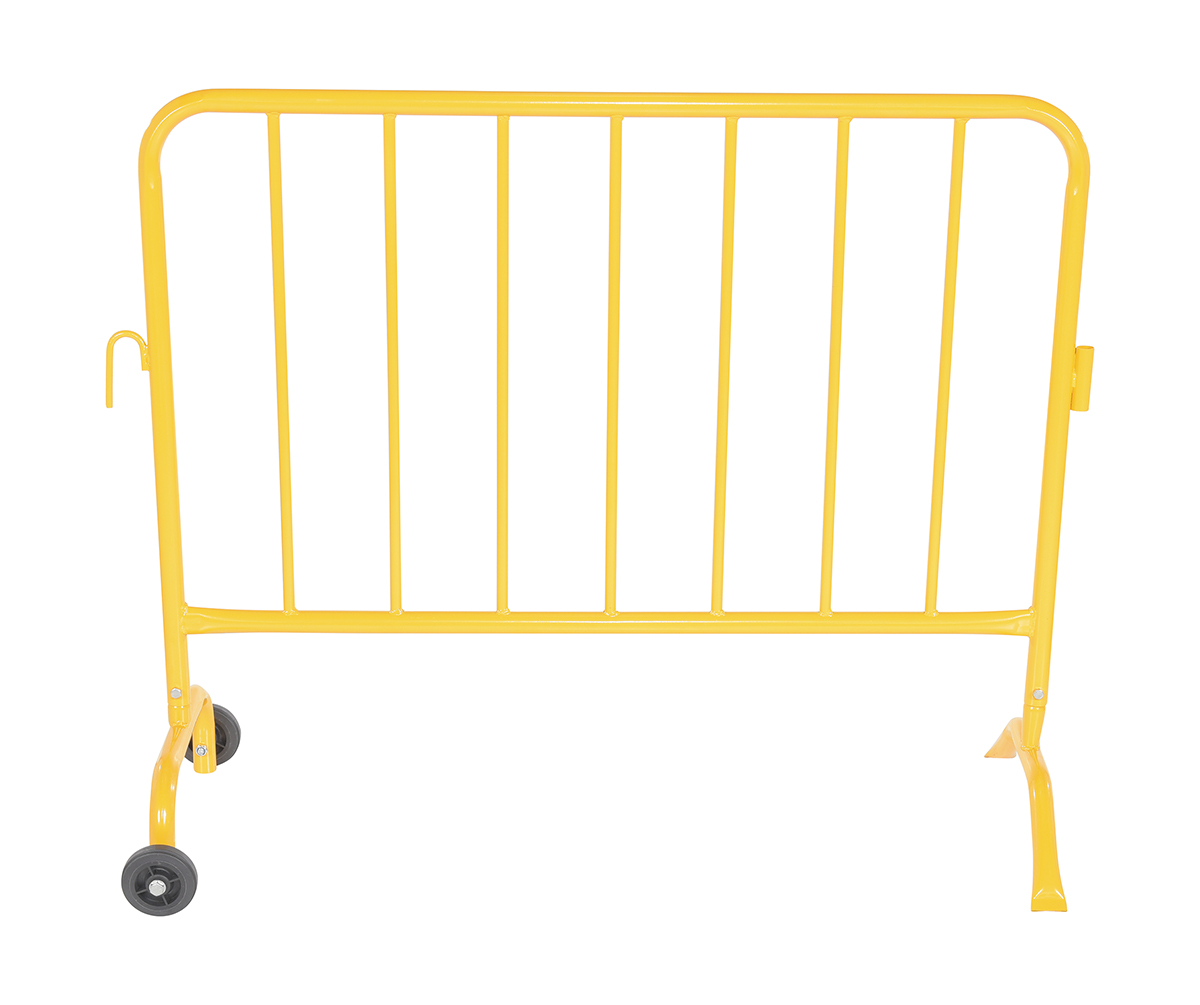

PRAIL-48-Y-W

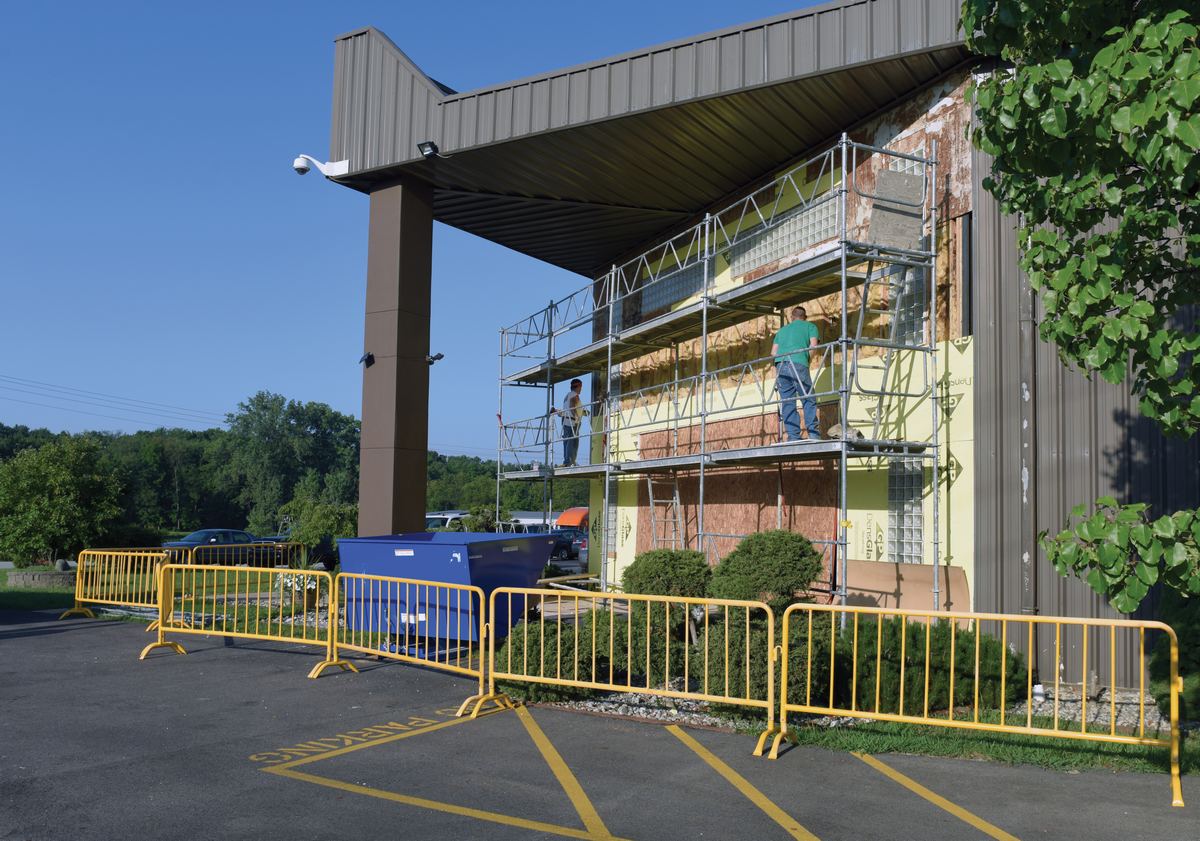

PRAIL-102-HD-Y
PRAIL-48-Y
| Model # | Description | Attributes | Net Wt. (lbs) | ||||
|---|---|---|---|---|---|---|---|

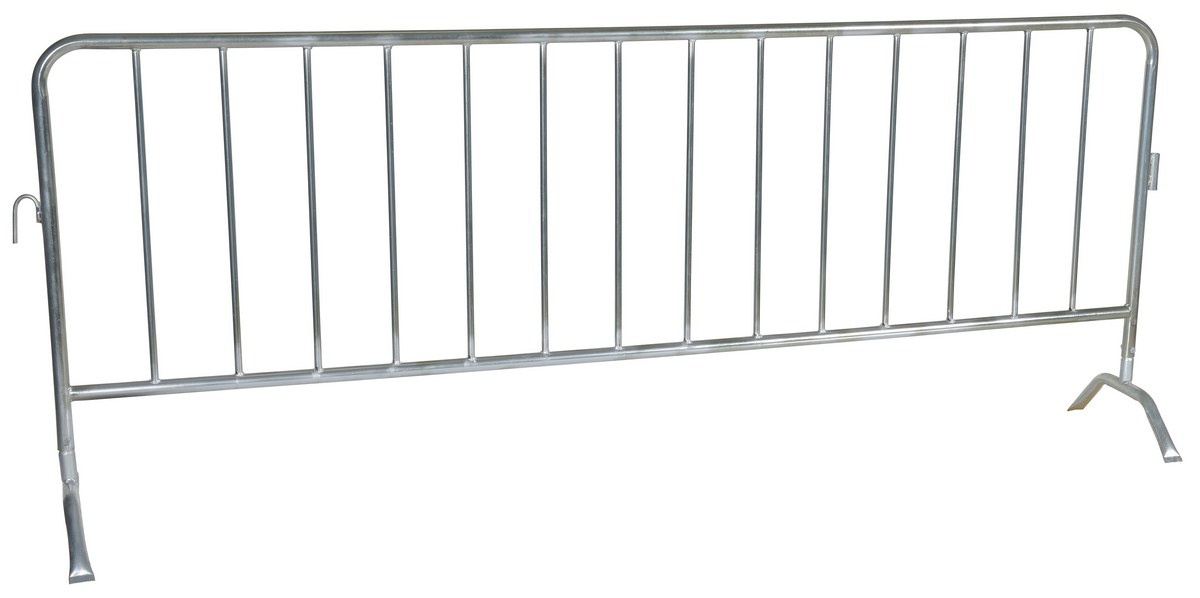

| PRAIL-102-G | | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Curved Feet 101-3/16 In. Length Silver | Vertical Bar Spacing (in.): 5-7/8 Inside Rail Diameter (in.): 5/8 | 59 | ||

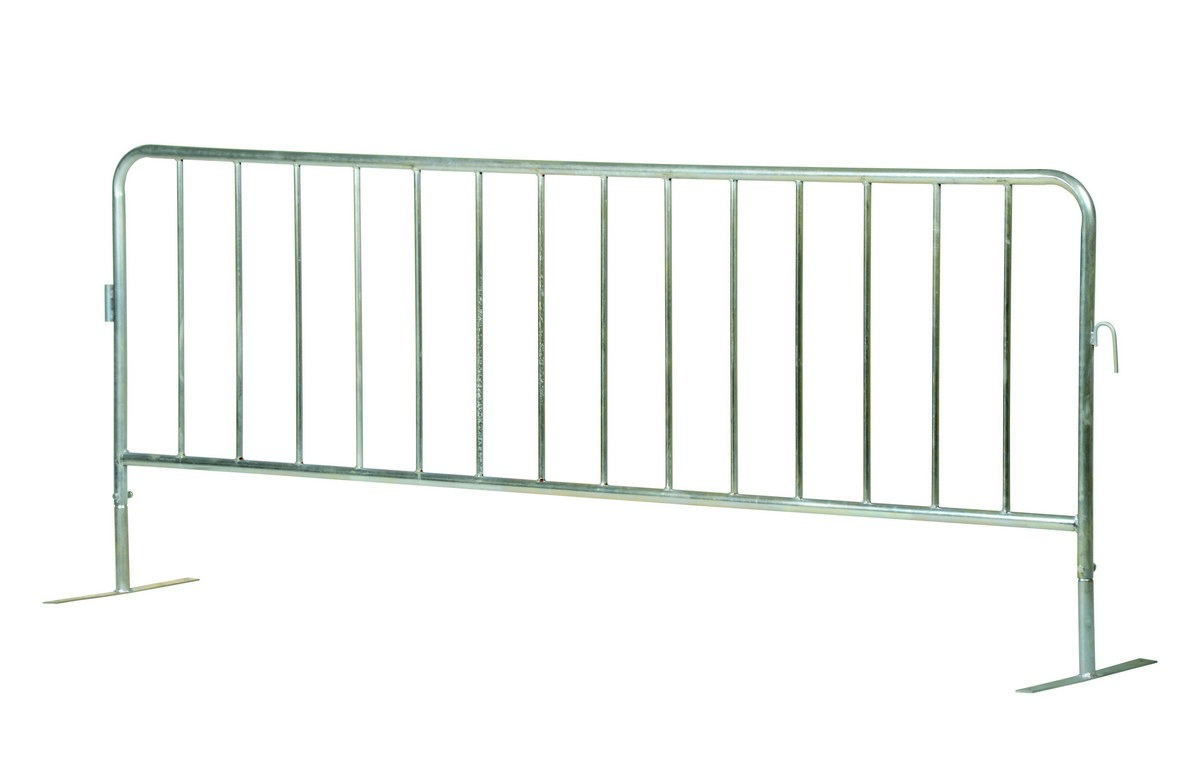

| PRAIL-102-G-FF |  | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Flat Feet 101-3/16 In. Length Silver | Vertical Bar Spacing (in.): 5-7/8 Inside Rail Diameter (in.): 5/8 | 54 | ||

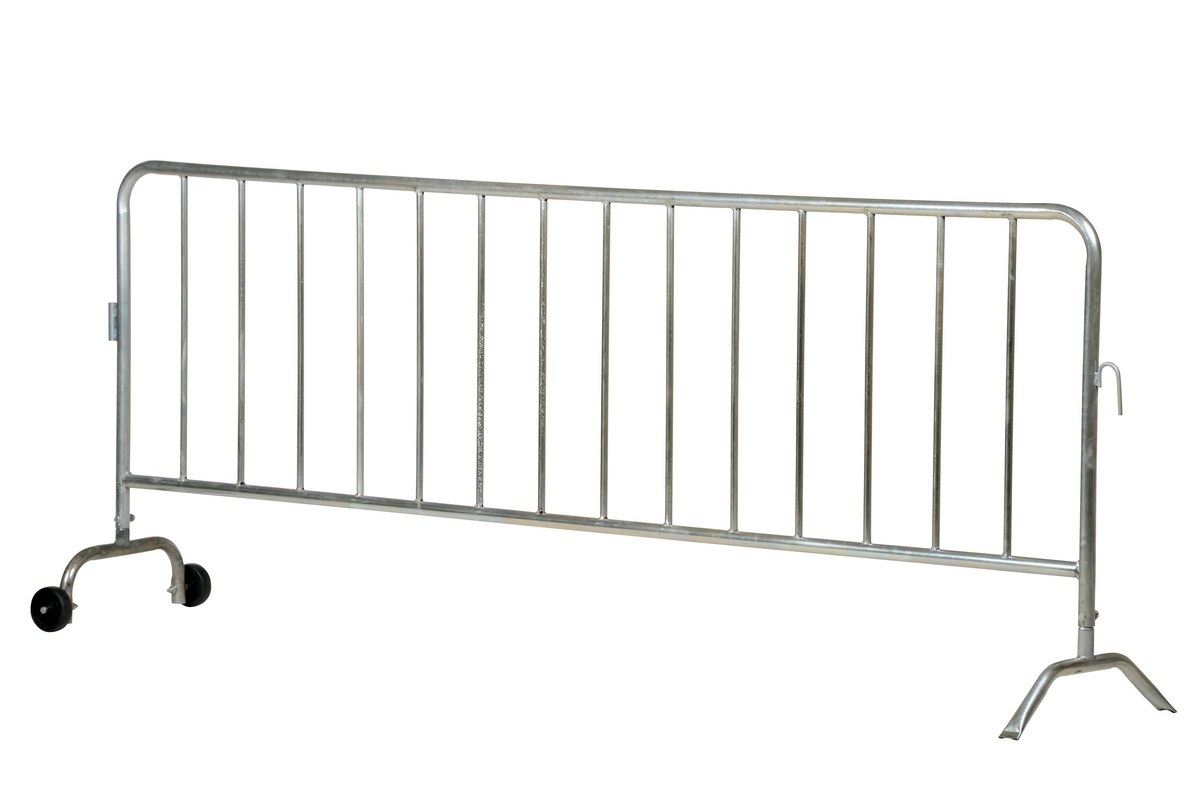

| PRAIL-102-G-W | | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Feet (1) Wheeled (1) Curved 101-3/16 In. Length Silver | Vertical Bar Spacing (in.): 5-7/8 Inside Rail Diameter (in.): 5/8 | 55 | ||

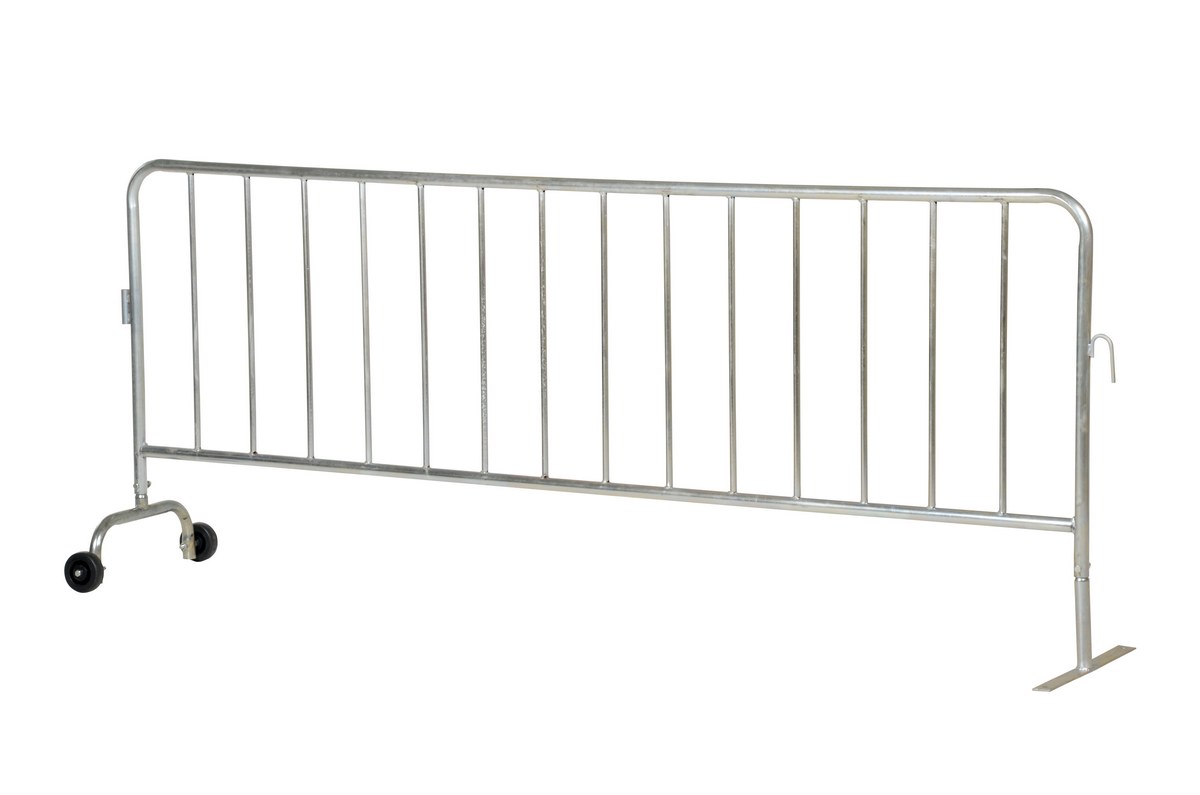

| PRAIL-102-G-WF | | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Feet (1) Wheeled (1) Flat 101-3/16 In. Length Silver | Vertical Bar Spacing (in.): 5-7/8 Inside Rail Diameter (in.): 5/8 | 56 | ||
| PRAIL-102-G-WW |  | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Wheeled Feet 101-3/16 In. Length Silver | Vertical Bar Spacing (in.): 5-7/8 Inside Rail Diameter (in.): 5/8 | 56 | ||

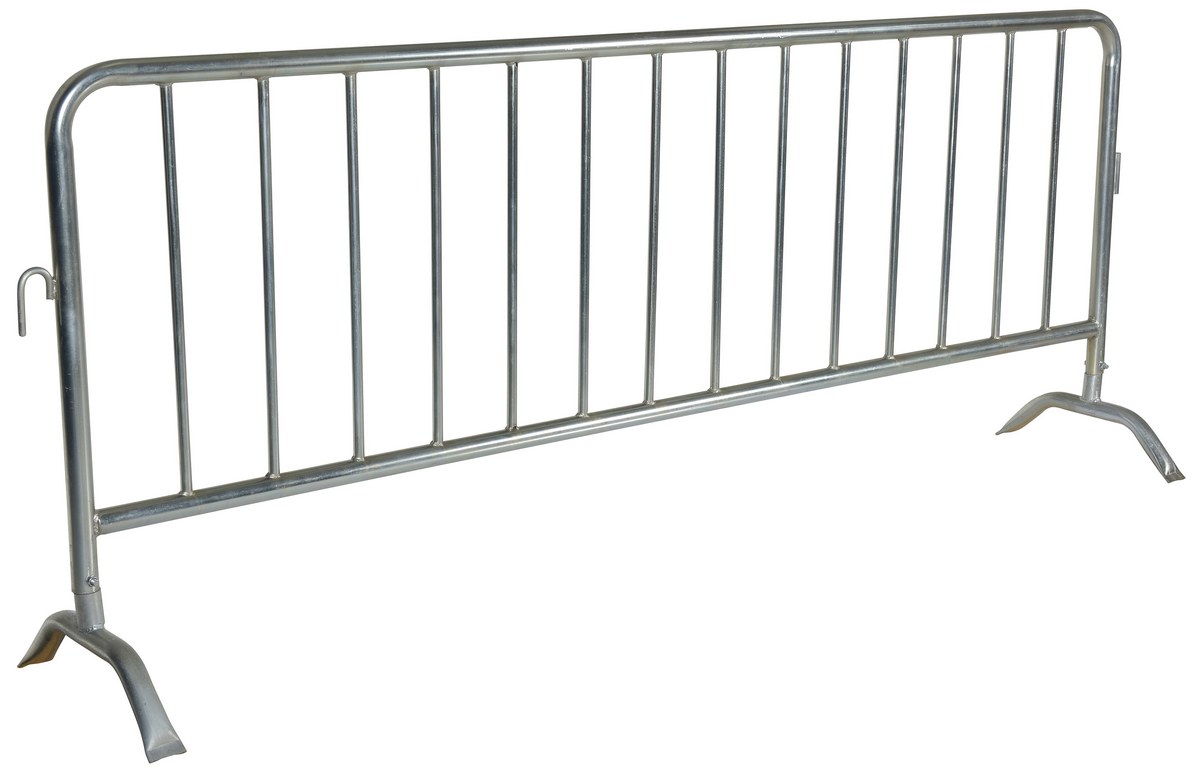

| PRAIL-102-HD-G |  | 30 Days Limited Warranty | Steel Heavy Duty Crowd Control Interlocking Barrier with Curved Feet 101-3/4 In. Length Silver | Vertical Bar Spacing (in.): 5-3/4 Inside Rail Diameter (in.): 3/4 | 72 | ||
| PRAIL-102-HD-G-FF |  | 30 Days Limited Warranty | Steel Heavy Duty Crowd Control Interlocking Barrier with Flat Feet 101-3/4 In. Length Silver | Vertical Bar Spacing (in.): 5-3/4 Inside Rail Diameter (in.): 3/4 | 72 | ||
| PRAIL-102-HD-G-W |  | 30 Days Limited Warranty | Steel Heavy Duty Crowd Control Interlocking Barrier with Feet (1) Wheeled (1) Curved 101-3/4 In. Length Silver | Vertical Bar Spacing (in.): 5-3/4 Inside Rail Diameter (in.): 3/4 | 74 | ||
| PRAIL-102-HD-G-WF |  | 30 Days Limited Warranty | Steel Heavy Duty Crowd Control Interlocking Barrier with Feet (1) Wheeled (1) Flat 101-3/4 In. Length Silver | Vertical Bar Spacing (in.): 5-3/4 Inside Rail Diameter (in.): 3/4 | 72 | ||

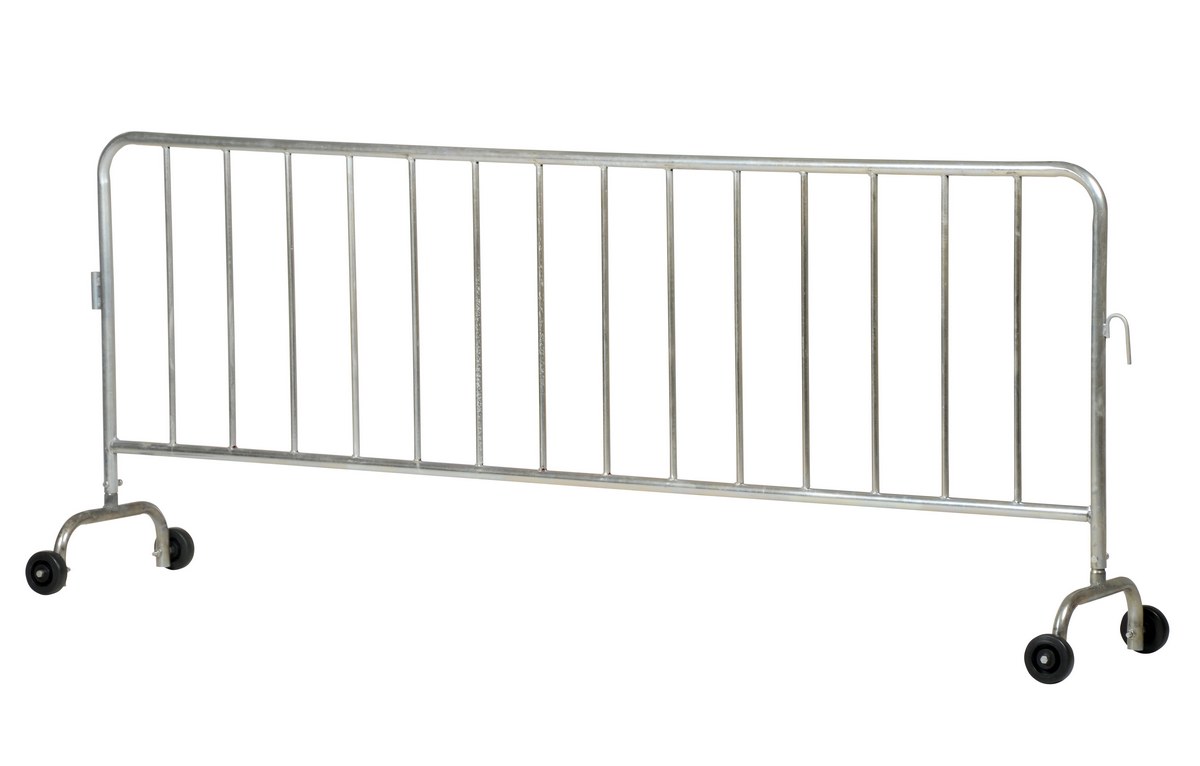

| PRAIL-102-HD-G-WW |  | 30 Days Limited Warranty | Steel Heavy Duty Crowd Control Interlocking Barrier with Wheeled Feet 101-3/4 In. Length Silver | Vertical Bar Spacing (in.): 5-3/4 Inside Rail Diameter (in.): 3/4 | 75 | ||

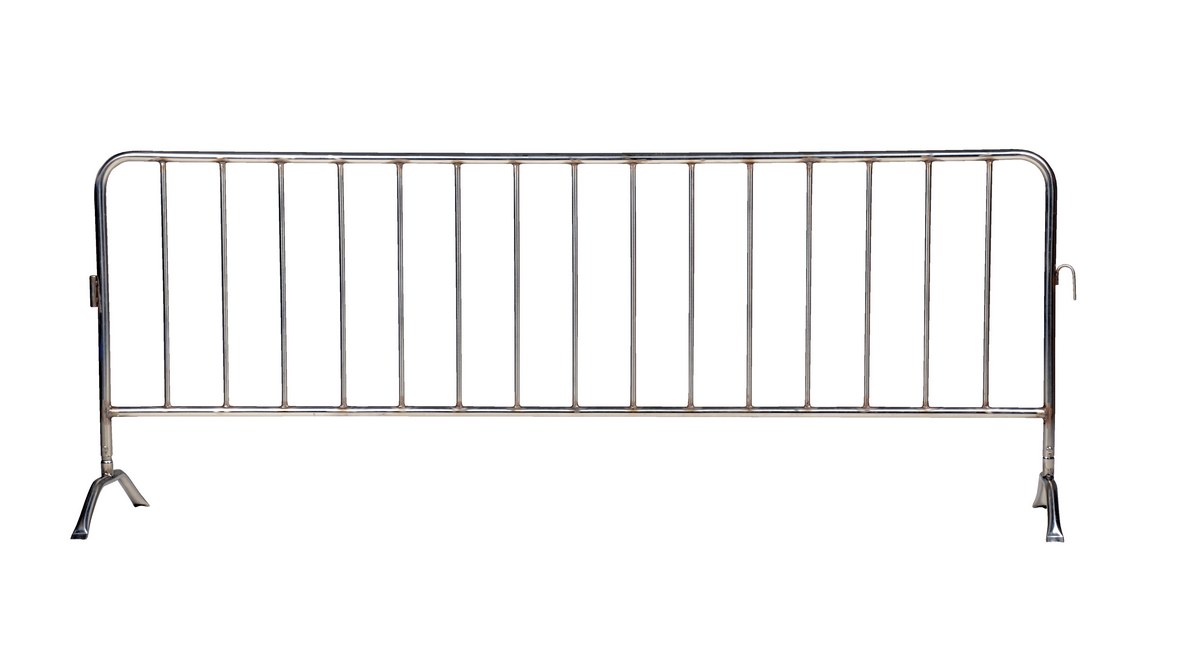

| PRAIL-102-HD-SS |  | 30 Days Limited Warranty | 304 Stainless Steel Heavy Duty Crowd Control Interlocking Barrier with Curved Feet 101-3/8 In. Length Silver | Vertical Bar Spacing (in.): 5-3/4 Inside Rail Diameter (in.): 3/4 | 62 | ||

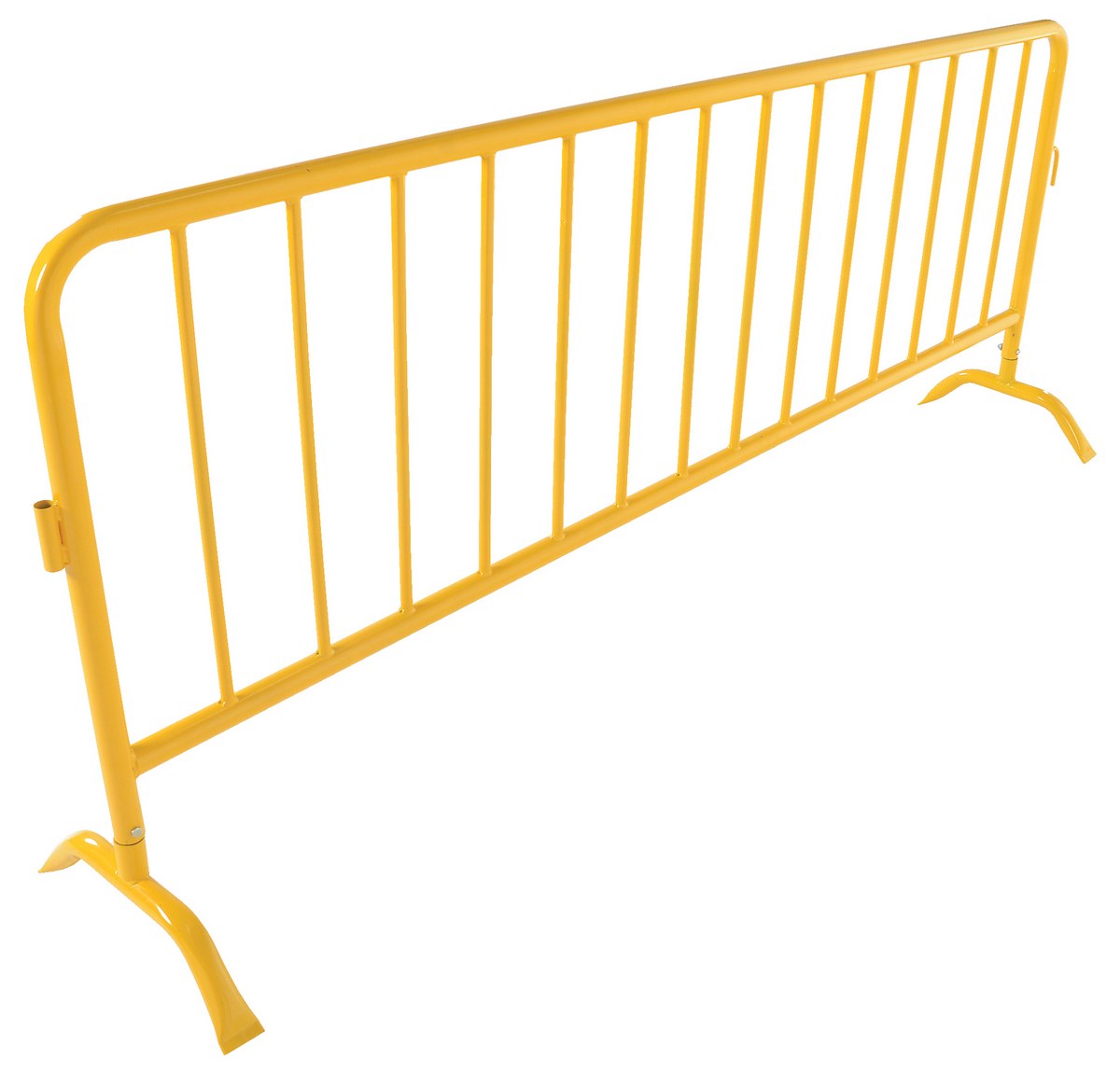

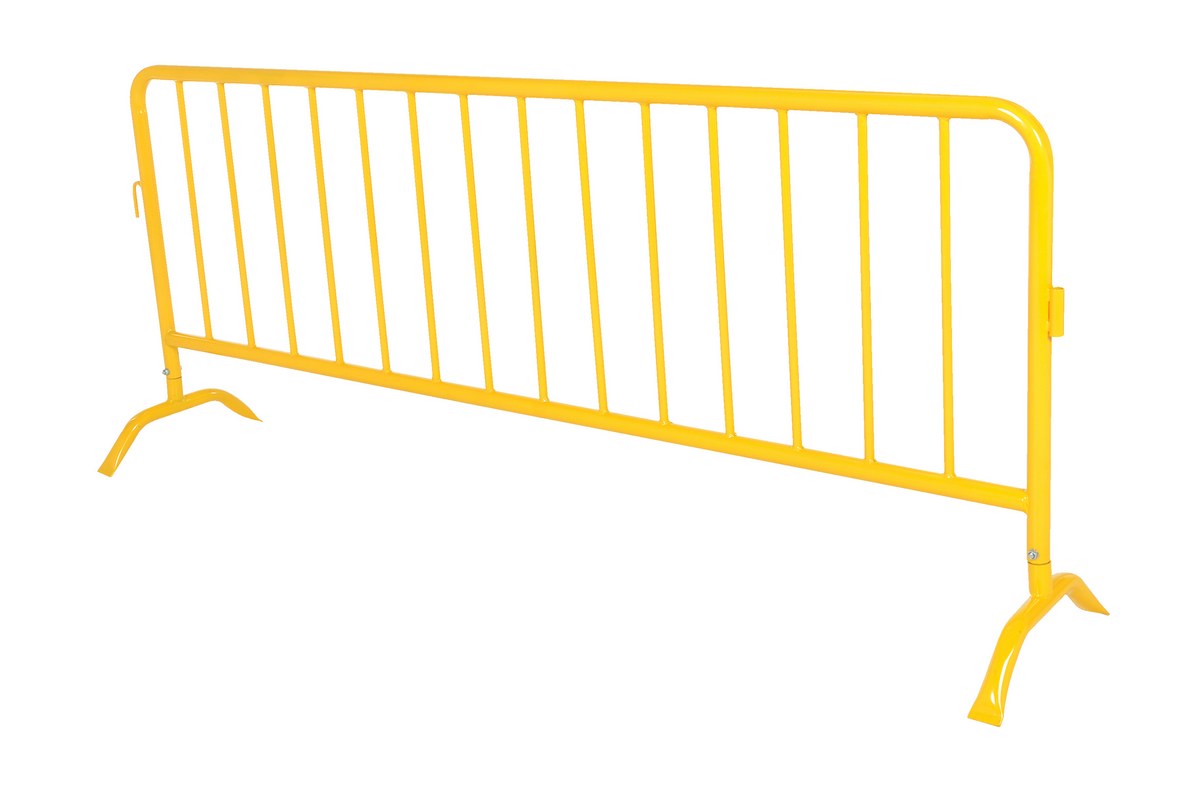

| PRAIL-102-HD-Y |  | 30 Days Limited Warranty | Steel Heavy Duty Crowd Control Interlocking Barrier with Curved Feet 101-3/4 In. Length Yellow | Vertical Bar Spacing (in.): 5-3/4 Inside Rail Diameter (in.): 3/4 | 72 | ||
| PRAIL-102-HD-Y-FF |  | 30 Days Limited Warranty | Steel Heavy Duty Crowd Control Interlocking Barrier with Flat Feet 101-3/4 In. Length Yellow | Vertical Bar Spacing (in.): 5-3/4 Inside Rail Diameter (in.): 3/4 | 72 | ||
| PRAIL-102-HD-Y-W | | 30 Days Limited Warranty | Steel Heavy Duty Crowd Control Interlocking Barrier with Feet (1) Wheeled (1) Curved 101-3/4 In. Length Yellow | Vertical Bar Spacing (in.): 5-3/4 Inside Rail Diameter (in.): 3/4 | 74 | ||

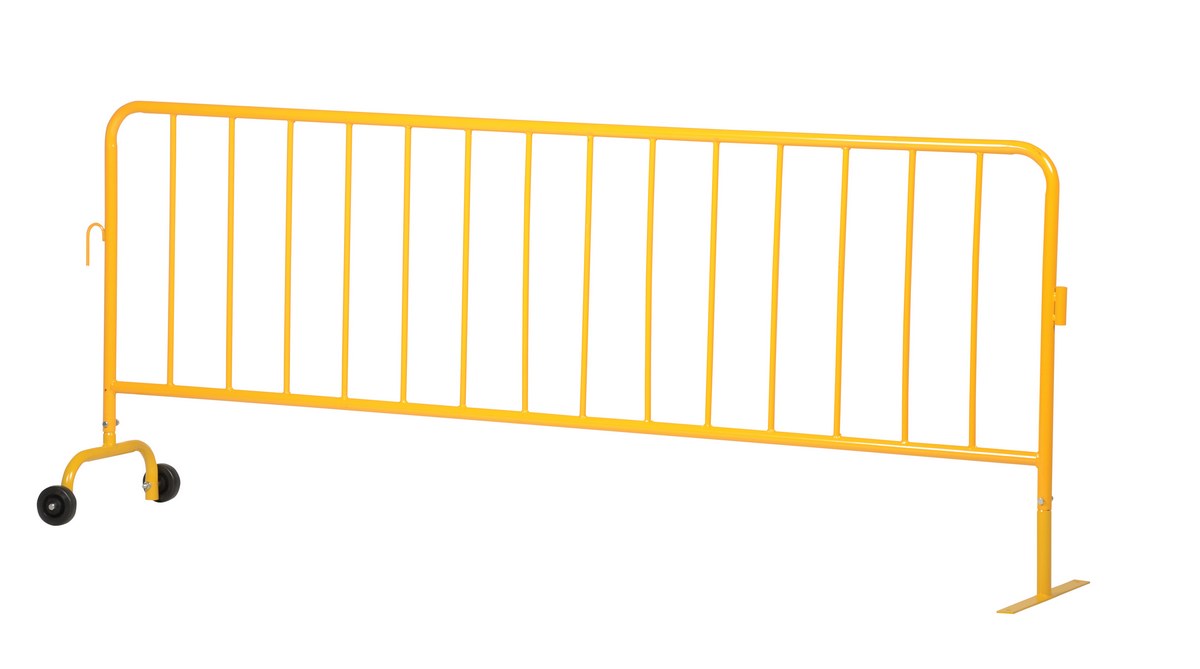

| PRAIL-102-HD-Y-WF |  | 30 Days Limited Warranty | Steel Heavy Duty Crowd Control Interlocking Barrier with Feet (1) Wheeled (1) Flat 101-3/4 In. Length Yellow | Vertical Bar Spacing (in.): 5-3/4 Inside Rail Diameter (in.): 3/4 | 72 | ||

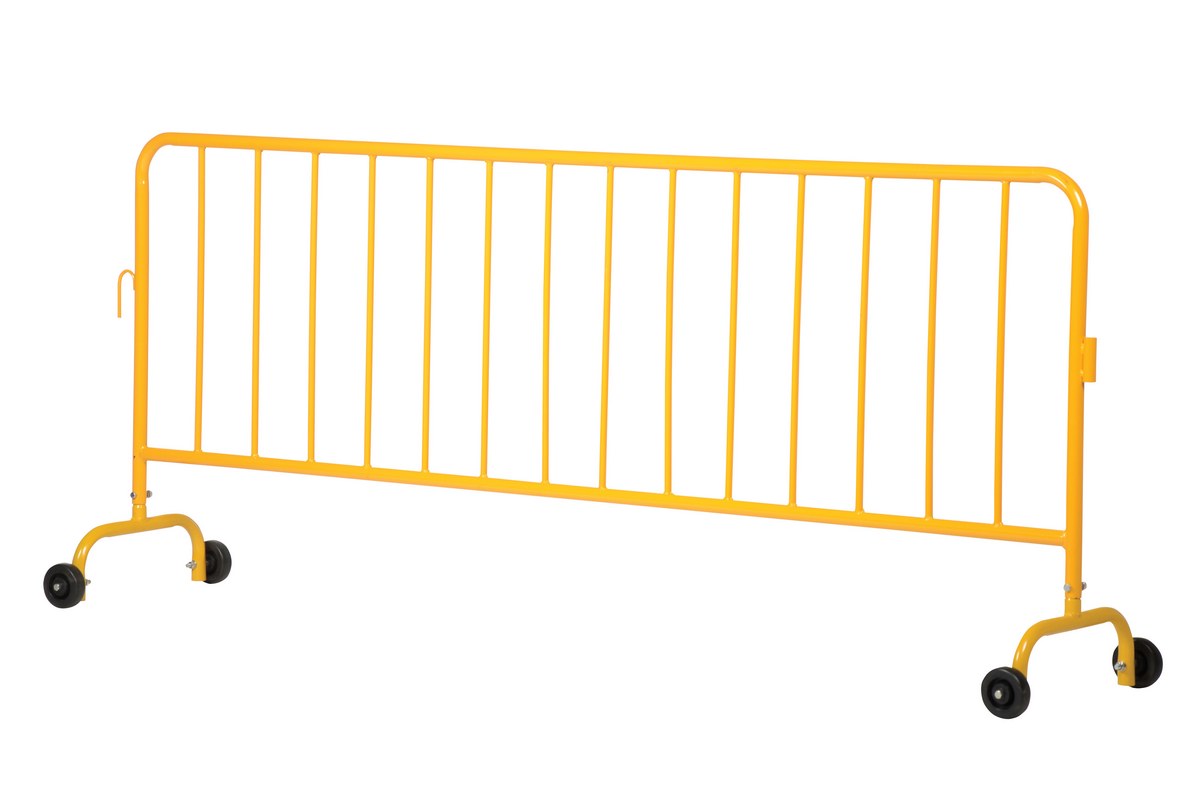

| PRAIL-102-HD-Y-WW |  | 30 Days Limited Warranty | Steel Heavy Duty Crowd Control Interlocking Barrier with Wheeled Feet 101-3/4 In. Length Yellow | Vertical Bar Spacing (in.): 5-3/4 Inside Rail Diameter (in.): 3/4 | 75 | ||
| PRAIL-102-SS |  | 30 Days Limited Warranty | 304 Stainless Steel Crowd Control Interlocking Barrier with Curved Feet 104-3/4 In. Length Silver | Vertical Bar Spacing (in.): 5-7/8 Inside Rail Diameter (in.): 5/8 | 52 | ||

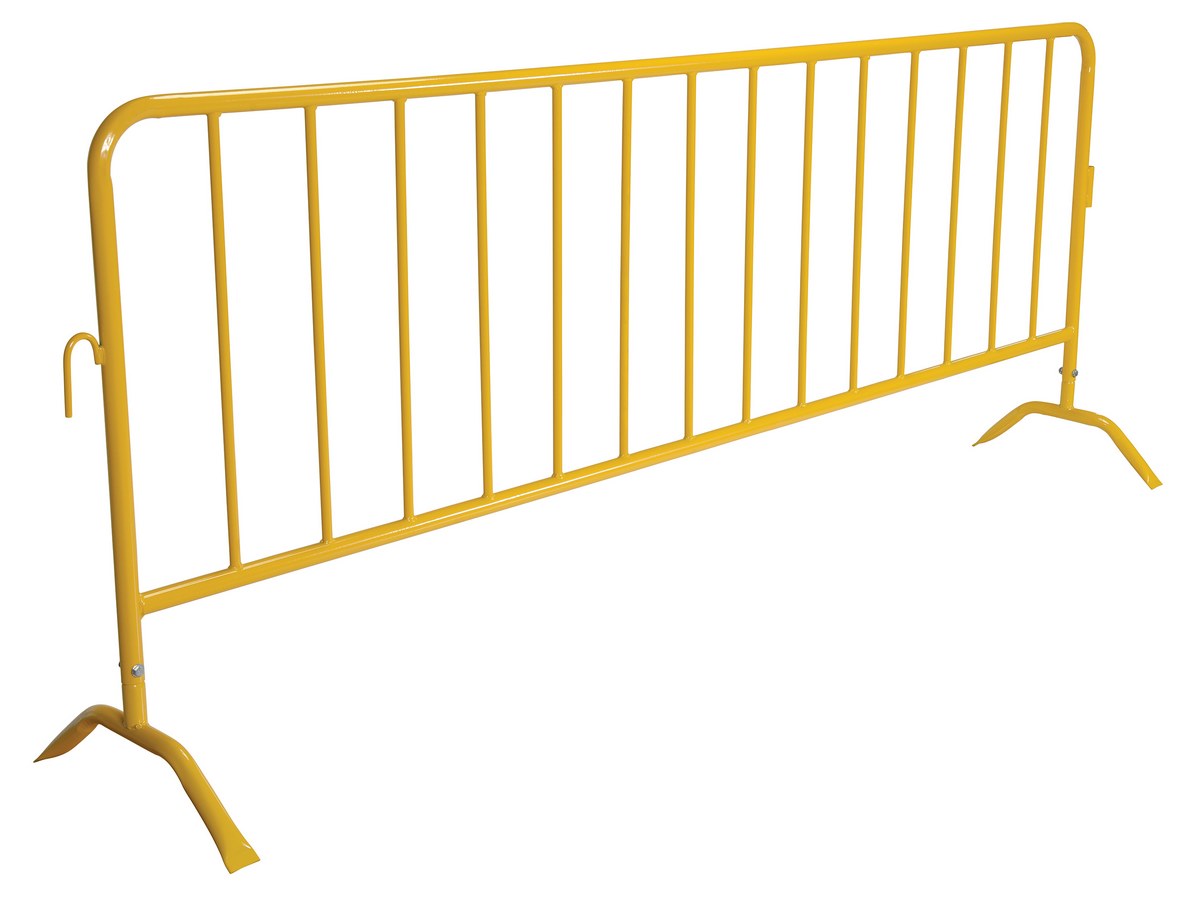

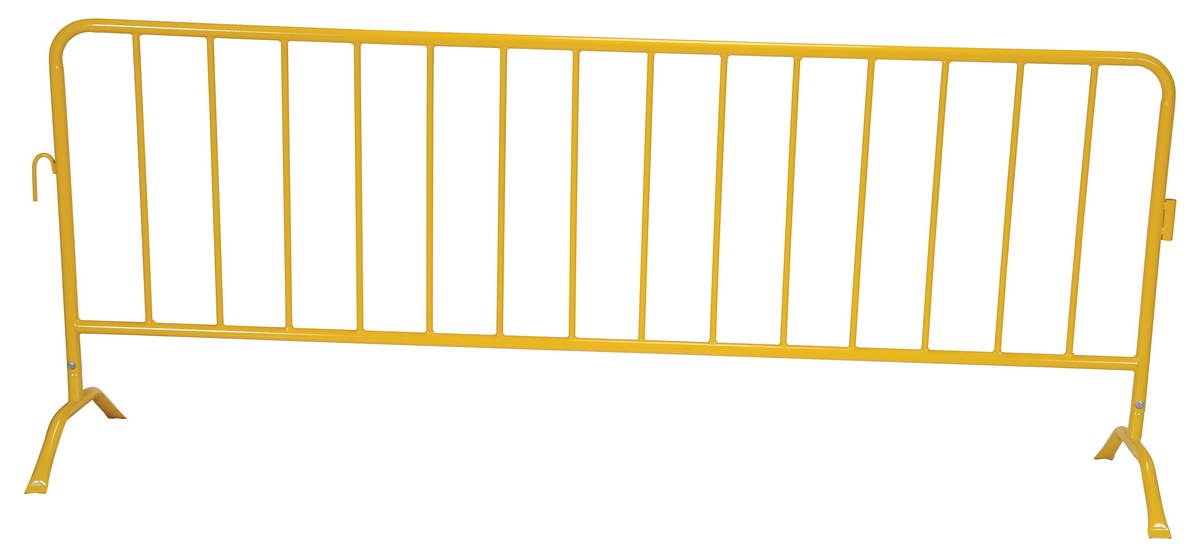

| PRAIL-102-Y | POPULAR |  | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Curved Feet 101-3/16 In. Length Yellow | Vertical Bar Spacing (in.): 5-7/8 Inside Rail Diameter (in.): 5/8 | 54 | |

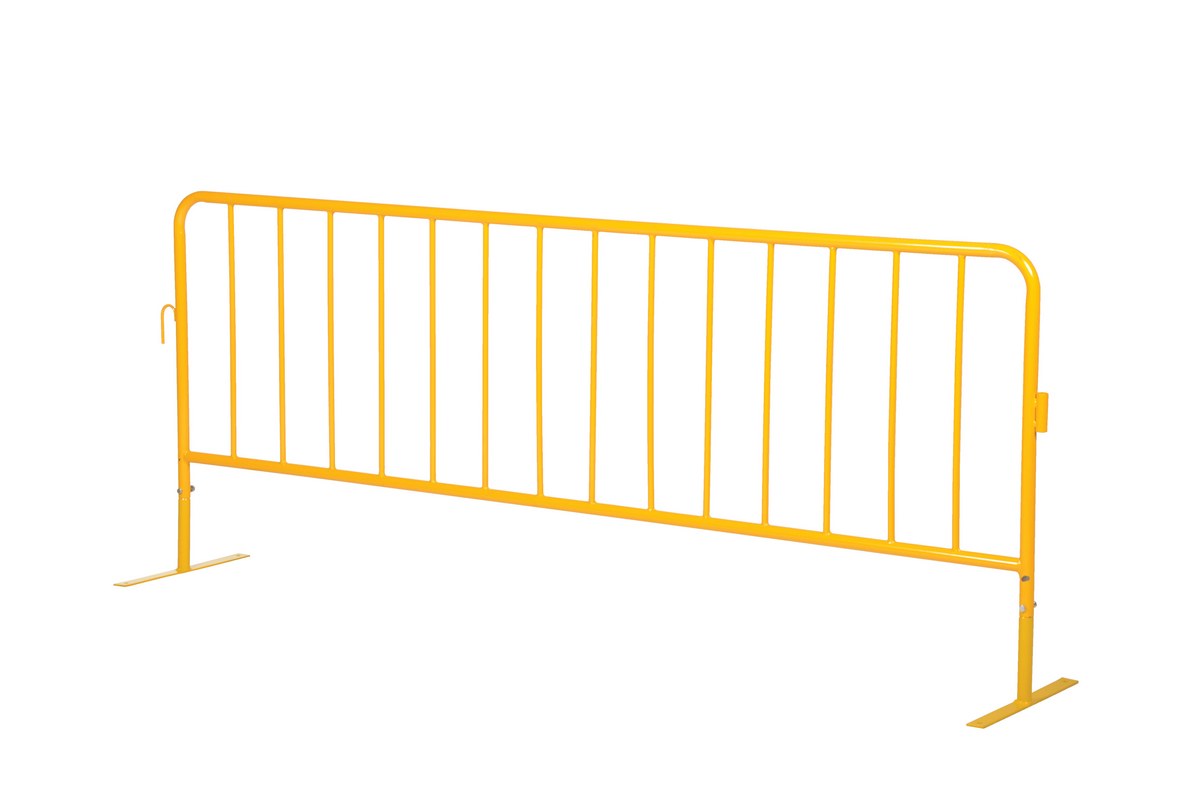

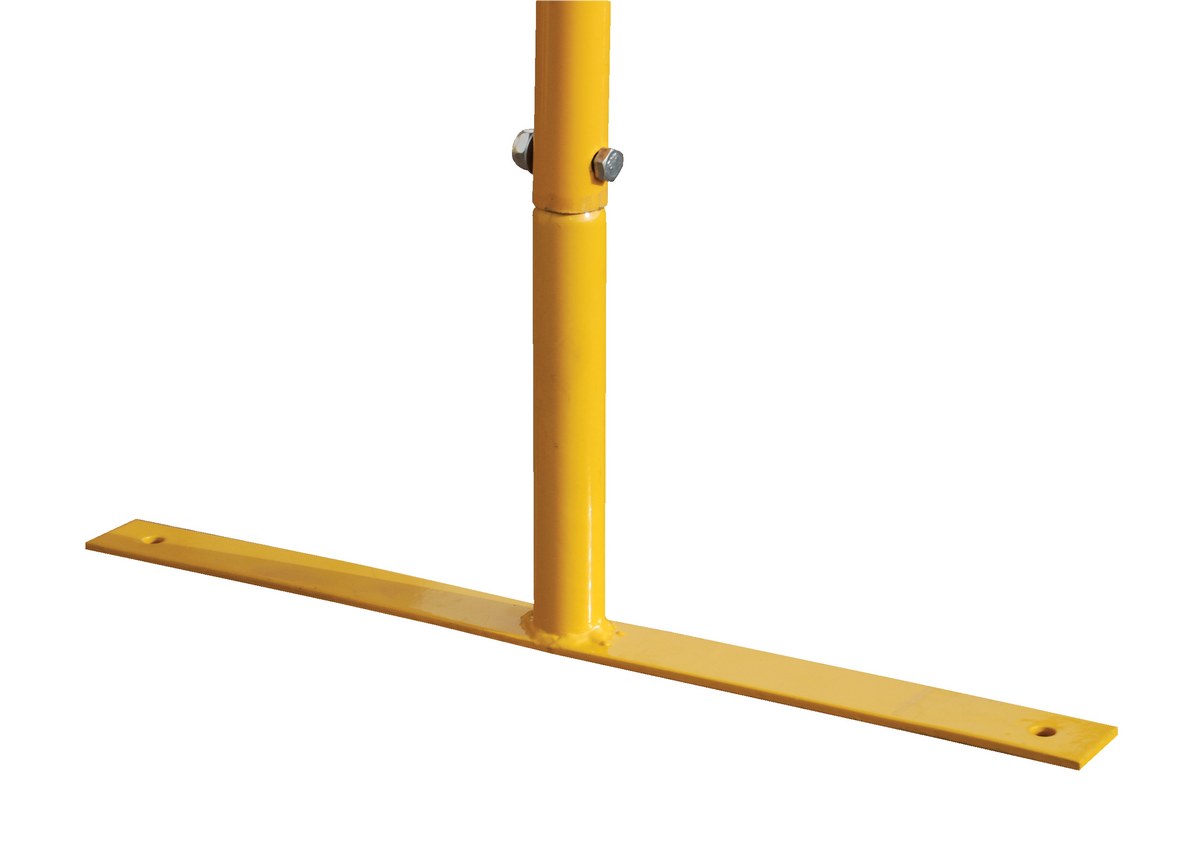

| PRAIL-102-Y-FF |  | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Flat Feet 101-3/16 In. Length Yellow | Vertical Bar Spacing (in.): 5-7/8 Inside Rail Diameter (in.): 5/8 | 54 | ||

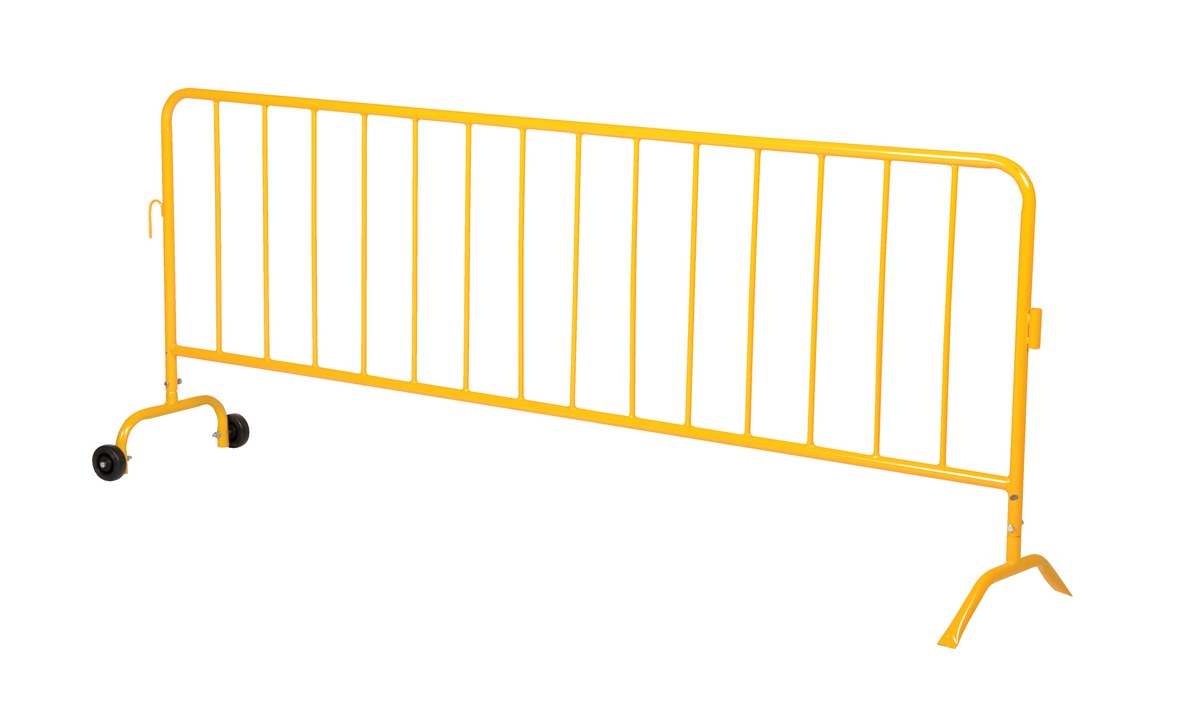

| PRAIL-102-Y-W |  | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Feet (1) Wheeled (1) Curved 101-3/16 In. Length Yellow | Vertical Bar Spacing (in.): 5-7/8 Inside Rail Diameter (in.): 5/8 | 55 | ||
| PRAIL-102-Y-WF | | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Feet (1) Wheeled (1) Flat 101-3/16 In. Length Yellow | Vertical Bar Spacing (in.): 5-7/8 Inside Rail Diameter (in.): 5/8 | 56 | ||
| PRAIL-102-Y-WW |  | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Wheeled Feet 101-3/16 In. Length Yellow | Vertical Bar Spacing (in.): 5-7/8 Inside Rail Diameter (in.): 5/8 | 56 | ||

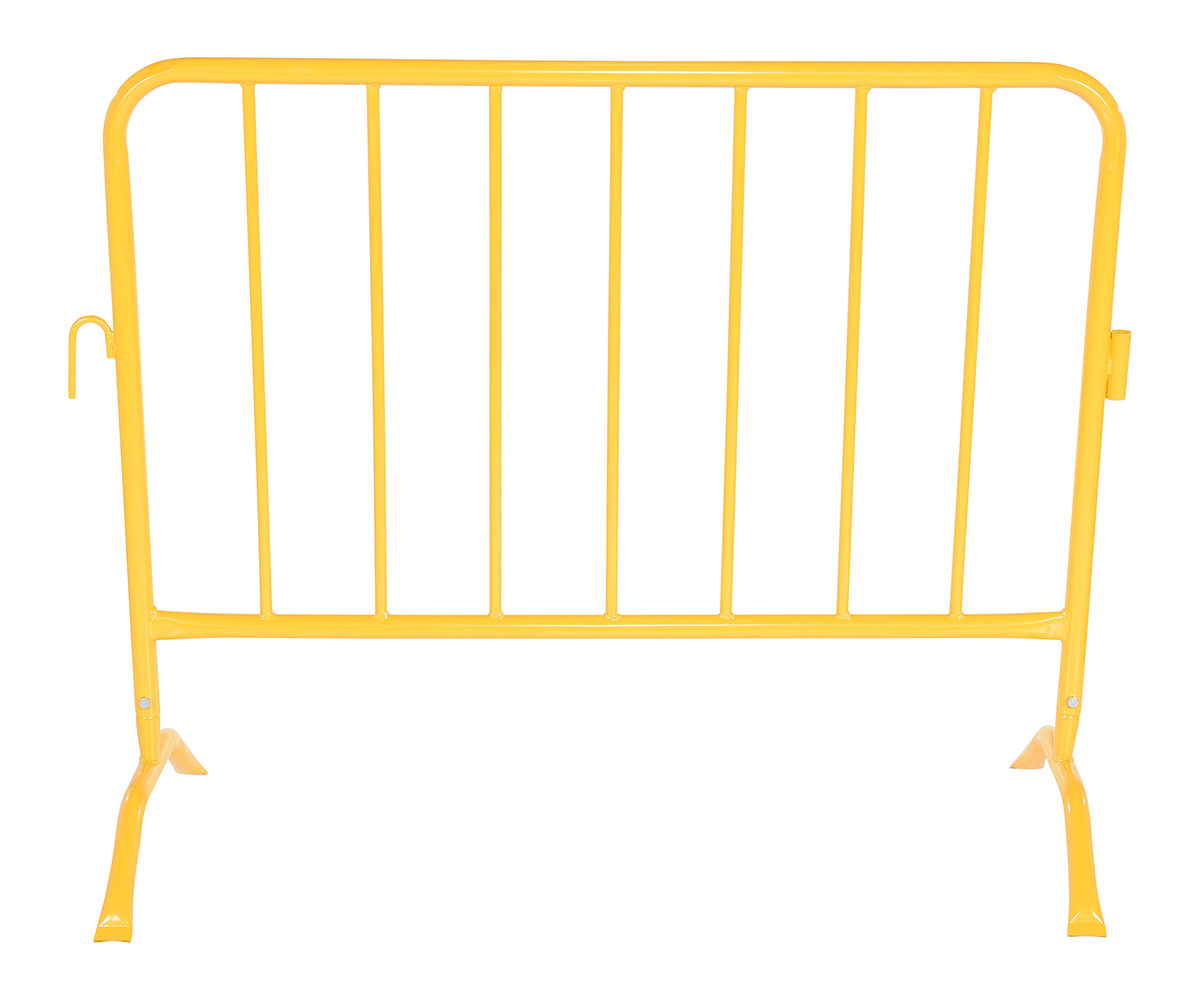

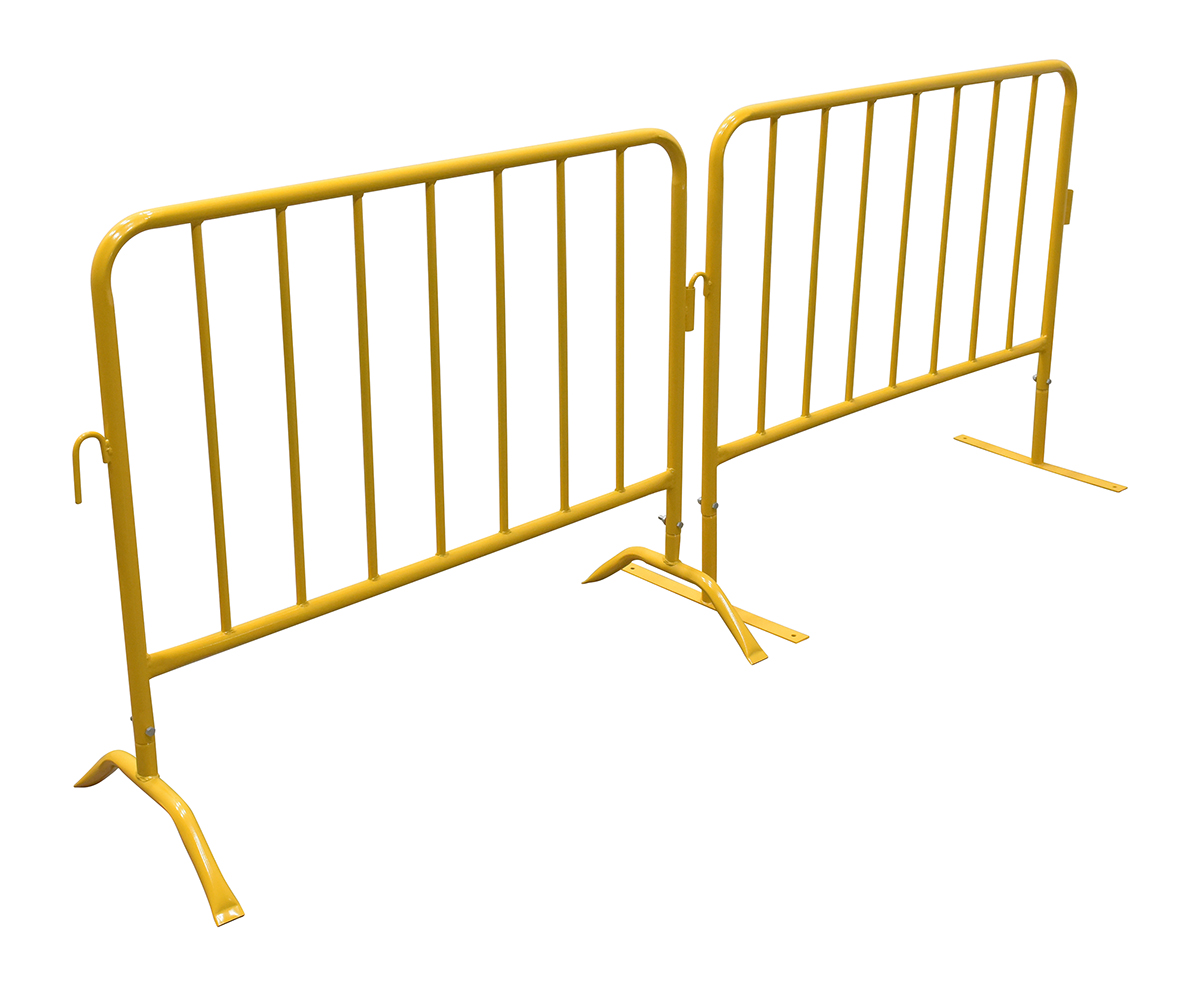

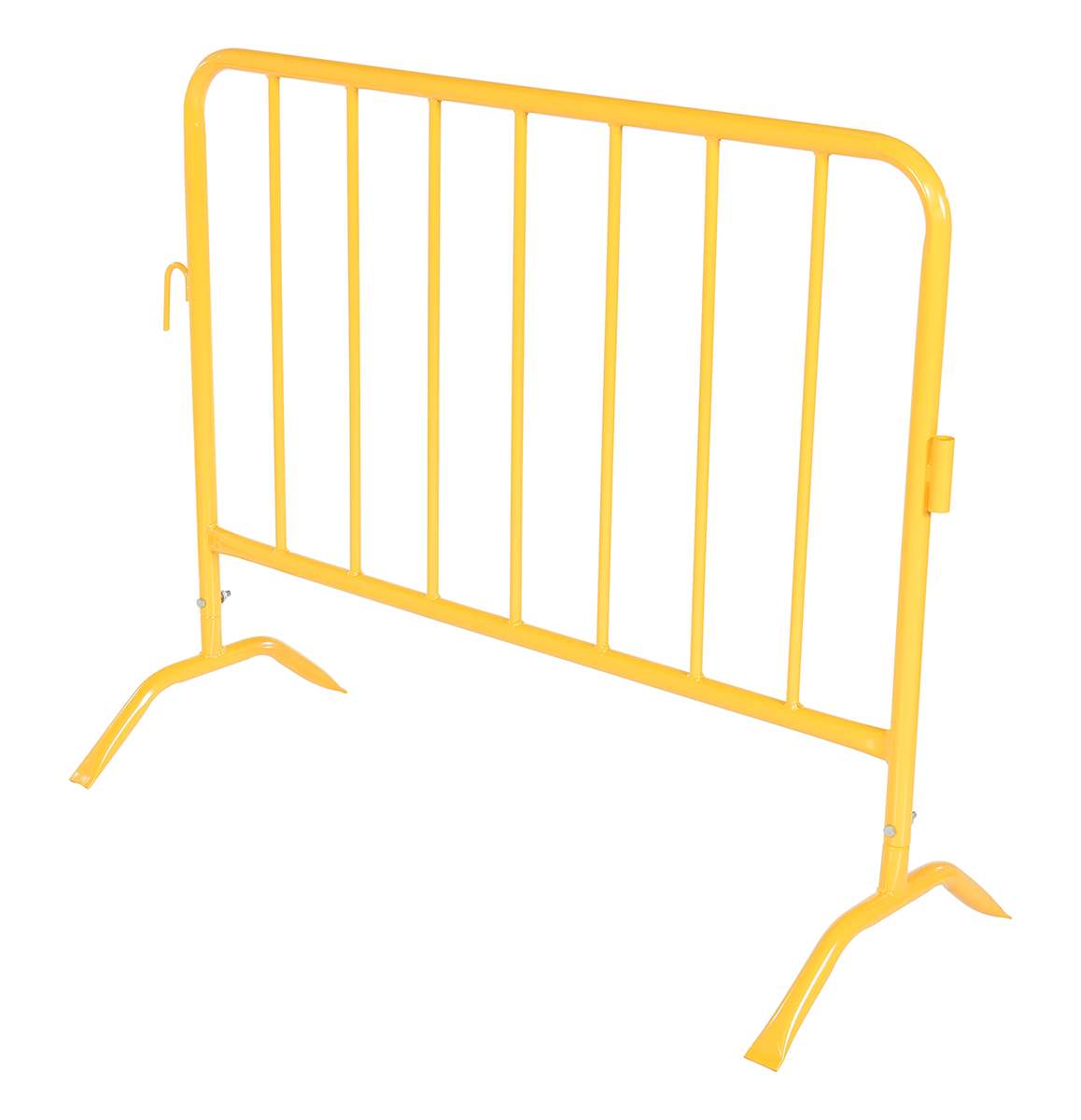

| PRAIL-48-Y |  | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Curved Feet 47-1/2 In. Length Yellow | Adjustable Length: No Adjustable Width: No | 46 | ||

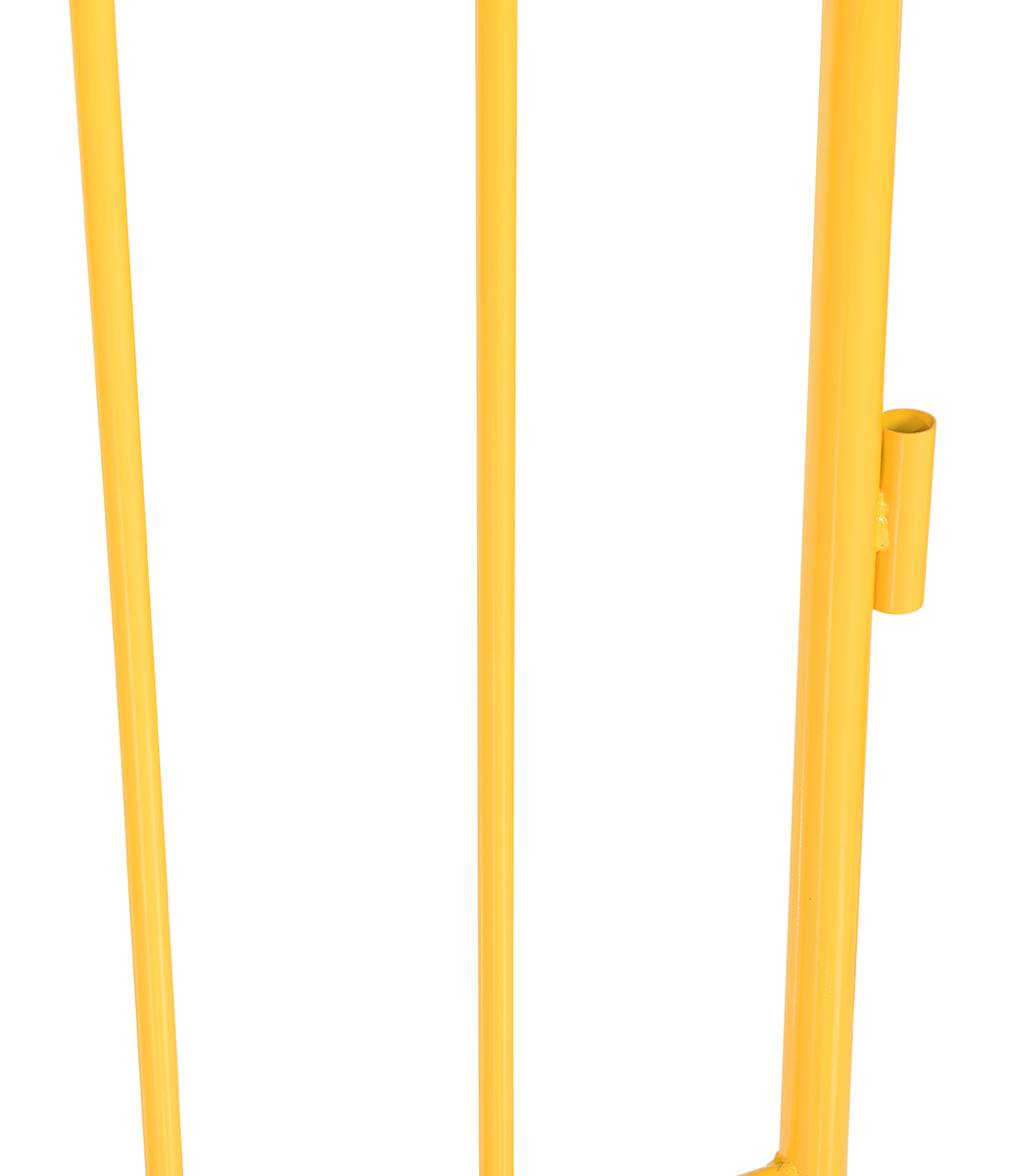

| PRAIL-48-Y-FF |  | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Flat Feet 47-1/2 In. Length Yellow | Adjustable Length: No Adjustable Width: No | 50 | ||

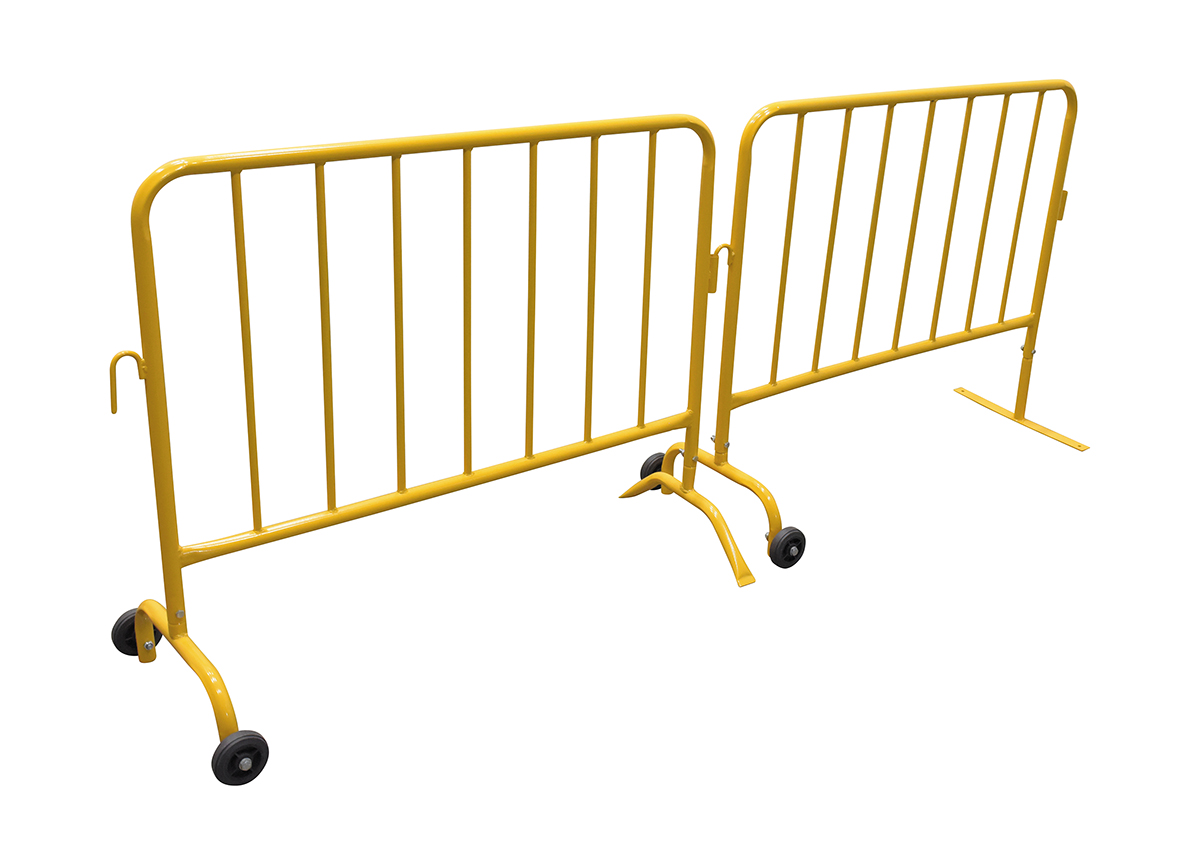

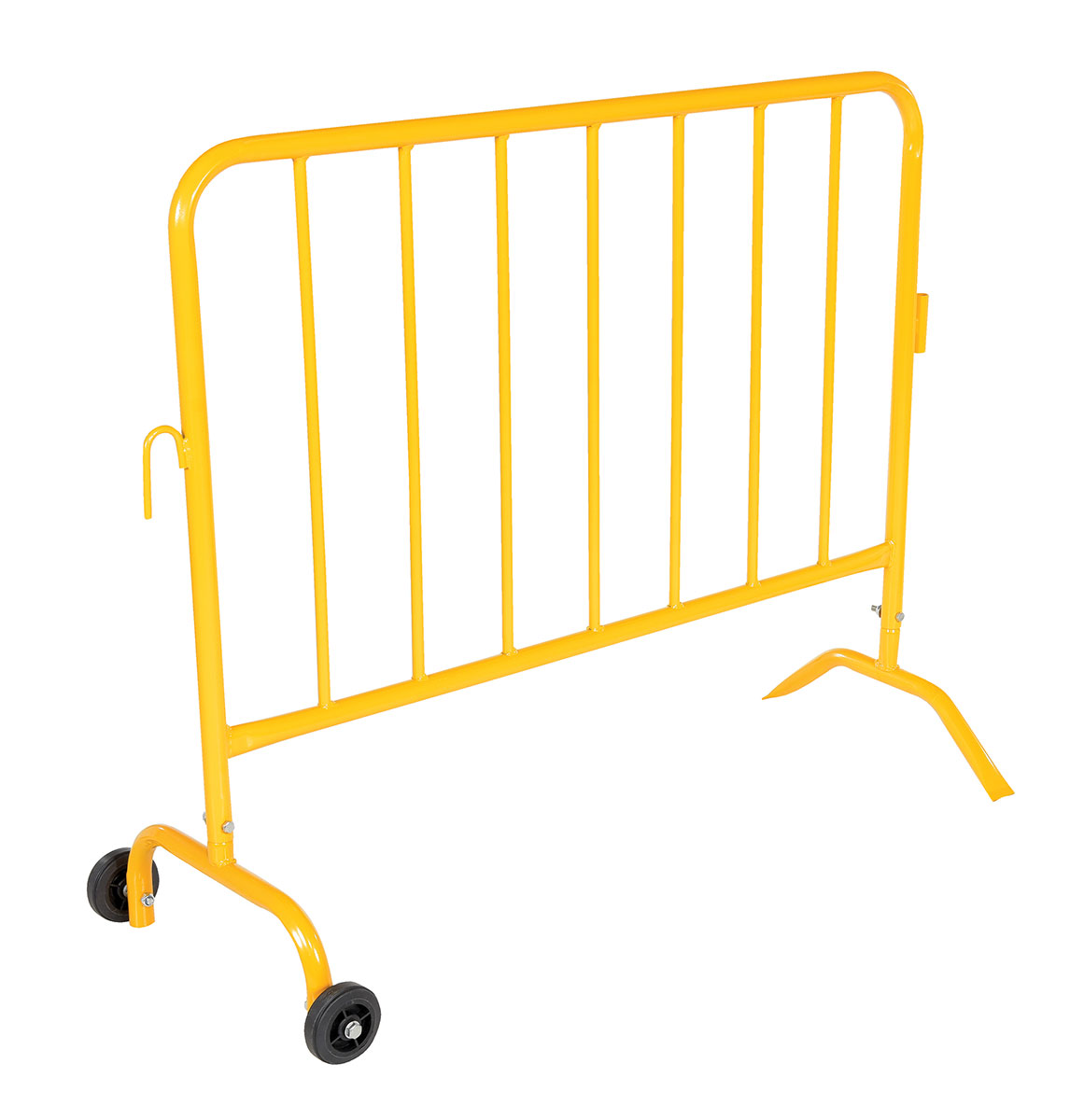

| PRAIL-48-Y-W |  | 30 Days Limited Warranty | Steel Crowd Control Interlocking Barrier with Feet (1) Wheeled (1) Curved 47-1/2 In. Length Yellow | Casters: (2) Rigid 3-3/4"x1-1/4" | 47 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The PRAIL is 14 gauge steel.
A: The PRAIL-CT-1 holds approximately 60 rails.
A: The measurement is 26-1/4".
Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
