Magnetic Spreader Beams

- - - -

Description
Model Chart
PDF's
Image Gallery

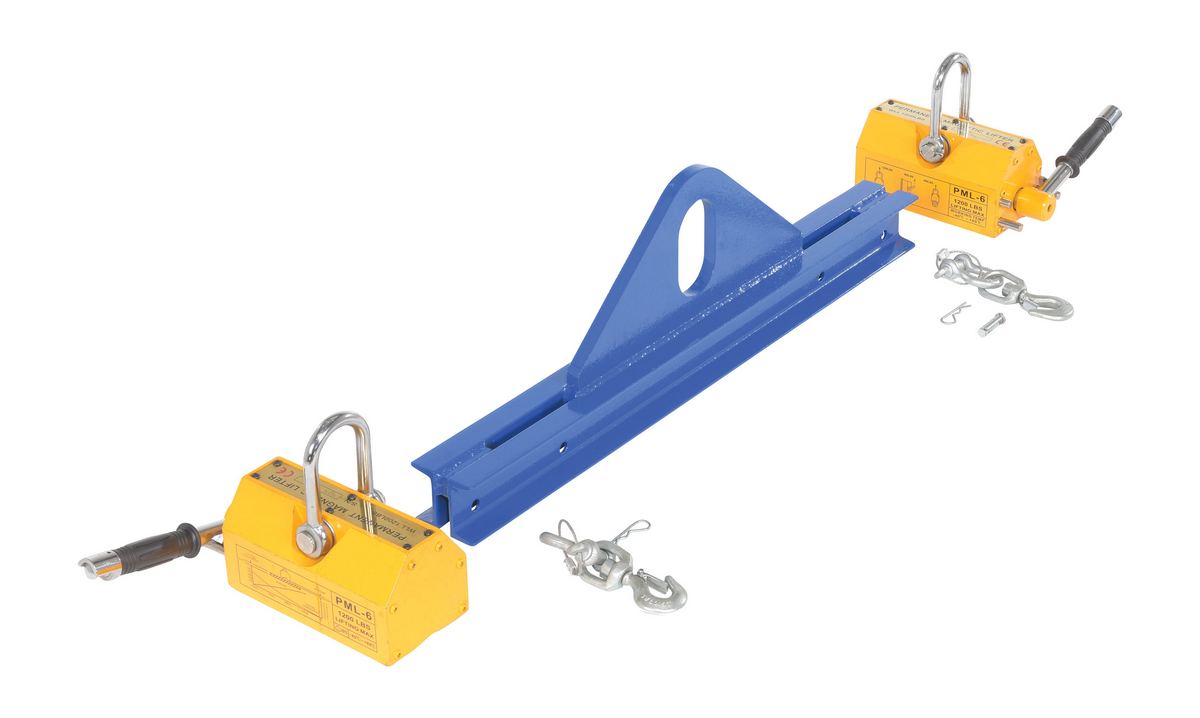

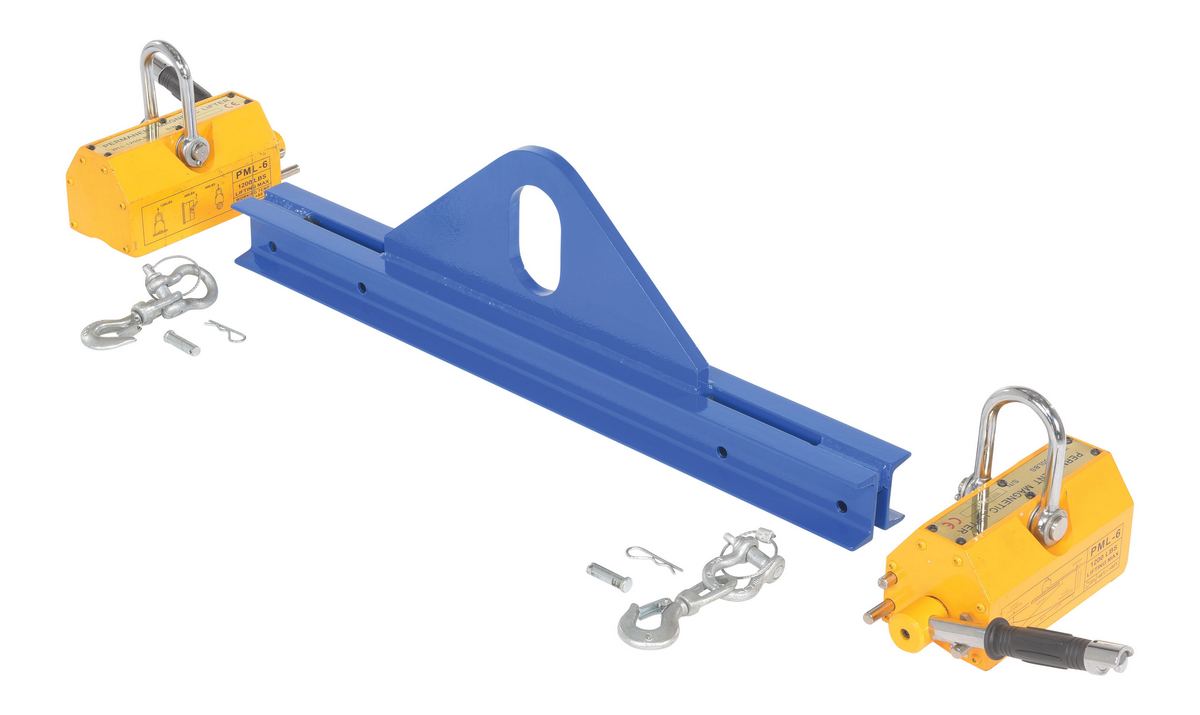

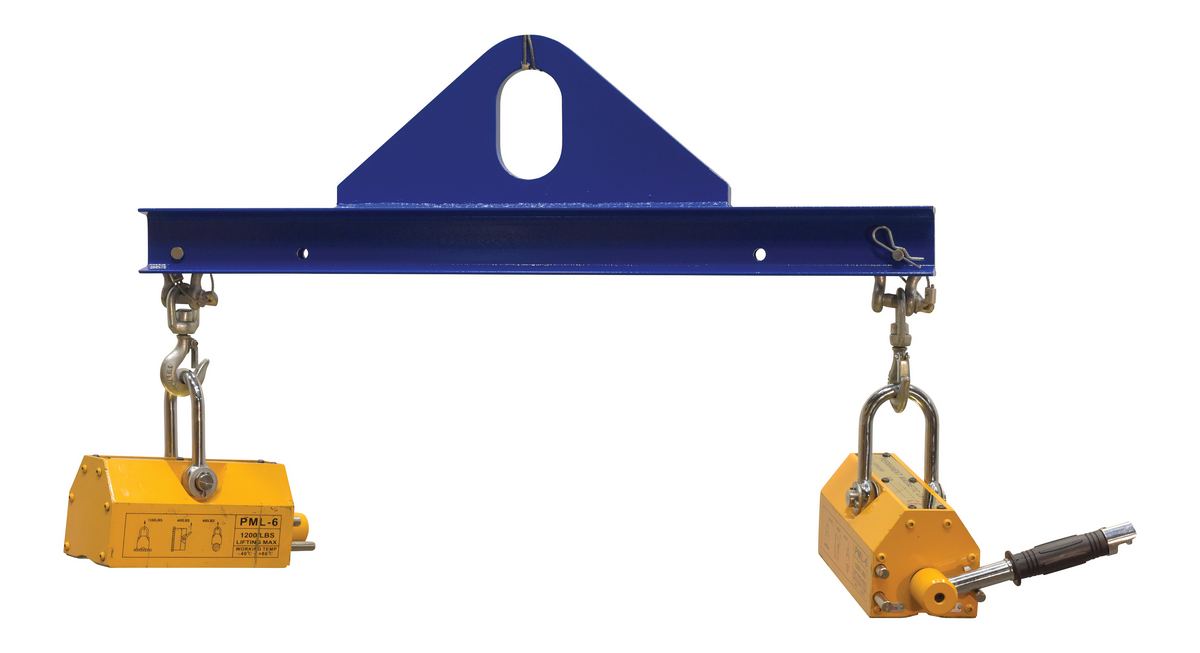

SBM-20-3-ML_A.jpg SBM-20-3-ML_B.jpg SBM-20-3-ML_C.jpg SBM-20-3-ML_D.jpg
SBM-20-3-ML_E.jpg SBM-20-3-ML_F.jpg SBM-20-3-ML_G.jpg SBM-20-3-ML_H.jpg
Magnetic Spreader Beams

model: SBM-20-3-ML



Magnetic Spreader Beams

model: SBM-20-3-ML

Featured Overhead Lifting


Crane Scales
Fixed Height Steel Gantry Cranes - Knockdown
Tripod Hoist Stands
Spreader Beam Roll Lifter
Winch Operated Truck Jib Cranes
Long Reach Cable Pullers
High Speed Electric Chain Hoist
Vacuum Move Lifter
Fixed Height Steel Gantry Cranes with Total Locking Casters - Knockdown
model chart

Product Family Overview

Print Friendly
Magnetic Spreader Beams
SERIES: SBM-ML

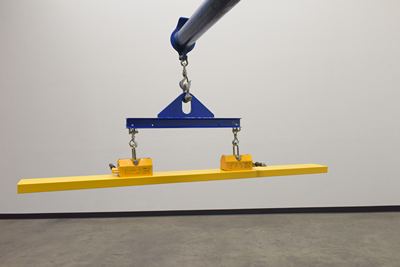

This versatile magnetic Spreader Beam is ideal for lifting a variety of loads where headroom is limited. The attached magnets allow for easy lifting and transferring of products from workstation to workstation. Powder coated finish limits abrasion and ads durability to the units' longevity.

  • Designed to lift and move awkward loads
  • Large capacity for moving objects both big and small
  • Includes magnets for lifting versatility
  • Steel construction for heavy duty performance

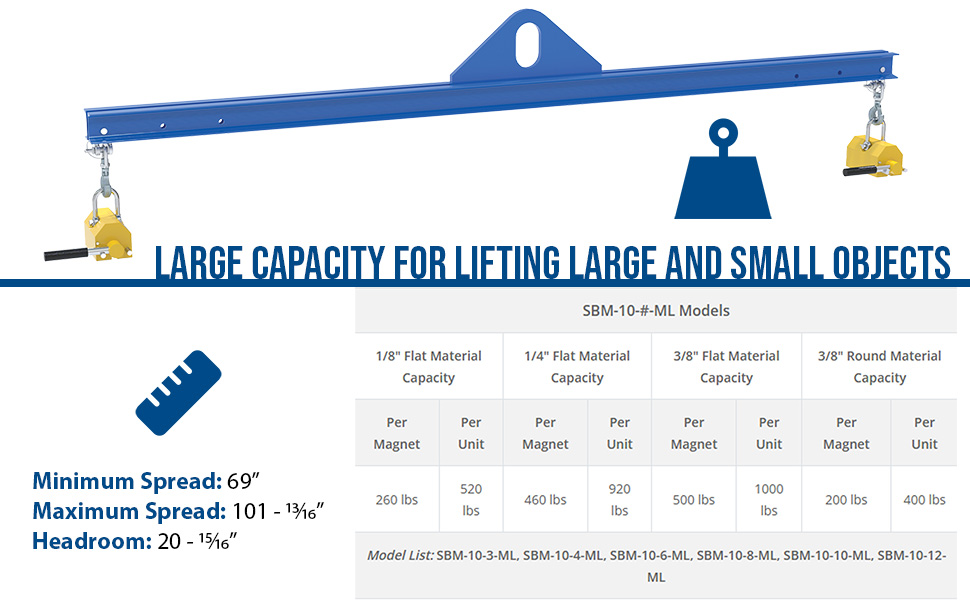

SBM-10-#-ML Models
1/8" Flat Material Capacity 1/4" Flat Material Capacity 3/8" Flat Material Capacity 3/8" Round Material Capacity
Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit
260 lbs 520 lbs 460 lbs 920 lbs 500 lbs 1000 lbs 200 lbs 400 lbs
Model List: SBM-10-3-ML, SBM-10-4-ML, SBM-10-6-ML, SBM-10-8-ML, SBM-10-10-ML, SBM-10-12-ML
SBM-20-#-ML Models
1/4" Flat Material Capacity 3/8" Flat Material Capacity 5/8" Flat Material Capacity 1" Flat Material Capacity 1" Round Material Capacity
Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit
520 lbs 1040 lbs 790 lbs 1580 lbs 1000 lbs 2000 lbs 1000 lbs 2000 lbs 400 lbs 800 lbs
Model List: SBM-20-3-ML, SBM-20-4-ML, SBM-20-6-ML, SBM-20-8-ML, SBM-20-10-ML, SBM-20-12-ML

This versatile magnetic Spreader Beam is ideal for lifting a variety of loads where headroom is limited. The attached magnets allow for easy lifting and transferring of products from workstation to workstation. Powder coated finish limits abrasion and ads durability to the units' longevity.

  • Designed to lift and move awkward loads
  • Large capacity for moving objects both big and small
  • Includes magnets for lifting versatility
  • Steel construction for heavy duty performance
SBM-10-#-ML Models
1/8" Flat Material Capacity 1/4" Flat Material Capacity 3/8" Flat Material Capacity 3/8" Round Material Capacity
Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit
260 lbs 520 lbs 460 lbs 920 lbs 500 lbs 1000 lbs 200 lbs 400 lbs
Model List: SBM-10-3-ML, SBM-10-4-ML, SBM-10-6-ML, SBM-10-8-ML, SBM-10-10-ML, SBM-10-12-ML
SBM-20-#-ML Models
1/4" Flat Material Capacity 3/8" Flat Material Capacity 5/8" Flat Material Capacity 1" Flat Material Capacity 1" Round Material Capacity
Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit
520 lbs 1040 lbs 790 lbs 1580 lbs 1000 lbs 2000 lbs 1000 lbs 2000 lbs 400 lbs 800 lbs
Model List: SBM-20-3-ML, SBM-20-4-ML, SBM-20-6-ML, SBM-20-8-ML, SBM-20-10-ML, SBM-20-12-ML

Other Spreader Beams

 Magnetic Spreader Beams Basket Lifting Beam Spreader Beam With Adjustable Hand Chain Crank Bail Economy Spreader Beams

Additional Models In This Family
view entire Image Gallery

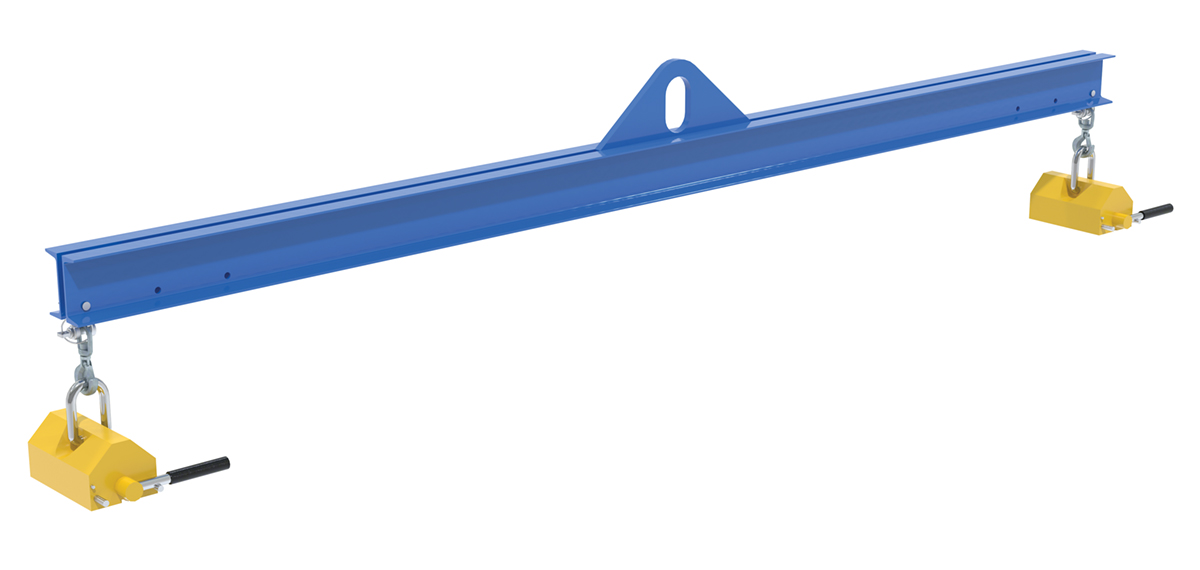

SBM-20-10-ML

SBM-20-10-ML

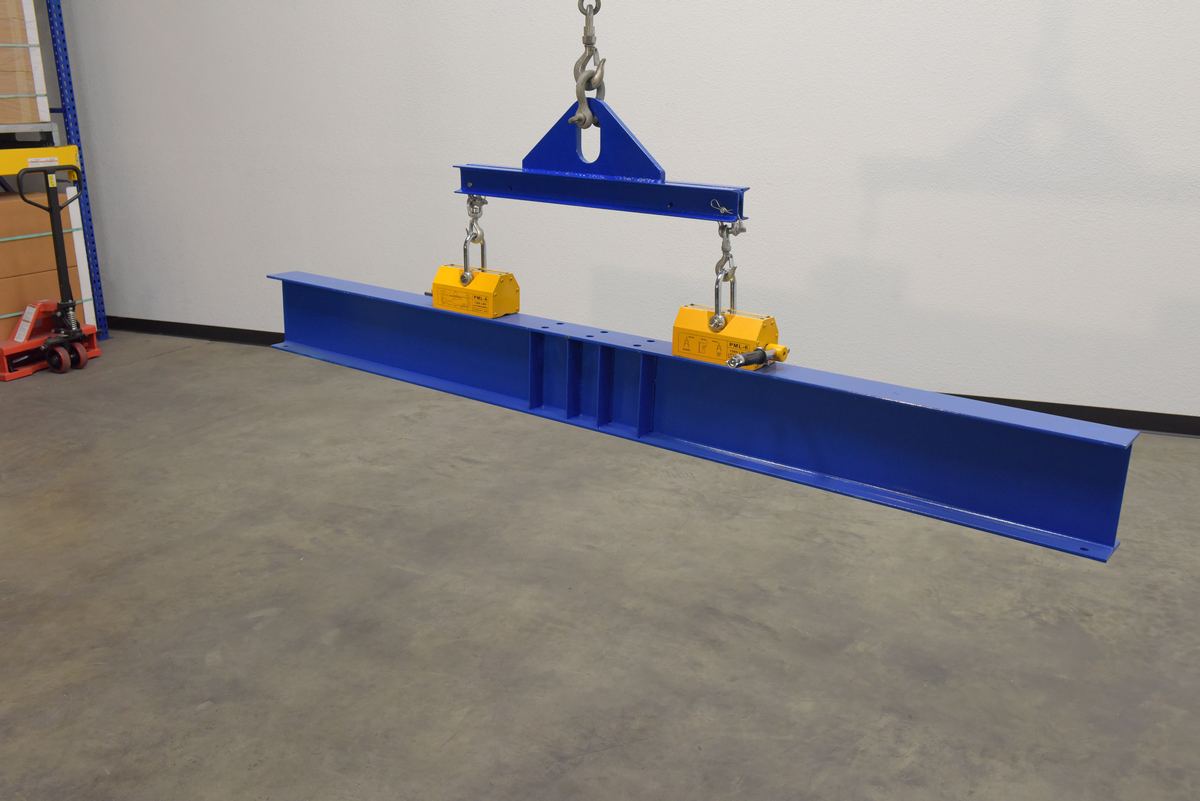

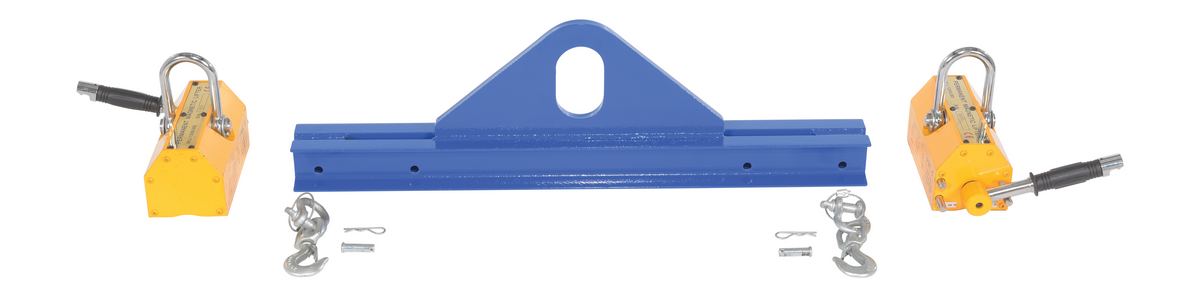

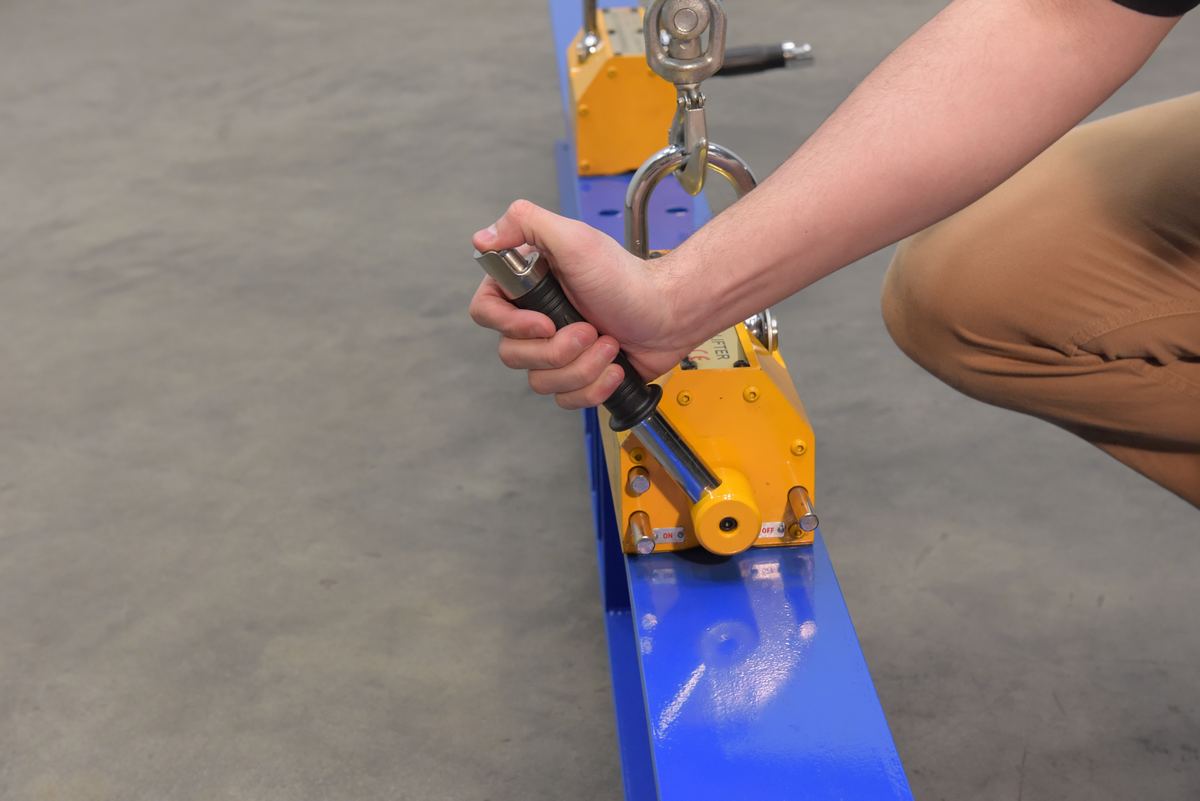

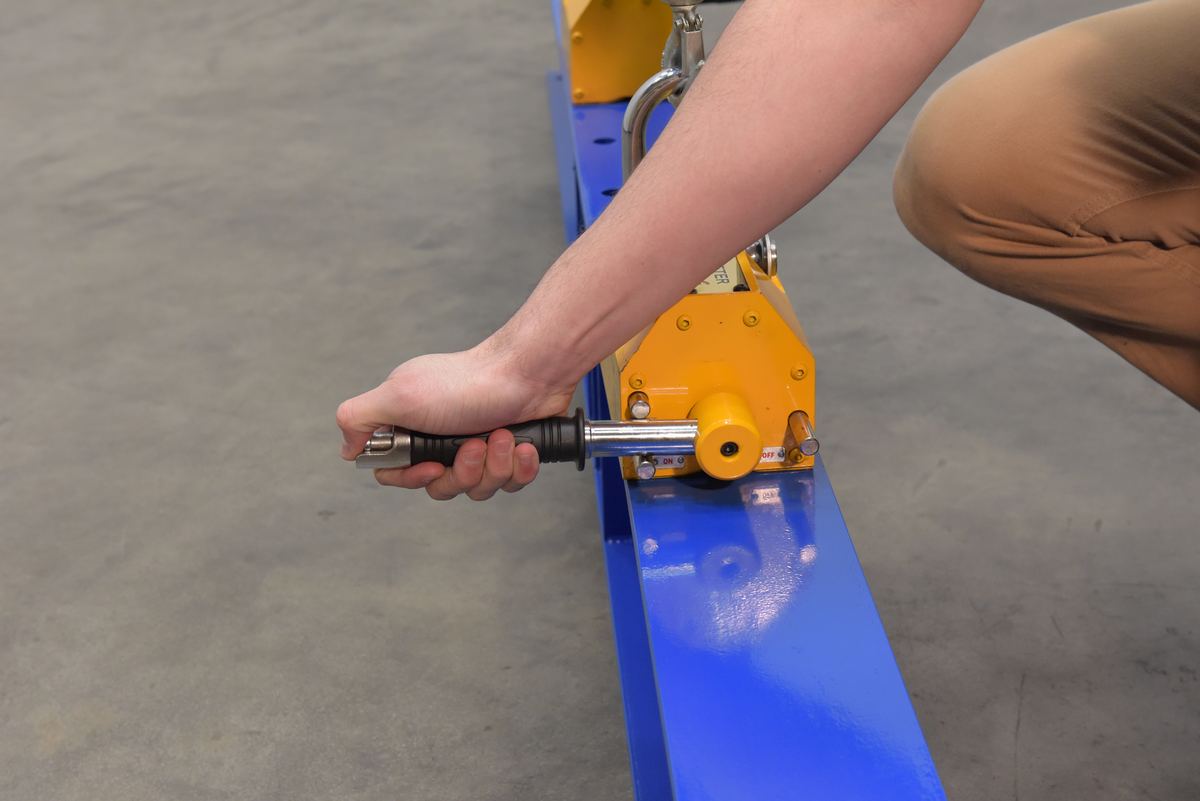

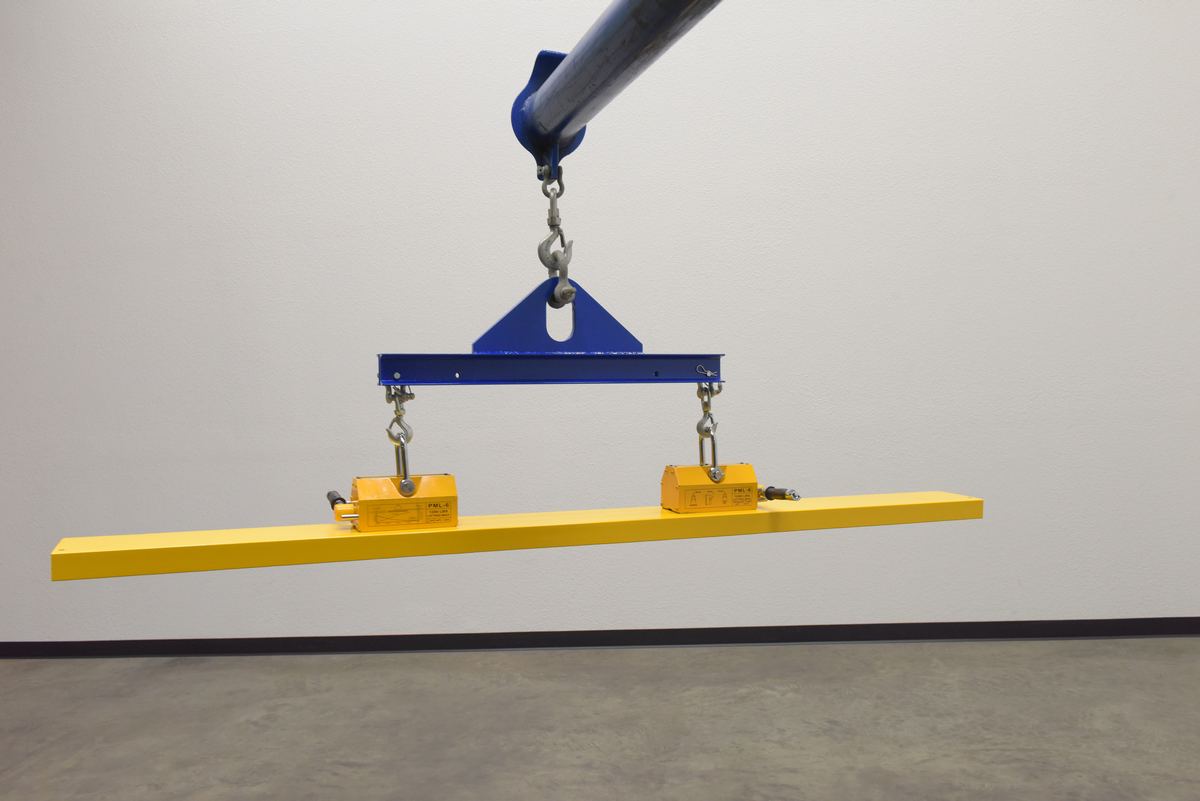

SBM-20-3-ML

SBM-20-3-ML

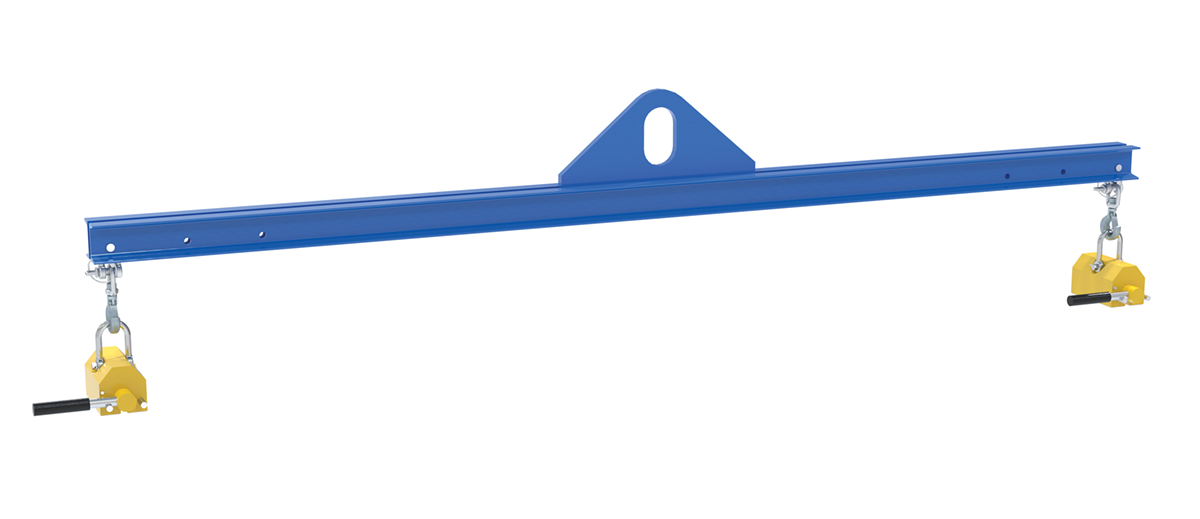

SBM-10-8-ML

SBM-10-8-ML

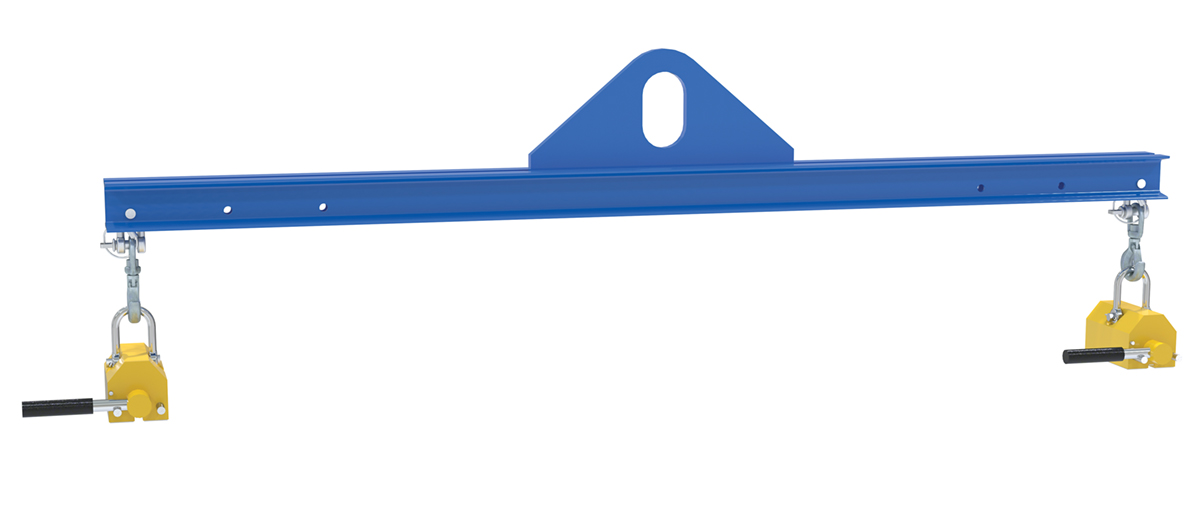

SBM-10-6-ML

SBM-10-6-ML

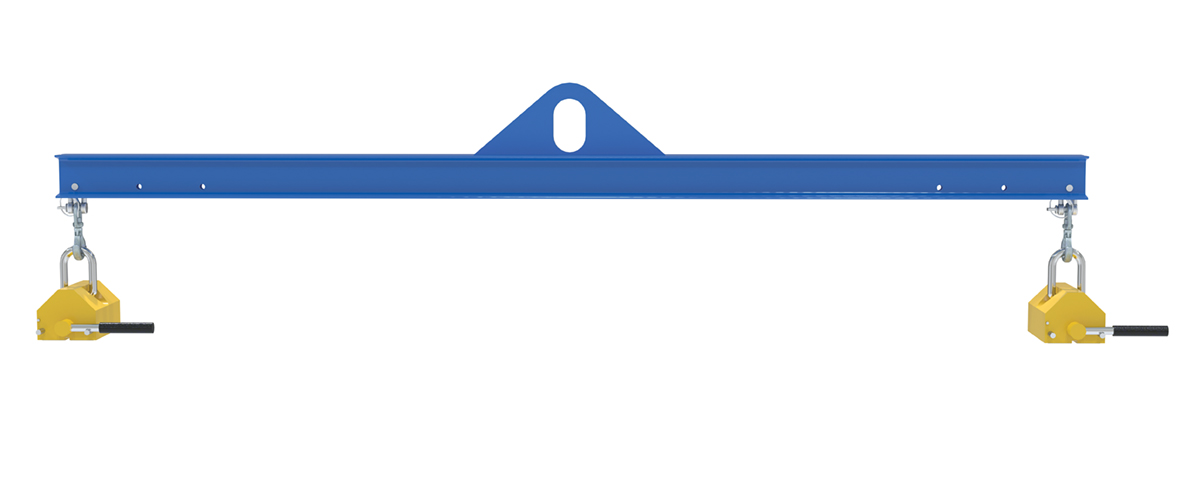

SBM-20-8-ML

SBM-20-8-ML

SBM-20-3-ML

SBM-20-3-ML

SBM-20-3-ML

SBM-20-3-ML

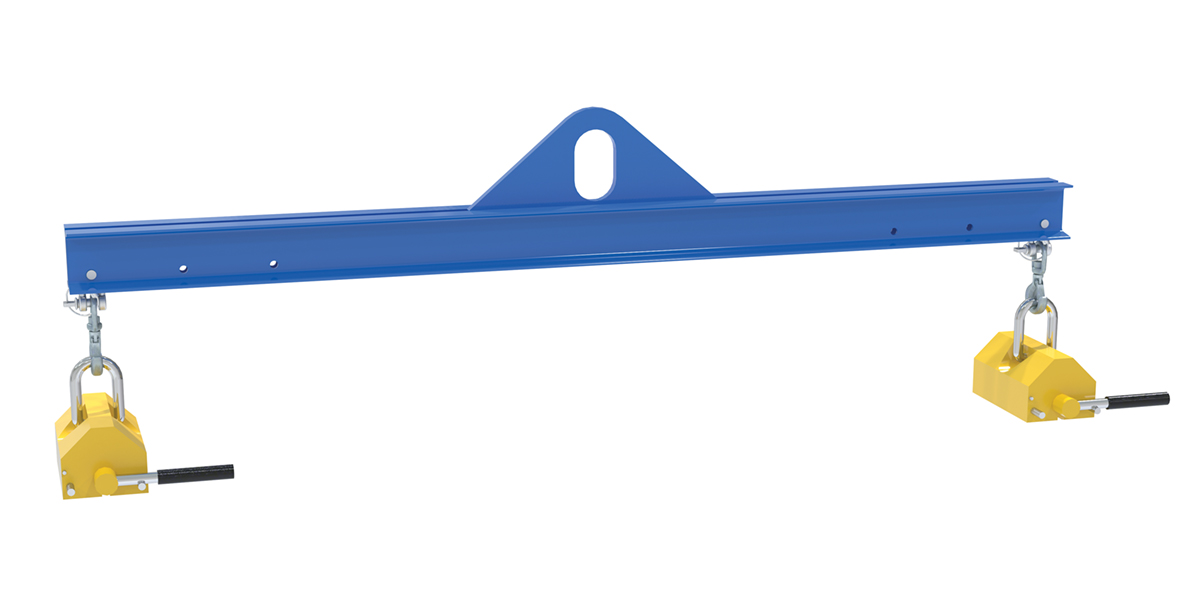

SBM-20-6-ML

SBM-20-6-ML

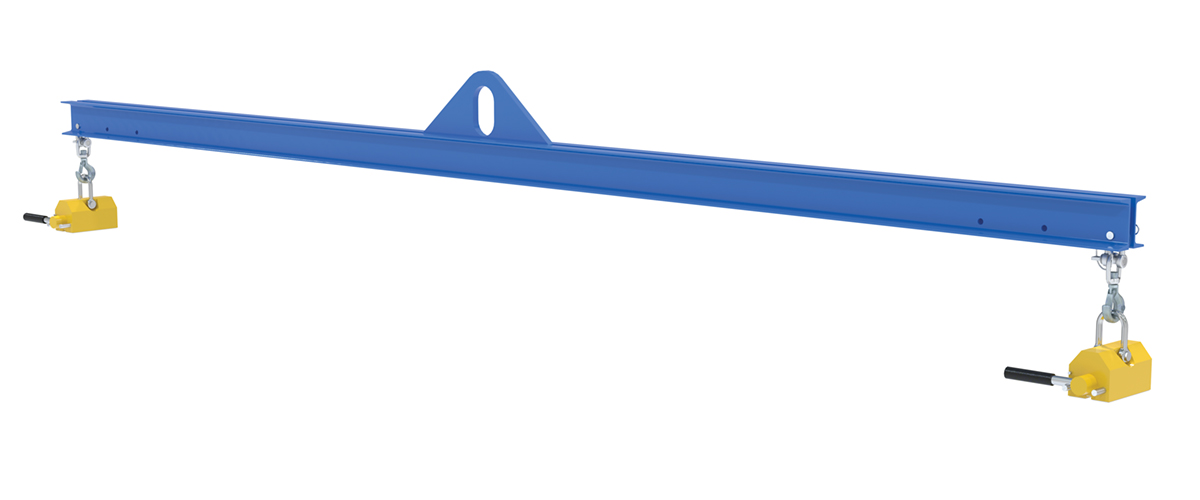

SBM-10-12-ML

SBM-10-12-ML

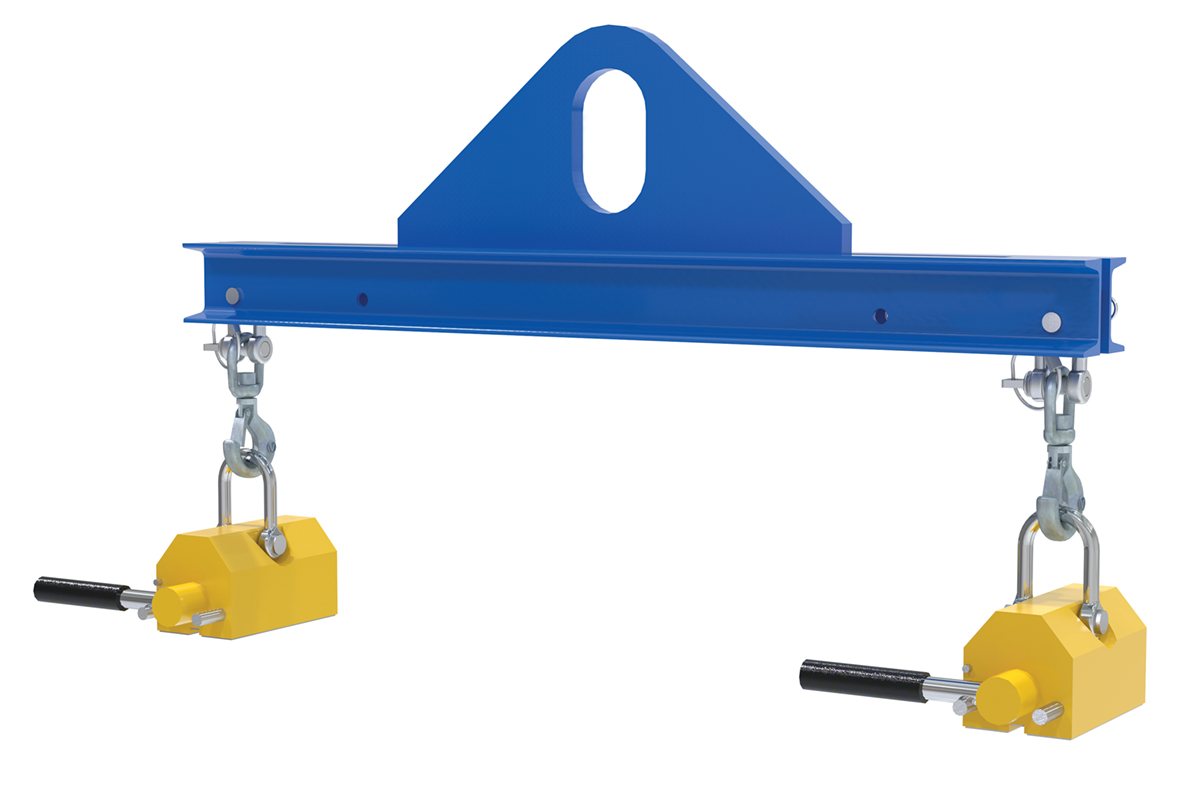

SBM-10-3-ML

SBM-10-3-ML

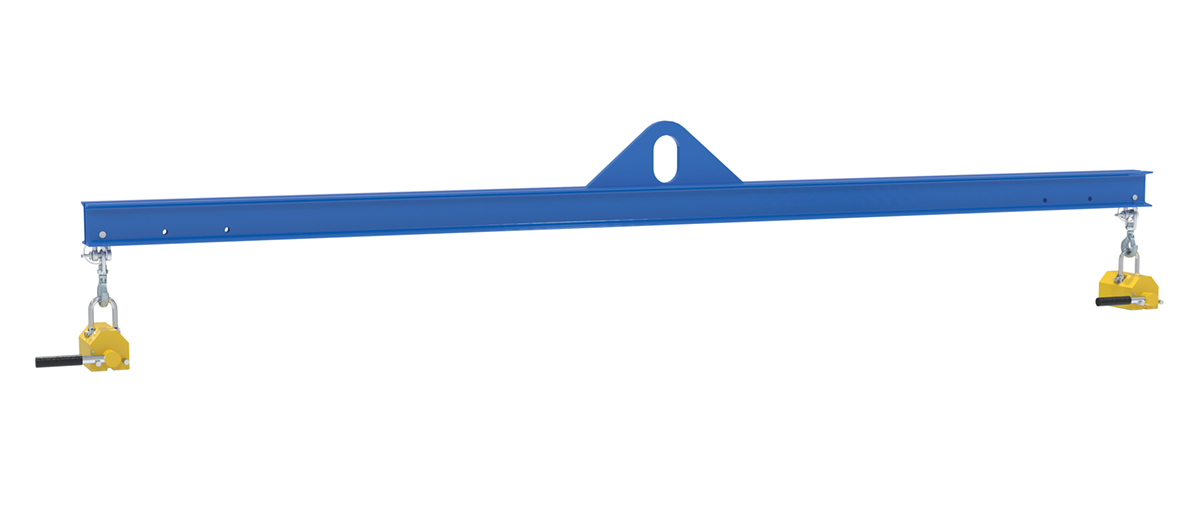

SBM-10-10-ML

SBM-10-10-ML

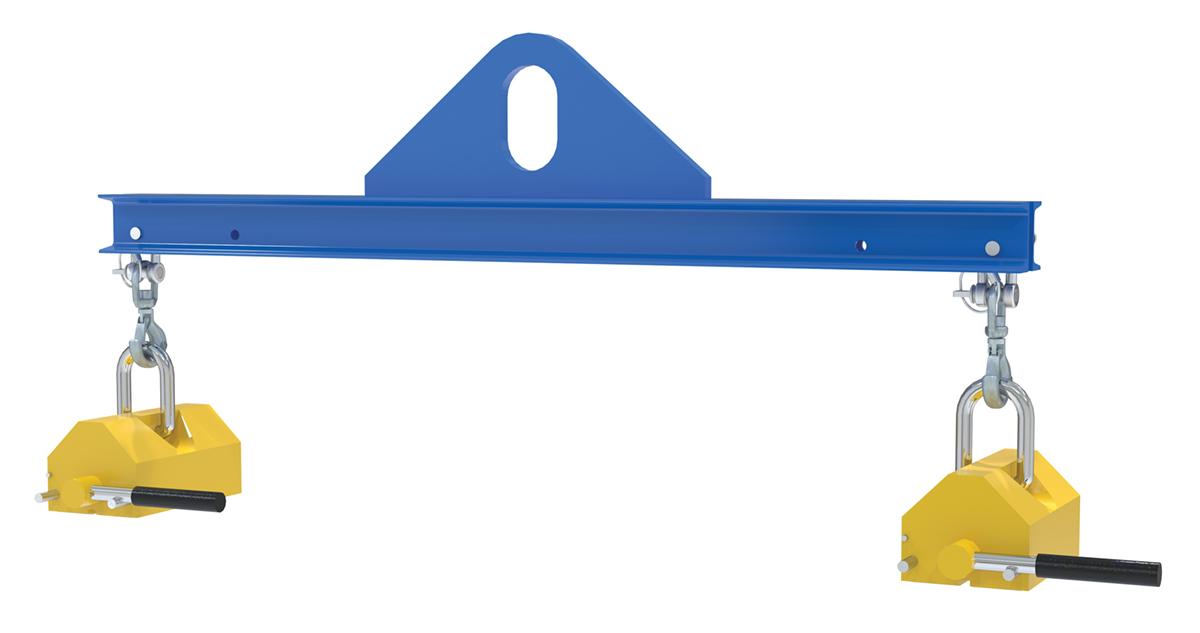

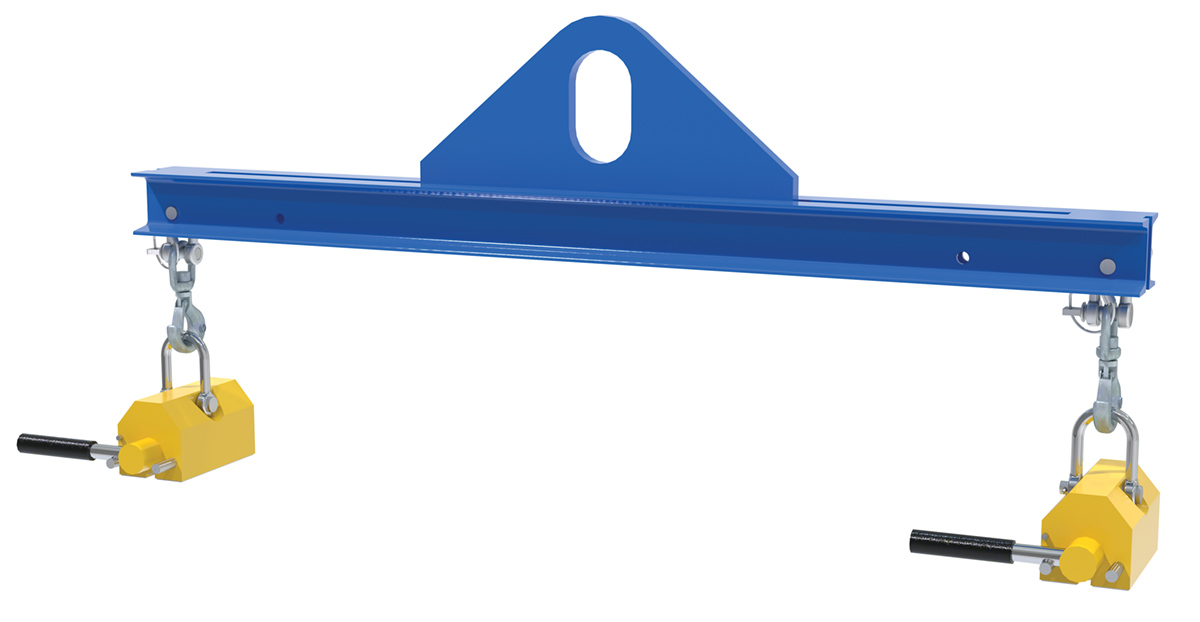

SBM-20-4-ML

SBM-20-4-ML

SBM-20-3-ML

SBM-20-3-ML

SBM-20-3-ML

SBM-20-3-ML

SBM-20-3-ML

SBM-20-3-ML

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SBM-10-10-ML SBM-10-10-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 120 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		245
SBM-10-12-ML SBM-10-12-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 144 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		266
SBM-10-3-ML SBM-10-3-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 36 In. Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		2163
SBM-10-4-ML SBM-10-4-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 48 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		2183
SBM-10-6-ML SBM-10-6-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 72 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		189
SBM-10-8-ML SBM-10-8-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 96 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		201
SBM-20-10-ML SBM-20-10-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 120 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"		342

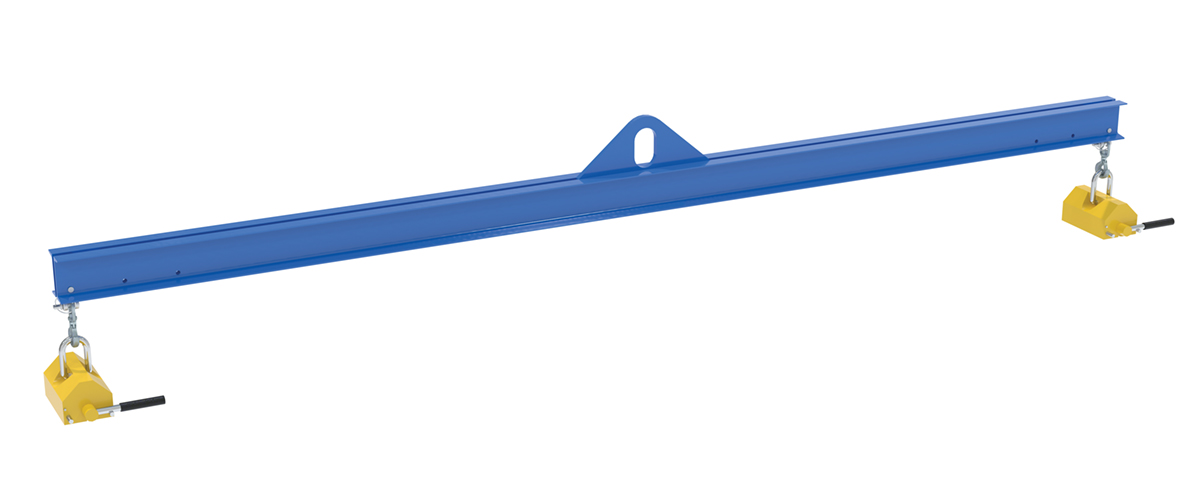

SBM-20-12-ML SBM-20-12-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 144 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"		369
SBM-20-3-ML SBM-20-3-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 36 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 22-11/32"		188
SBM-20-4-ML SBM-20-4-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 48 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"		208
SBM-20-6-ML SBM-20-6-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 72 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"		269
SBM-20-8-ML SBM-20-8-ML90 Days Limited WarrantySteel Magnetic Spreader Beam 96 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"		320

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

SBM-10-10-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"

SBM-10-12-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"

SBM-10-3-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"

SBM-10-4-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"

SBM-10-6-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"

SBM-10-8-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"
Uniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"

SBM-20-10-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"
Uniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"

SBM-20-12-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"
Uniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"

SBM-20-3-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-11/32"
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-11/32"

SBM-20-4-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"

SBM-20-6-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"

SBM-20-8-ML
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"
Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"
Magnetic Spreader Beams PDF's will open in a new window when clicked.

Manuals


SBM-ML
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SBM-10-10-ML

SBM-10-12-ML

SBM-10-3-ML

SBM-10-4-ML

SBM-10-6-ML

SBM-10-8-ML

SBM-20-10-ML

SBM-20-12-ML

SBM-20-3-ML

SBM-20-4-ML

SBM-20-6-ML

SBM-20-8-ML

Testing Certificates


SBM-10-10-ML

SBM-10-12-ML

SBM-10-3-ML

SBM-10-4-ML

SBM-10-6-ML

SBM-10-8-ML

SBM-20-10-ML

SBM-20-12-ML

SBM-20-3-ML

SBM-20-4-ML

SBM-20-6-ML

SBM-20-8-ML

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Heavy Duty Load Lifter
Product

Heavy Duty Load Lifter

Spreader Beam Roll Lifter
Product

Spreader Beam Roll Lifter

Adjustable Spreader Beams
Product

Adjustable Spreader Beams

Basket Lifting Beam
Product

Basket Lifting Beam

Spreader Beam With Adjustable Hand Chain Crank Bail
Product

Spreader Beam With Adjustable Hand Chain Crank Bail

Economy Spreader Beams
Product

Economy Spreader Beams

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Magnetic Spreader Beams




This versatile magnetic Spreader Beam is ideal for lifting a variety of loads where headroom is limited. The attached magnets allow for easy lifting and transferring of products from workstation to workstation. Powder coated finish limits abrasion and ads durability to the units' longevity.

  • Designed to lift and move awkward loads
  • Large capacity for moving objects both big and small
  • Includes magnets for lifting versatility
  • Steel construction for heavy duty performance
SBM-10-#-ML Models
1/8" Flat Material Capacity 1/4" Flat Material Capacity 3/8" Flat Material Capacity 3/8" Round Material Capacity
Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit
260 lbs 520 lbs 460 lbs 920 lbs 500 lbs 1000 lbs 200 lbs 400 lbs
Model List: SBM-10-3-ML, SBM-10-4-ML, SBM-10-6-ML, SBM-10-8-ML, SBM-10-10-ML, SBM-10-12-ML
SBM-20-#-ML Models
1/4" Flat Material Capacity 3/8" Flat Material Capacity 5/8" Flat Material Capacity 1" Flat Material Capacity 1" Round Material Capacity
Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit Per Magnet Per Unit
520 lbs 1040 lbs 790 lbs 1580 lbs 1000 lbs 2000 lbs 1000 lbs 2000 lbs 400 lbs 800 lbs
Model List: SBM-20-3-ML, SBM-20-4-ML, SBM-20-6-ML, SBM-20-8-ML, SBM-20-10-ML, SBM-20-12-ML

Model # Description Attributes Net Wt.
(lbs)
SBM-10-10-ML SBM-10-10-MLSteel Magnetic Spreader Beam 120 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		245
SBM-10-12-ML SBM-10-12-MLSteel Magnetic Spreader Beam 144 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		266
SBM-10-3-ML SBM-10-3-MLSteel Magnetic Spreader Beam 36 In. Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		116
SBM-10-4-ML SBM-10-4-MLSteel Magnetic Spreader Beam 48 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		136
SBM-10-6-ML SBM-10-6-MLSteel Magnetic Spreader Beam 72 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		189
SBM-10-8-ML SBM-10-8-MLSteel Magnetic Spreader Beam 96 In Length 1,000 Lb. Capacity BlueUniform Static Capacity (lb.): 1000
Headroom (in.): 20-15/16"		201
SBM-20-10-ML SBM-20-10-MLSteel Magnetic Spreader Beam 120 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"		342
SBM-20-12-ML SBM-20-12-MLSteel Magnetic Spreader Beam 144 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 23-3/8"		369
SBM-20-3-ML SBM-20-3-MLSteel Magnetic Spreader Beam 36 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 22-11/32"		188
SBM-20-4-ML SBM-20-4-MLSteel Magnetic Spreader Beam 48 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"		208
SBM-20-6-ML SBM-20-6-MLSteel Magnetic Spreader Beam 72 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"		269
SBM-20-8-ML SBM-20-8-MLSteel Magnetic Spreader Beam 96 In Length 2,000 Lb. Capacity BlueUniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"		320
