Model Details

← All Products- ← Loading Dock Equipment- ← Trailer Stabilizing Jacks -← Mechanical Screw Jacks- J-20

J-20

Printer Friendly
Available
J-20
J-20 J-20 J-20

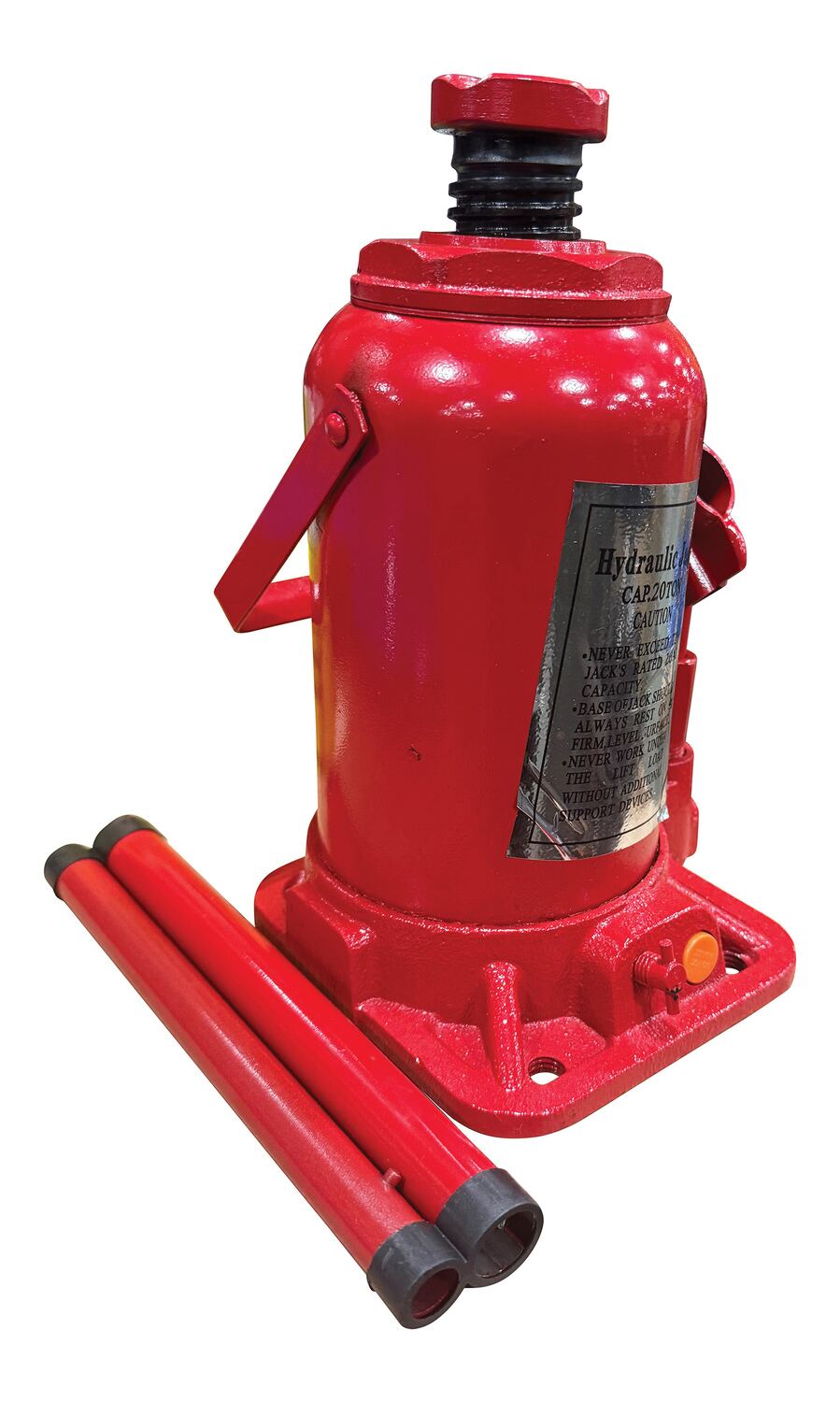

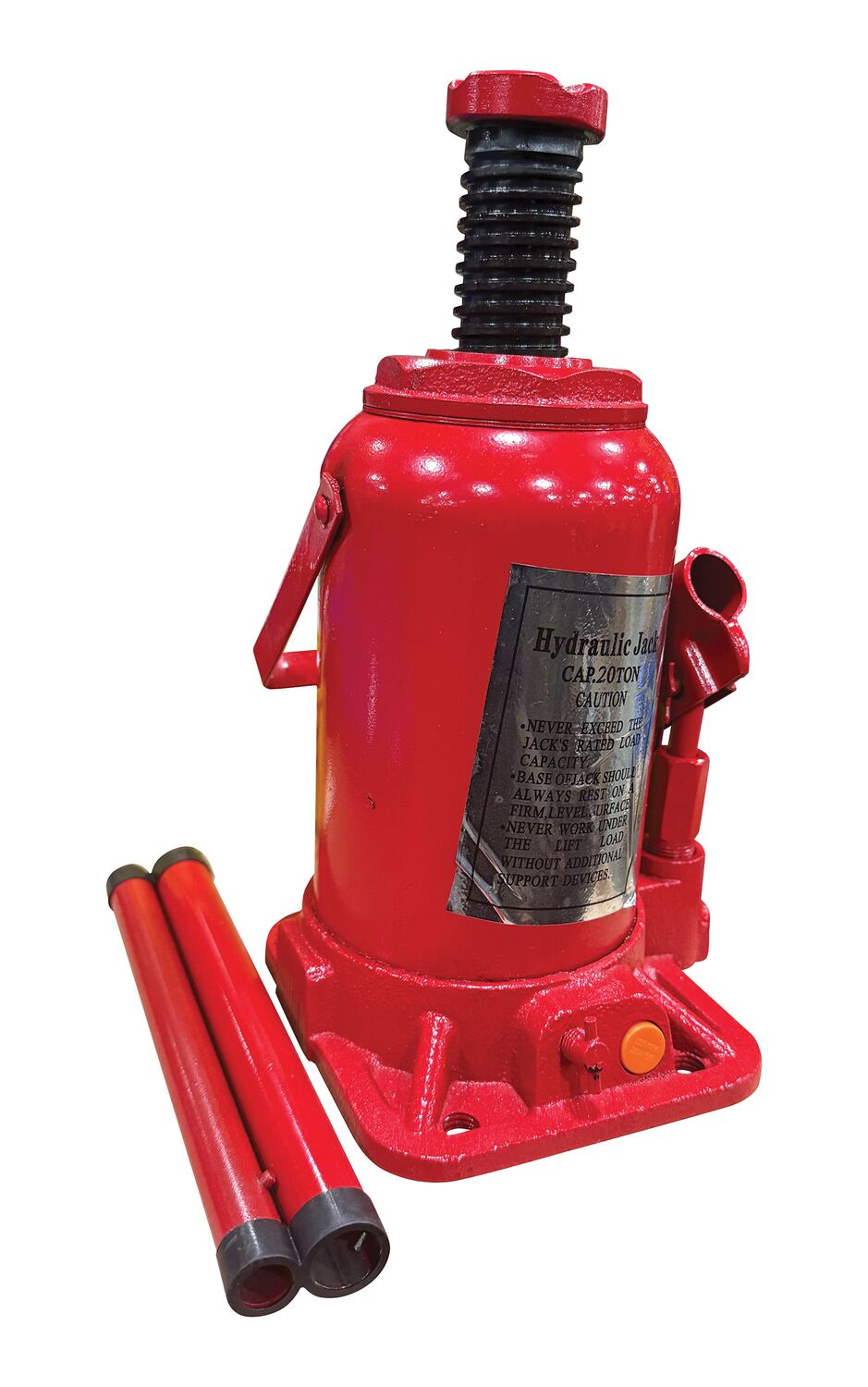

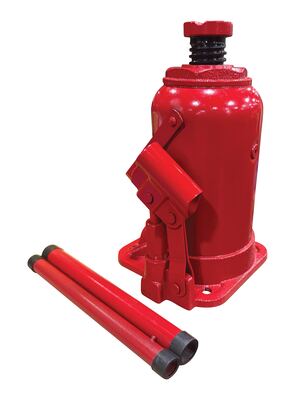

Steel Hydraulic Bottle Jack 6-1/32 In. x 9-7/16 In. x 29-19/32 In. 40,000 Lb. Capacity Red

The hydraulic bottle jack is ideal for the manufacturing and maintenance industries. The design allows for an impacting surface area which creates more stability. The steel construction enables the product to be strong and durable. The included handle is removable.

  • Hydraulic bottle jack is for loading dock equipment for ideal operation
  • Paint is oil, grease and dirt resistant for easy cleanup
  • No seals will leak and will not drift down even after an extended period of time
  • Use in industrial applications for optimal results
Assembled Wt.(lbs.): 41 Assembled Size: 6.0312"W x 28.5937"L x 9.4375"H

Total Ship Wt.(lbs.): 45 (only 1 package) Package 1 Size: 11"W x 39"D x 8"H Color: Red

Uniform Capacity (lb.): 40000 Lowered Height (in.): 10 Raised Height (in.): 19
Travel Distance (in.): 9 Handle: Removable Overall Height (in.): 9-7/16
Base Width (in.): 6-1/32 Base Depth (in.): 5-1/2 Overall Length (in.): 29-19/32
Handle Length (in.): 28-19/32

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

30 Days Limited Warranty

Details For Model: J-20
Available
J-20

Steel Hydraulic Bottle Jack 6-1/32 In. x 9-7/16 In. x 29-19/32 In. 40,000 Lb. Capacity Red

The hydraulic bottle jack is ideal for the manufacturing and maintenance industries. The design allows for an impacting surface area which creates more stability. The steel construction enables the product to be strong and durable. The included handle is removable.

  • Hydraulic bottle jack is for loading dock equipment for ideal operation
  • Paint is oil, grease and dirt resistant for easy cleanup
  • No seals will leak and will not drift down even after an extended period of time
  • Use in industrial applications for optimal results
Dimensions: 6.0312"W x 28.5937"L x 9.4375"H Sell UOM: EA-Each Color: Red
Material: Steel UPC: 691215024655 GTIN: 00691215024655
Warranty: -- Shipping Weight: 45 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: CN
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 40000 Lowered Height (in.): 10 Raised Height (in.): 19
Travel Distance (in.): 9 Handle: Removable Overall Height (in.): 9-7/16
Base Width (in.): 6-1/32 Base Depth (in.): 5-1/2 Overall Length (in.): 29-19/32
Handle Length (in.): 28-19/32
