Model Details

← All Products- ← Fork Truck Attachments- ← Lift Master Booms -← Carriage Mounted Fork Truck Booms- LM-CM3-EBT-4

LM-CM3-EBT-4

Printer Friendly
Available
LM-CM3-EBT-4
LM-CM3-EBT-4

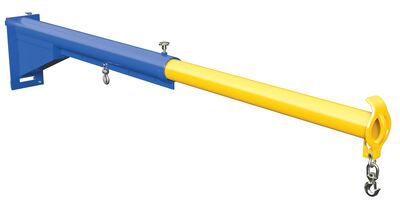

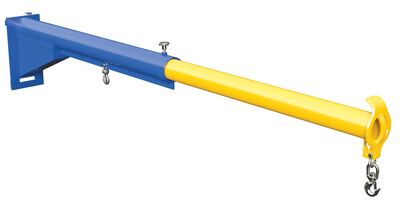

Steel Carriage Mount Lift Master Boom Class III 4,000 Lb. Capacity Blue and Yellow

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.

  • Converts fork trucks into overhead lifting cranes
  • Class III carriage mount
  • Telescoping design
  • Hooks included for simple product attachment
Assembled Wt.(lbs.): 383 Assembled Size: 12"W x 145.875"L x 27.625"H

Total Ship Wt.(lbs.): 414 (only 1 package) Package 1 Size: 44"W x 96"D x 17"H Color: Blue/Yellow

Mounting Style: Carriage Mount Class 3 Uniform Capacity (lbs): 4,000 Capacity at 48 In Extended (lb.): 3750
Capacity at 60 In Extended (lb.): 3500 Capacity at 72 In Extended (lb.): 3250 Capacity at 84 In Extended (lb.): 3000
Capacity at 96 In Extended (lb.): 2750 Capacity at 108 In Extended (lb.): 2500 Capacity at 120 In Extended (lb.): 2250
Capacity at 132 In Extended (lb.): 2000 Capacity at 144 In Extended (lb.): 1750 Overall Width (in.): 12
Overall Length (in.): 145-7/8 Overall Height (in.): 27-5/8 Retracted Center of Gravity (in.): 33-3/4
Extended Center of Gravity (in.): 50-7/8 Vertical Center of Gravity (in.): 18-3/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Marketing Specs.

MFG Model # (Series)
LM-CM3-EBT-4
Product Name
Steel Carriage Mount Lift Master Boom Class III 4,000 Lb. Capacity Blue and Yellow
UPC
691215377898
GTIN
00691215377898
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Lifting Boom
Assembled Depth (in.)
145.875
Assembled Width(in.)
12
Assembled Height(in.)
27.625
Assembled Weight(lbs.)
383
Color/Finish
Blue/Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
96
Package Width (in.)
44
Package Height (in.)
17
Package Weight (in.)
414
Subclass
2
Freight Class
100
NMFC Code
Derrick bases booms legs mast or sills or sections
NMFC Number
119380
LTL Freight
LTL Palletized
UNSPSC
22101803
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2025 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LM-CM3-EBT-4
Available
LM-CM3-EBT-4

Steel Carriage Mount Lift Master Boom Class III 4,000 Lb. Capacity Blue and Yellow

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.

  • Converts fork trucks into overhead lifting cranes
  • Class III carriage mount
  • Telescoping design
  • Hooks included for simple product attachment
Dimensions: 12"W x 145.875"L x 27.625"H Sell UOM: EA-Each Color: Blue/Yellow
Material: Steel UPC: 691215377898 GTIN: 00691215377898
Warranty: -- Shipping Weight: 414 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Mounting Style: Carriage Mount Class 3 Uniform Capacity (lbs): 4,000 Capacity at 48 In Extended (lb.): 3750
Capacity at 60 In Extended (lb.): 3500 Capacity at 72 In Extended (lb.): 3250 Capacity at 84 In Extended (lb.): 3000
Capacity at 96 In Extended (lb.): 2750 Capacity at 108 In Extended (lb.): 2500 Capacity at 120 In Extended (lb.): 2250
Capacity at 132 In Extended (lb.): 2000 Capacity at 144 In Extended (lb.): 1750 Overall Width (in.): 12
Overall Length (in.): 145-7/8 Overall Height (in.): 27-5/8 Retracted Center of Gravity (in.): 33-3/4
Extended Center of Gravity (in.): 50-7/8 Vertical Center of Gravity (in.): 18-3/8
